The Allen-Bradley 5820-EI/A Ethernet Interface Module is designed to provide seamless Ethernet TCP/IP connectivity between PLC-5/250 processors and various host computers, including HP 9000, VAX/MS, and Intel i386 and i486 personal computers equipped with INTERCHANGE or RSLinx software. This integration facilitates efficient communication across industrial networks, enhancing system performance and interoperability.

Key Features

• Versatile Connectivity: Supports a wide range of host computers, allowing for flexible integration into existing systems.
• Cost-Effective Integration: Reduces system integration costs by leveraging existing host computers and infrastructure.
• Standard Protocol Implementation: Implements the Simple Network Management Protocol (SNMP) for effective network management and monitoring.
• Support for Existing PLC Processors: Ensures compatibility with the installed base of Allen-Bradley PLC processors on the Data Highway, preserving previous investments.

Technical Specifications

• Serial Connector: 37-pin

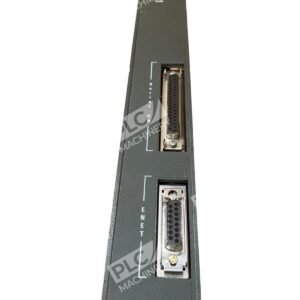

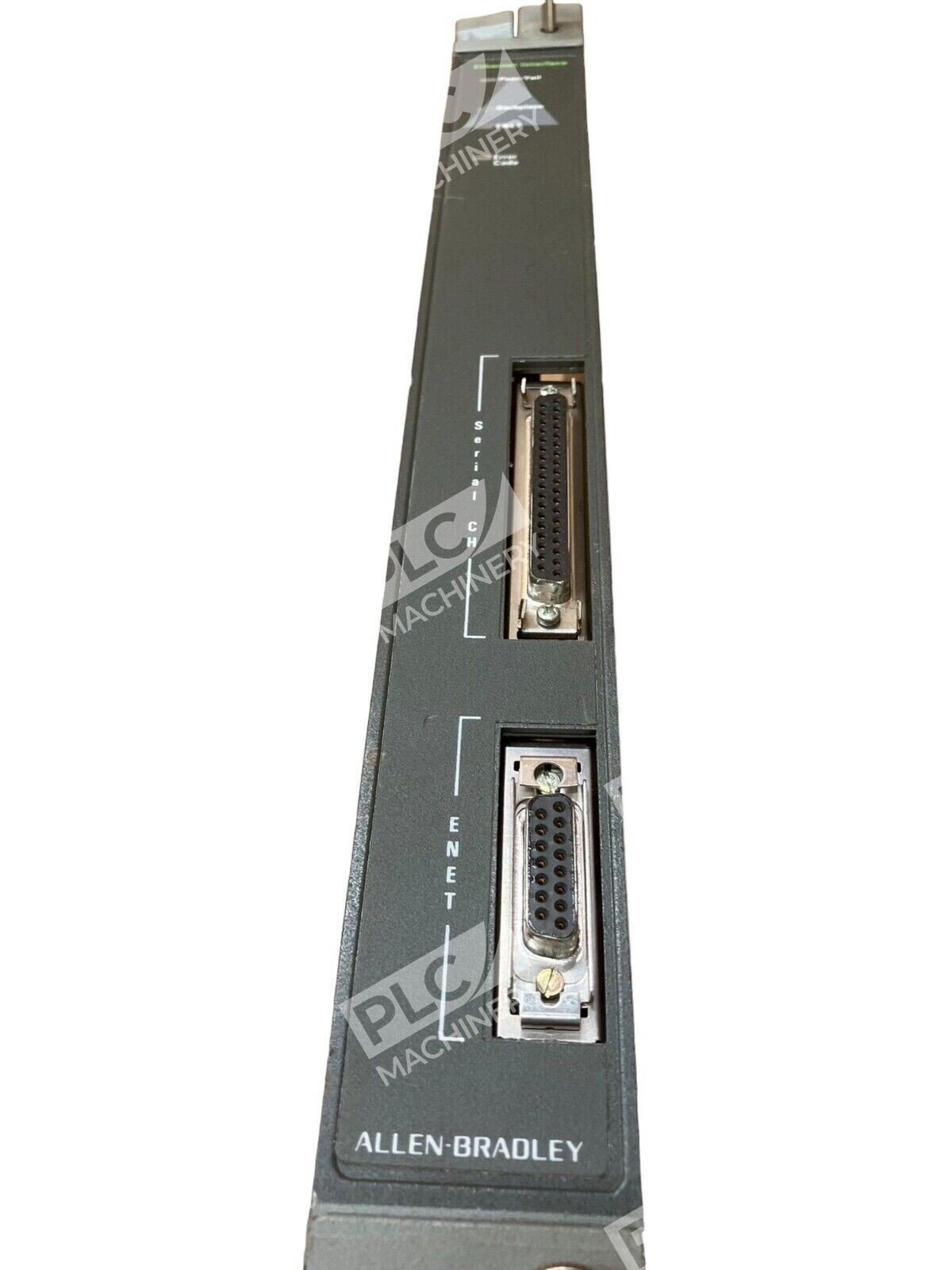

• Ethernet Connector: 15-pin ENET
• Indicator Lights: LED indicators for status monitoring
• Part Number: 540008005

Applications

The 5820-EI/A module is ideal for industrial environments requiring reliable Ethernet communication between PLC-5/250 processors and host computers. Its robust design and compatibility make it suitable for various applications, including manufacturing automation, process control, and data acquisition systems.

Additional Information

For detailed installation instructions and technical documentation, refer to the Allen-Bradley 5820-EI/A datasheet and user manuals. These resources provide comprehensive guidance on module setup, configuration, and troubleshooting to ensure optimal performance within your industrial network.
