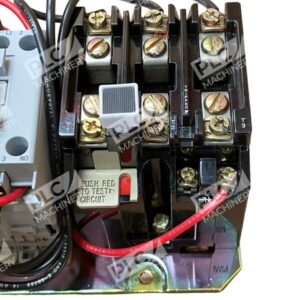

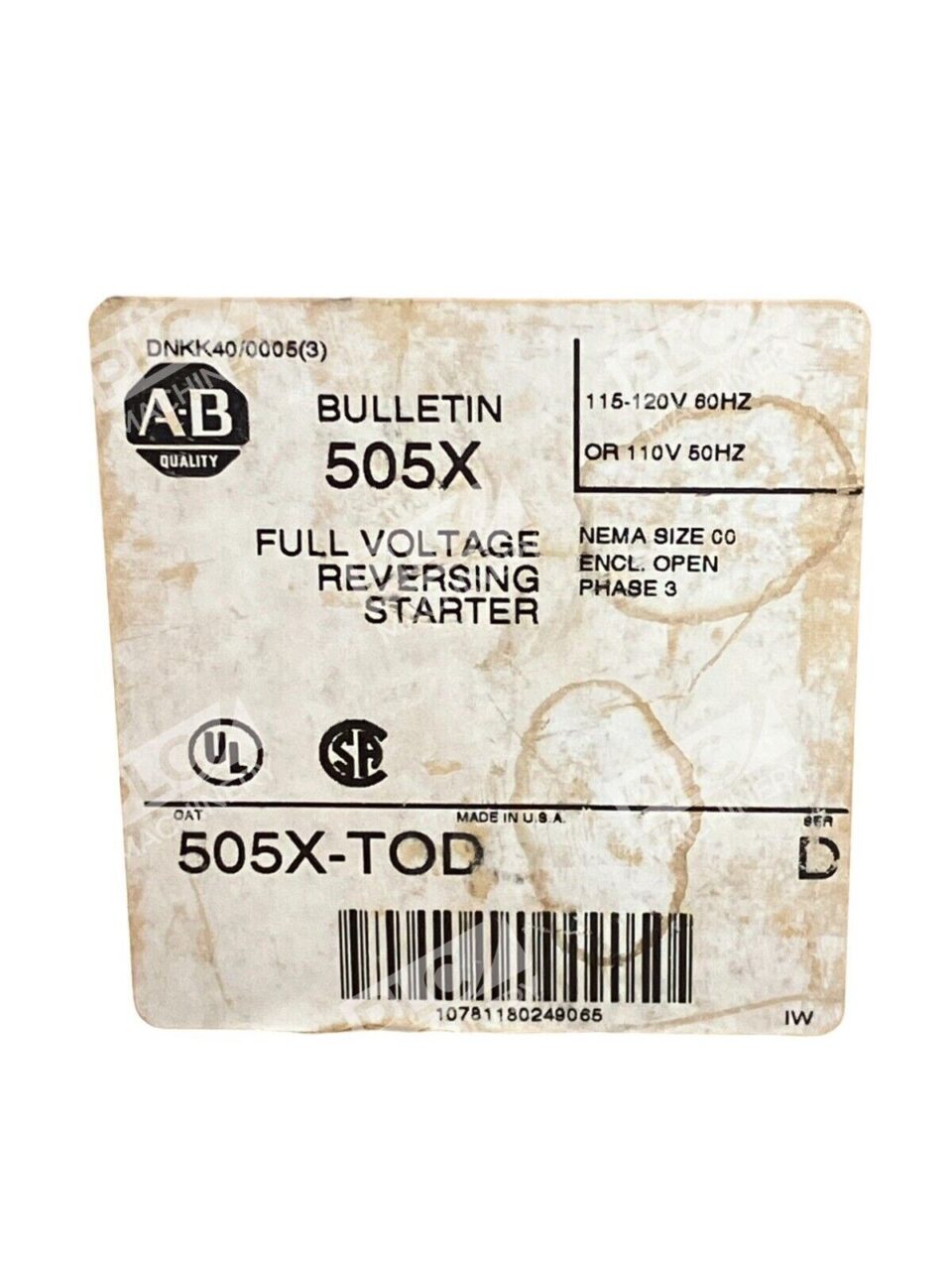

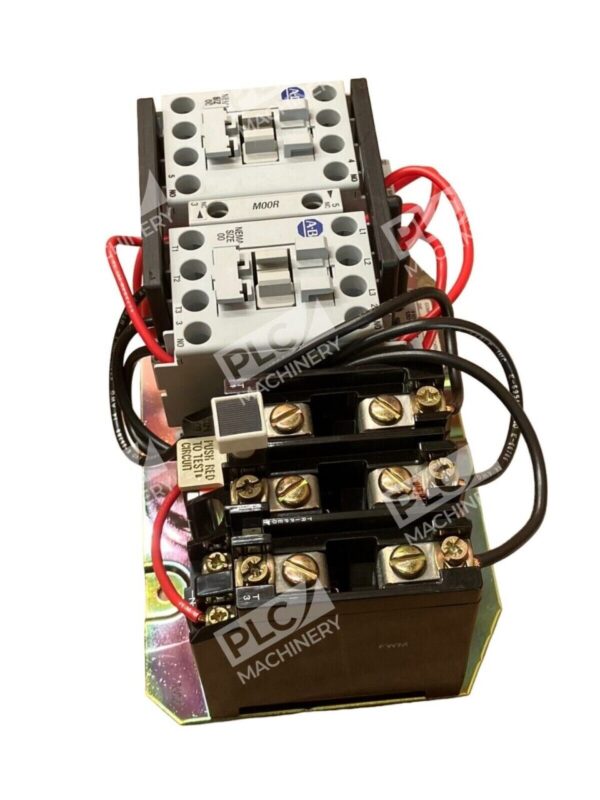

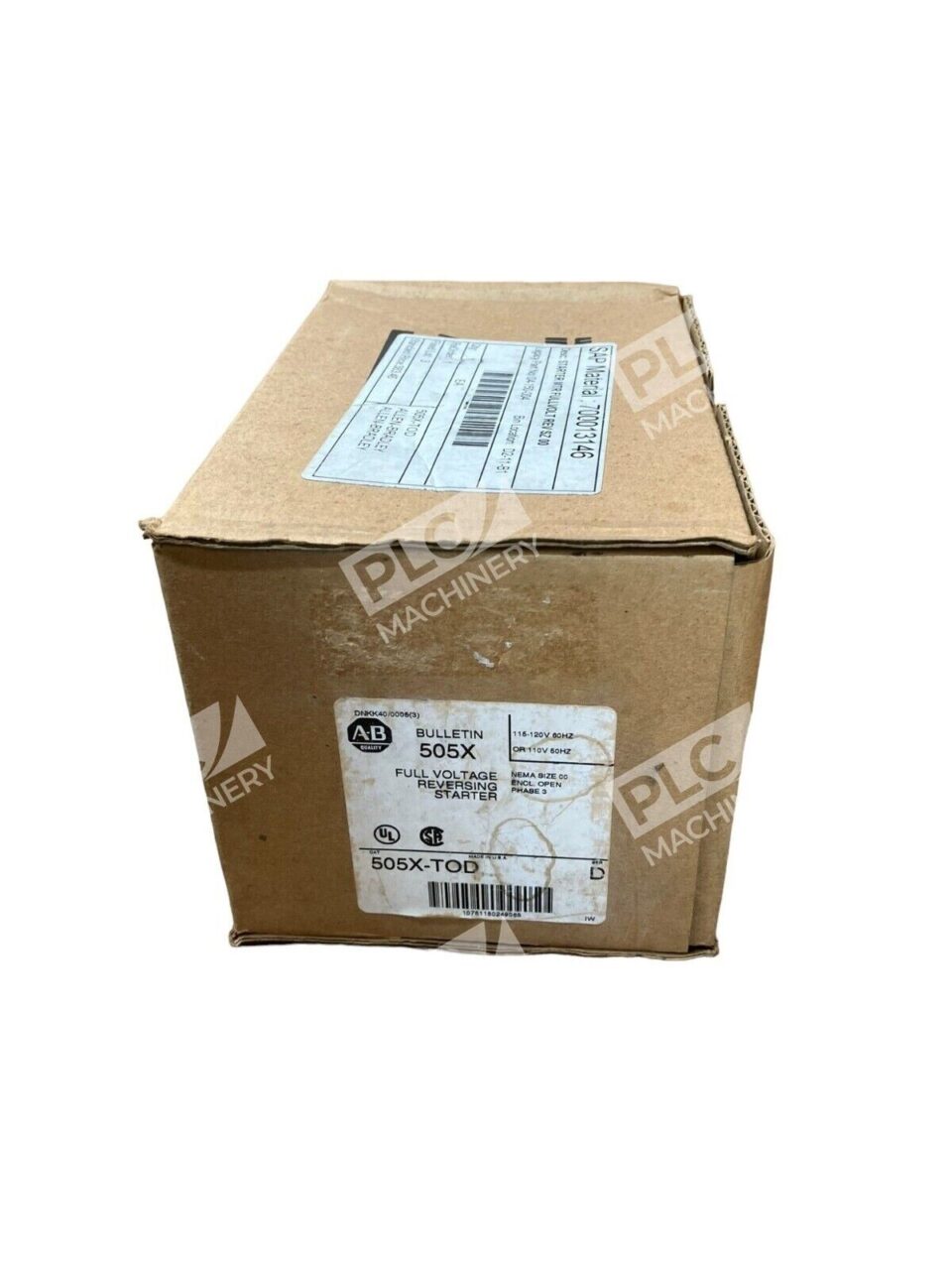

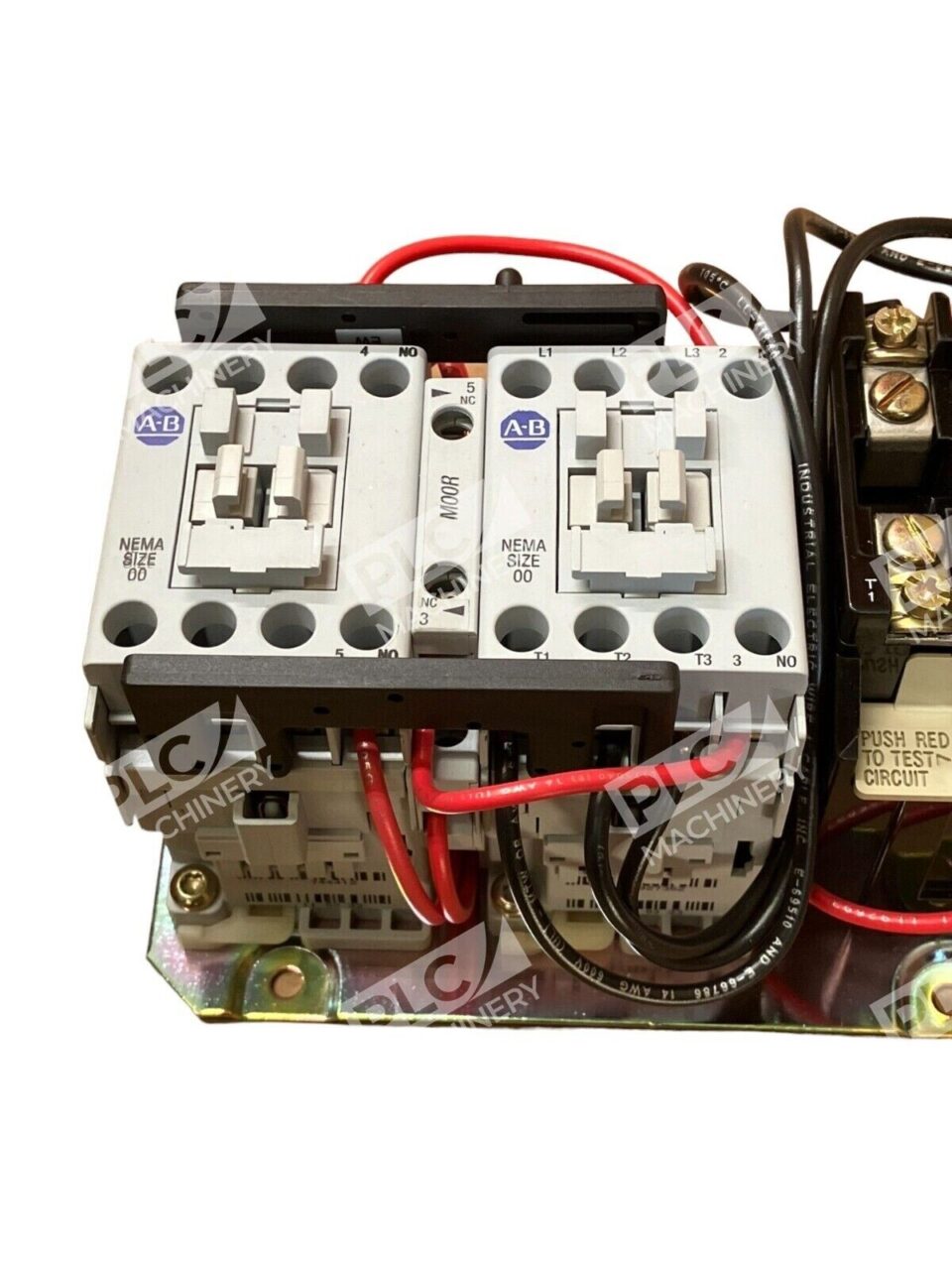

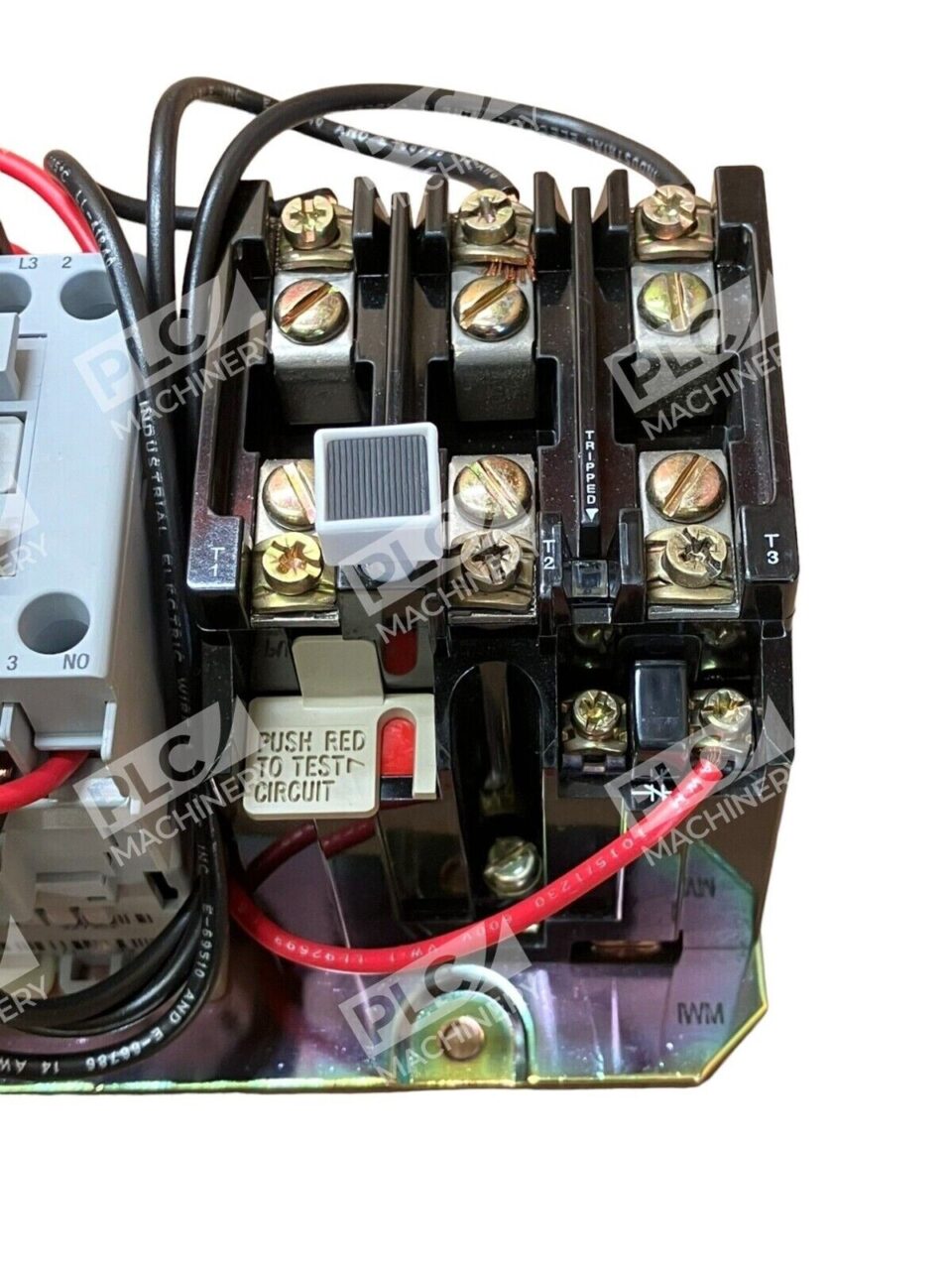

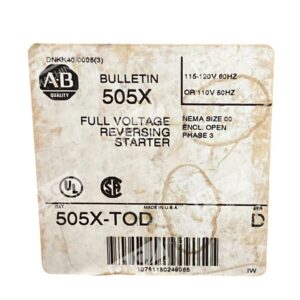

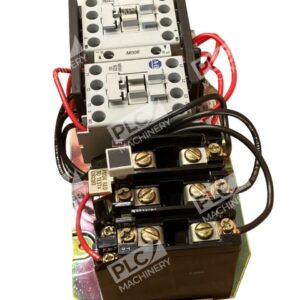

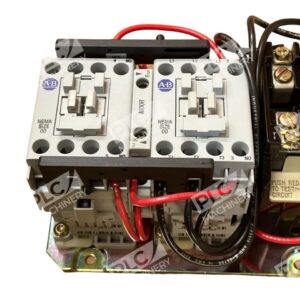

Allen Bradley 505X-TOD /D Reversing Starter
The Allen Bradley 505X-TOD /D is a NEMA Size 00 reversing starter designed for efficient control of three-phase AC motors. This open-type starter is engineered to provide reliable performance in various industrial applications.
Key Features
- Voltage Compatibility: Operates at up to 600V AC, accommodating a range of industrial power systems.
- Current Rating: Rated for 9 amps continuous current, suitable for small to medium-sized motors.
- Reversing Functionality: Allows for bidirectional control of motor operations, essential for applications requiring forward and reverse movements.
- Coil Voltage: Equipped with a 120V AC coil, ensuring compatibility with standard control circuits.
- Construction: Open-type design facilitates easy integration into existing control panels and systems.
Applications
The 505X-TOD /D is ideal for controlling motors in conveyor systems, pumps, fans, and other machinery where reversing capabilities are necessary. Its compact design and reliable performance make it a valuable component in manufacturing and processing industries.

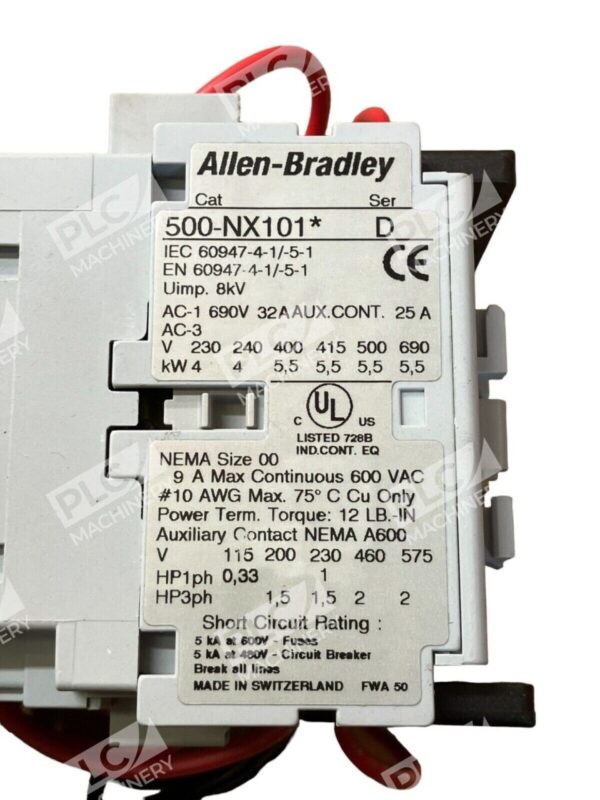

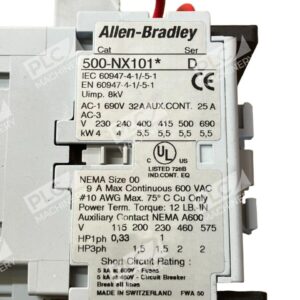

Specifications
- Manufacturer: Allen Bradley

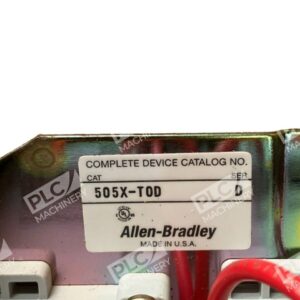

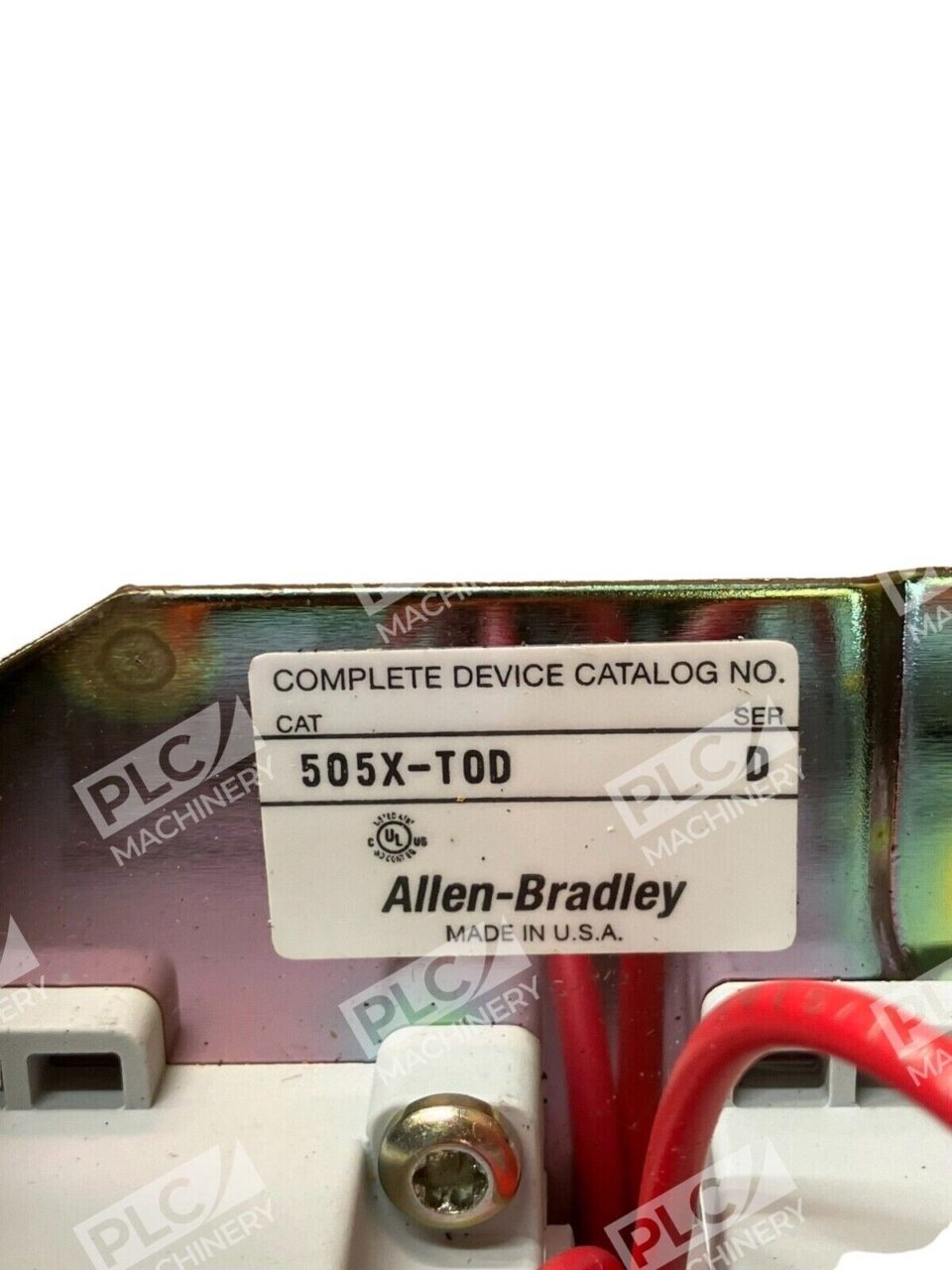

- Catalog Number: 505X-TOD /D
- NEMA Size: 00
- Voltage Rating: Up to 600V AC
- Current Rating: 9 A
- Coil Voltage: 120V AC
- Type: Reversing Starter
- Enclosure Type: Open
For more detailed information and technical documentation, please refer to the manufacturer’s resources or contact an authorized Allen Bradley distributor.
