Allen Bradley 42185-800-01 w/ 509-AOD /B 2x 595-A /B

Allen-Bradley 42185-800-01 with 509-AOD /B and Dual 595-A /B

The Allen-Bradley 42185-800-01 is a robust overload relay designed to safeguard electrical equipment from overcurrent conditions. This unit is paired with the 509-AOD /B motor starter and two 595-A /B auxiliary contacts, forming a comprehensive motor control solution suitable for various industrial applications.

Key Features

• Overload Relay (42185-800-01): Provides reliable protection against overloads, ensuring the longevity and safety of connected equipment.
• Motor Starter (509-AOD /B): A NEMA Size 0 non-reversing starter capable of handling up to 18A continuous current at a maximum of 600V AC. It features a 120V 60Hz coil and is designed for direct online starting of motors.

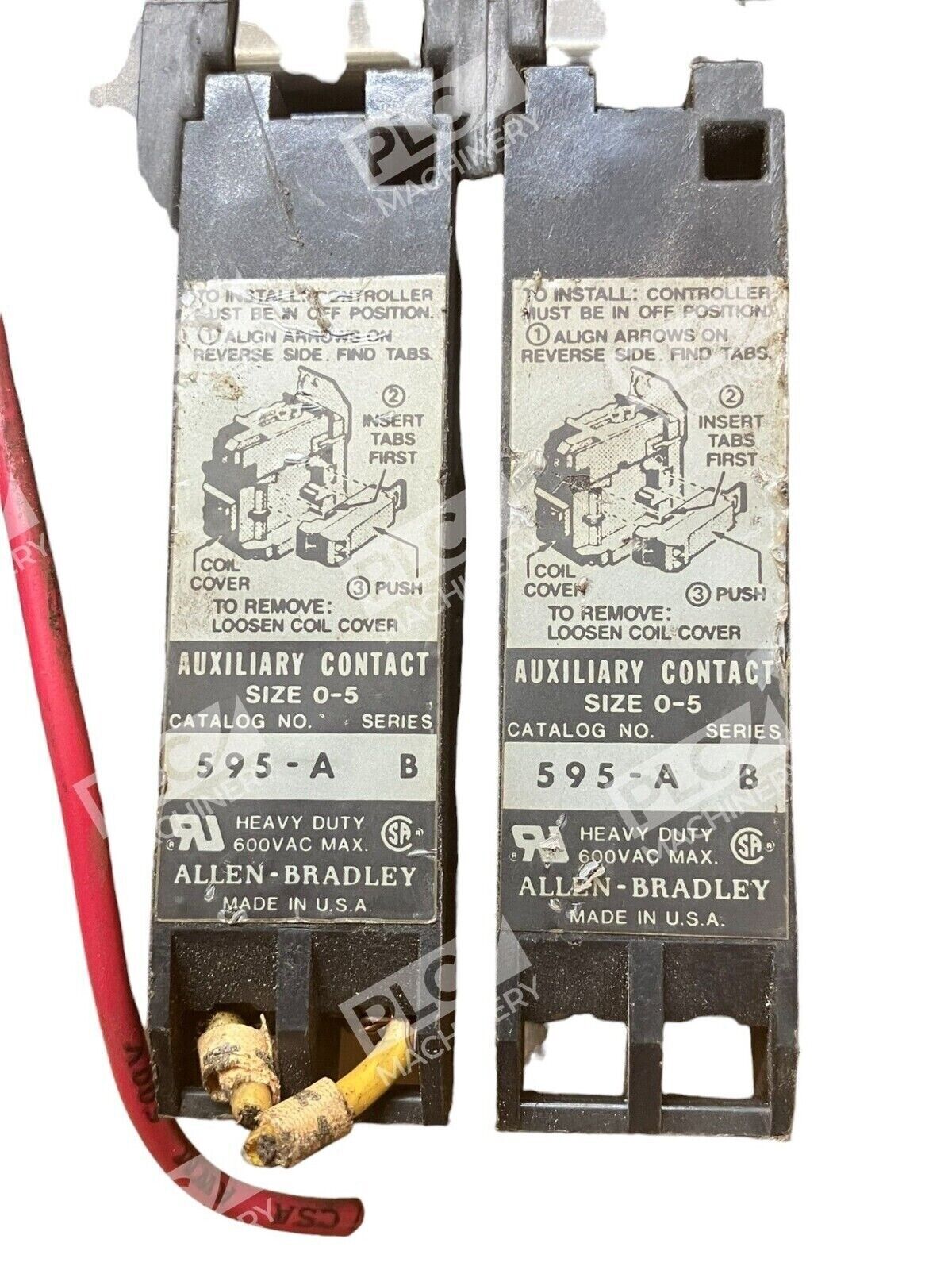

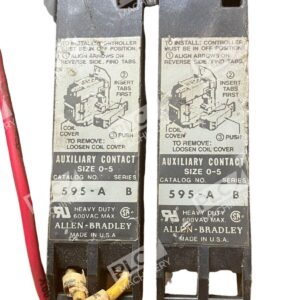

• Auxiliary Contacts (595-A /B): Two auxiliary contacts that enhance the control capabilities of the motor starter, allowing for additional circuit configurations and control logic.

Specifications

• Continuous Current Rating: 18A
• Maximum Voltage: 600V AC
• Coil Voltage: 120V 60Hz
• Starter Type: Non-reversing, direct online
• Overload Protection: Eutectic alloy overload relay
• Auxiliary Contacts: Two 595-A /B units

Applications

This assembly is ideal for industrial environments requiring reliable motor control and protection. It is commonly used in manufacturing plants, processing facilities, and other settings where consistent motor operation is critical.

Installation and Maintenance

The unit is designed for straightforward installation with screw-type connections for both main and auxiliary circuits. Regular maintenance, including periodic inspection of contacts and verification of overload settings, is recommended to ensure optimal performance.

By integrating the Allen-Bradley 42185-800-01 overload relay with the 509-AOD /B motor starter and dual 595-A /B auxiliary contacts, this assembly offers a reliable and efficient solution for motor control and protection in demanding industrial applications.
