Allen Bradley 2711P-RSACDIN /A

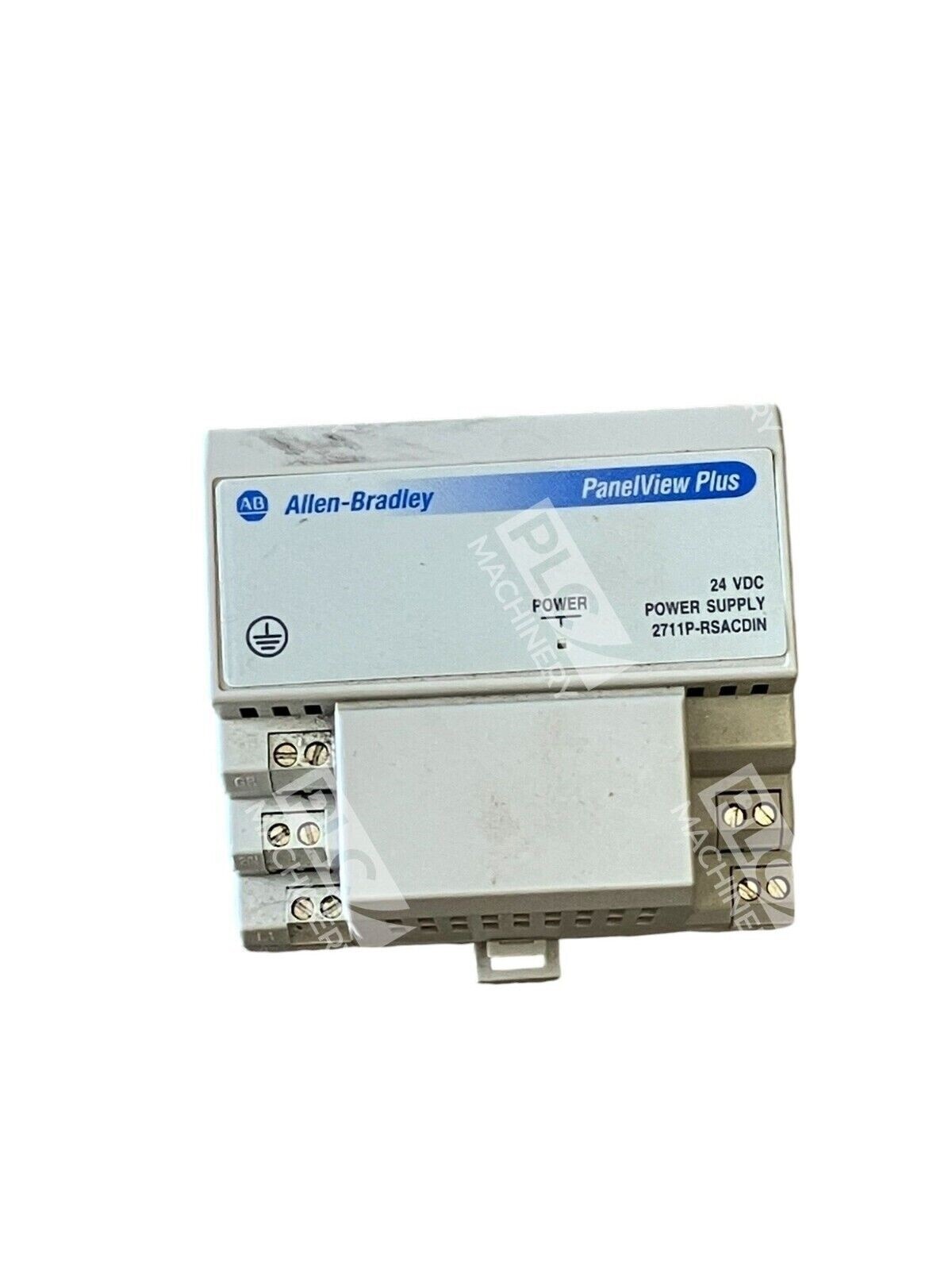

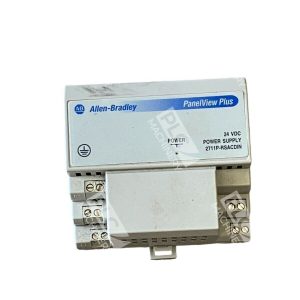

Allen-Bradley 2711P-RSACDIN/A Power Supply

The Allen-Bradley 2711P-RSACDIN/A is a DIN-rail mount AC-to-DC power supply designed to provide reliable power to PanelView Plus and PanelView Plus CE terminals. This power supply ensures consistent performance for industrial automation applications.

Key Features

• Input Voltage Range: 85 to 265V AC at 47 to 63 Hz
• Output Voltage: 24V DC
• Output Current: Up to 3A
• Mounting: DIN-rail mount for easy installation
• Compatibility: Suitable for PanelView Component, PanelView Plus 700-1500, and PanelView Plus CE terminals

Electrical Specifications

• Nominal Output Voltage: 24V DC
• Output Voltage Range: 20.4 to 27.6V DC (including noise and 5% AC ripple)
• Overcurrent Protection: Current limit at 3.2A minimum (107% minimum)
• Overvoltage Protection: Output internally limited to 35V DC; cycle power to re-energize
• Inrush Current: 40A typical, 1 AC cycle at 265V AC and 55°C

Mechanical Specifications

• Dimensions: Approximately 87 mm x 68 mm x 69 mm (3.4 in x 2.7 in x 2.7 in)
• Weight: Approximately 0.4 kg (0.9 lbs)
• Mounting: Designed for DIN-rail mounting

Environmental Specifications

• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Shock: Operating: 30g; Non-operating: 50g
• Vibration: 2g at 10 to 500 Hz

The 2711P-RSACDIN/A power supply is engineered to meet the demands of industrial environments, offering robust performance and compatibility with a range of PanelView terminals. Its compact design and DIN-rail mounting facilitate easy integration into control panels, ensuring a reliable power source for critical automation systems.
