Allen Bradley 24VDC 10A Relay 700-HA32Z24 /D With Square D Base 8501NR51 /B

Allen-Bradley 24VDC 10A Relay 700-HA32Z24 /D with Square D Base 8501NR51 /B

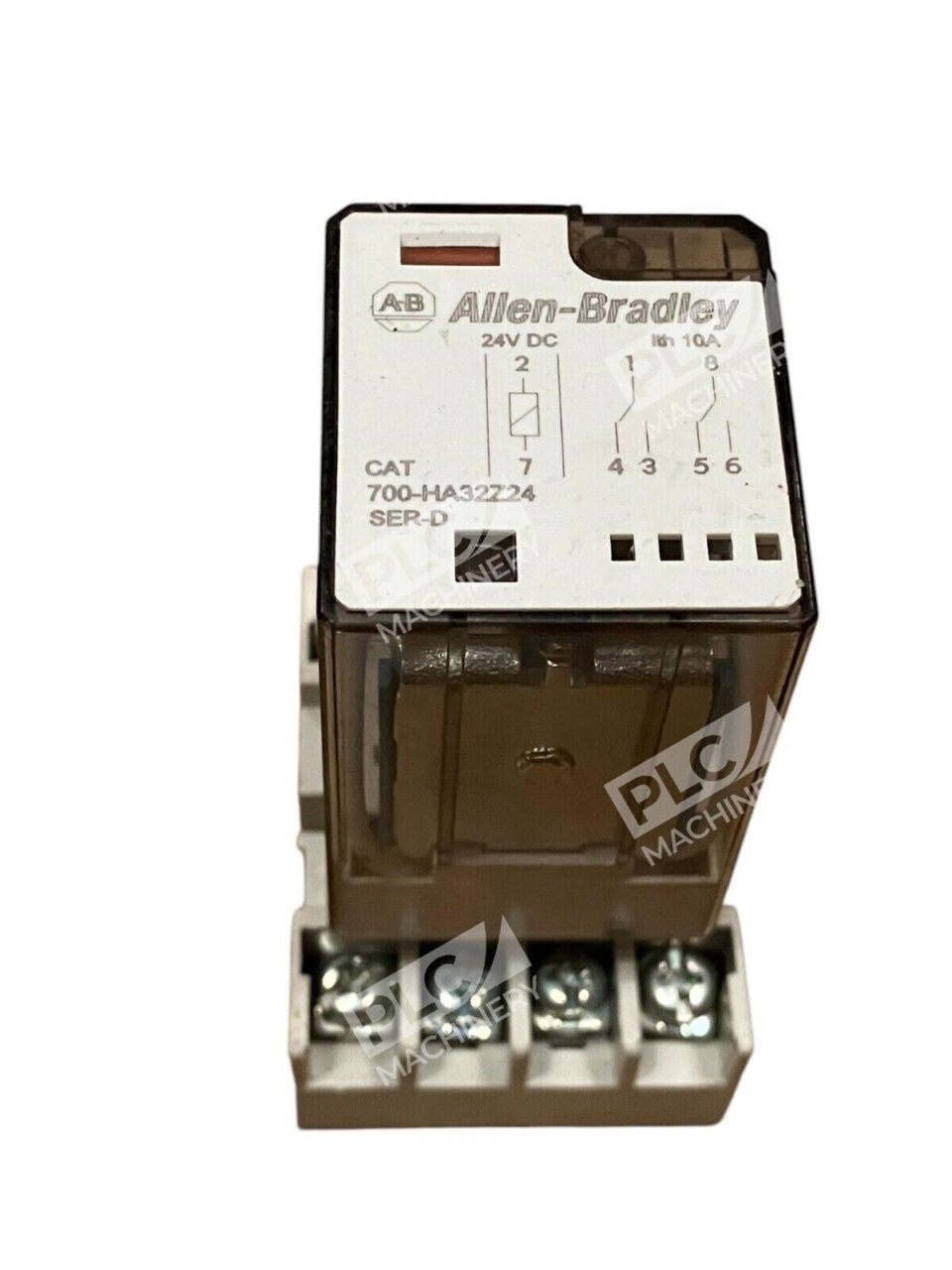

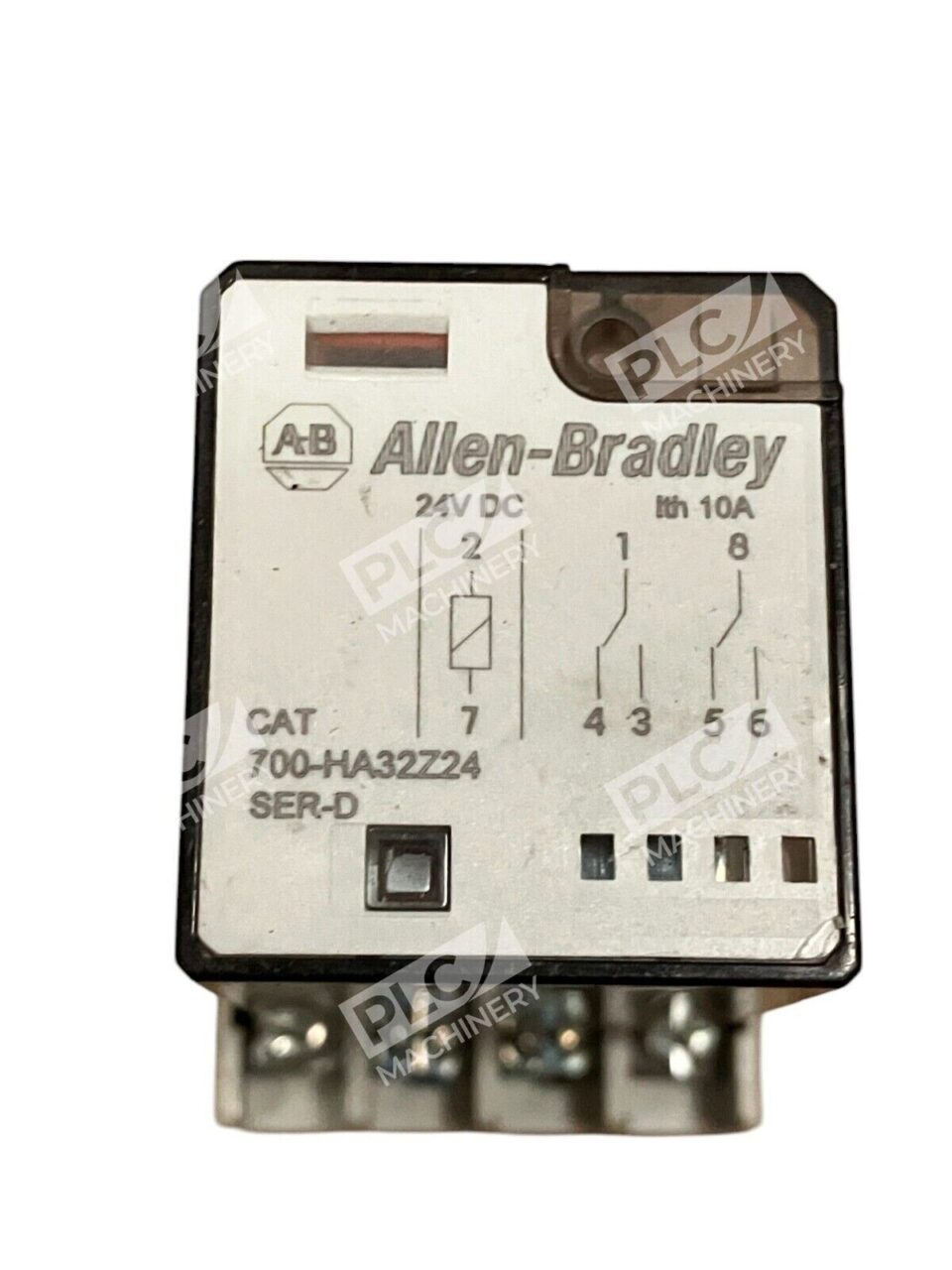

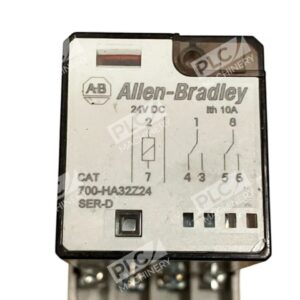

The Allen-Bradley 700-HA32Z24 /D is a general-purpose tube base relay designed for reliable performance in industrial applications. When paired with the Square D 8501NR51 /B relay socket, this combination offers a robust solution for control systems requiring dependable switching capabilities.

Key Features

• Coil Voltage: 24V DC
• Contact Configuration: Double Pole Double Throw (DPDT)
• Contact Rating: 10A at 240V AC
• Electrical Life Cycle: Minimum of 100,000 operations
• Mechanical Life Operations: Up to 50 million cycles
• Operating Temperature Range: -40°C to 55°C
• Dimensions: 32.8 mm (W) x 54.1 mm (H) x 36.5 mm (D)

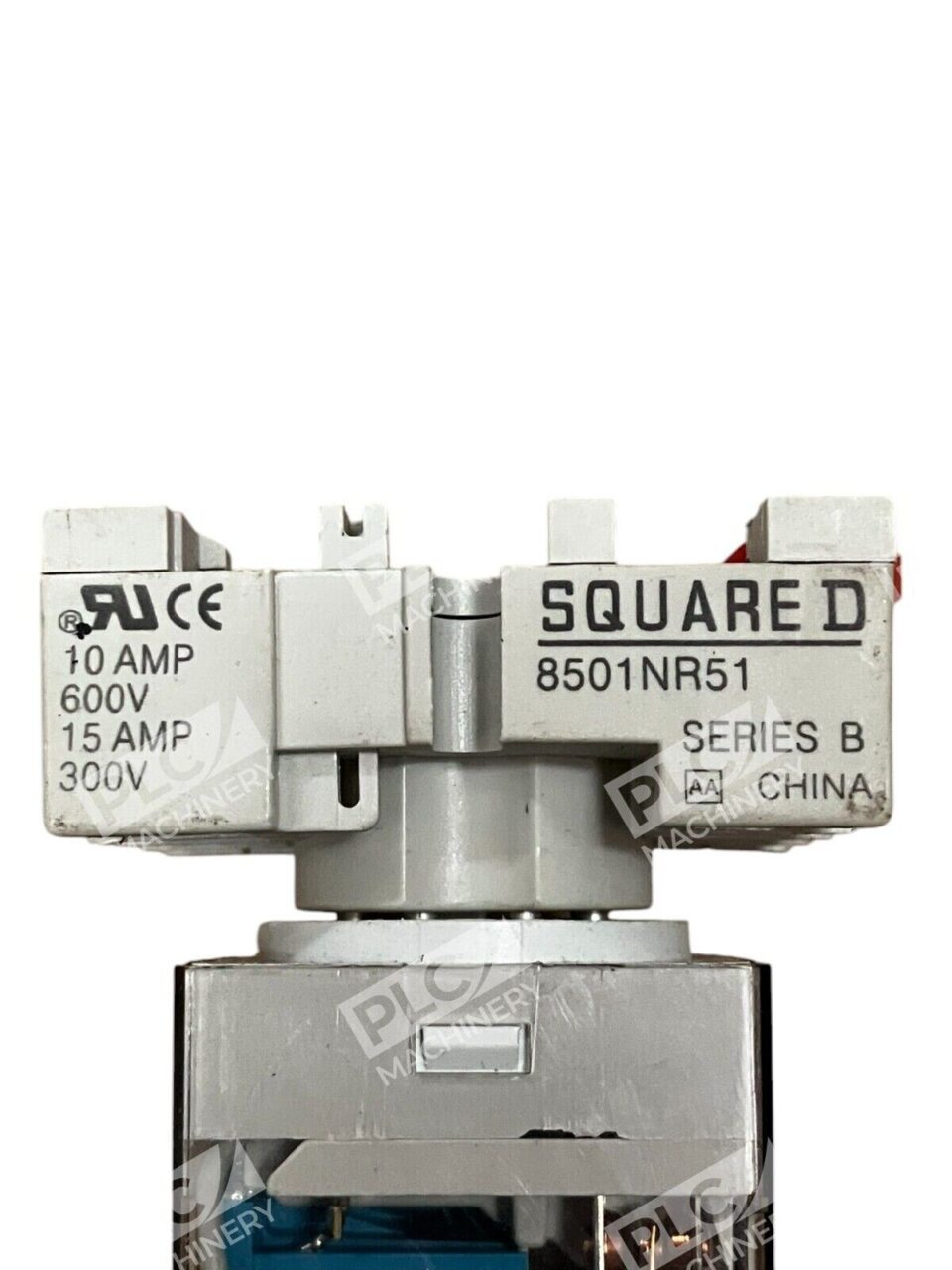

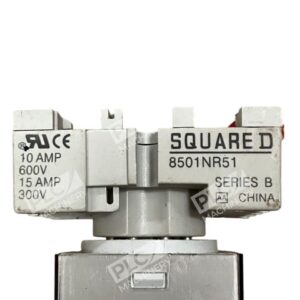

Square D 8501NR51 /B Relay Socket

The Square D 8501NR51 /B relay socket is designed to accommodate 8-pin plug-in relays, providing a secure and efficient connection. Key specifications include:

• Rated Current: 15A at 300V AC, 5A at 600V AC
• Mounting Options: DIN rail or panel mount
• Terminal Type: Screw clamp
• Dimensions: 2.4 in (L) x 1.6 in (W) x 0.86 in (H)

Applications

This relay and socket combination is ideal for various industrial control applications, including:

• Motor control circuits
• Lighting systems
• Heating and cooling systems
• Automation equipment

By integrating the Allen-Bradley 700-HA32Z24 /D relay with the Square D 8501NR51 /B base, users can achieve a reliable and efficient solution for their control system needs.
