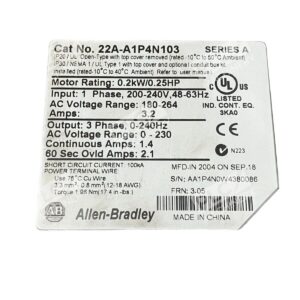

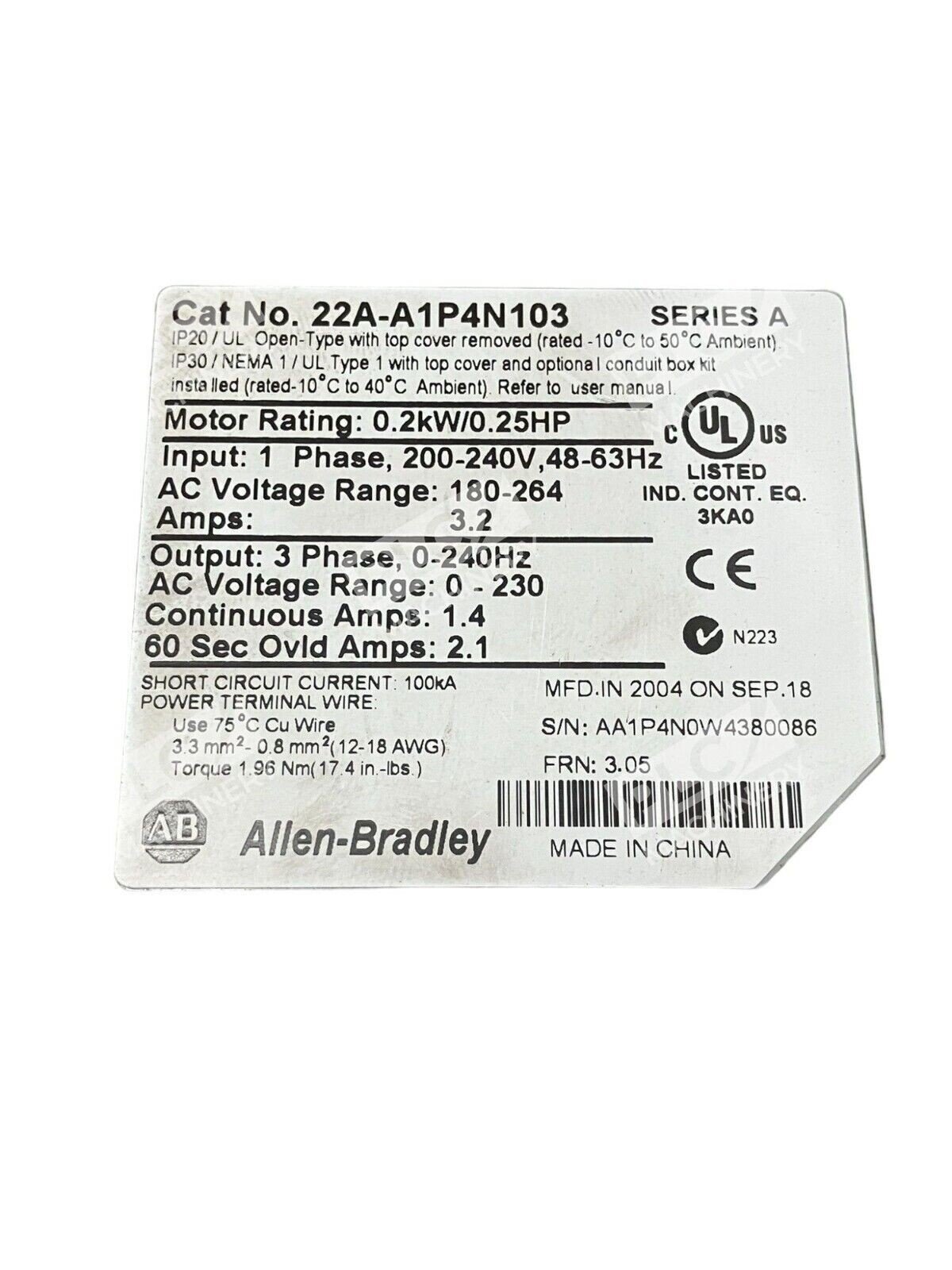

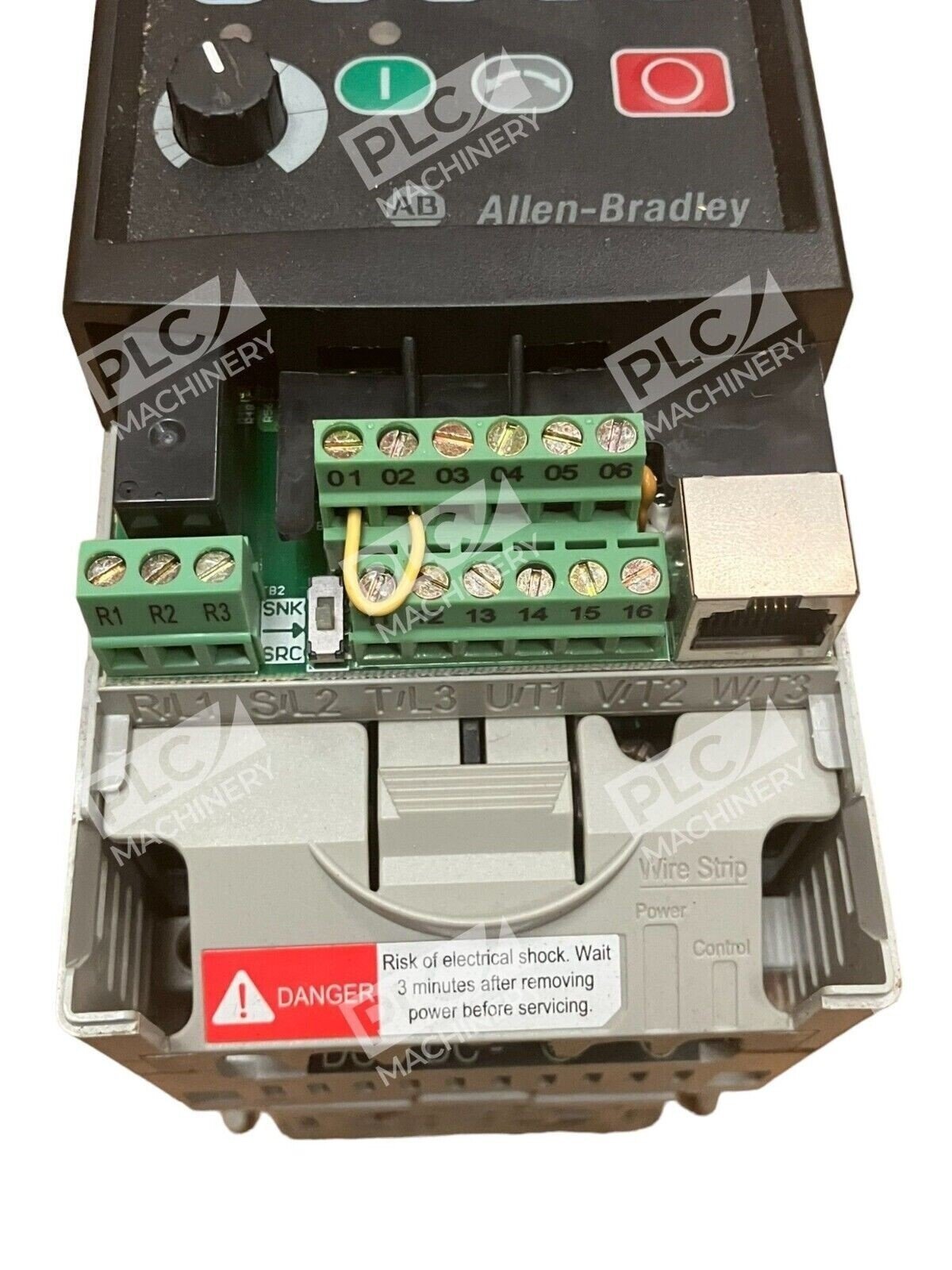

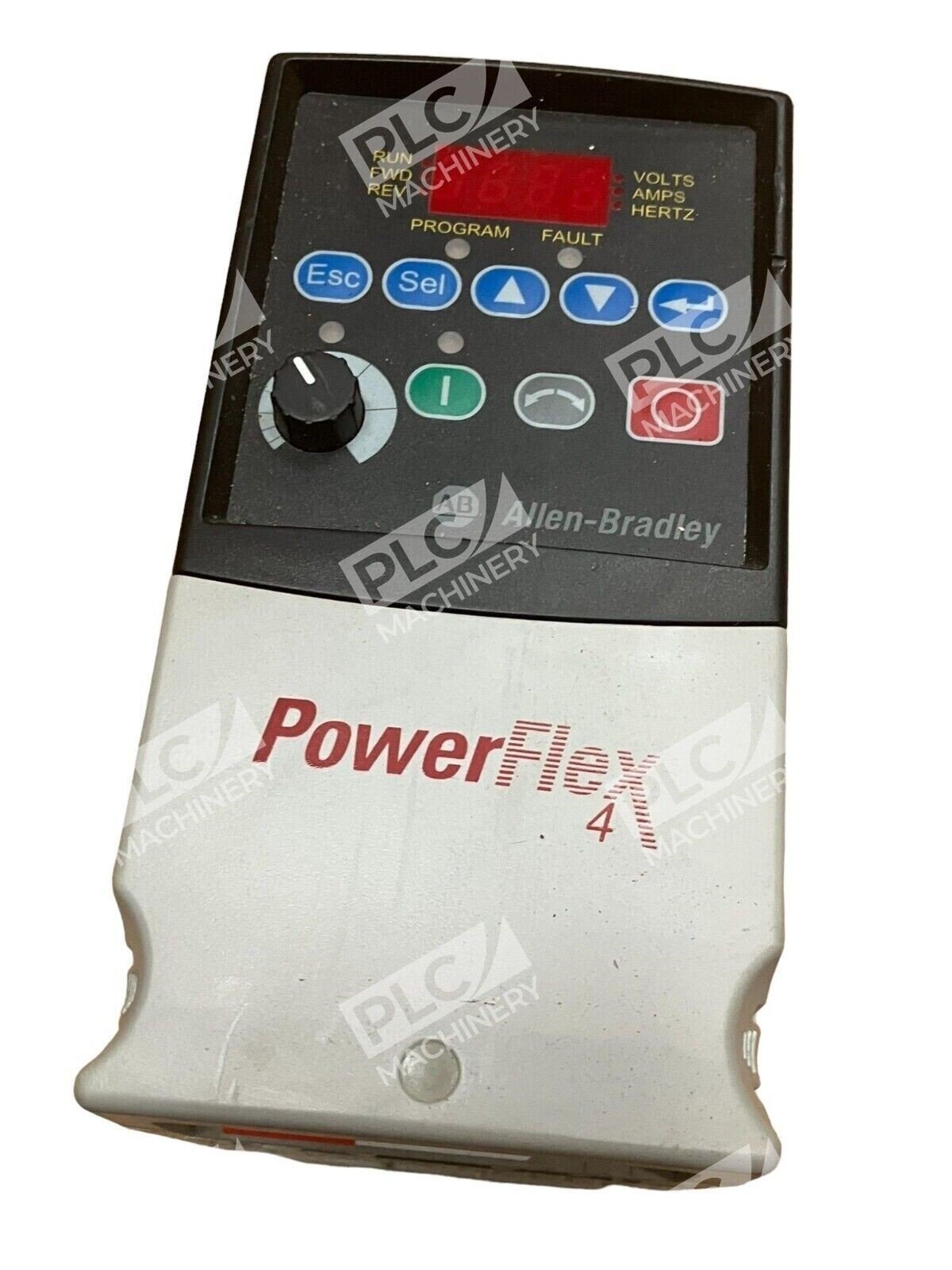

Allen Bradley 22A-A1P4N103 /A PowerFlex 4 0.2kW/0.25HP

Allen Bradley 22A-A1P4N103 /A PowerFlex 4 0.2kW/0.25HP AC Drive

The Allen Bradley 22A-A1P4N103 /A PowerFlex 4 is a compact and efficient AC drive designed to deliver precise motor control in various industrial applications. With a power output of 0.2 kW (0.25 HP), this drive is ideal for small machinery and equipment requiring reliable performance.

Key Features

• Input Voltage: 240V AC single-phase
• Output Current: 1.4 Amps
• Enclosure Type: IP20, NEMA/UL Type Open
• User Interface: Integral LED display with fixed digital keypad
• Control Method: V/Hz control with slip compensation
• Communication: Internal RS-485 for seamless integration with peripherals
• Operating Temperature: -10°C to 50°C

Design and Installation

The PowerFlex 4 series is engineered for simplicity and space efficiency. Its compact design allows for zero stacking in ambient temperatures up to 40°C, facilitating easy installation in tight spaces. The drive supports panel mounting and offers optional DIN rail mounting for added flexibility.

Performance and Protection

Equipped with a power factor of 0.98, the 22A-A1P4N103 ensures energy-efficient operation. It includes comprehensive protection features such as branch circuitry safeguards and overcurrent defenses, ensuring reliable performance in demanding environments.

Programming and Connectivity

The integral LED display and fixed digital keypad provide intuitive configuration and monitoring. Additionally, the internal RS-485 communication allows for easy programming and connectivity with various controllers and peripherals.

Applications

This AC drive is suitable for a wide range of applications, including conveyors, fans, pumps, and other machinery requiring precise speed control and reliable operation.

For more detailed technical specifications and documentation, please refer to the manufacturer’s resources.
