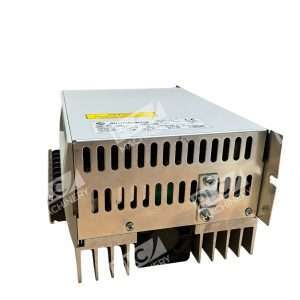

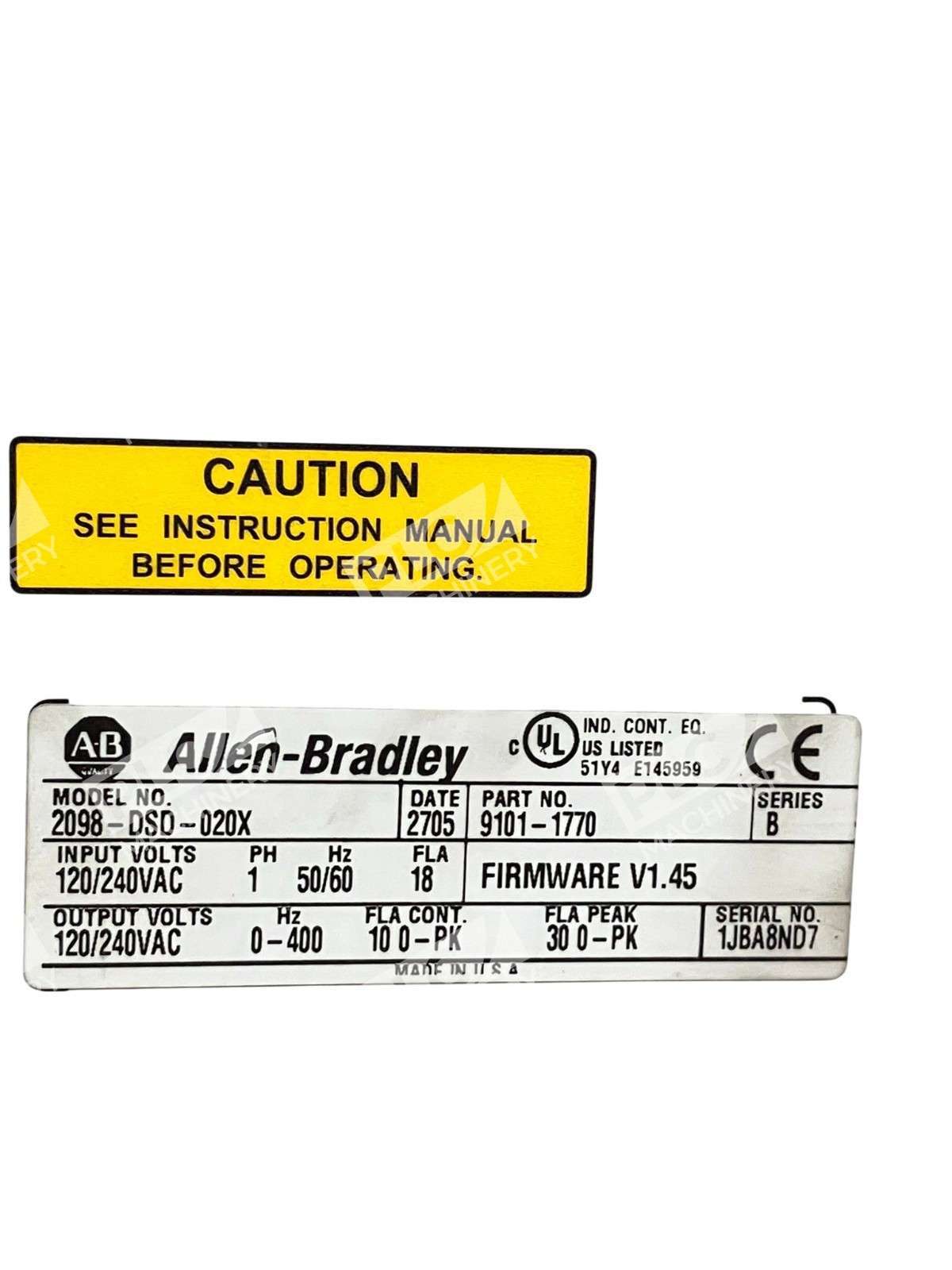

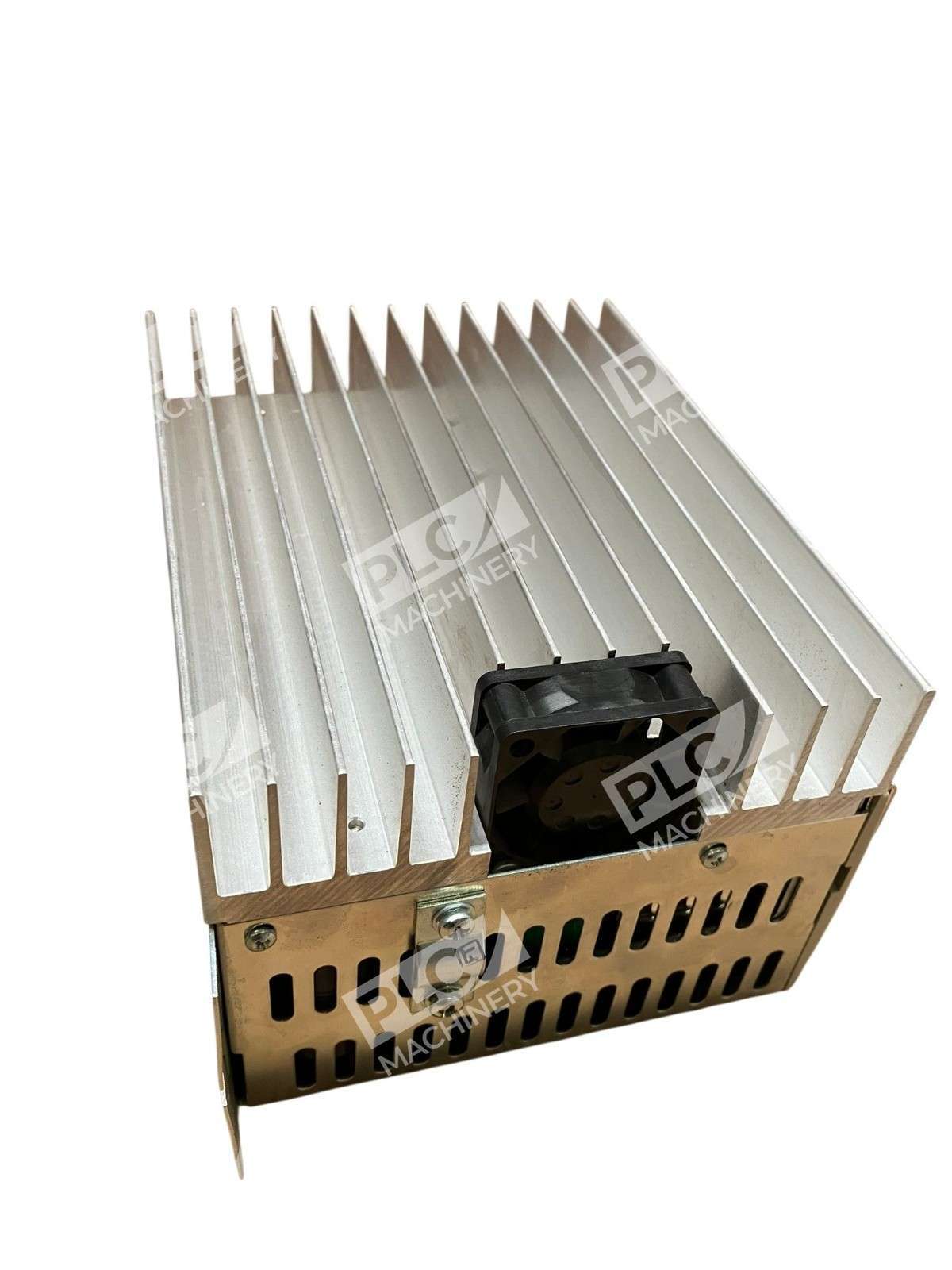

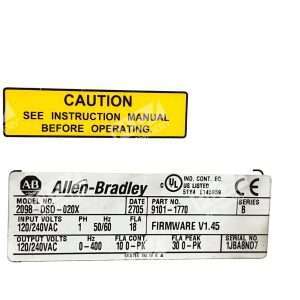

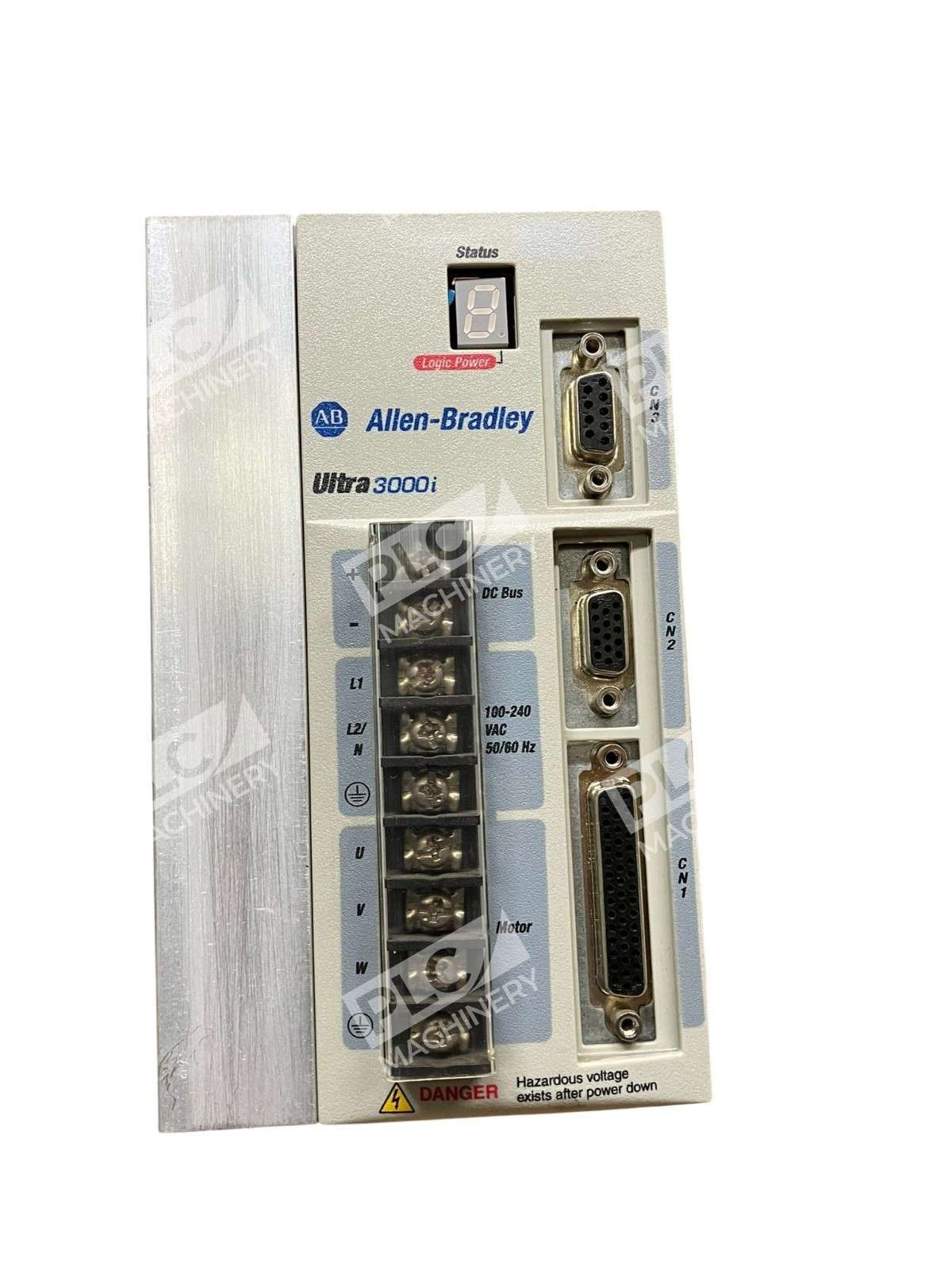

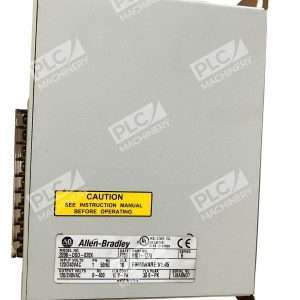

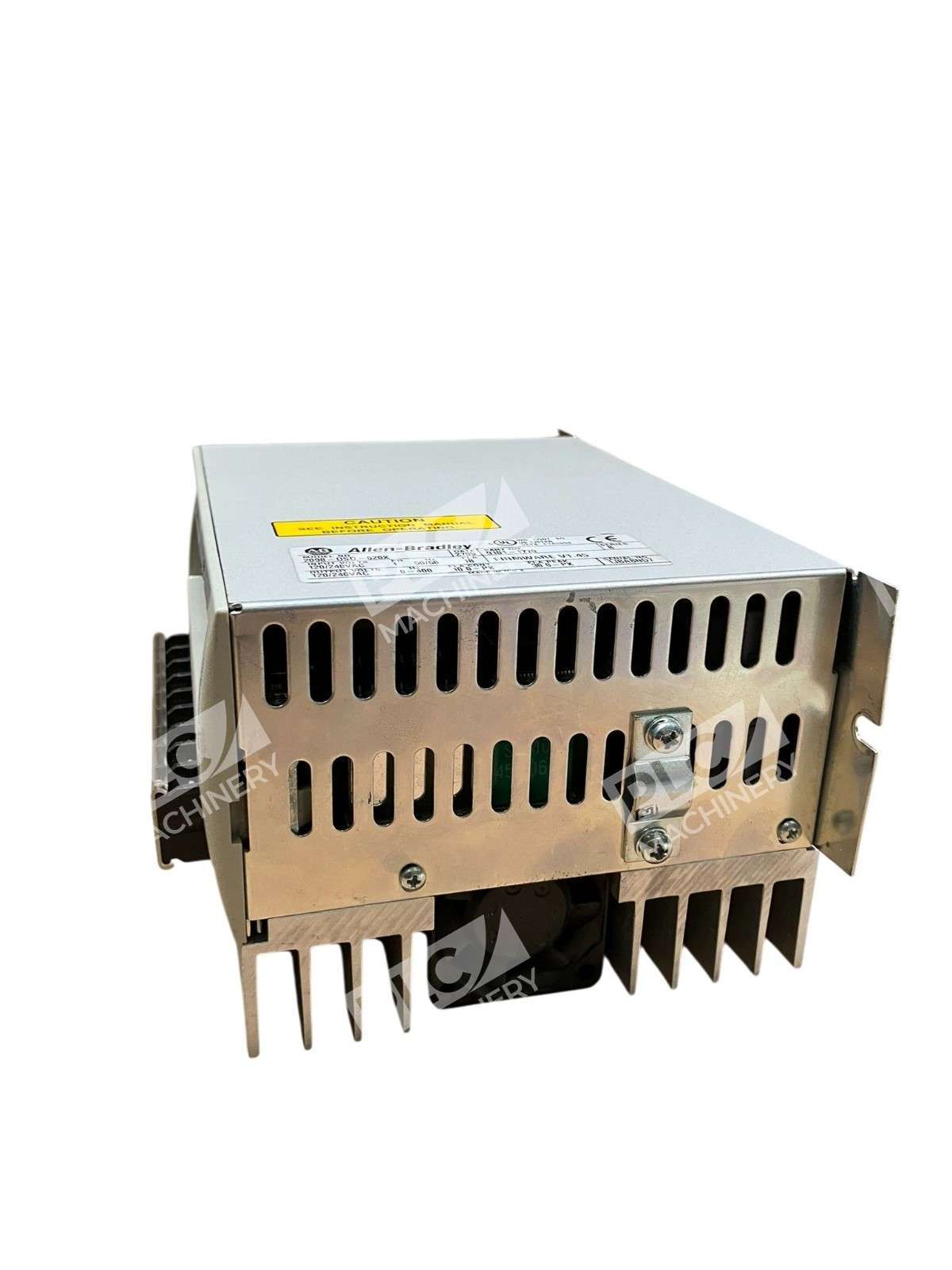

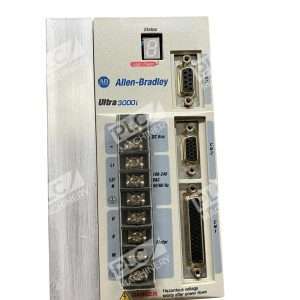

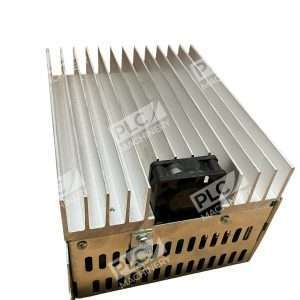

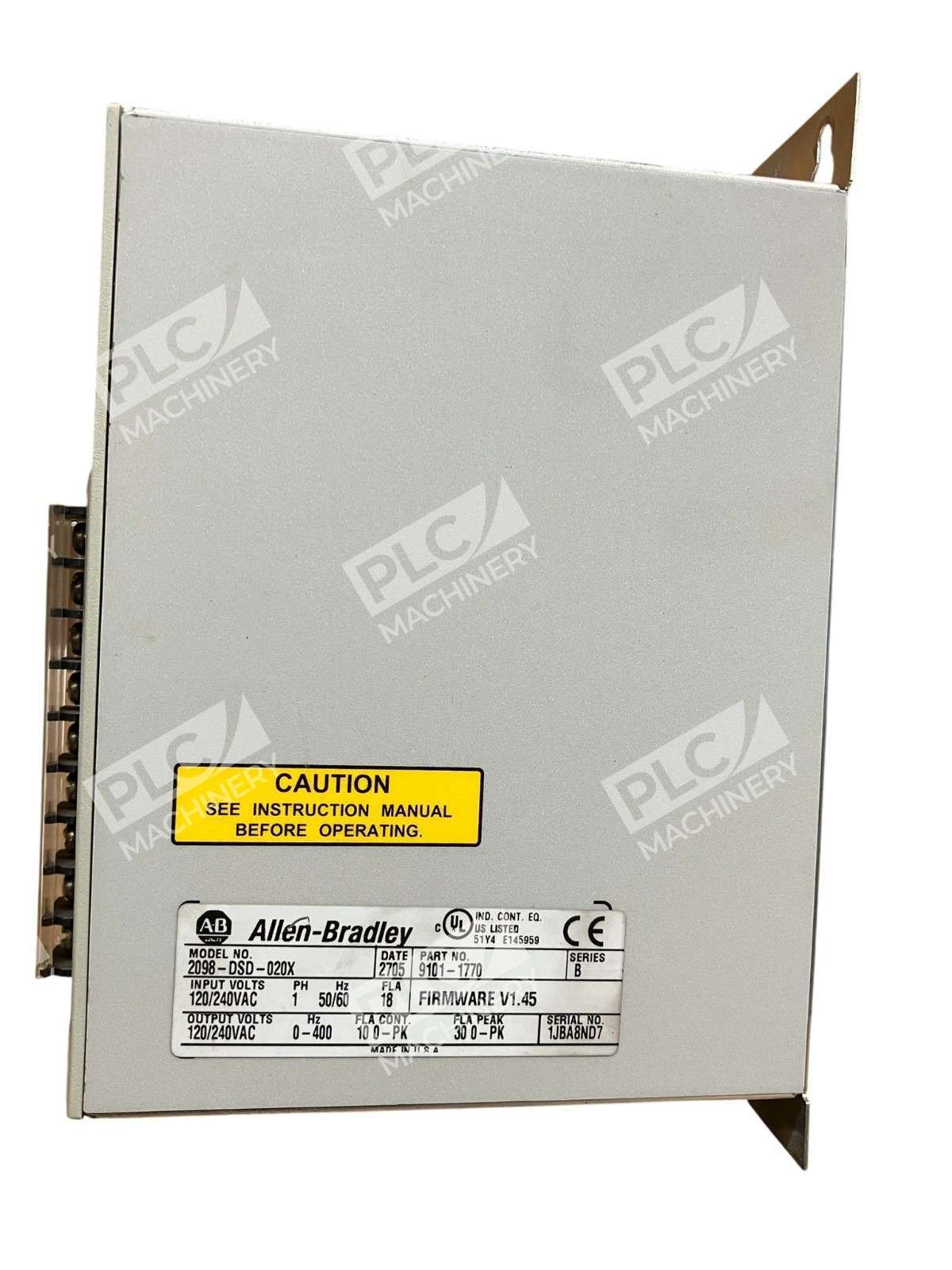

The Allen-Bradley 2098-DSD-020X Ultra 3000i Digital Servo Drive is a high-performance solution designed for precise motion control applications.
Key Features
- Input Voltage: 100–240V AC, single-phase
- Input Frequency: 47–63 Hz
- Nominal Input Current: 18 A rms
- Continuous Output Power: 2.0 kW at 230V AC input
- Continuous Output Current: 7.1 A rms (10 A peak)
- Peak Output Current: 21.2 A rms (30 A peak)
- Bus Capacitance: 1880 µF
- Bus Overvoltage Protection: 400V DC
- Energy Absorption Capability: 51 Joules at 230V AC input
- Operating Temperature Range: 0°C to 55°C (32°F to 131°F)
- Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
- Relative Humidity: 5% to 95% non-condensing
- Altitude: Up to 1500 meters without derating; derate 3% per 300 meters above 1500 meters
- Shock Resistance: 15G
- Vibration Resistance: 2.5G at 10–200 Hz
- Dimensions (H x W x D): 198.12 mm x 98.1 mm x 129.3 mm
- Weight: 2.1 kg (4.6 lbs)
Performance and Compatibility
The 2098-DSD-020X is engineered to deliver precise motion control, making it suitable for a wide range of industrial applications. Its robust design ensures reliable operation under various environmental conditions, including high shock and vibration scenarios. The drive’s compatibility with multiple servo motor series enhances its versatility in system integration.
Applications
This servo drive is ideal for applications requiring high-speed and accurate positioning, such as packaging machinery, material handling systems, and automated assembly lines. Its advanced features support complex motion profiles, contributing to increased productivity and efficiency in industrial operations.
For detailed technical specifications and integration guidelines, please refer to the official product documentation.
