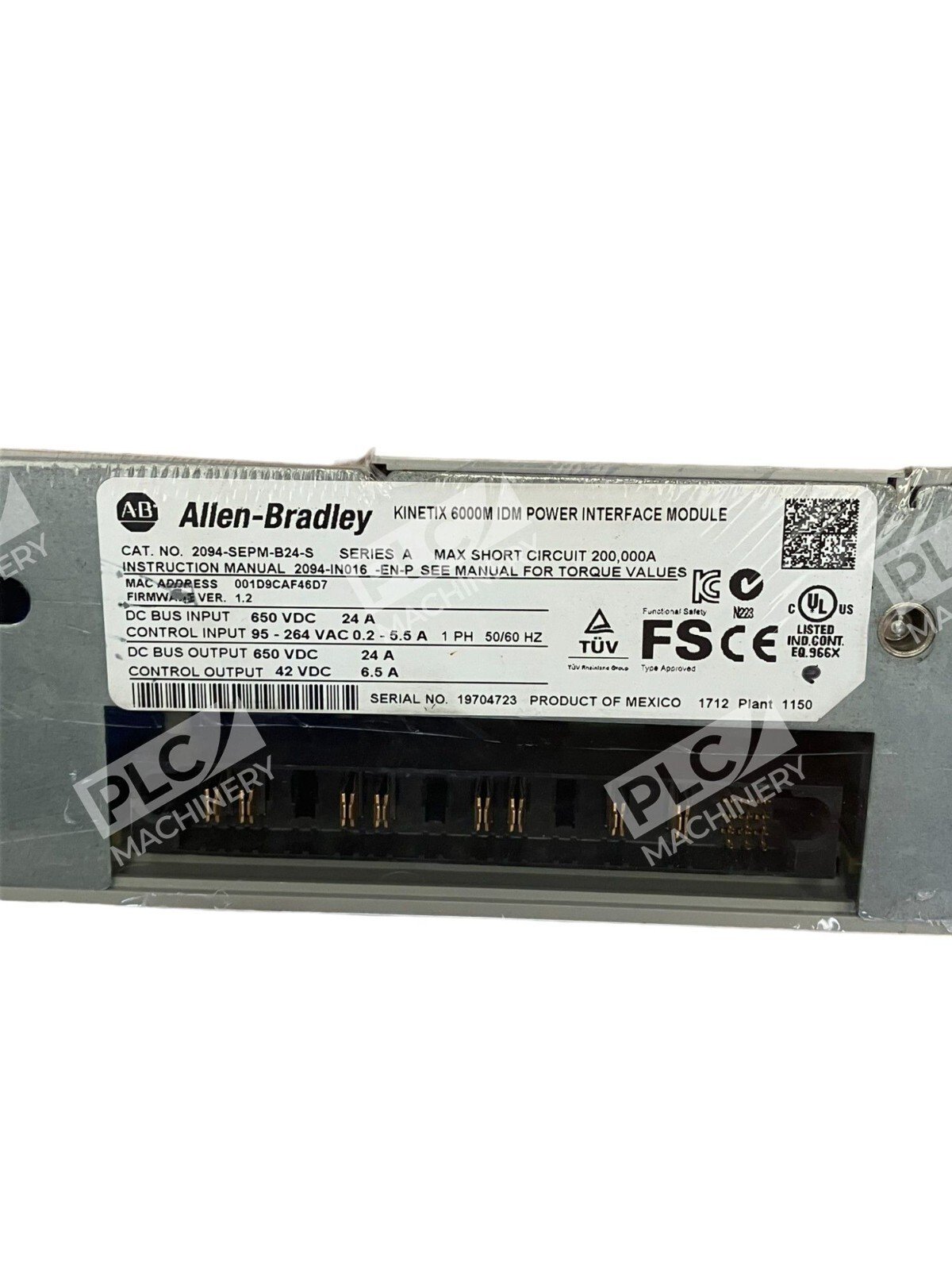

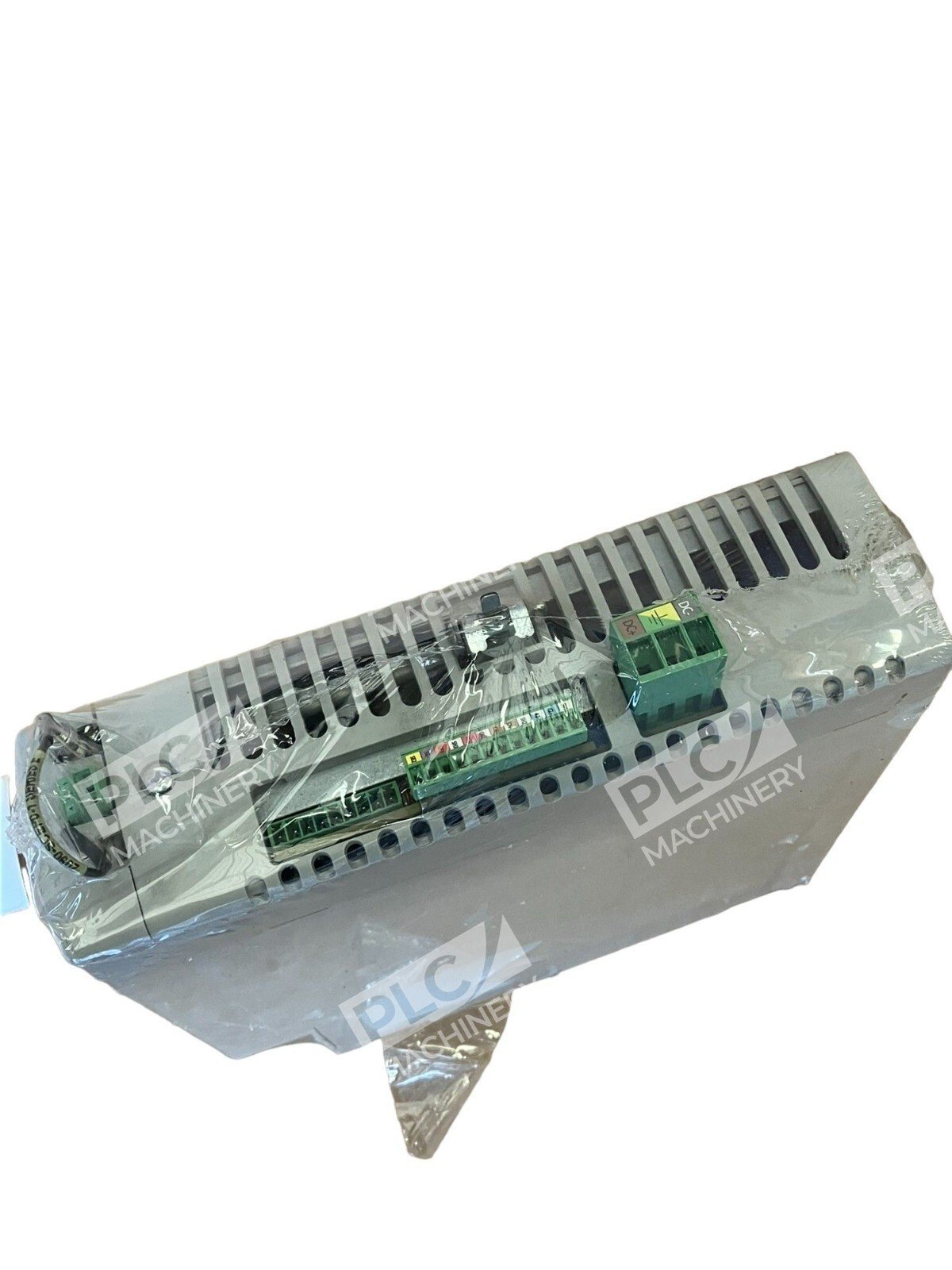

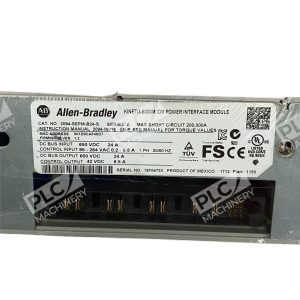

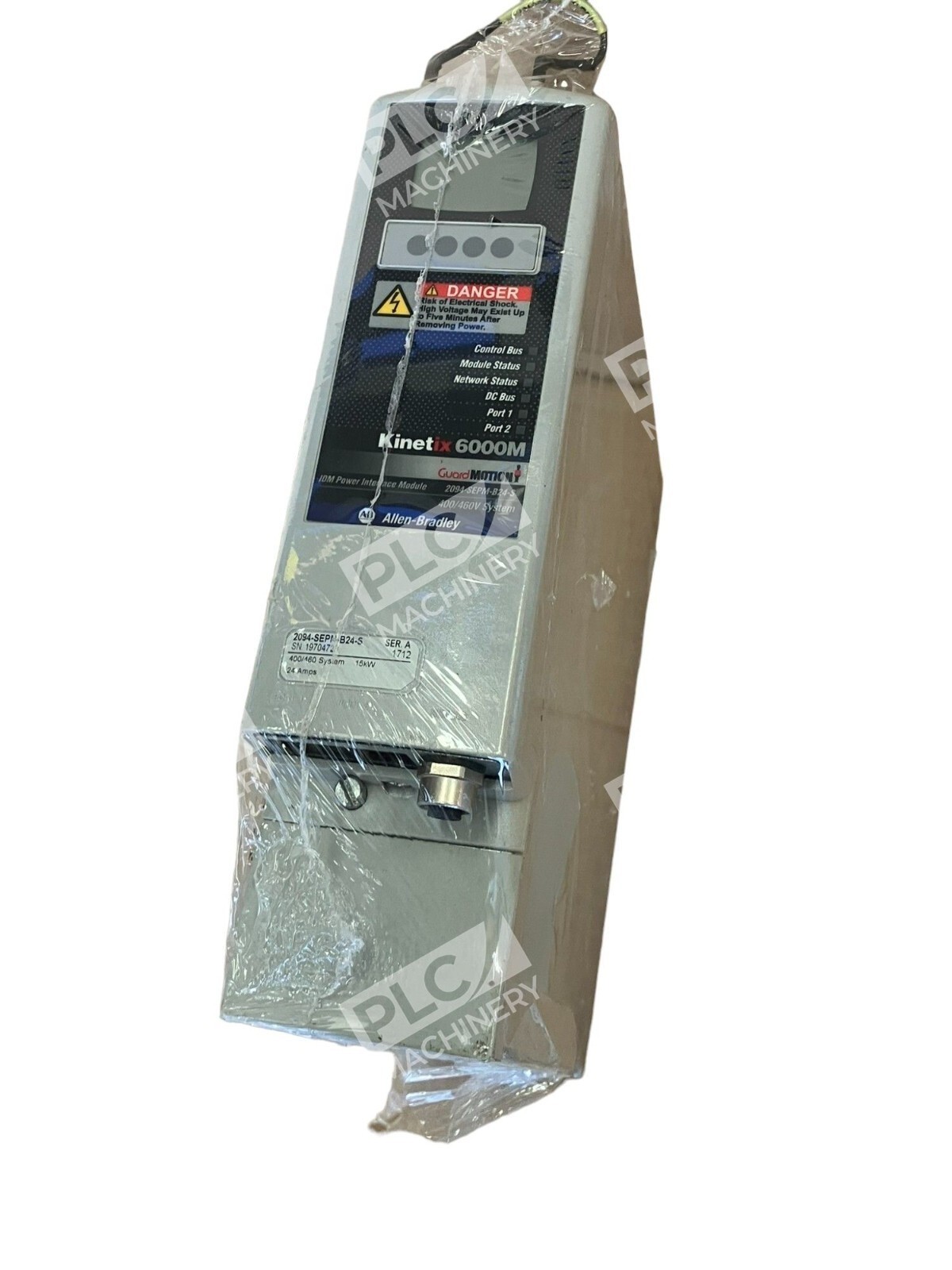

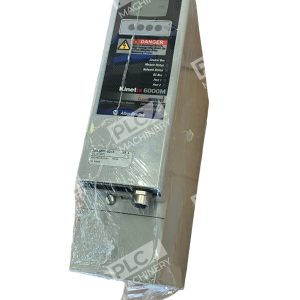

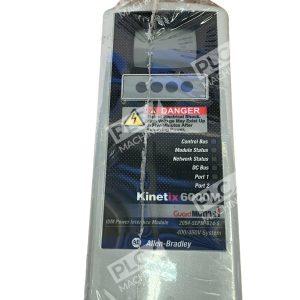

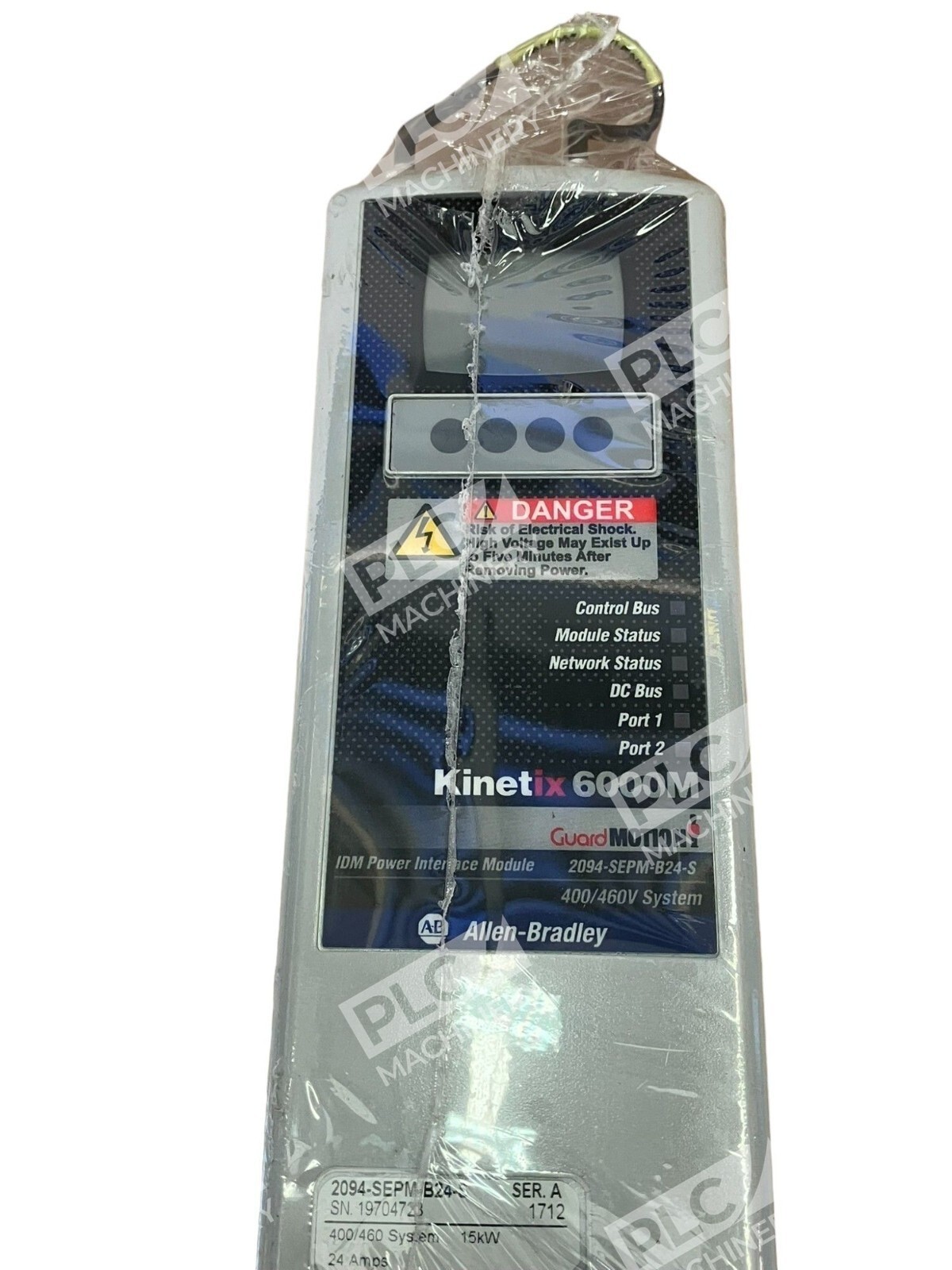

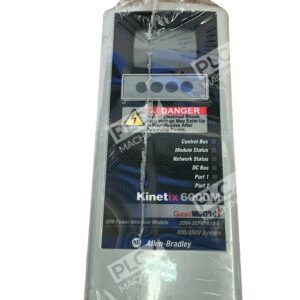

Allen Bradley 2094-SEPM-B24-S Kinetix 6000M IDM Power Interface Module
The Allen Bradley 2094-SEPM-B24-S is a Kinetix 6000M Integrated Drive-Motor (IDM) Power Interface Module (IPIM) designed to seamlessly integrate with Kinetix 6000 and Kinetix 6200 400V-class drive families. This module mounts directly onto the 2094 power rail, facilitating efficient power distribution and communication within your motion control system.
Key Features
- Compatibility: Specifically engineered for 400V-class drive systems, ensuring optimal performance and integration.
- Power Output: Delivers a nominal bus output voltage of 650V DC with a continuous output current of 24 A (rms), supporting demanding applications.
- Intermittent Performance: Capable of handling an instantaneous output current up to 60 A for durations up to 400 ms, accommodating peak load conditions.
- Control Power: Provides a control power output of 40.4…41.7V DC at 270 W, with a current capacity of 6.5 A, ensuring reliable operation of connected devices.
- Safety Features: Incorporates a safe-off functionality, enhancing system safety by allowing immediate power disconnection when necessary.
Technical Specifications
| Attribute | Specification |
|---|---|
| Bus Output Voltage (Nominal) | 650V DC |
| Continuous Output Current | 24 A (rms) |
| Instantaneous Output Current (Max) | 60 A |
| Intermittent Current Duration | 400 ms |
| Intermittent Current Duty Cycle | 16% |
| Continuous Power Output (Nominal) | 15 kW |
| Internal Shunt Continuous Power | 200 W |
| Internal Shunt Peak Power | 22.5 kW |
| Internal Shunt Resistor | 28.75 Ω |
| Capacitance | 840 μF |
| Short Circuit Current Rating | 200,000 A (rms) symmetrical |
| Control Power Output Voltage | 40.4…41.7V DC |
| Control Power Output Power | 270 W |
| Control Power Output Current | 6.5 A |
| 24V Output Voltage | 21.6…26.4V DC |
| 24V Output Current (Max) | 50 mA |
| Enable Input | 320 mA |
| Safety Bypass | 320 mA |
System Integration
The 2094-SEPM-B24-S IPIM module is designed to connect seamlessly with Kinetix 6000M IDM units, supporting up to 16 IDM units per module. It utilizes hybrid and network cables with a maximum length of 25 meters (82 feet) per cable, and a combined maximum length of 100 meters (328 feet) for all axes daisy-chained from the same IPIM module. This flexibility allows for extensive system configurations tailored to specific application requirements.
Installation and Compatibility
For optimal performance, ensure that the 2094-SEPM-B24-S is installed within a grounded system, matching the grounding methods of the AC line filter and drive. This alignment is crucial to maintain filter effectiveness and prevent potential damage. The module is compatible exclusively with 400V-class drive systems and mounts directly onto the 2094 power rail, facilitating straightforward integration into existing setups.
By incorporating the Allen Bradley 2094-SEPM-B24-S Kinetix 6000M IDM Power Interface Module into your motion control system, you can achieve enhanced performance, safety, and scalability, meeting the demands of complex industrial applications.
