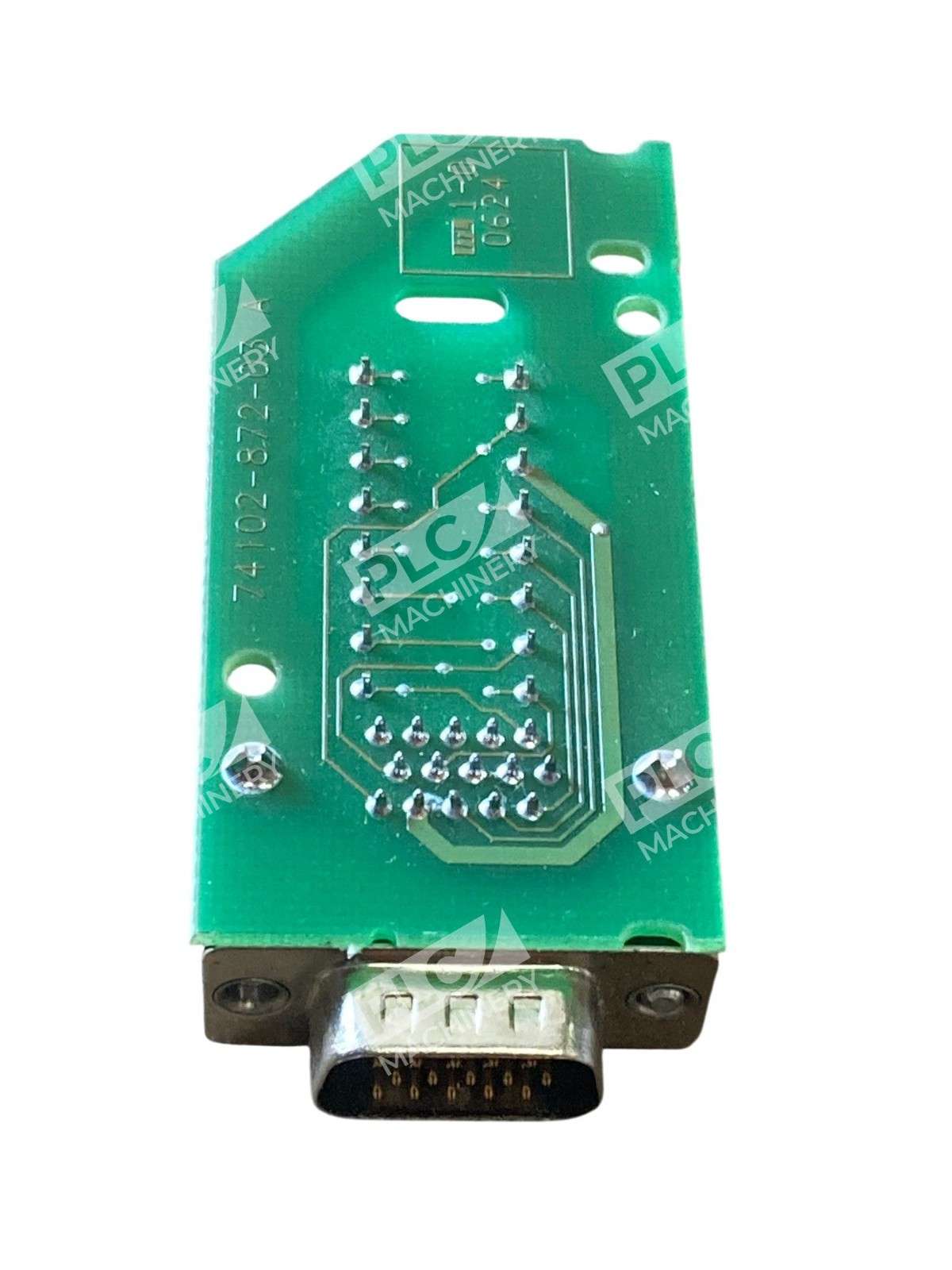

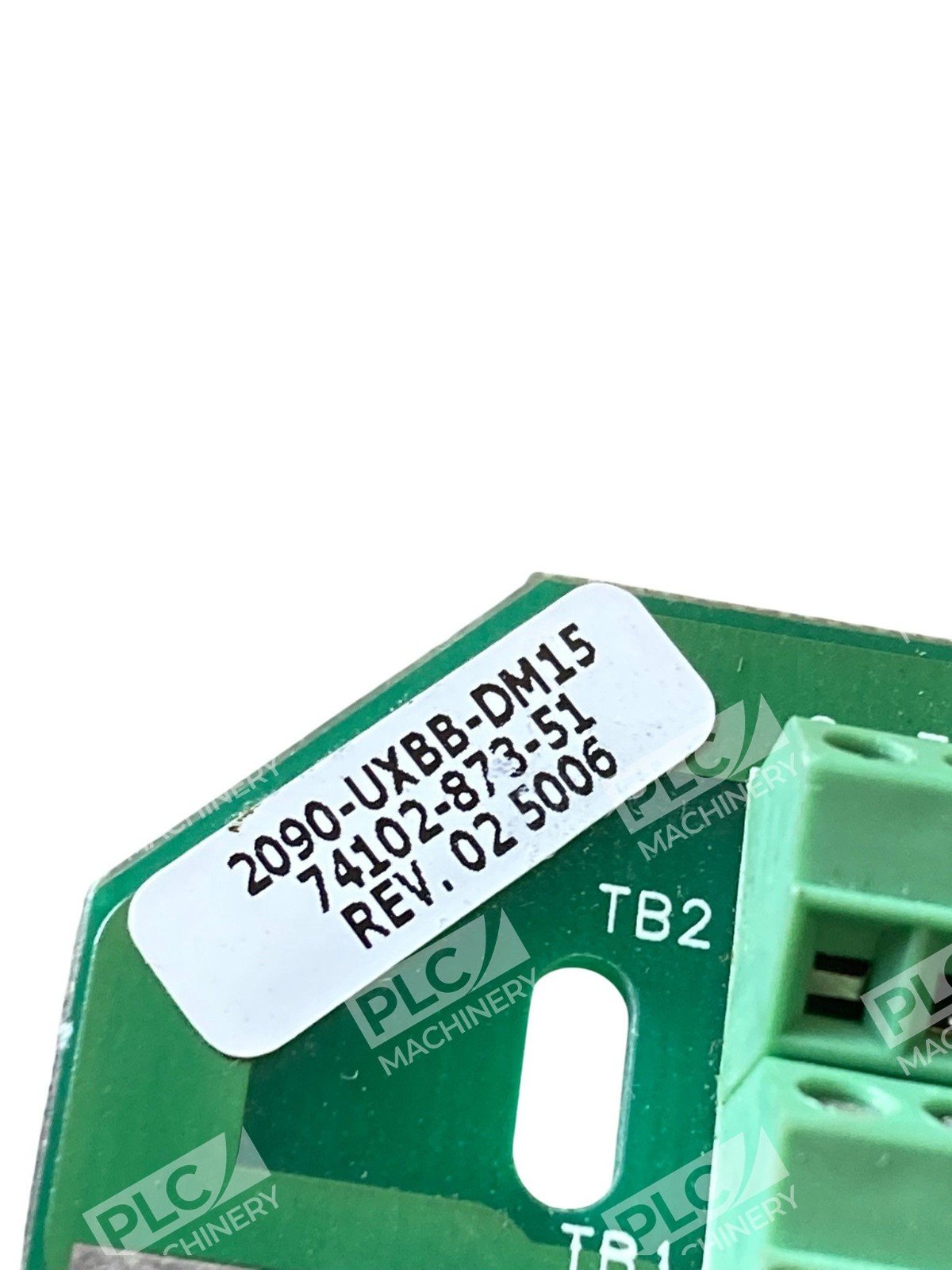

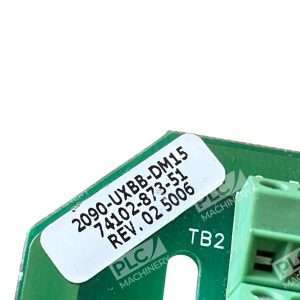

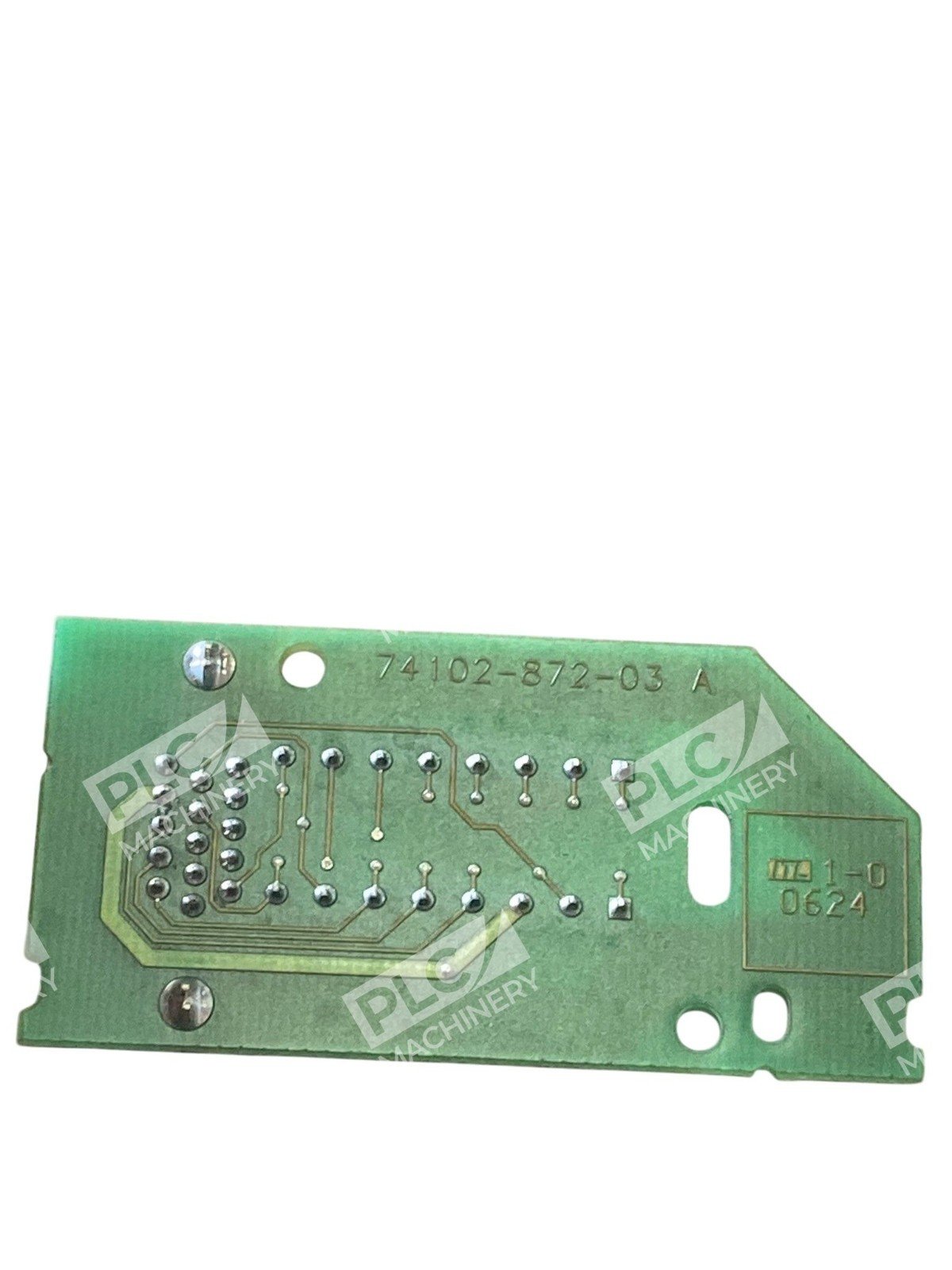

Allen-Bradley 2090-UXBB-DM15 Motor Feedback Breakout Board

Allen-Bradley 2090-UXBB-DM15 Motor Feedback Breakout Board

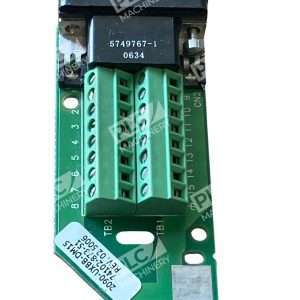

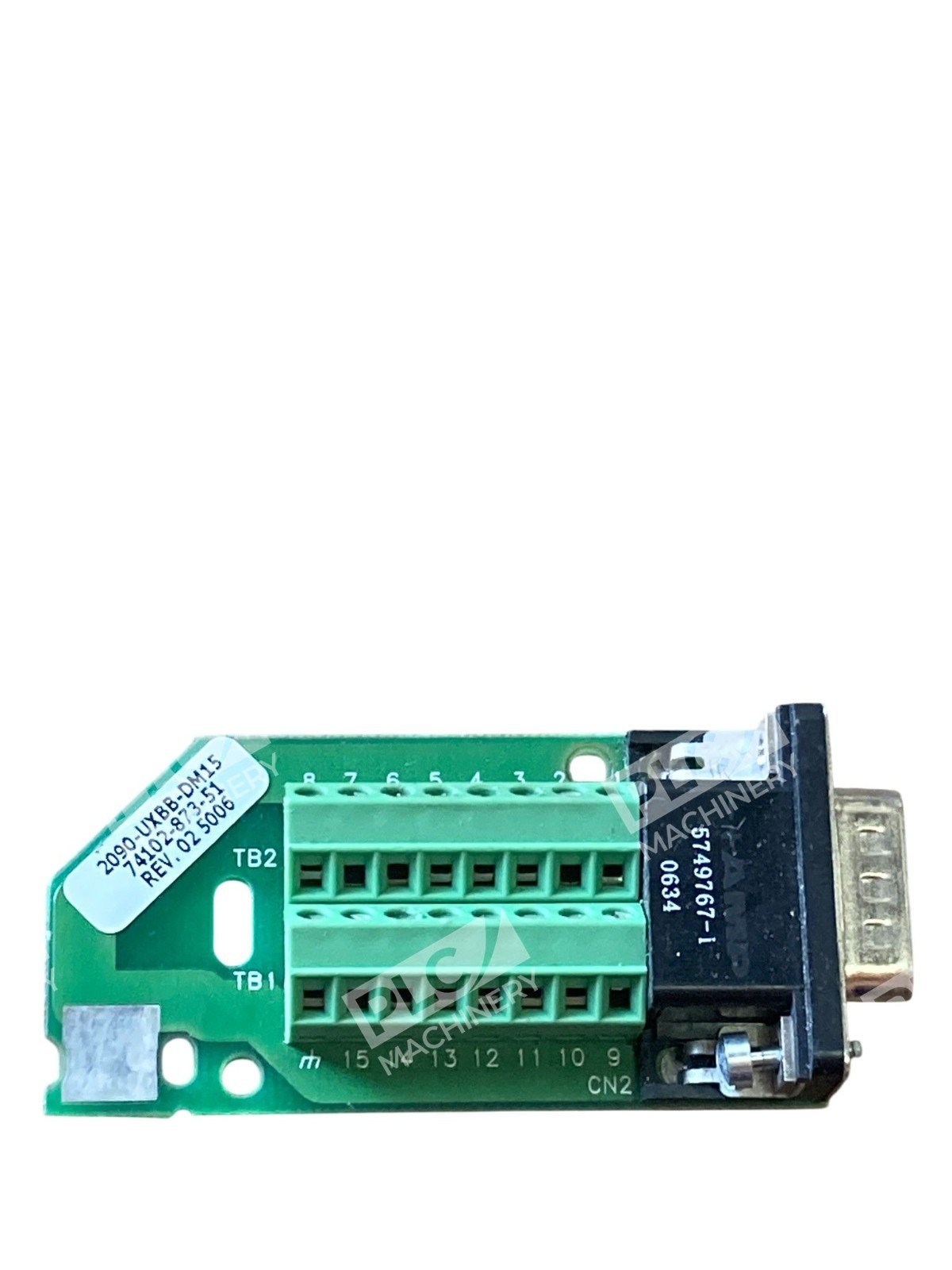

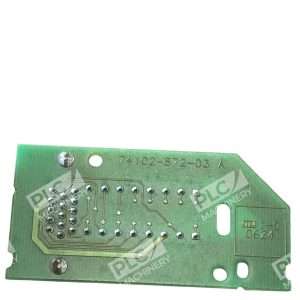

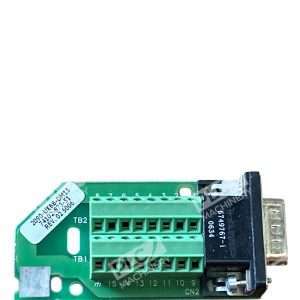

The Allen-Bradley 2090-UXBB-DM15 is a drive-mounted motor feedback breakout board designed to facilitate seamless connections between servo motors and Ultra3000 digital servo drives. This component is integral in motion control systems, ensuring accurate feedback and efficient performance.

Key Features

• Drive-Mounted Design: The 2090-UXBB-DM15 is engineered for direct mounting onto Ultra3000 drives, providing a compact and organized setup that minimizes wiring complexity.

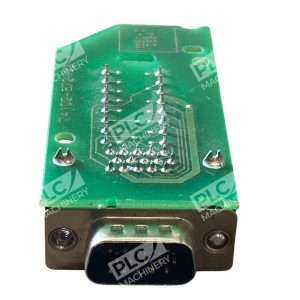

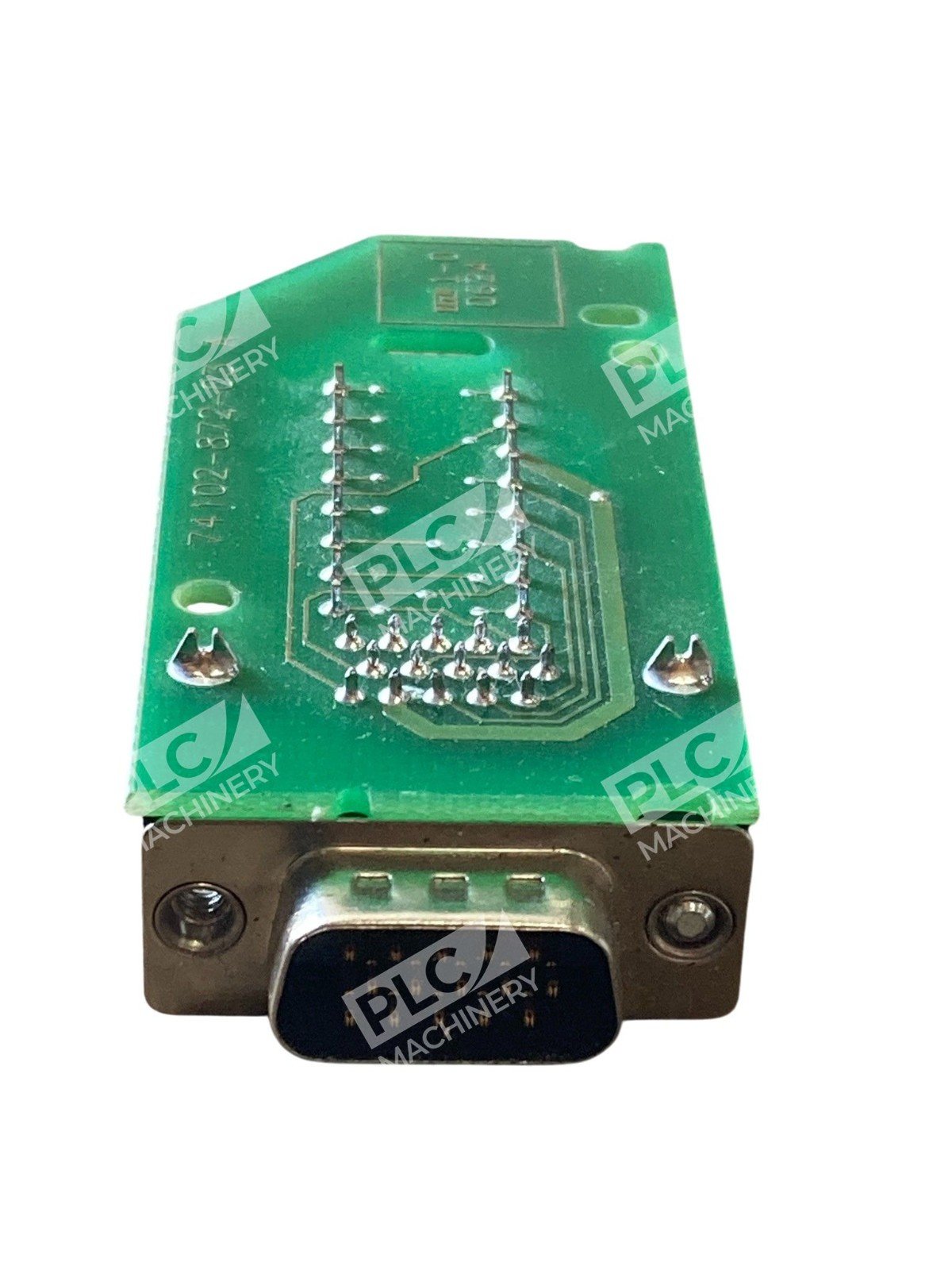

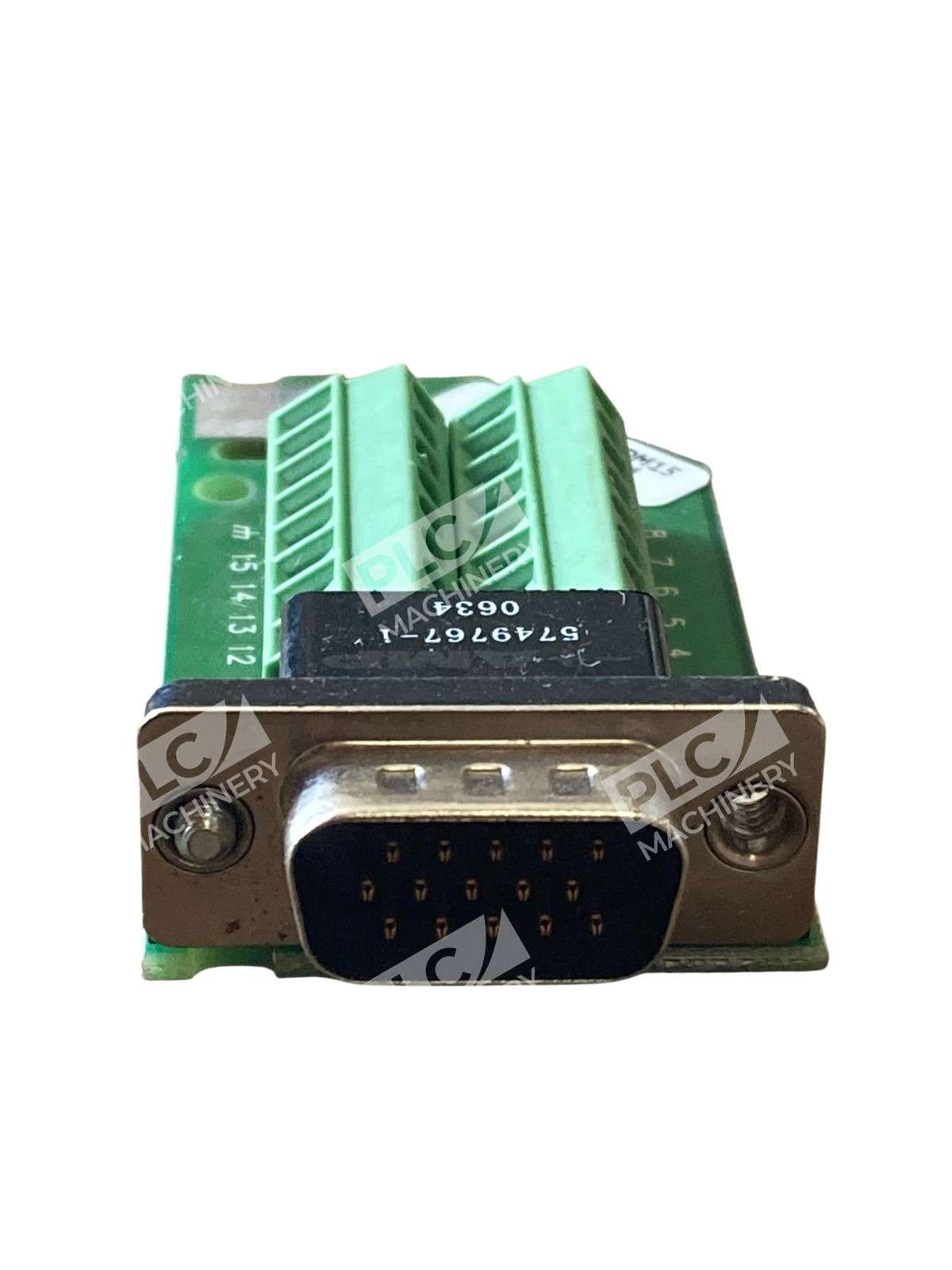

• 15-Pin D-Sub Connector: Equipped with a 15-pin male D-sub connector, this breakout board offers standardized connectivity for motor feedback signals, ensuring compatibility with various servo motors.
• Secure Cable Termination: The board includes a cable shield termination pad and locking tabs, facilitating secure and reliable cable connections that enhance signal integrity.
• Versatile Compatibility: Designed to work seamlessly with Ultra3000 digital servo drives, the 2090-UXBB-DM15 supports a range of motion control applications.

Technical Specifications

• Cable Diameter: Supports cables up to 11.4 mm (0.45 in.) in diameter.

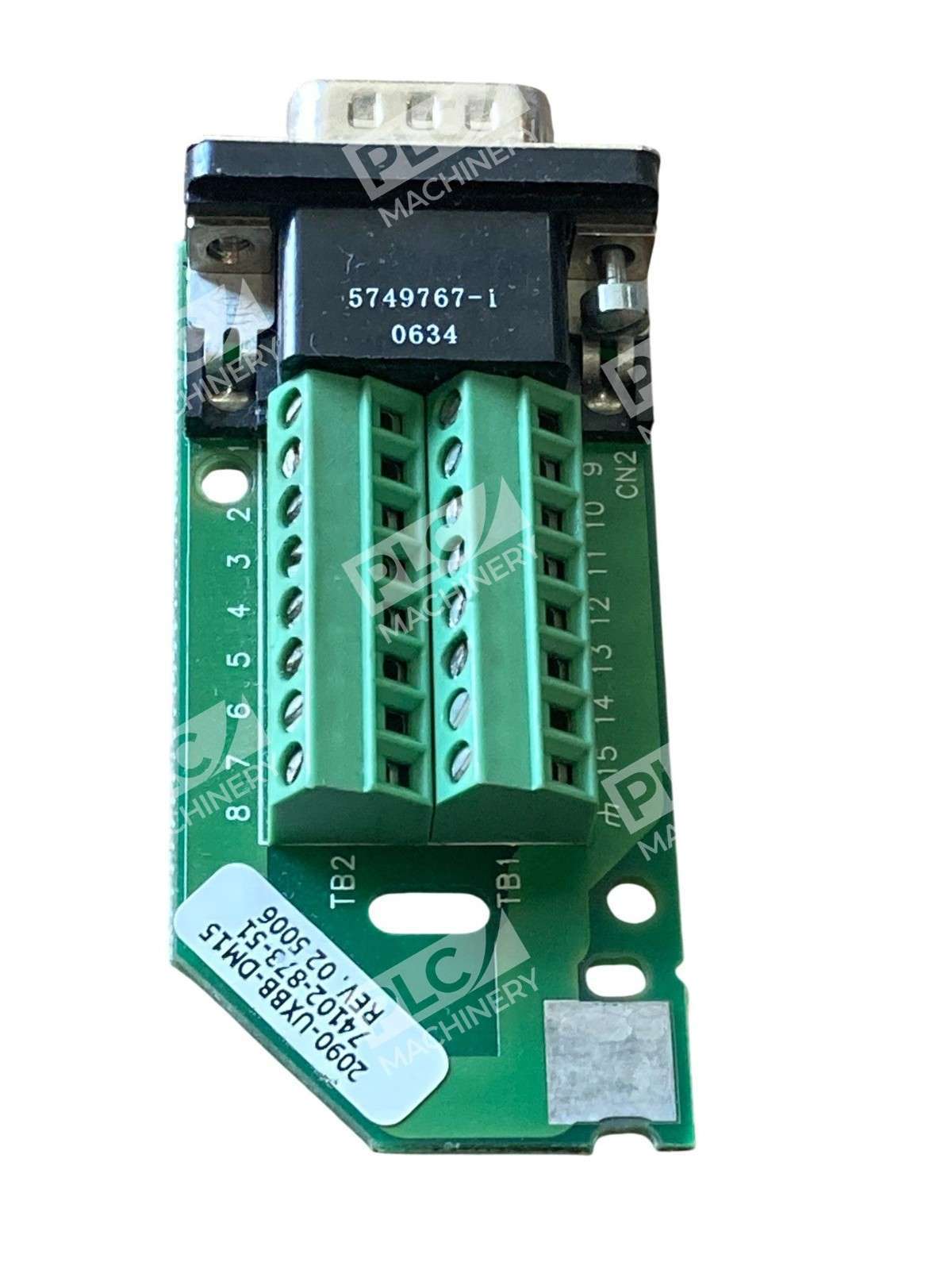

• Screw Terminal Wire Size: Accommodates wire sizes ranging from 0.06 to 1.31 mm² (30 to 16 AWG).
• Recommended Wire Strip Length: 25 to 51 mm (1 to 2 in.) for optimal connection.
• Mounting Screw Torque: 0.40 N·m (3.5 lb·in.).
• Terminal Screw Torque: 0.25 N·m (2.2 lb·in.).

Installation and Usage

The 2090-UXBB-DM15 is designed for straightforward installation onto Ultra3000 drives. It features mounting screws and cable ties to secure the feedback cable, ensuring a stable and reliable connection. Proper grounding techniques are recommended to maintain signal integrity and system performance.

Applications

This breakout board is ideal for industrial automation systems requiring precise motor feedback integration with Ultra3000 drives. Its design simplifies the wiring process, reduces installation time, and enhances the overall reliability of motion control applications.

In summary, the Allen-Bradley 2090-UXBB-DM15 Motor Feedback Breakout Board is a crucial component for achieving accurate and efficient motor feedback connections in advanced motion control systems.
