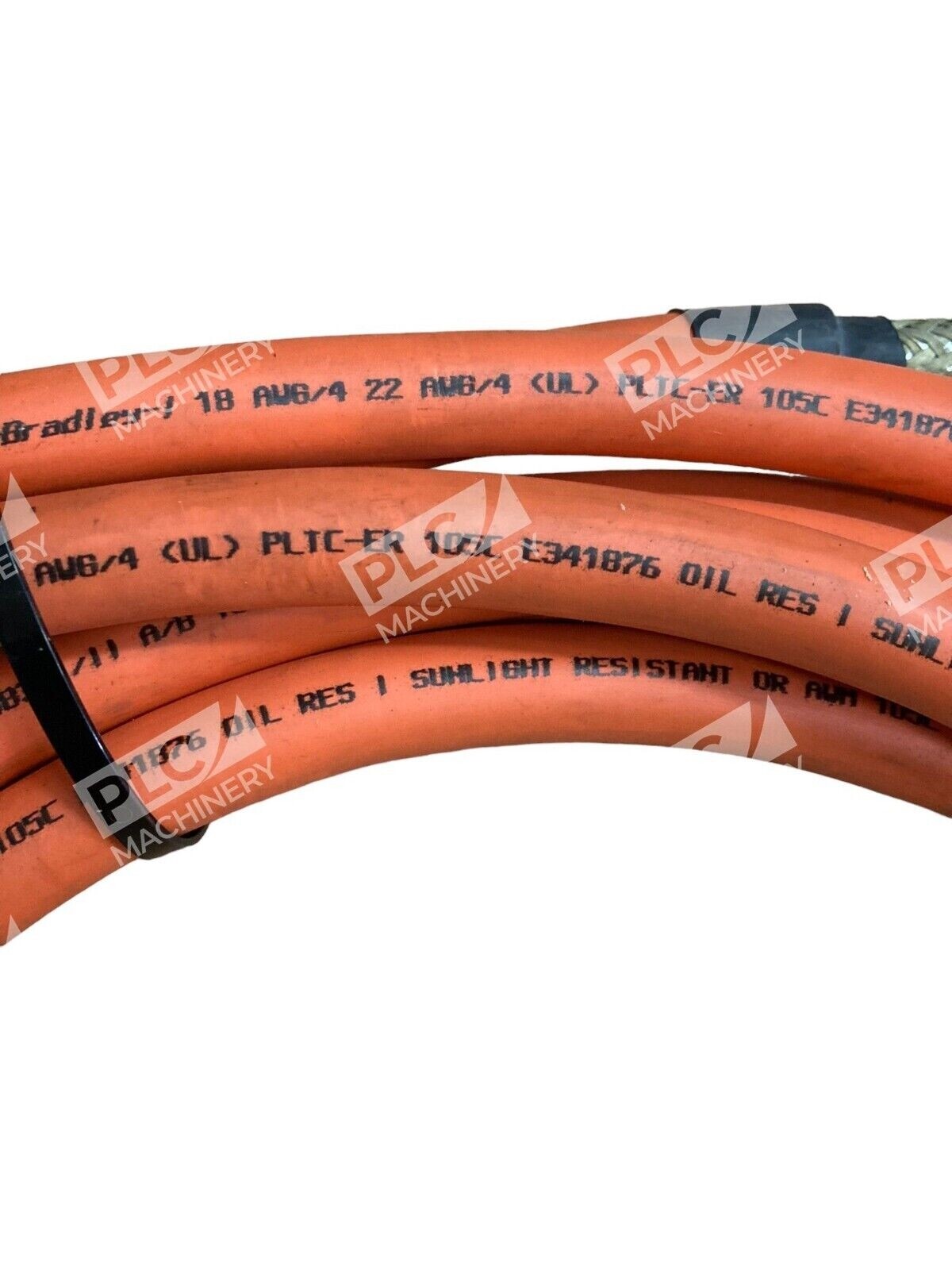

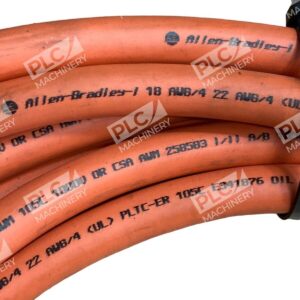

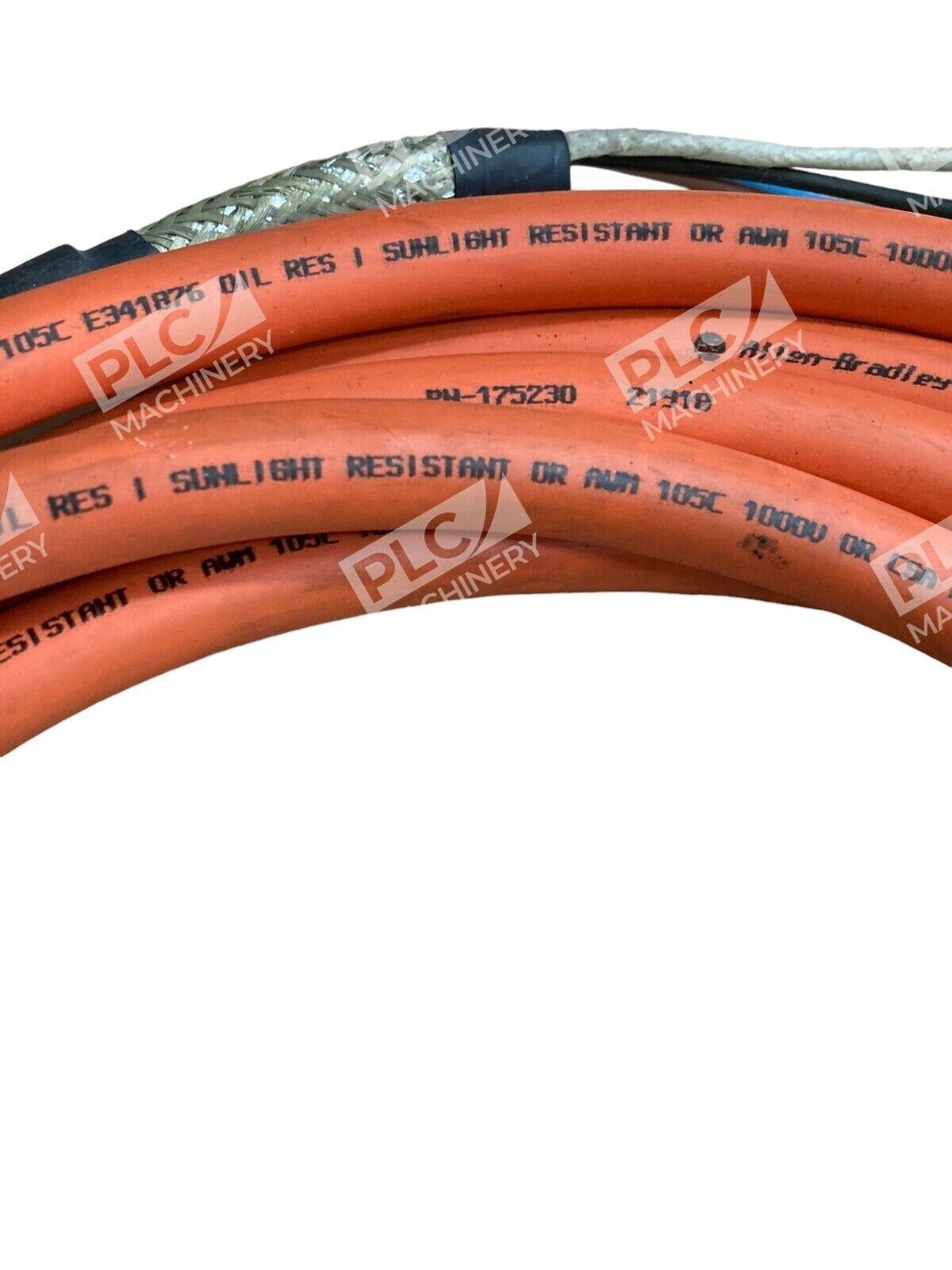

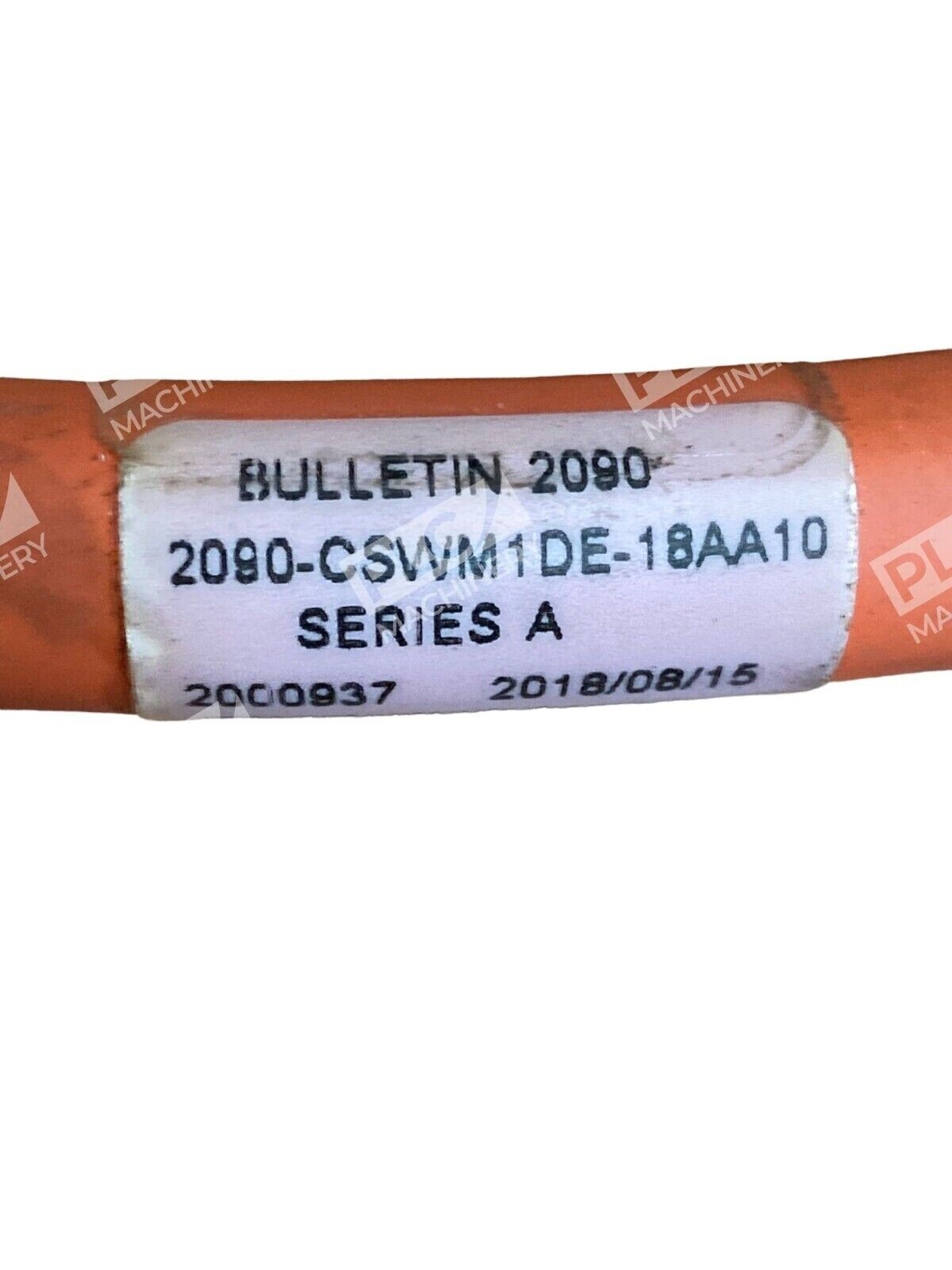

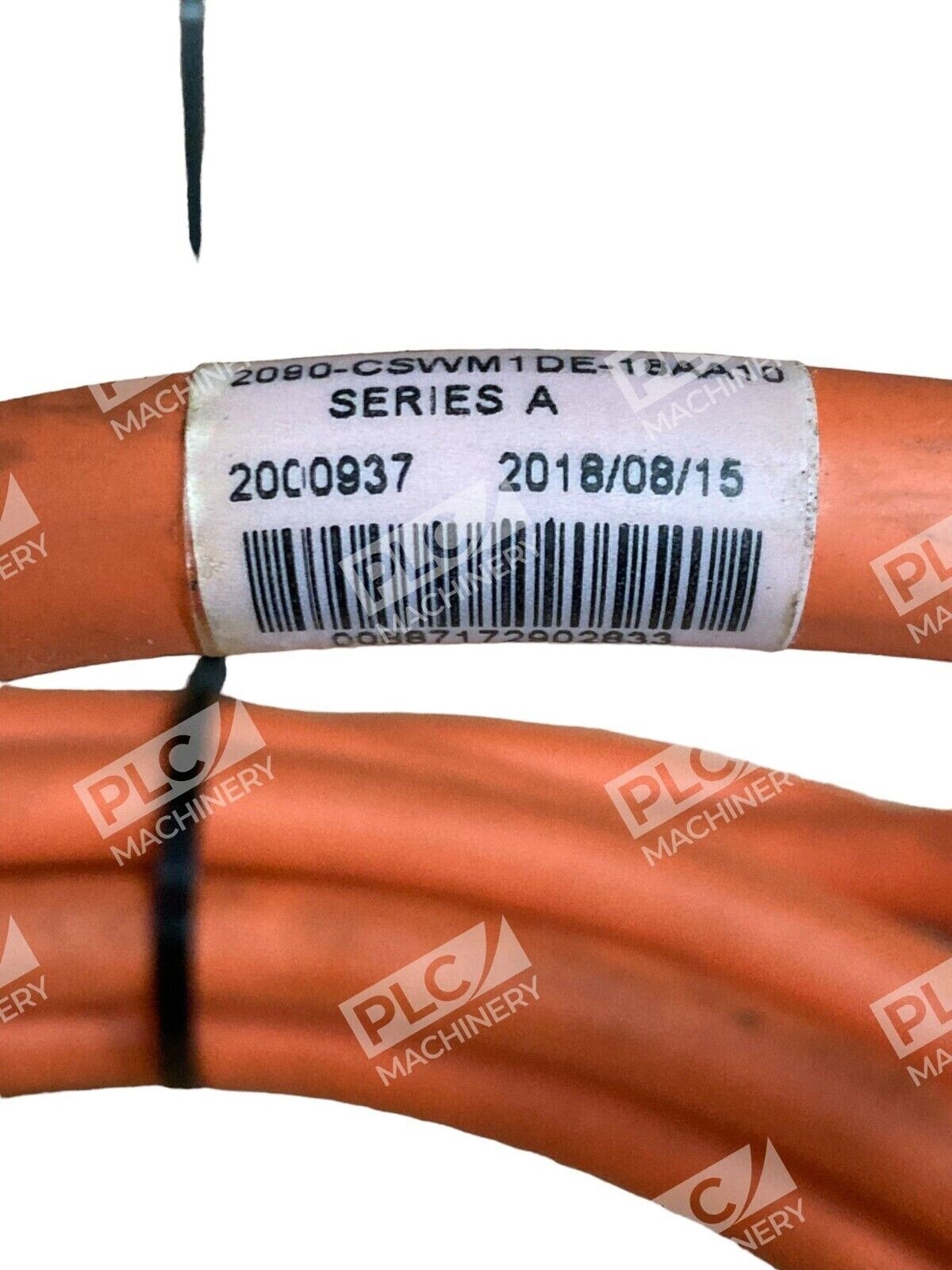

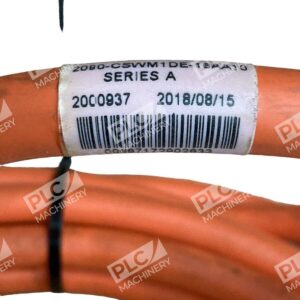

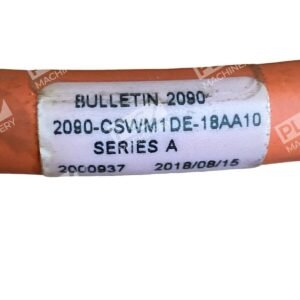

Allen-Bradley 2090-CSWM1DE-18AA10 Kinetix Single Cable

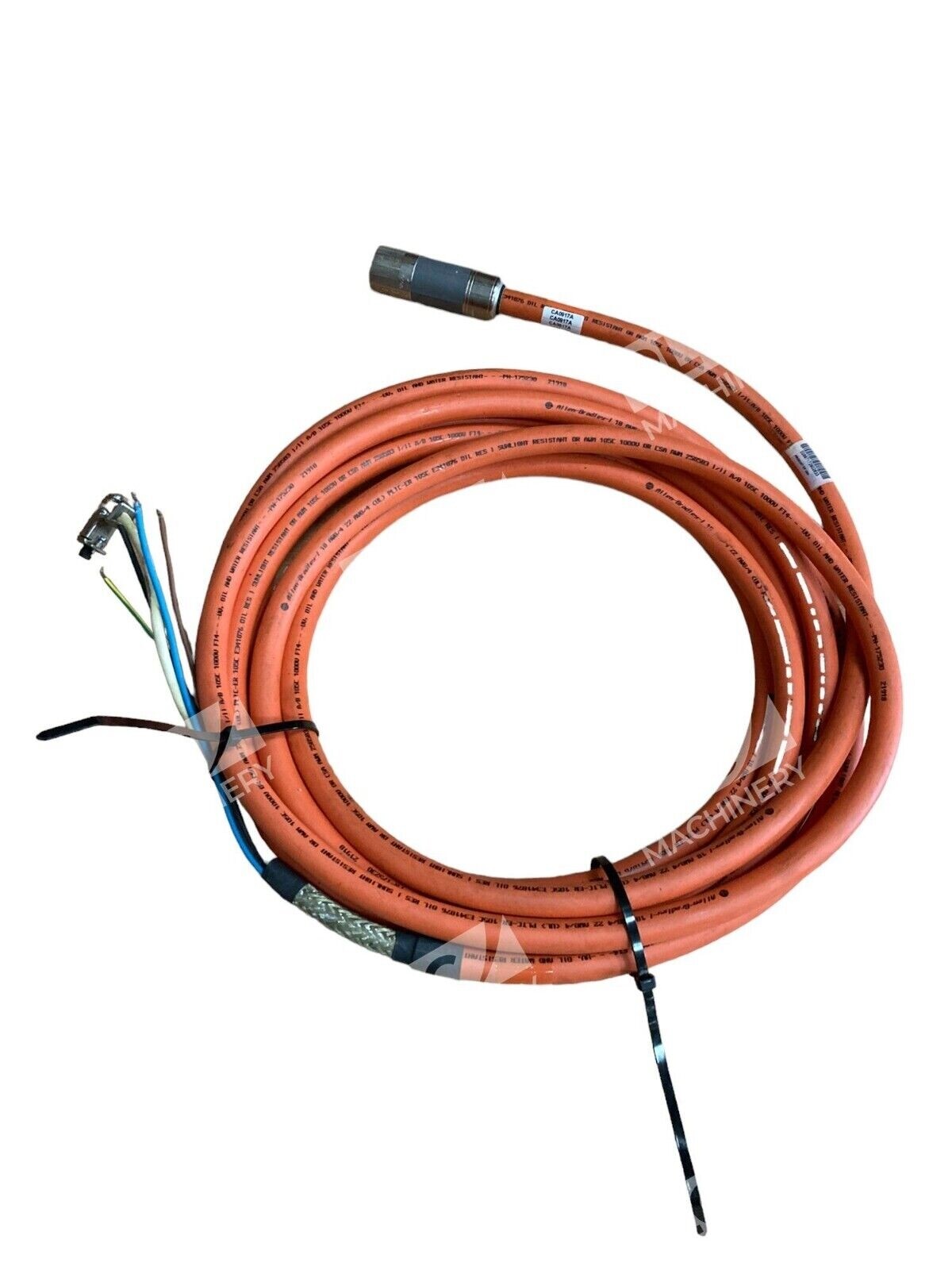

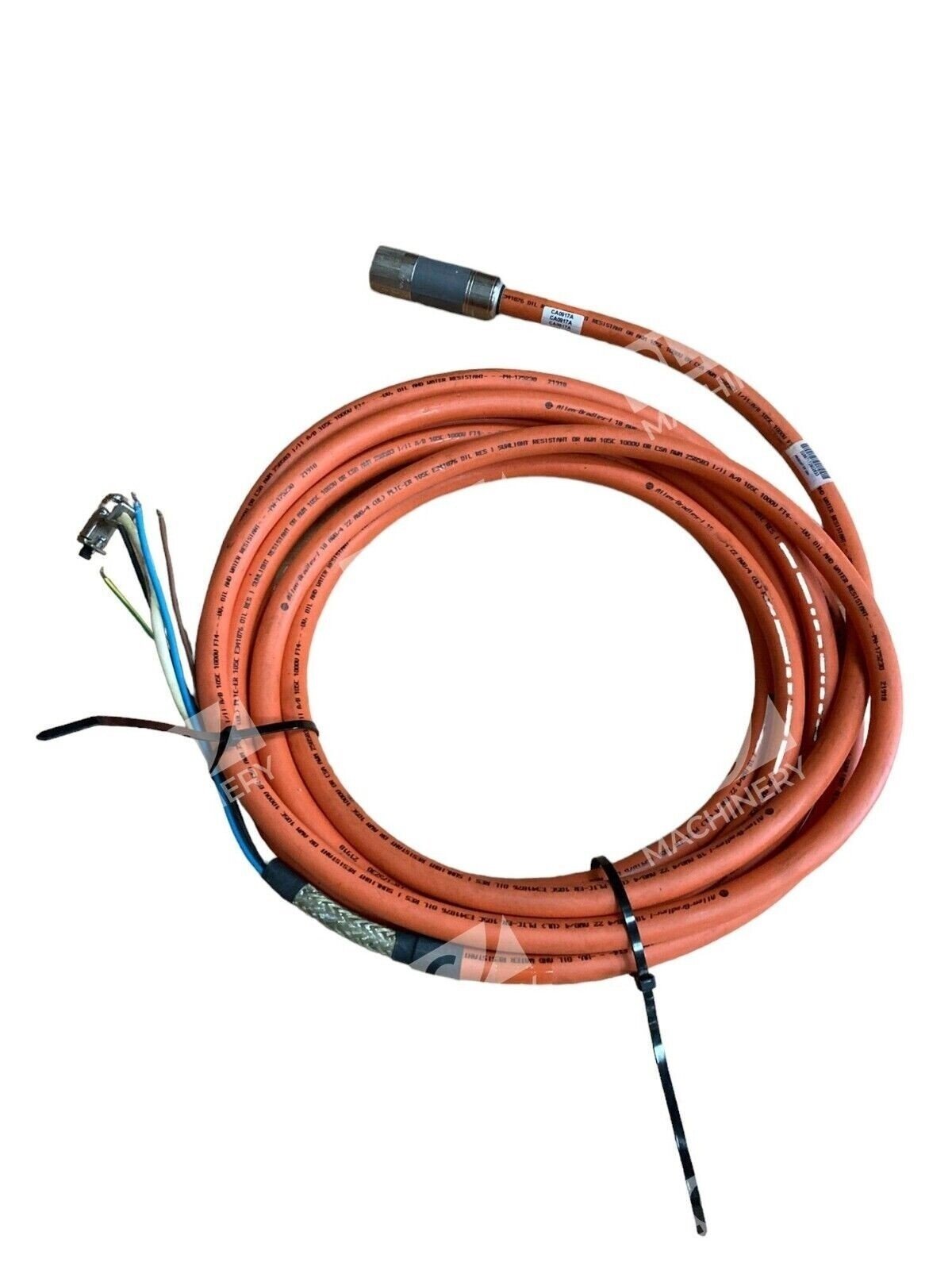

The Allen-Bradley 2090-CSWM1DE-18AA10 is a high-performance Kinetix Single Cable designed to streamline motor power and feedback connections in industrial automation systems. This 10-meter cable integrates power and feedback signals into a single, robust assembly, enhancing system efficiency and reducing installation complexity.
Key Features
- Integrated Design: Combines motor power and feedback signals into one cable, simplifying wiring and reducing potential points of failure.

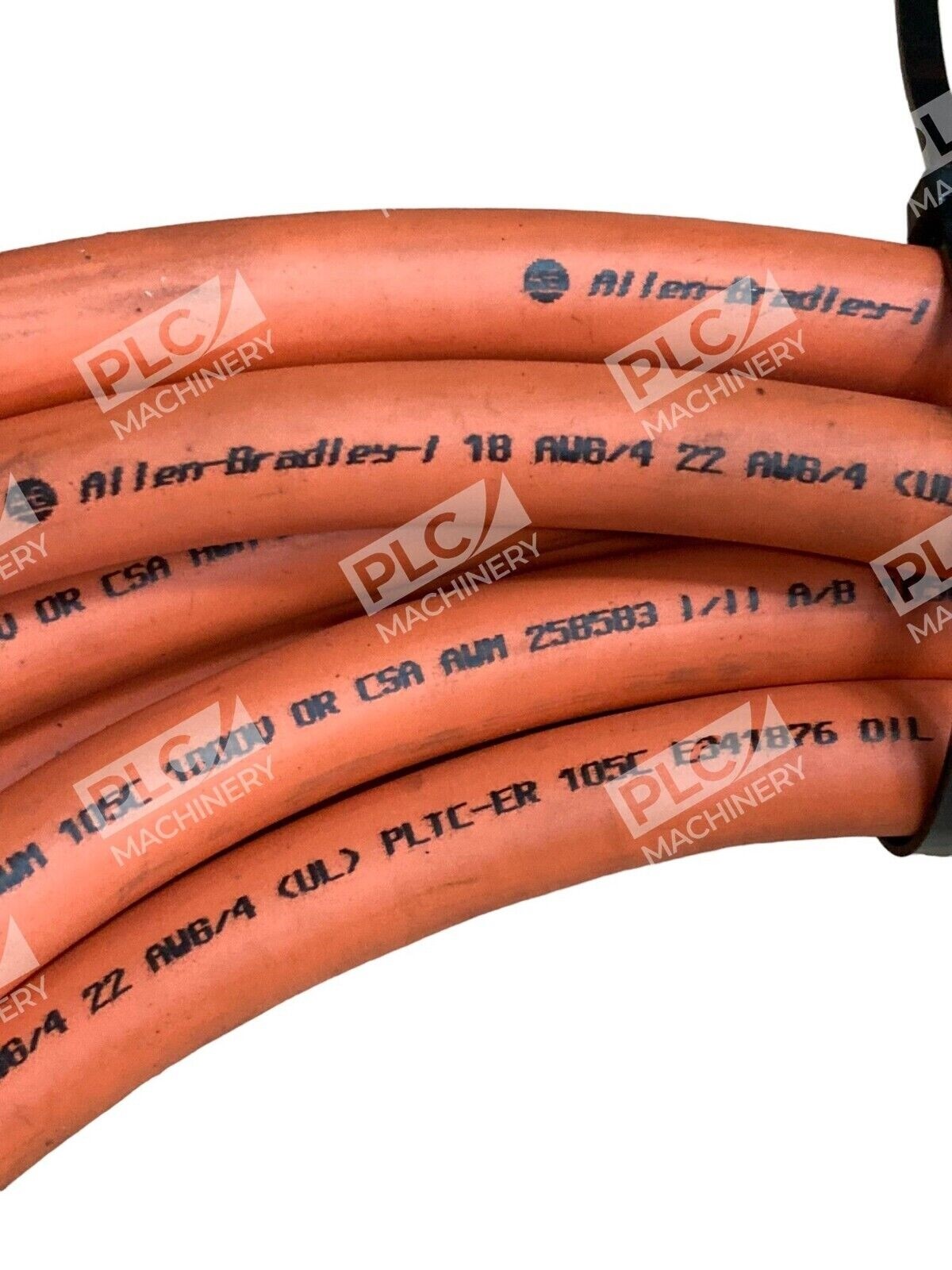

- Standard, Non-Flex Construction: Features a Thermoplastic Elastomer (TPE) jacket, providing durability and resistance to mechanical and chemical wear in stationary applications.

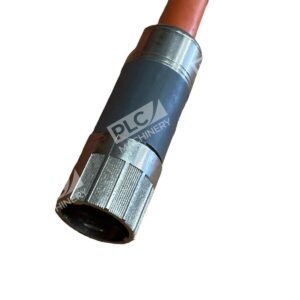

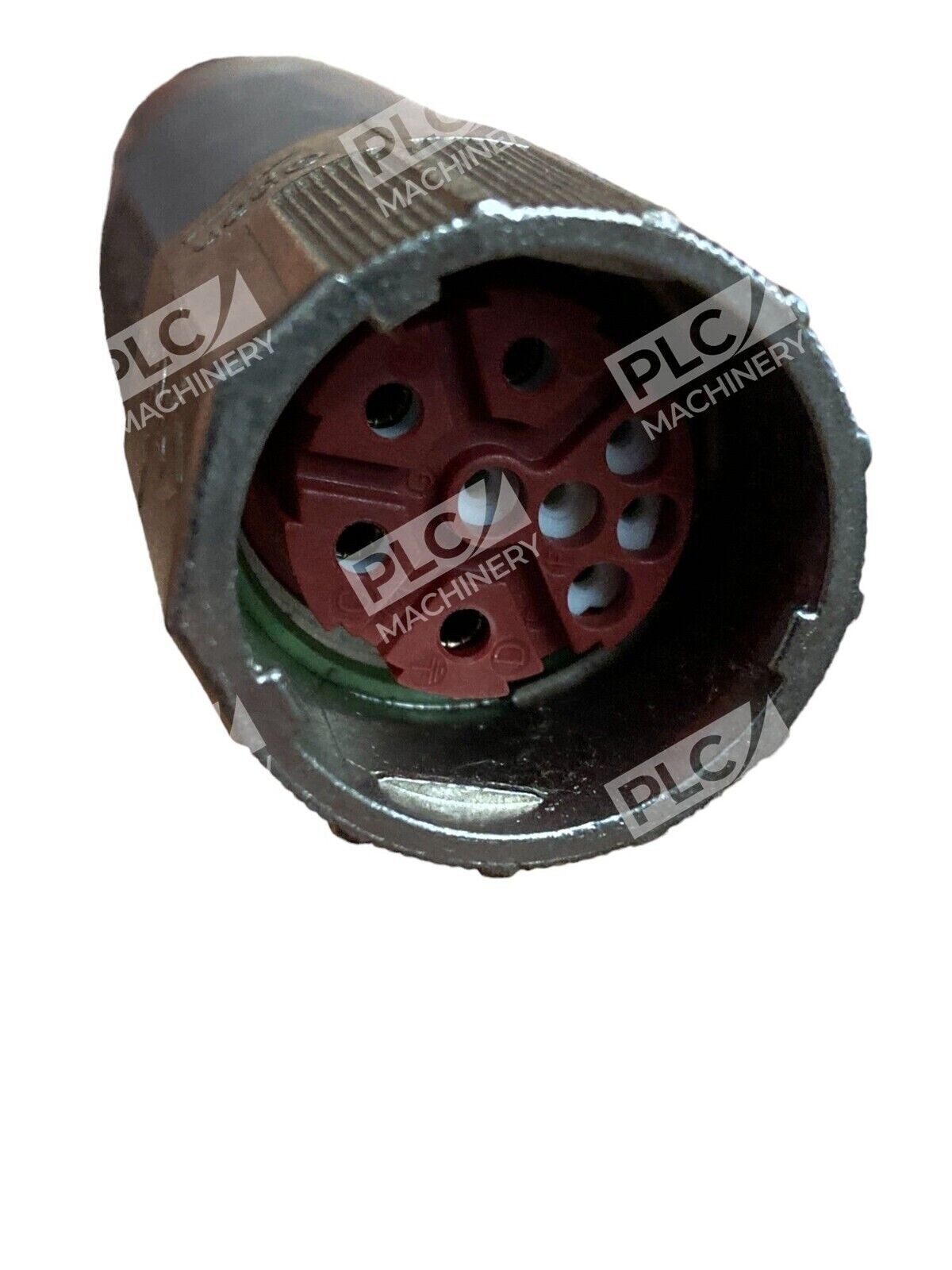

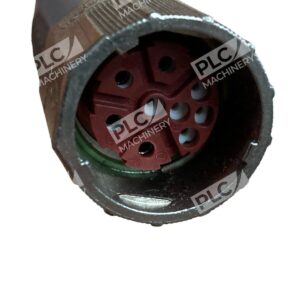

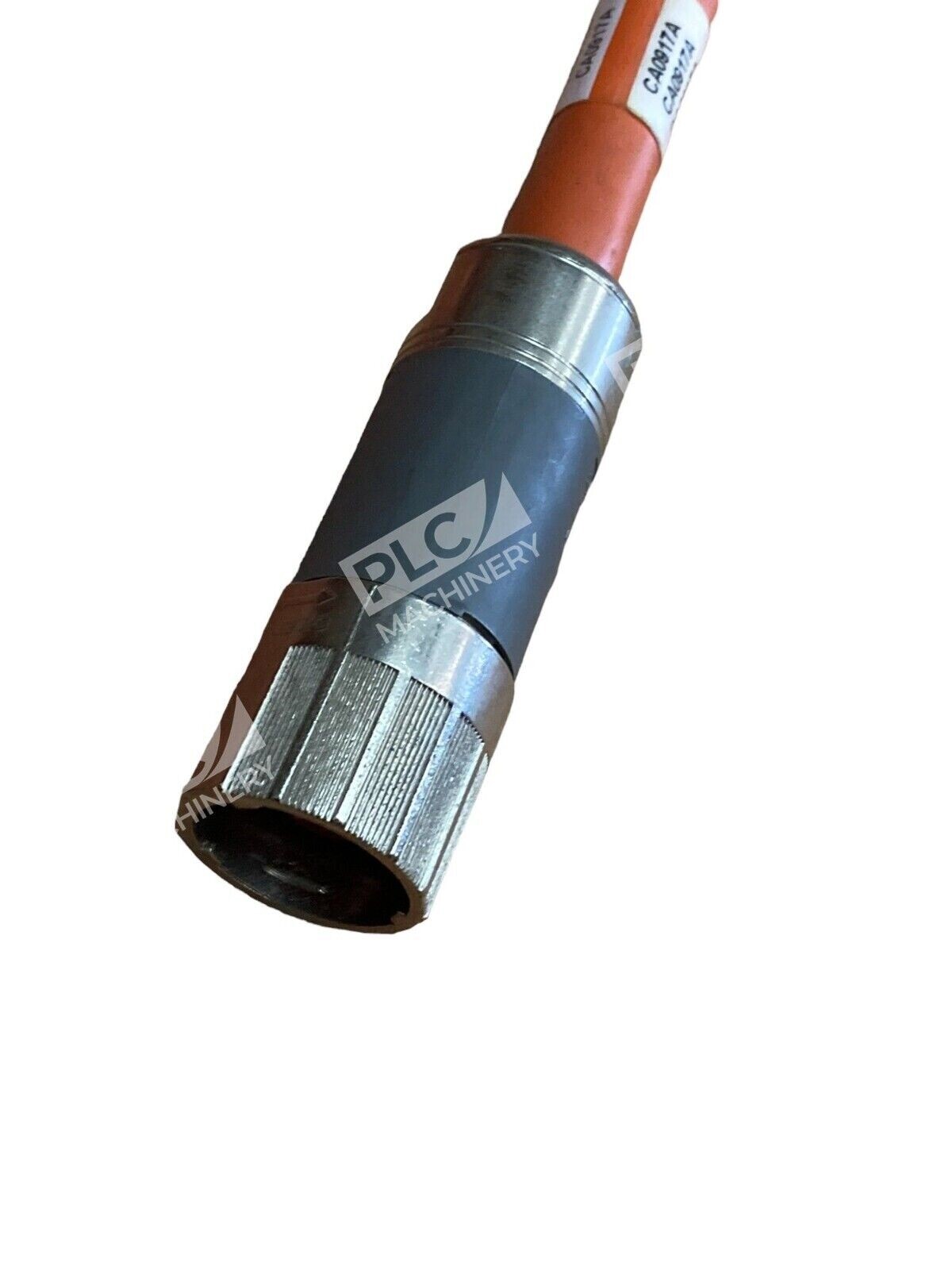

- Single SpeedTec DIN Connector: Equipped with a motor-end connector that ensures secure and reliable connections, facilitating quick and easy installation.

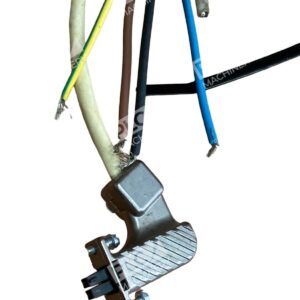

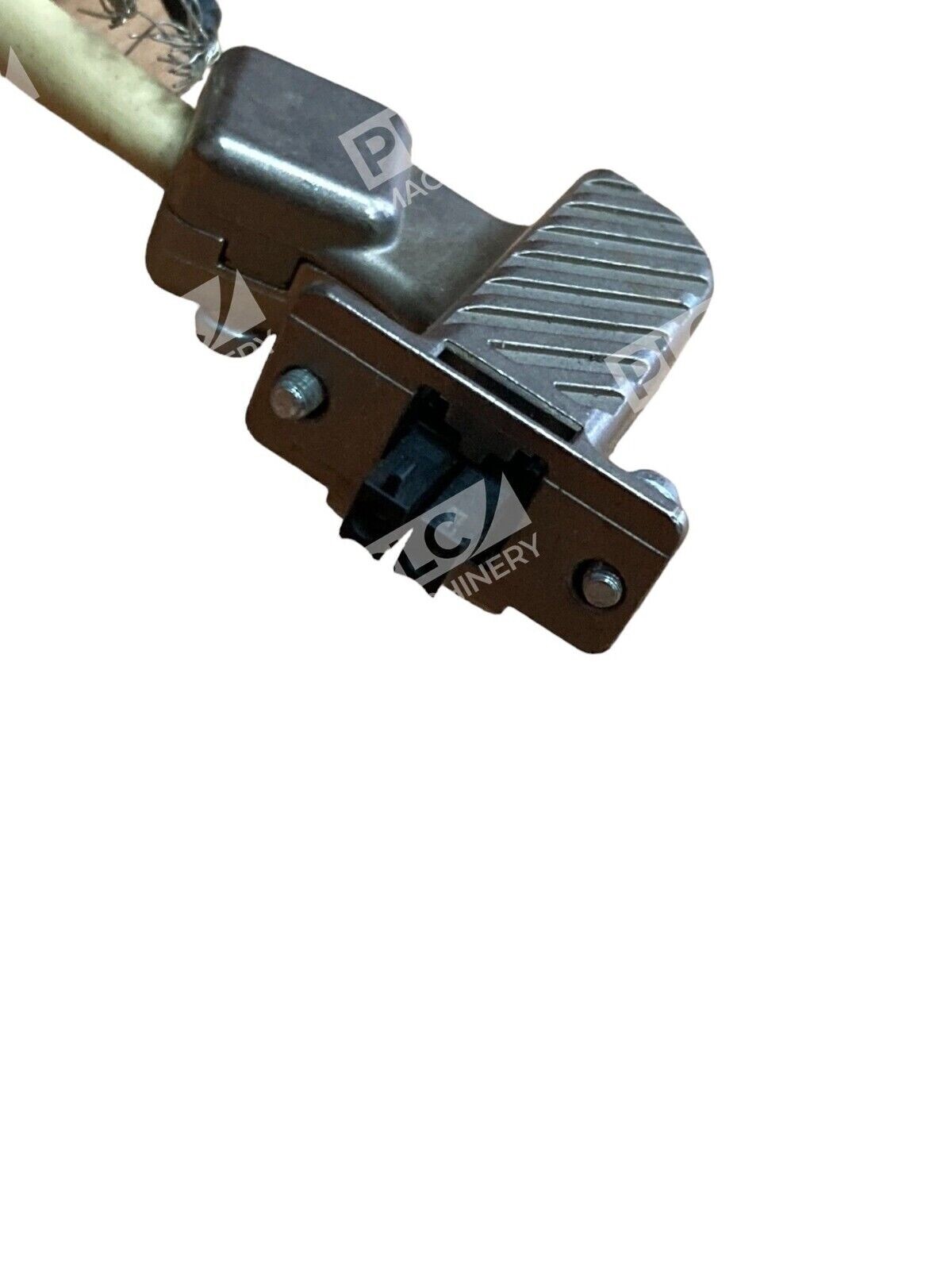

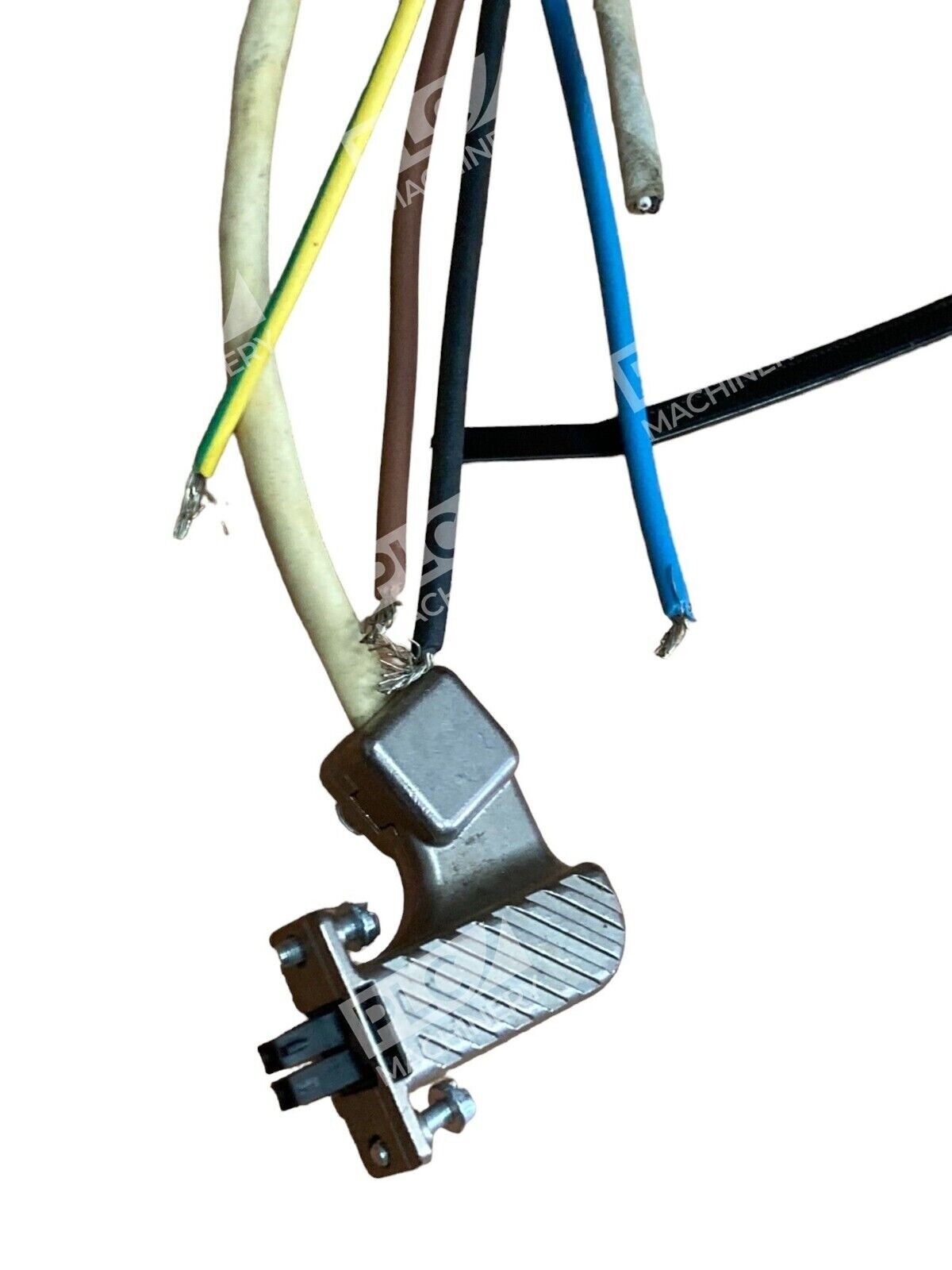

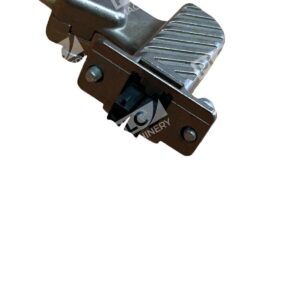

- Drive-End Compatibility: Designed with flying leads and a factory pre-installed connector kit optimized for Kinetix 5700 drives, ensuring seamless integration.

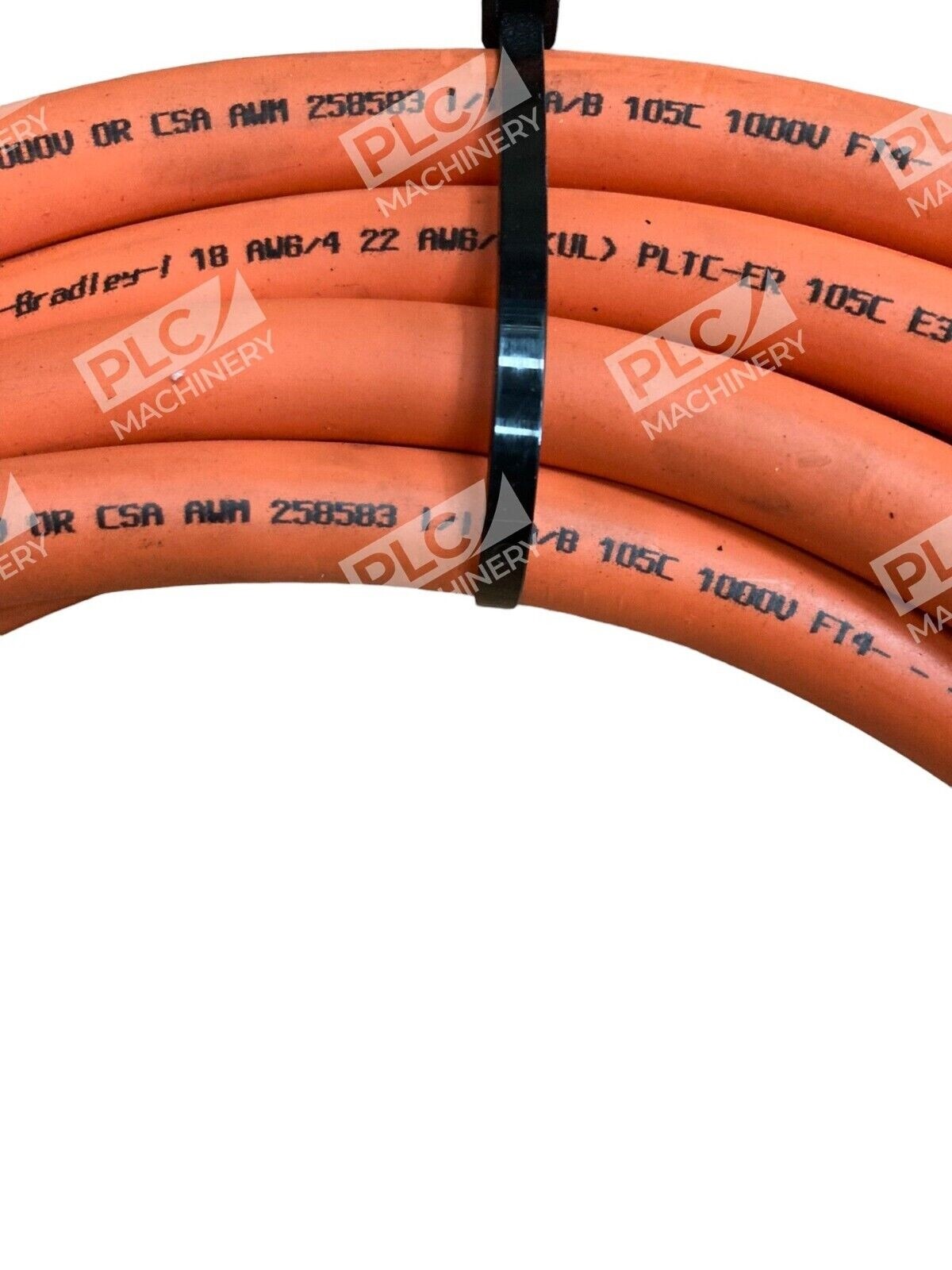

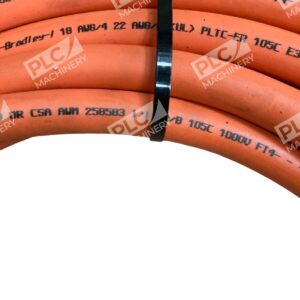

- 18 AWG Conductors: Utilizes 18 American Wire Gauge (AWG) conductors, balancing flexibility and current-carrying capacity for efficient performance.

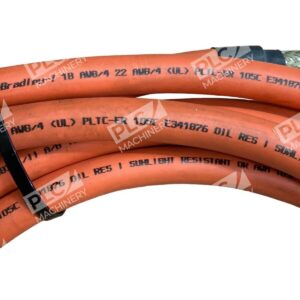

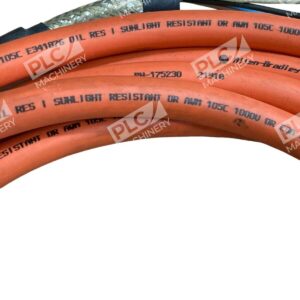

- High Voltage Rating: Rated for up to 1000V, suitable for a wide range of industrial applications requiring robust power delivery.
- Environmental Resilience: Operates effectively in temperatures up to 105°C, accommodating demanding industrial environments.
Technical Specifications
- Cable Length: 10 meters
- Outer Diameter: Approximately 15 mm
- Number of Cores: 8
- Conductor Material: Tinned Copper
- Outer Sheath Color: Orange (RAL2003)
- Static Bend Radius: 7 times the cable diameter
- Weight: Approximately 0.136 kg/m
The 2090-CSWM1DE-18AA10 cable is engineered to enhance the performance and reliability of your automation systems by providing a streamlined, durable, and efficient solution for motor power and feedback connections.
