Allen Bradley 2 Pole 10A 120VAC Relay 700-HA32A1-4 /D (lot of 2)

Allen-Bradley 2-Pole 10A 120VAC Relay 700-HA32A1-4 (Lot of 2)

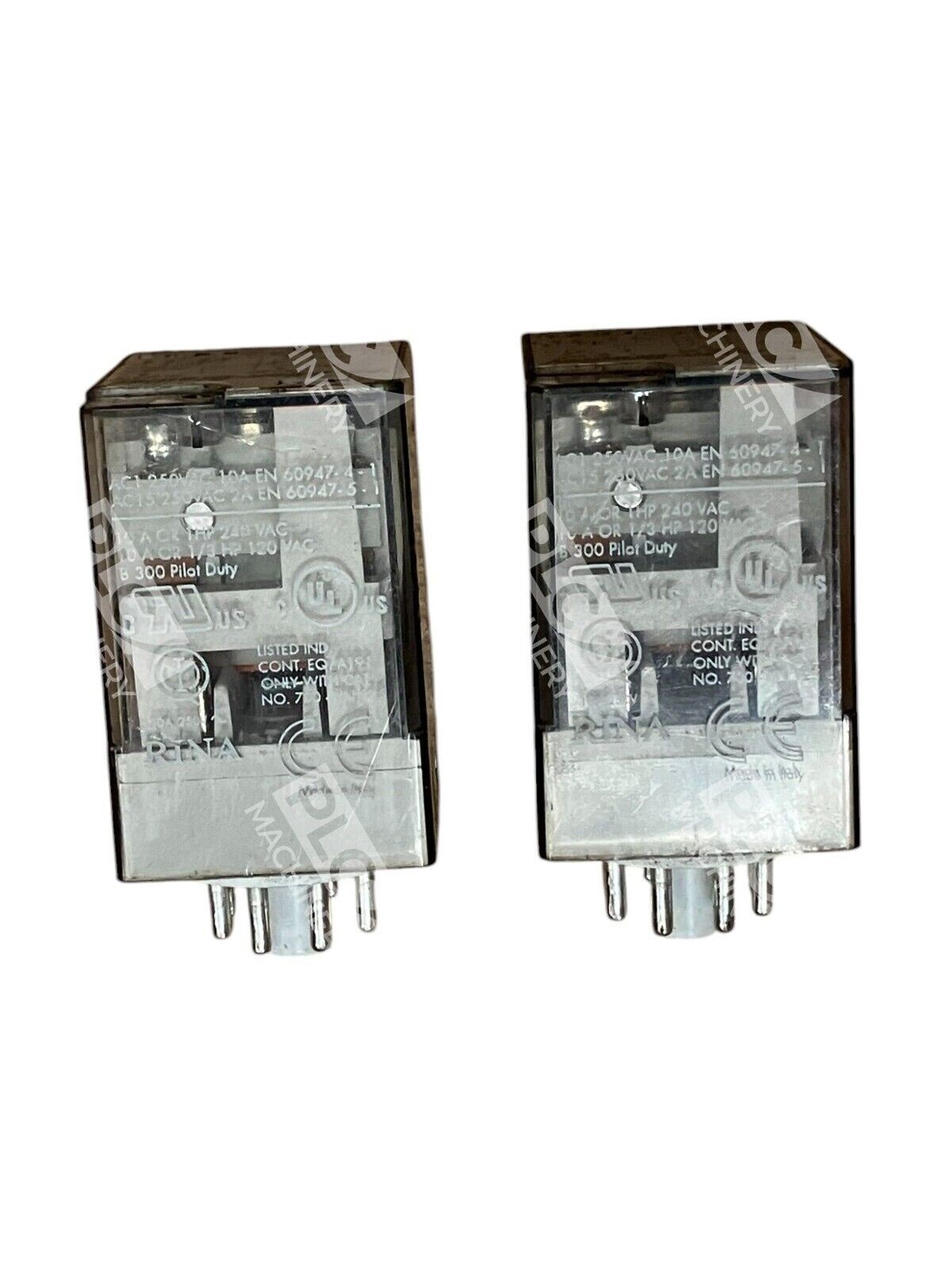

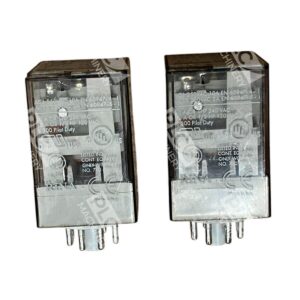

The Allen-Bradley 700-HA32A1-4 is a high-quality general-purpose tube base relay designed for reliable performance in various industrial applications. This lot includes two relays, each featuring a 2-pole double throw (DPDT) contact configuration, capable of handling up to 10 amps at 240V AC.

Key Features

• Contact Configuration: 2 changeover contacts (DPDT) for versatile switching capabilities.
• Coil Voltage: Operates at 120V AC, suitable for standard control systems.
• LED Indicator: Integrated pilot light provides visual confirmation of relay status.
• Electrical Life Cycle: Minimum of 100,000 operations, ensuring long-term reliability.
• Mechanical Life Operations: Rated for up to 50 million operations, highlighting its durability.
• Operating Temperature Range: Functions effectively in temperatures as low as -40°C, making it suitable for various environments.

Specifications

• Nominal Current: 10A
• Voltage Type for Actuating: AC
• Rated Control Supply Voltage at AC 50/60 Hz: 120V
• Type of Electric Connection: Plug-in connection
• Degree of Protection (IP): IP40
• Dimensions: Width: 32.8 mm, Height: 54.1 mm, Depth: 36.5 mm
• Contact Material: AgNi (Silver Nickel)

These relays are designed to meet various international standards, including CE, CSA, UL Listed, and UL Recognized certifications, ensuring compliance with global safety and performance requirements.

Whether you’re upgrading existing equipment or implementing new control systems, the Allen-Bradley 700-HA32A1-4 relays offer the reliability and performance needed for demanding industrial applications.
