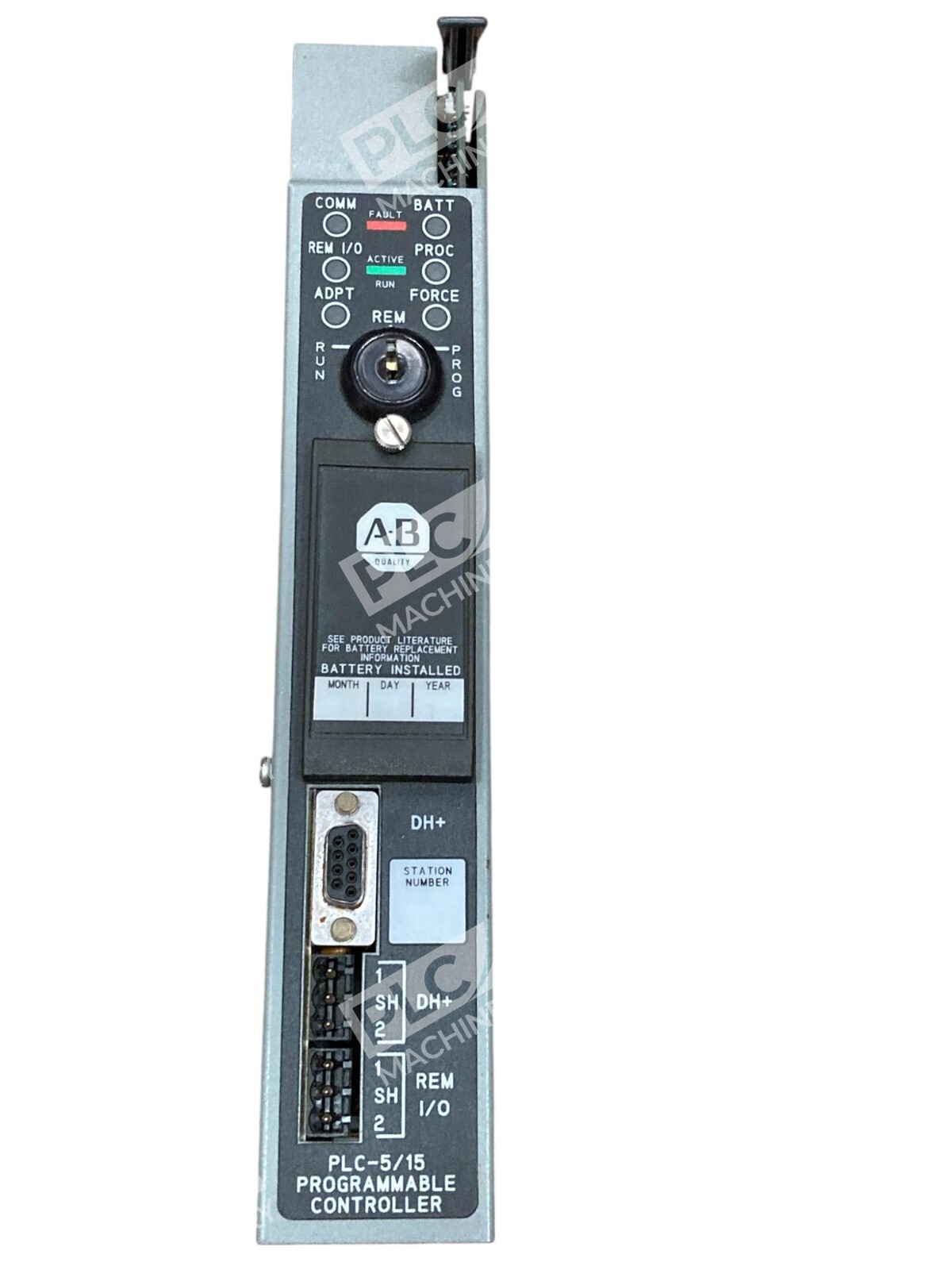

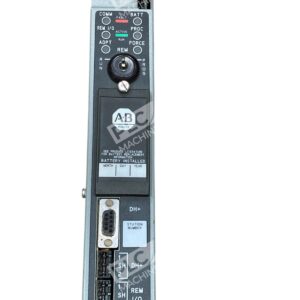

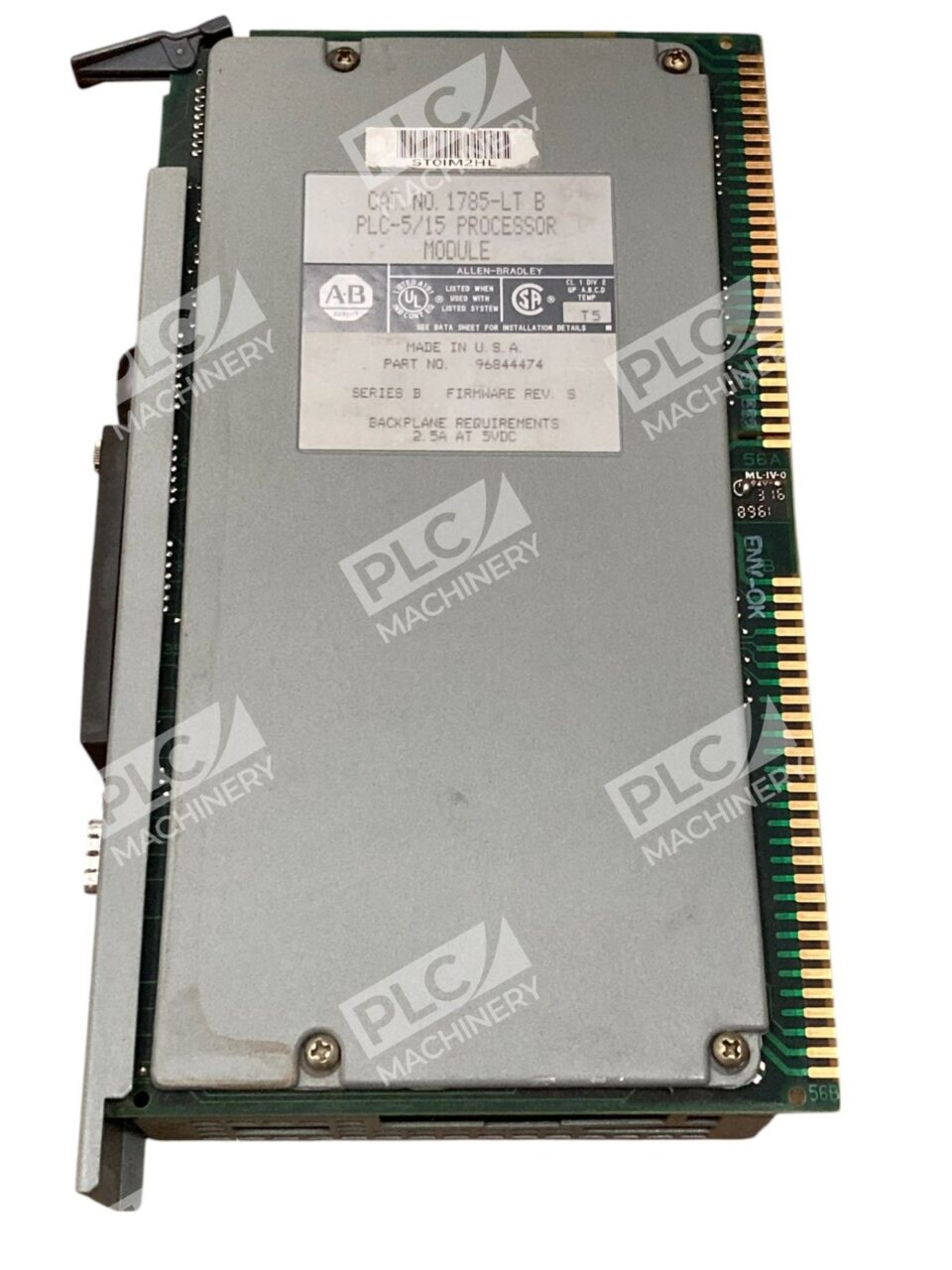

Allen Bradley 1785-LT B PLC-5/15 Processor Module

Allen-Bradley 1785-LT B PLC-5/15 Processor Module

The Allen-Bradley 1785-LT B PLC-5/15 Processor Module is a robust and versatile component designed for industrial automation applications. As part of the PLC-5 family, it offers flexibility in programming, networking, and I/O configurations, making it suitable for a wide range of control systems.

Key Features

• Memory Capacity: Equipped with 6K words of user memory, expandable up to 14K words to accommodate complex programs. ([nicontrols.com](https://nicontrols.com/uk/1785lt-allen-bradley.html?utm_source=openai))
• I/O Support: Supports up to 512 I/O points, configurable as 512 inputs and 512 outputs using 16 or 32-point modules. ([plcdcspro.com](https://www.plcdcspro.com/products/1785-lt-allen-bradley-plc-5-controller-processor-module?utm_source=openai))

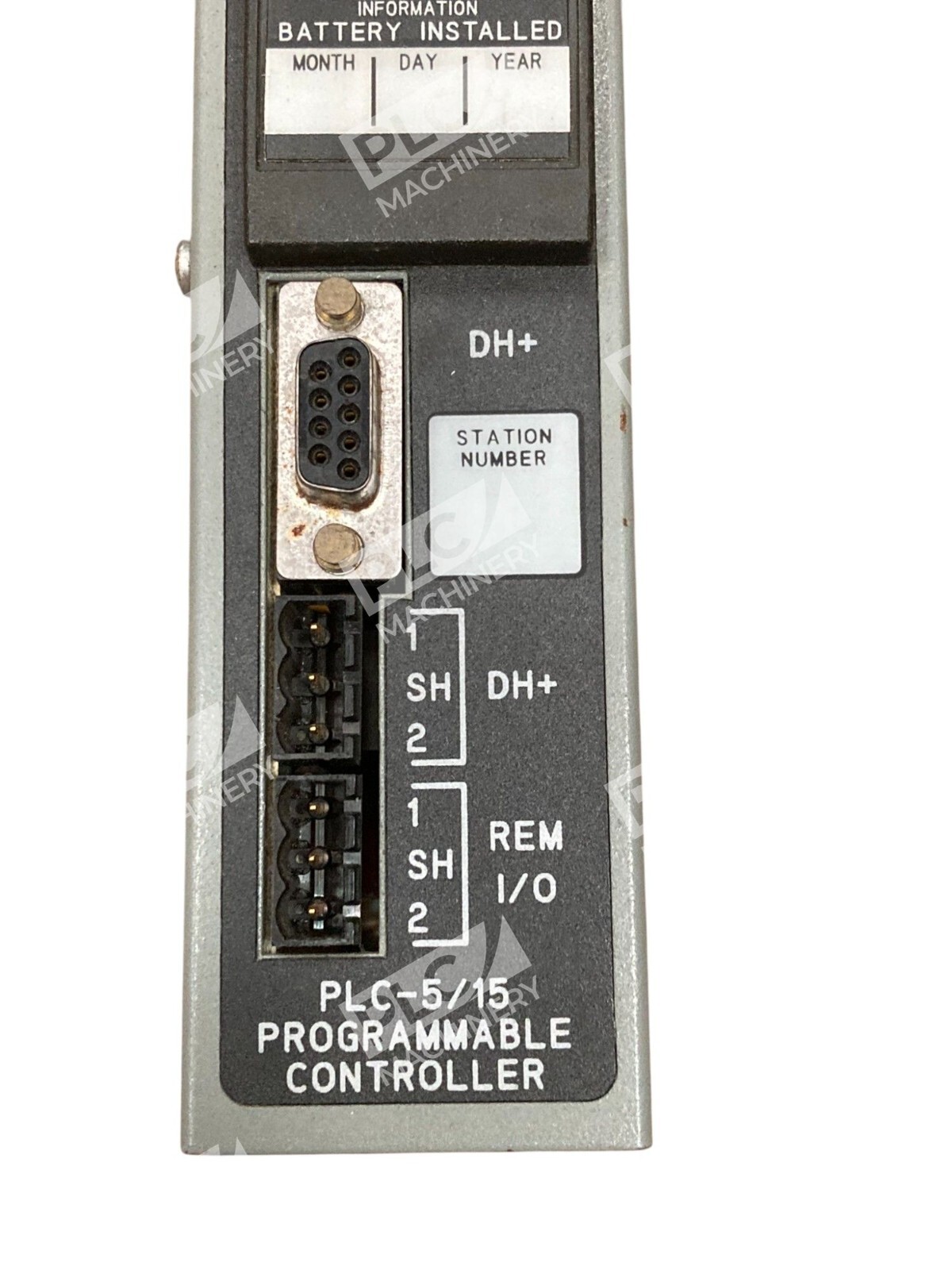

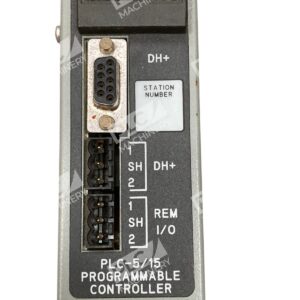

• Communication Interfaces: Includes one Data Highway Plus (DH+) port and one Remote I/O port, facilitating seamless integration into various industrial networks. ([plcdcspro.com](https://www.plcdcspro.com/products/1785-lt-allen-bradley-plc-5-controller-processor-module?utm_source=openai))
• Programming Languages: Compatible with RSLogix 500 and RSLogix 5000, providing a user-friendly environment for developing and managing control programs. ([6gcontrols.com](https://www.6gcontrols.com/products/allen-bradley-1785-lt-b-processor-module-high-quality/?utm_source=openai))
• Operating Temperature Range: Designed to operate reliably within a temperature range of -40°C to +85°C, ensuring performance in diverse industrial environments. ([6gcontrols.com](https://www.6gcontrols.com/products/allen-bradley-1785-lt-b-processor-module-high-quality/?utm_source=openai))

Technical Specifications

• Model: 1785-LT/B
• Type: PLC-5/15 Processor Module
• Power Supply: 24V DC
• Dimensions: 5.08 cm x 10.8 cm x 17.8 cm (2 in. x 4.25 in. x 7 in.) ([6gcontrols.com](https://www.6gcontrols.com/products/allen-bradley-1785-lt-b-processor-module-high-quality/?utm_source=openai))
• Weight: 3.04 lbs ([6gcontrols.com](https://www.6gcontrols.com/products/allen-bradley-1785-lt-b-processor-module-high-quality/?utm_source=openai))

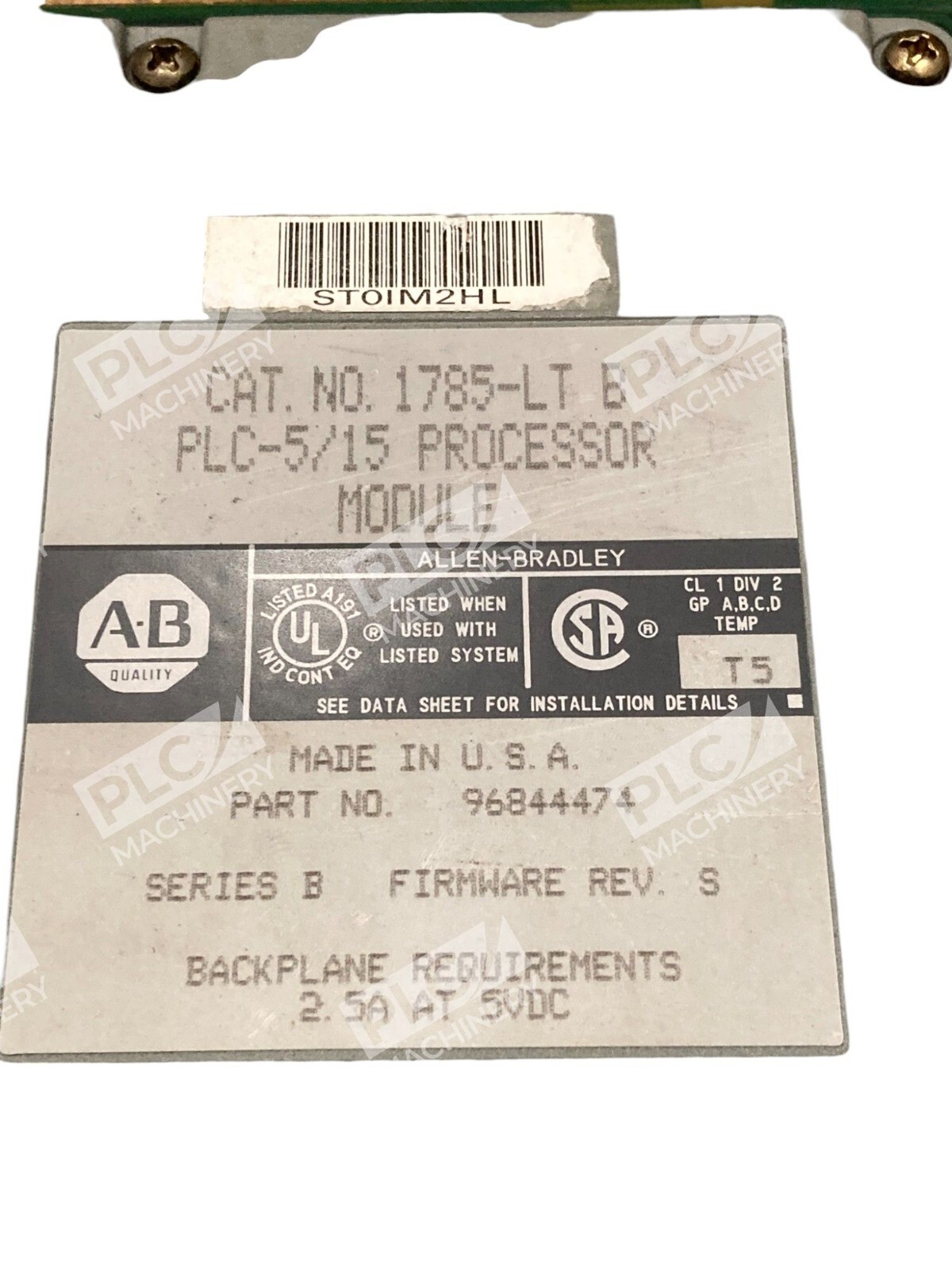

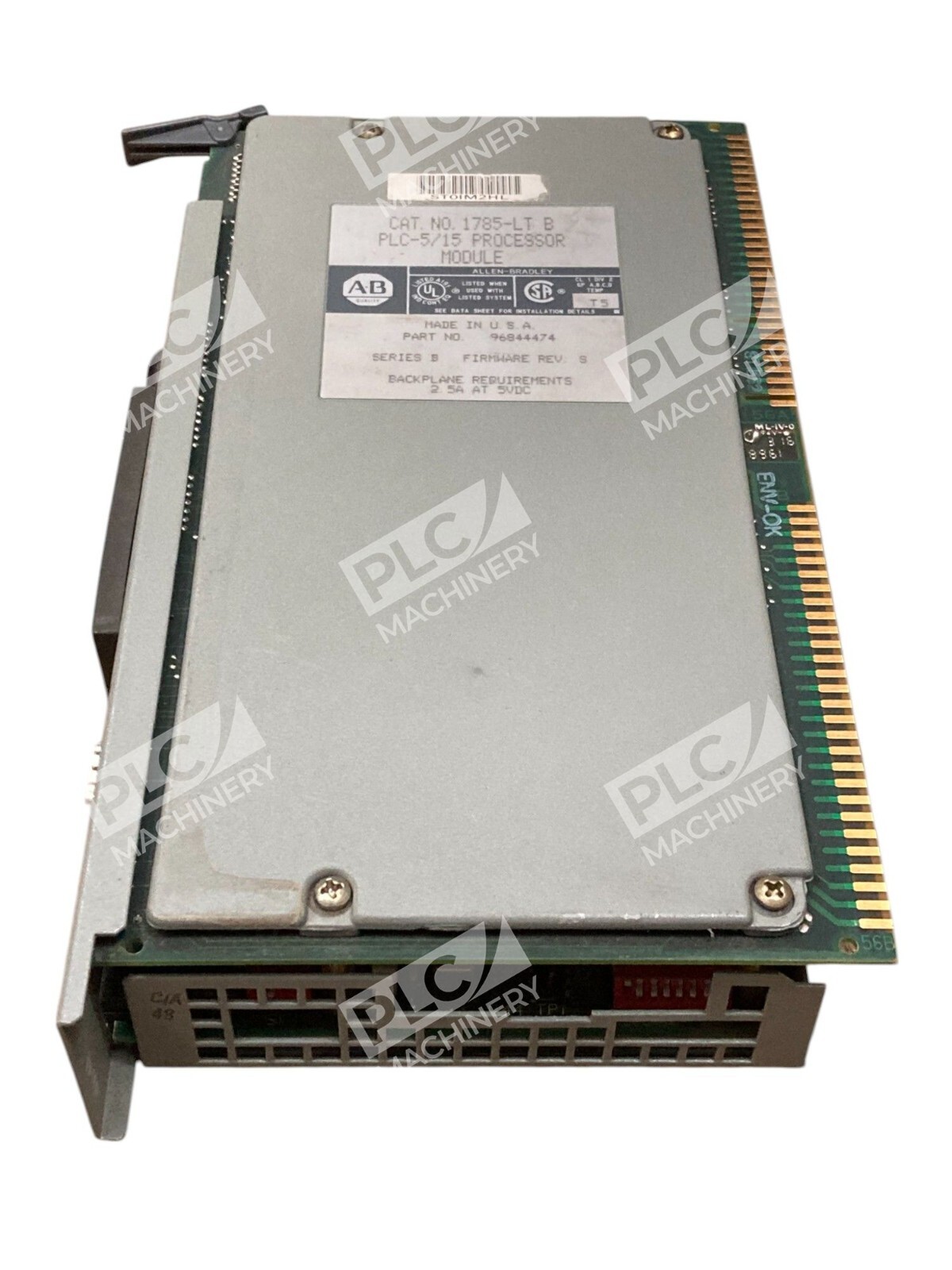

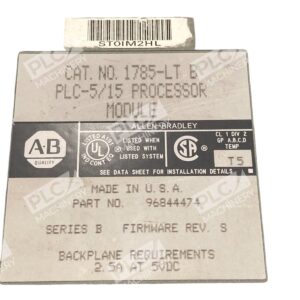

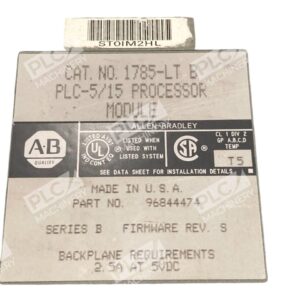

• Current Consumption: 2.5 A at 5 VDC ([nicontrols.com](https://nicontrols.com/uk/1785lt-allen-bradley.html?utm_source=openai))

Applications

The 1785-LT B PLC-5/15 Processor Module is well-suited for a variety of industrial automation tasks, including:

• Process control systems requiring reliable and expandable memory solutions.
• Manufacturing environments needing flexible I/O configurations.
• Facilities integrating multiple communication protocols for seamless network connectivity.

Its modular design and compatibility with various communication standards make it a valuable asset in complex automation systems.
