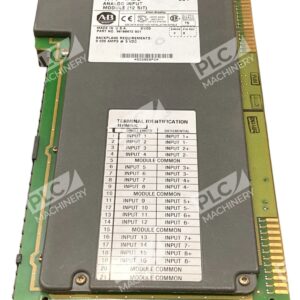

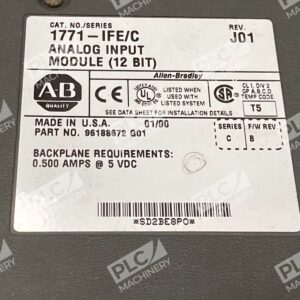

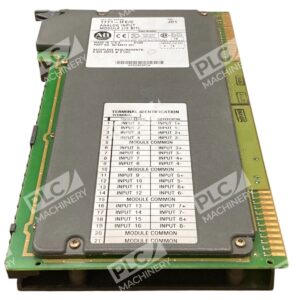

Allen-Bradley 1771-IFE/C Analog Input Module 12-Bit PLC A-B Series C Rev J01

The Allen-Bradley 1771-IFE/C Analog Input Module is a versatile component designed for the PLC-5 system, facilitating the integration of analog signals into digital control processes.

Key Features

• Input Channels: Offers 16 single-ended or 8 differential input channels, providing flexibility for various application requirements.
• Signal Compatibility: Supports a range of voltage and current inputs, including:
  • Voltage: ±10V, 0–10V, 0–5V
  • Current: 4–20mA
• Resolution: Delivers 12-bit resolution, ensuring precise analog-to-digital conversion.
• Accuracy: Maintains an accuracy of ±0.1% of full-scale range at 25°C, ensuring reliable data acquisition.
• Update Time: Achieves a channel update time of 18 milliseconds for 8 channels and 36 milliseconds for 16 channels, facilitating timely data processing.
• Isolation: Provides 1500V isolation between input and backplane, enhancing system safety and integrity.

Technical Specifications

• Backplane Current Load: 750 mA at 5V DC
• Power Dissipation: 5.4 Watts
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Certifications: UL, CE, C-Tick

Applications

The 1771-IFE/C module is ideal for various industrial applications, including:

• Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in manufacturing environments.
• Data Acquisition: Collecting analog data from sensors and transducers for analysis and decision-making.
• System Integration: Integrating analog signals into PLC systems for comprehensive automation solutions.

This module’s robust design and comprehensive features make it a reliable choice for enhancing the capabilities of PLC-5 systems in diverse industrial settings.
