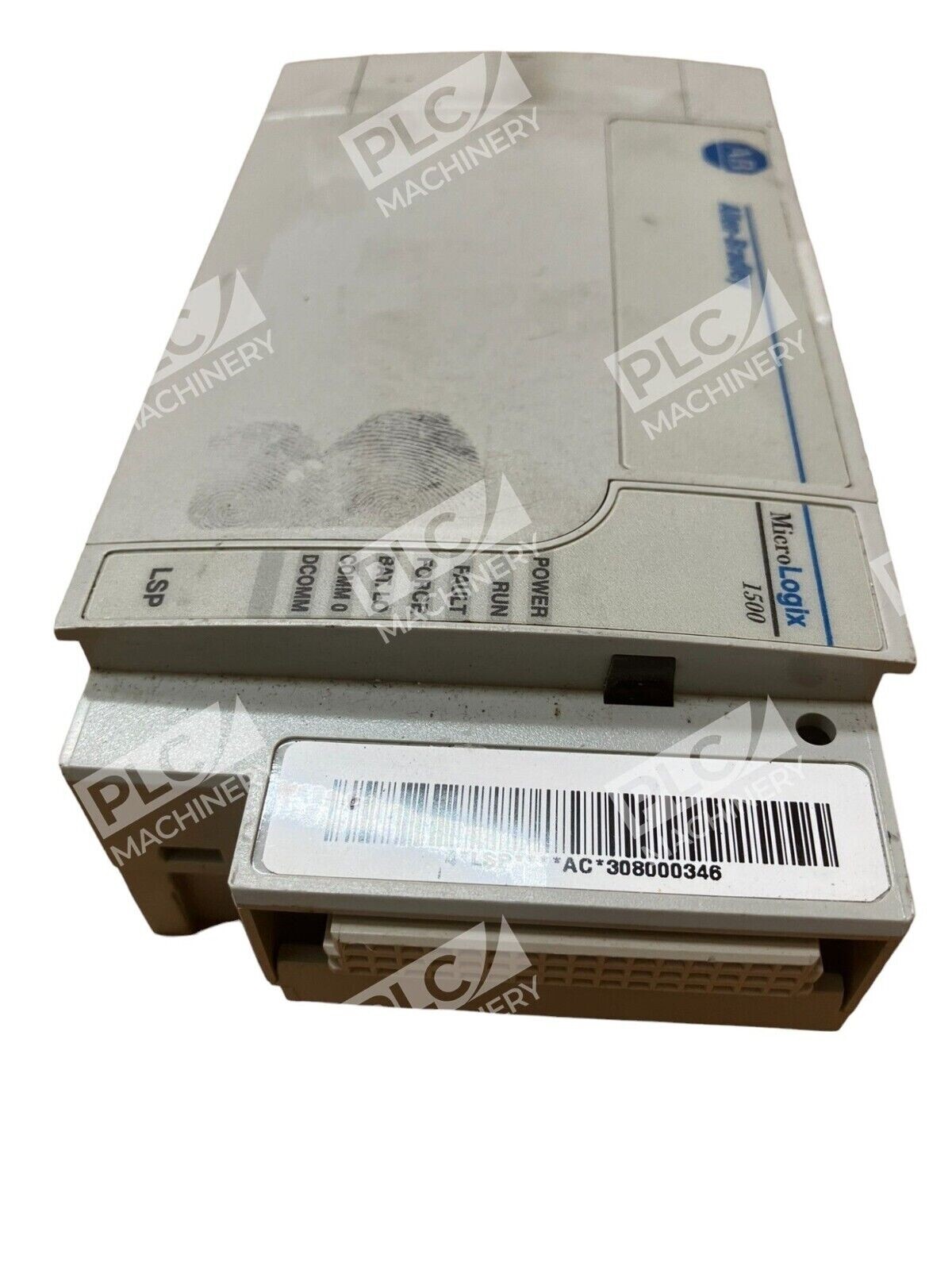

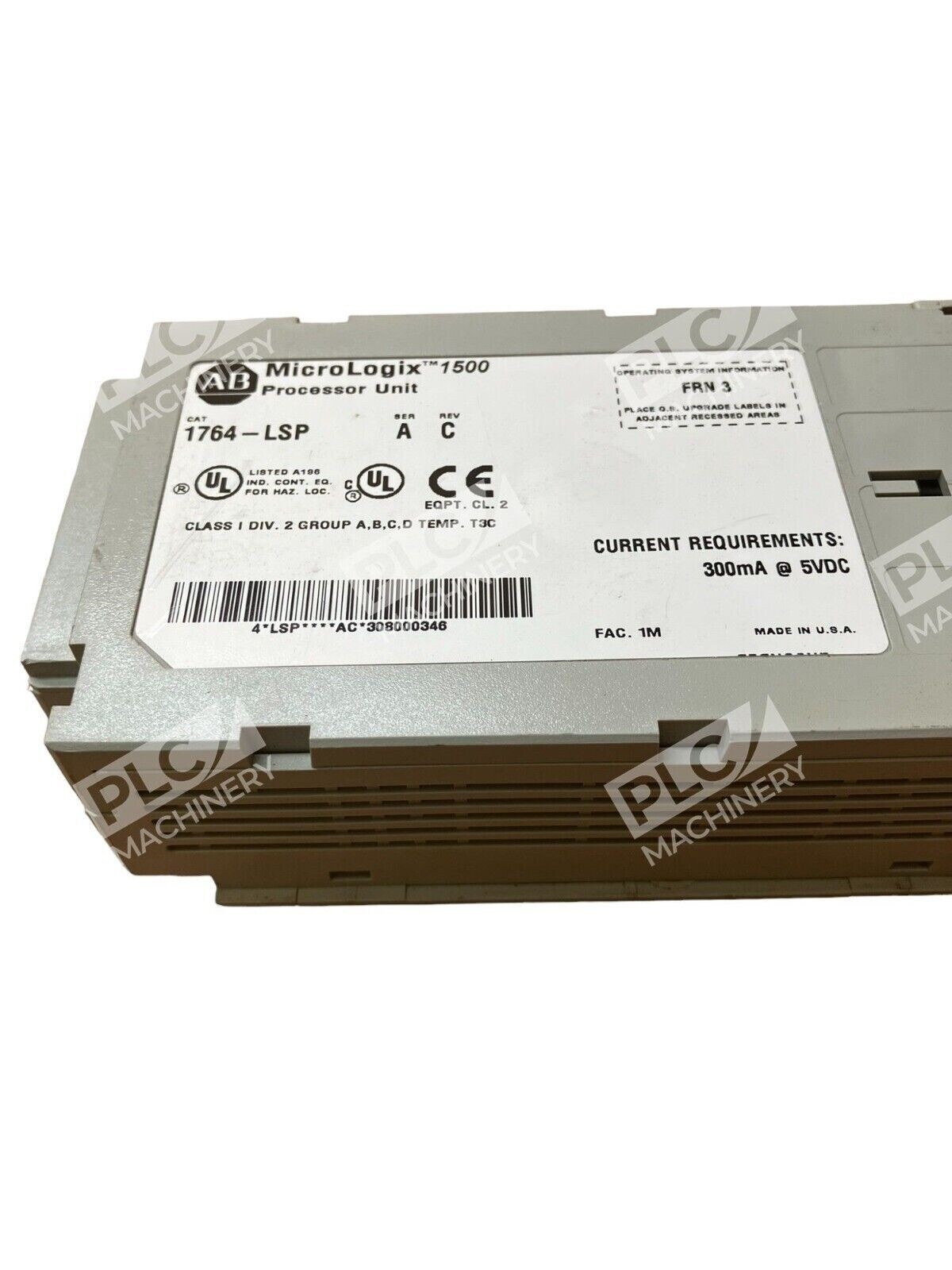

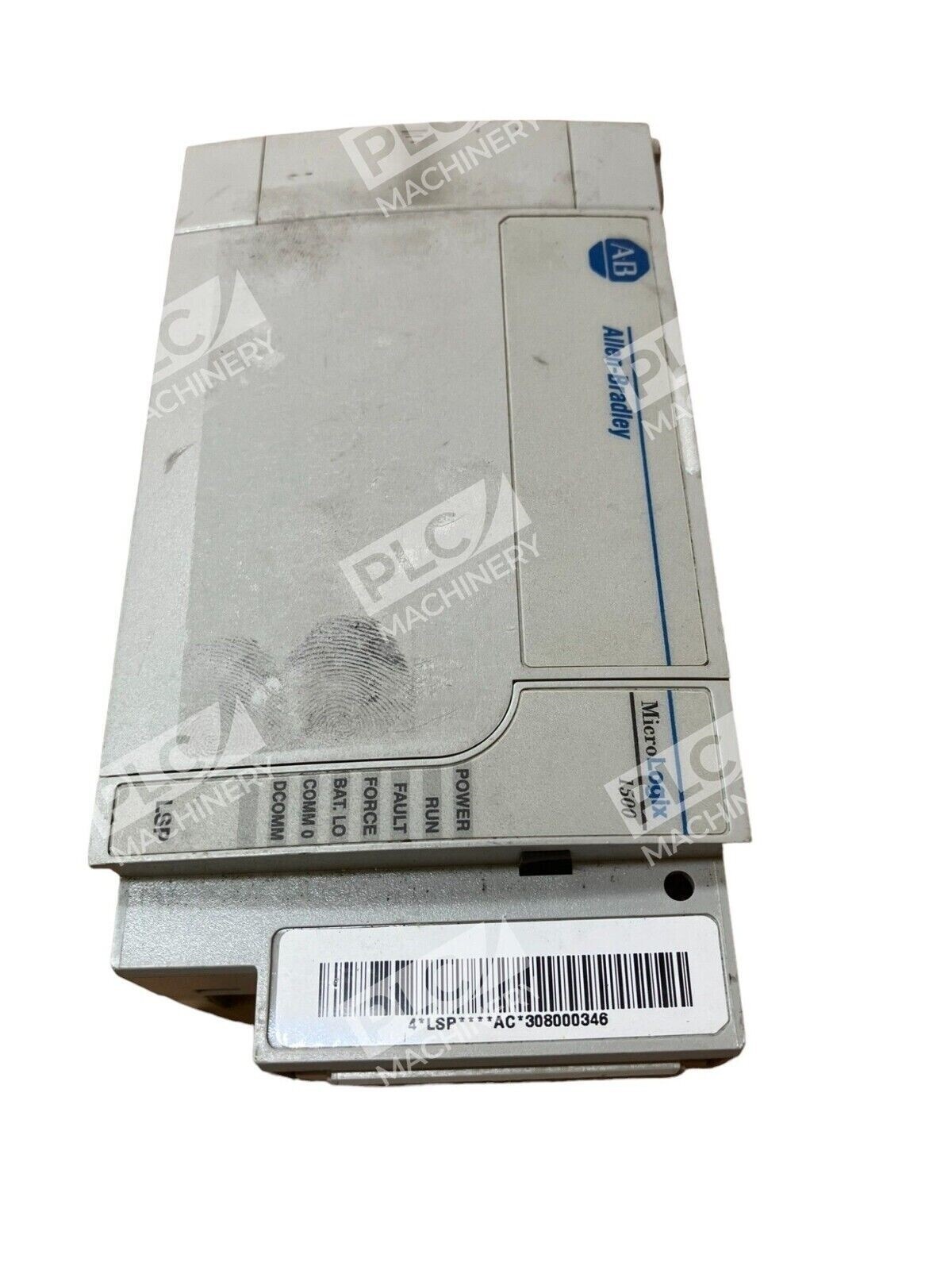

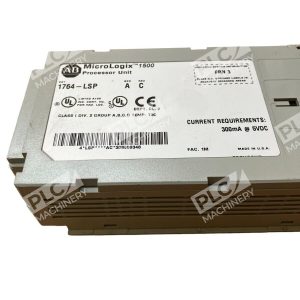

Allen Bradley 1764-LSP /A /C MicroLogix 1500 Processor Unit

Allen-Bradley 1764-LSP MicroLogix 1500 Processor Unit

The Allen-Bradley 1764-LSP is a standard processor unit within the MicroLogix 1500 family, designed to deliver efficient and reliable control for a variety of industrial applications. This compact processor offers a blend of performance and flexibility, making it suitable for small to medium-sized automation tasks.

Key Features

• Memory Capacity: Equipped with 7.65 KB of user-configurable memory, partitioned into 3.6 KB for user programs and 4 KB for user data, allowing for efficient program execution and data management.
• Communication Capabilities: Features a non-isolated RS-232-C port supporting multiple protocols, including DF1 full duplex, DF1 half duplex, ASCII, Modbus, and DH-485, facilitating seamless integration with various devices and systems.
• Integrated Trim Potentiometers: Includes two built-in digital trim potentiometers with a range of 0 to 250, enabling precise manual adjustments of parameters such as counters, timers, or thresholds without the need for reprogramming.
• High-Speed Processing: Capable of executing a 1K-word program, encompassing counter, bit, math instructions, and timers, in approximately 1 millisecond, ensuring swift and responsive control operations.
• Expansion Options: Supports the addition of up to eight local I/O modules and, with an expansion backplane, can accommodate up to sixteen Compact I/O modules, providing scalability to meet evolving system requirements.

Compatibility and Accessories

The 1764-LSP processor is compatible with various MicroLogix 1500 base units, including models 1764-24AWA, 1764-24BWA, and 1764-28BXB. It also supports the installation of memory and real-time clock modules, such as the 1764-MM1, 1764-MM2, 1764-MM3, 1764-MM1RTC, 1764-MM2RTC, 1764-MM3RTC, and 1764-RTC, enhancing its functionality and adaptability to specific application needs.

Physical Specifications

• Dimensions: Approximately 18.999 cm (L) x 10.109 cm (W) x 5.69 cm (H), facilitating installation in space-constrained environments.
• Weight: Weighs around 0.263 kg (0.58 lbs), contributing to ease of handling and installation.

The Allen-Bradley 1764-LSP MicroLogix 1500 Processor Unit stands as a robust and versatile solution for industrial automation, offering a combination of performance, flexibility, and scalability to meet diverse control system requirements.
