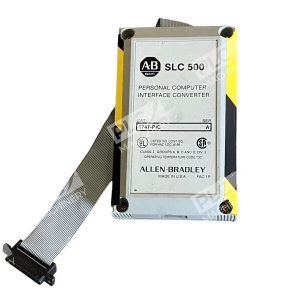

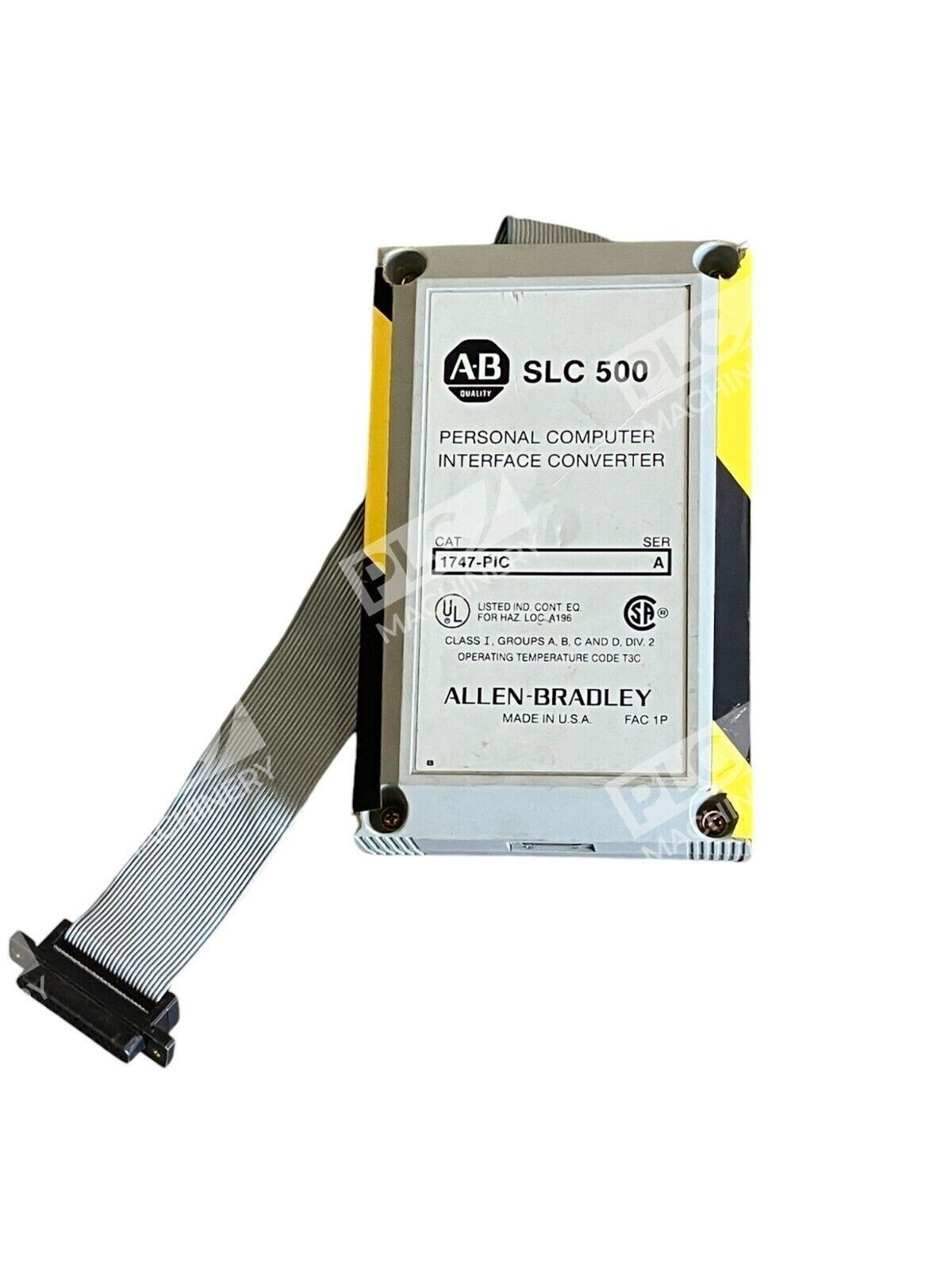

Allen Bradley 1747-PIC /A

The Allen-Bradley 1747-PIC is an RS-232 to RS-485 interface converter designed to facilitate communication between personal computers and SLC 500 controllers, specifically the SLC 5/01, SLC 5/02, and SLC 5/03 processors.

Key Features

• Compatibility: Enables connection between PCs and SLC 500 controllers, including SLC 5/01, SLC 5/02, and SLC 5/03 models.

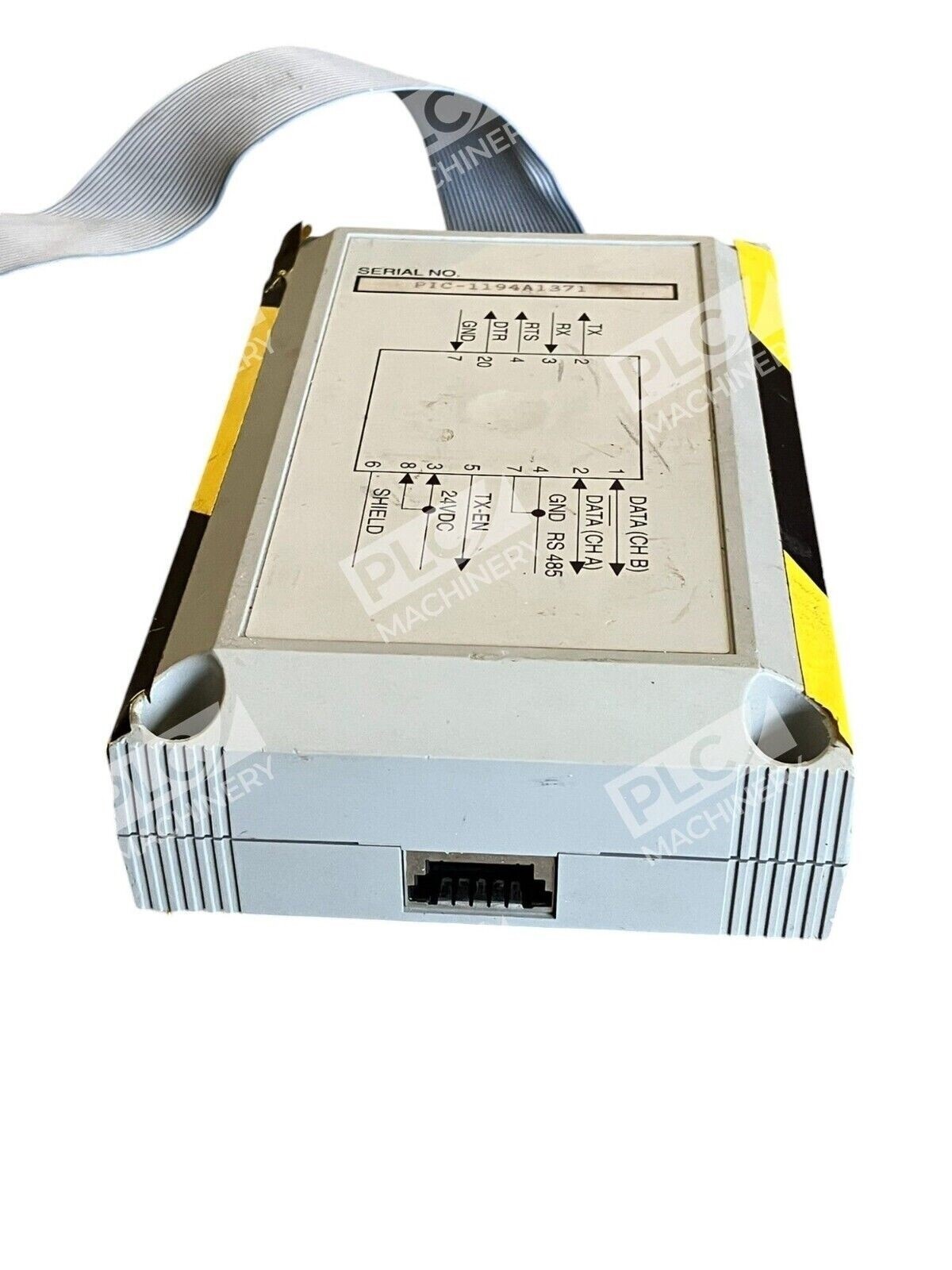

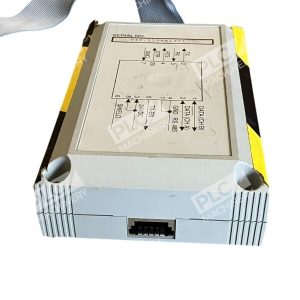

• Connector Configuration: Equipped with a 9-pin DB9 female port for PC connection and an RJ-45 port for controller connection.
• Communication Protocol: Supports DH-485 communication at baud rates of 9600 or 19200 Kbps.
• Operating Conditions: Functions effectively within a temperature range of 0 to 60°C (32 to 140°F).

Installation and Usage

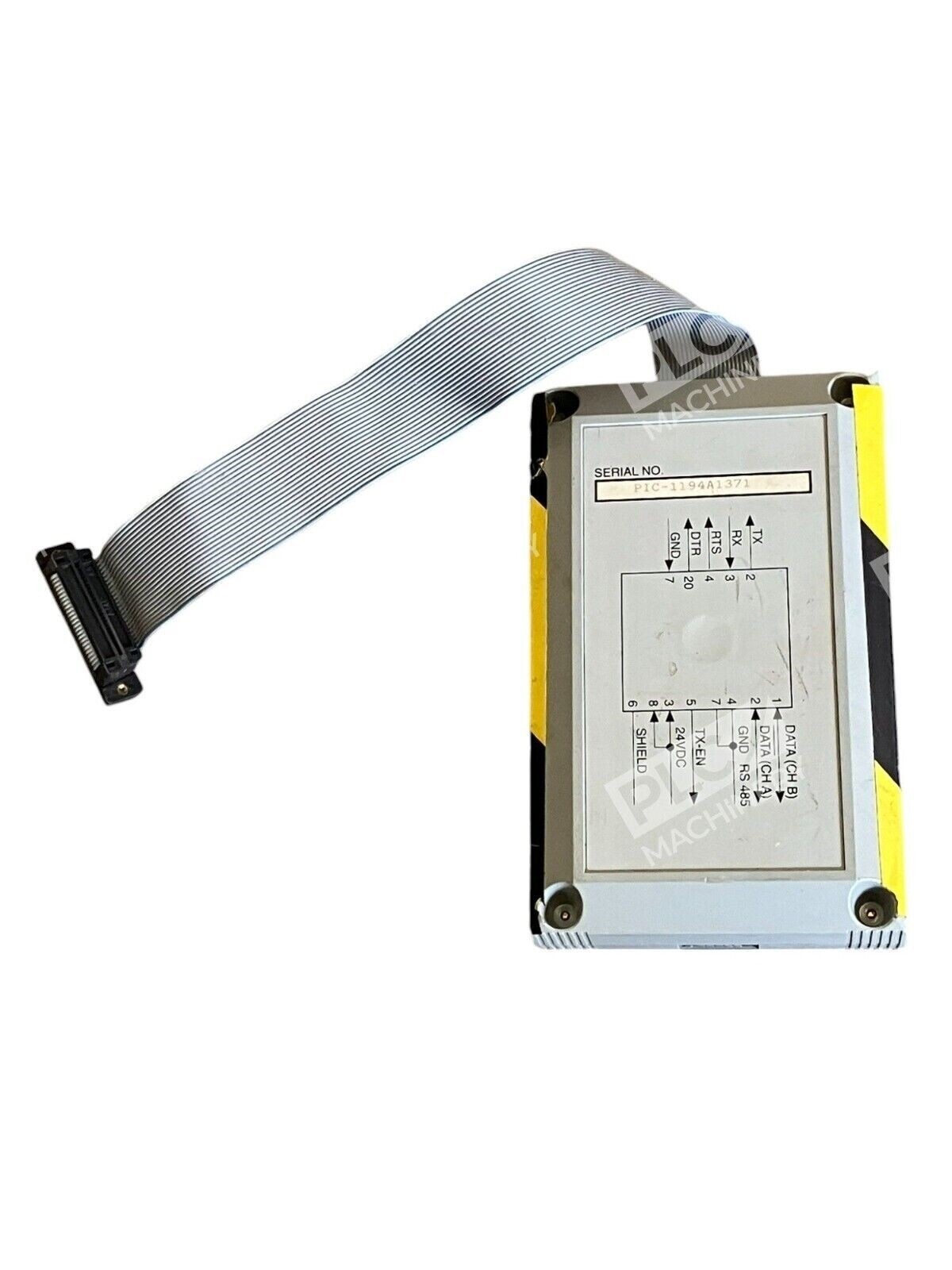

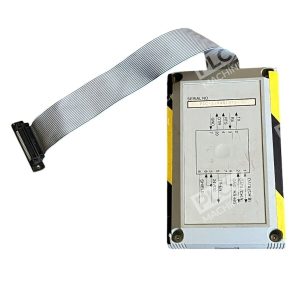

The 1747-PIC converter includes an 11-inch (279.4 mm) ribbon cable for connecting to the computer’s serial port. It is important to note that this device is compatible only with built-in COM1 and COM2 serial ports and does not support USB-to-serial adapters or serial port extender boards. To ensure optimal performance, users should disable infrared ports and power management systems on their computers to prevent resource conflicts.

Physical Specifications

• Dimensions: Approximately 13 cm x 10 cm x 20 cm.
• Weight: Approximately 0.29 kg.

The Allen-Bradley 1747-PIC interface converter is a reliable solution for integrating personal computers with SLC 500 controllers, ensuring efficient communication within industrial automation systems.
