Allen Bradley 1747-L532 /D

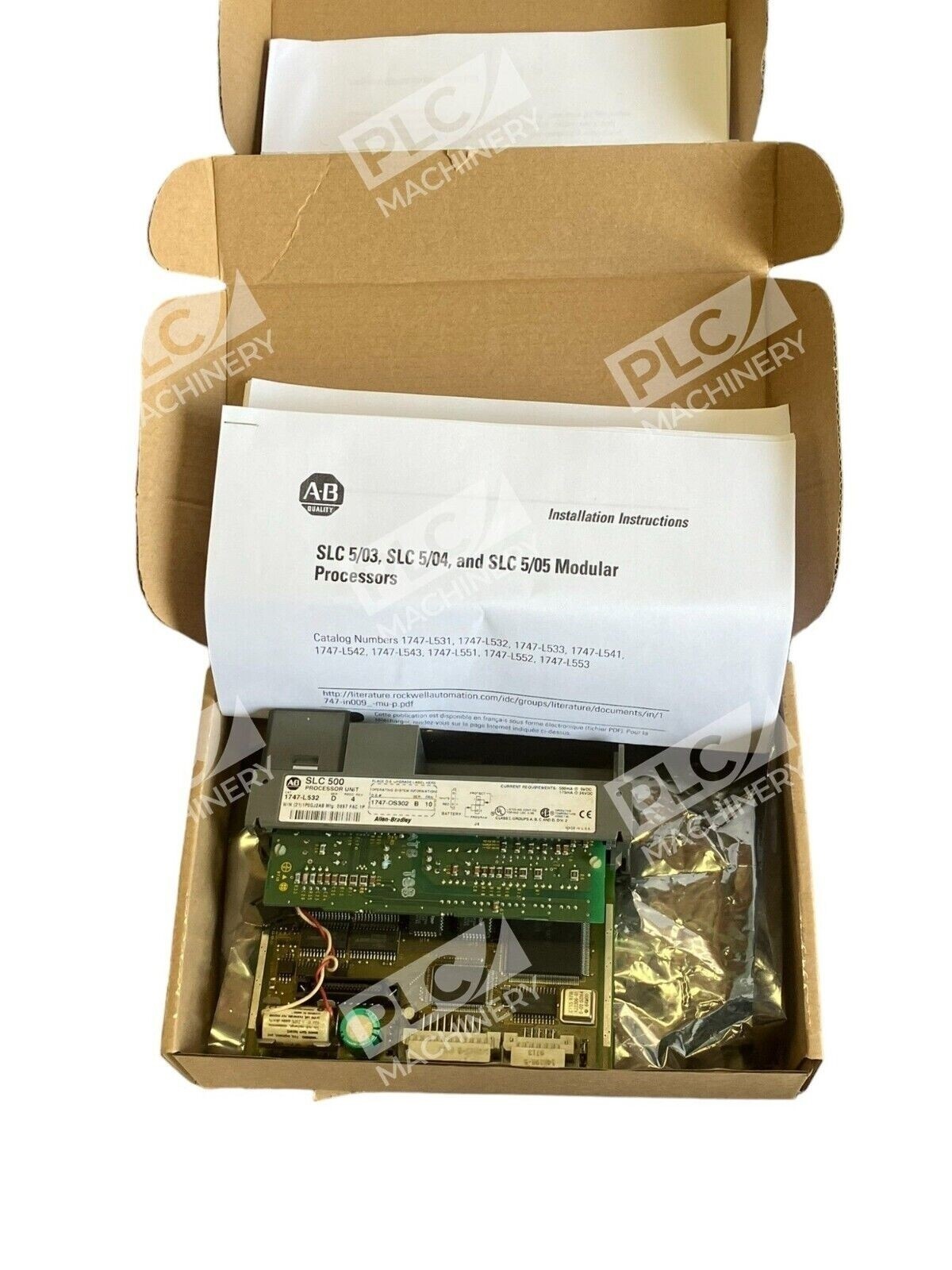

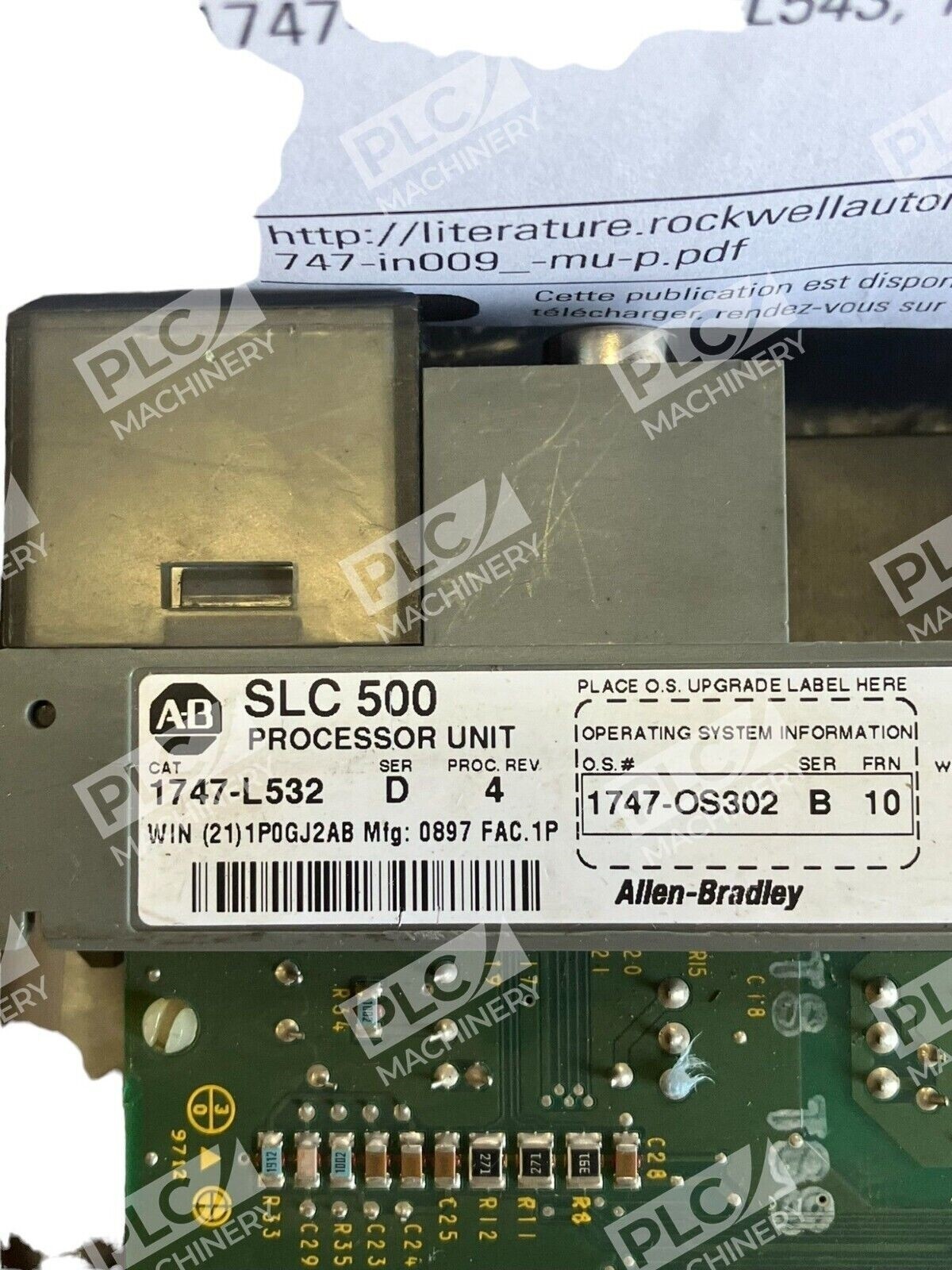

Allen-Bradley 1747-L532 SLC 5/03 Processor Module

The Allen-Bradley 1747-L532 is a versatile SLC 5/03 processor module designed for small to medium-scale industrial automation applications. It offers a robust set of features to meet diverse control requirements.

Key Features

• Memory Capacity: Equipped with 16K words of user memory, comprising 12K words for program storage and 4K words for data. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• I/O Support: Supports up to 4096 input and 4096 output points, along with 480 analog I/O points, providing extensive scalability. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• Communication Interfaces: Features integrated DH-485 and RS-232 ports, facilitating flexible communication options for various industrial networks. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• Performance: Achieves a program scan time of approximately 1 millisecond per 1K of ladder logic instructions, ensuring efficient processing. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• Programming Support: Compatible with RSLogix 500 software, supporting online program editing and advanced instruction sets, including PID control and high-level math functions. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))

Technical Specifications

• Backplane Current: 500 mA at 5V DC; 175 mA at 24V DC. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• Operating Temperature: 0°C to 60°C (32°F to 140°F). ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• Memory Backup: Standard battery-backed RAM with optional Flash EEPROM for program retention. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))
• Chassis Compatibility: Supports installation in 4-slot, 7-slot, 10-slot, or 13-slot chassis configurations. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))

Applications

The 1747-L532 processor module is well-suited for a variety of industrial applications, including:

• Material handling systems
• HVAC control
• Small process control
• SCADA systems

Its modular design and extensive I/O support make it adaptable to a wide range of control tasks.

Additional Information

The 1747-L532 includes a real-time clock and key-switch for mode selection, enhancing operational flexibility. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai)) It also supports advanced instruction sets, such as PID control, FIFO/LIFO, and various math functions, catering to complex control requirements. ([plcdcspro.com](https://www.plcdcspro.com/products/1747-l532-allen-bradley-plc-processor-module?utm_source=openai))

For detailed installation instructions and technical documentation, refer to the official Rockwell Automation resources. ([rockwellautomation.com](https://www.rockwellautomation.com/en-us/products/details.1747-L532.html?utm_source=openai))
