Allen Bradley 1747-L511 /B

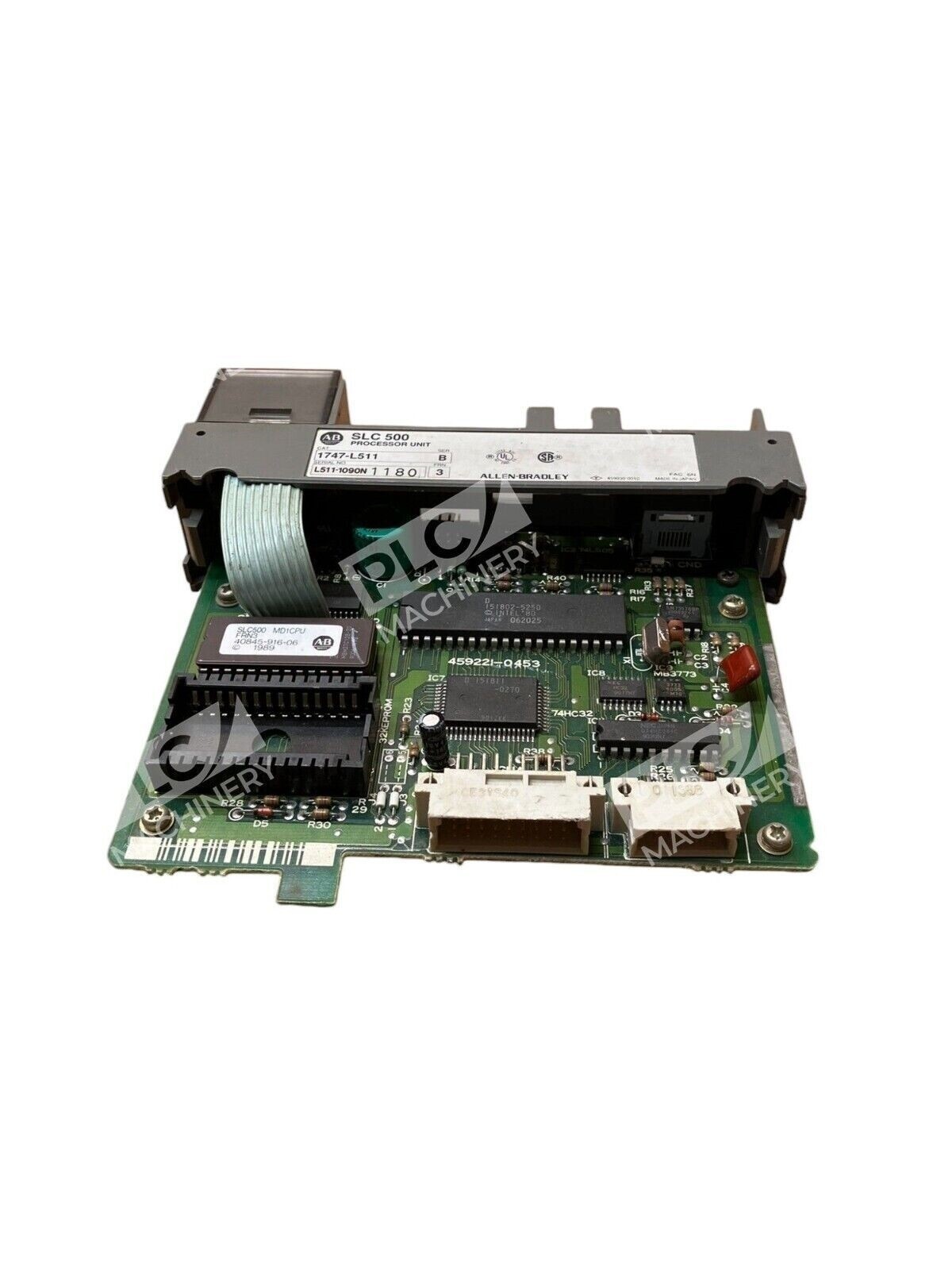

Allen-Bradley 1747-L511 SLC 5/01 Processor

The Allen-Bradley 1747-L511 is a compact and efficient SLC 5/01 processor, part of the SLC 500 series, designed for a variety of industrial automation applications, including small process control, material handling, and HVAC systems.

Key Features

• Memory: Equipped with 1 KB of user-configurable memory, suitable for both data storage and program execution.
• I/O Capacity: Supports up to 960 local digital I/O points and 480 analog I/O points, accommodating diverse system requirements.
• Communication: Utilizes the DH-485 protocol for communication, functioning as a slave device capable of sending or receiving messages.
• Performance: Features a program scan time of 8 milliseconds per 1K words and an I/O scan time of 2.6 milliseconds, ensuring prompt processing and response.
• Expansion: Supports up to three local I/O chassis, providing a maximum of 30 module I/O slots for system scalability.

Technical Specifications

• Backplane Current: 350 mA at 5V DC; 105 mA at 24V DC.
• Operating Temperature: 0 to 60 degrees Celsius, suitable for standard industrial environments.
• Memory Backup: Offers EEPROM for non-volatile memory storage, ensuring program retention during power cycles.
• Programming: Compatible with RSLogix 500 software, facilitating user-friendly programming and configuration.

Additional Information

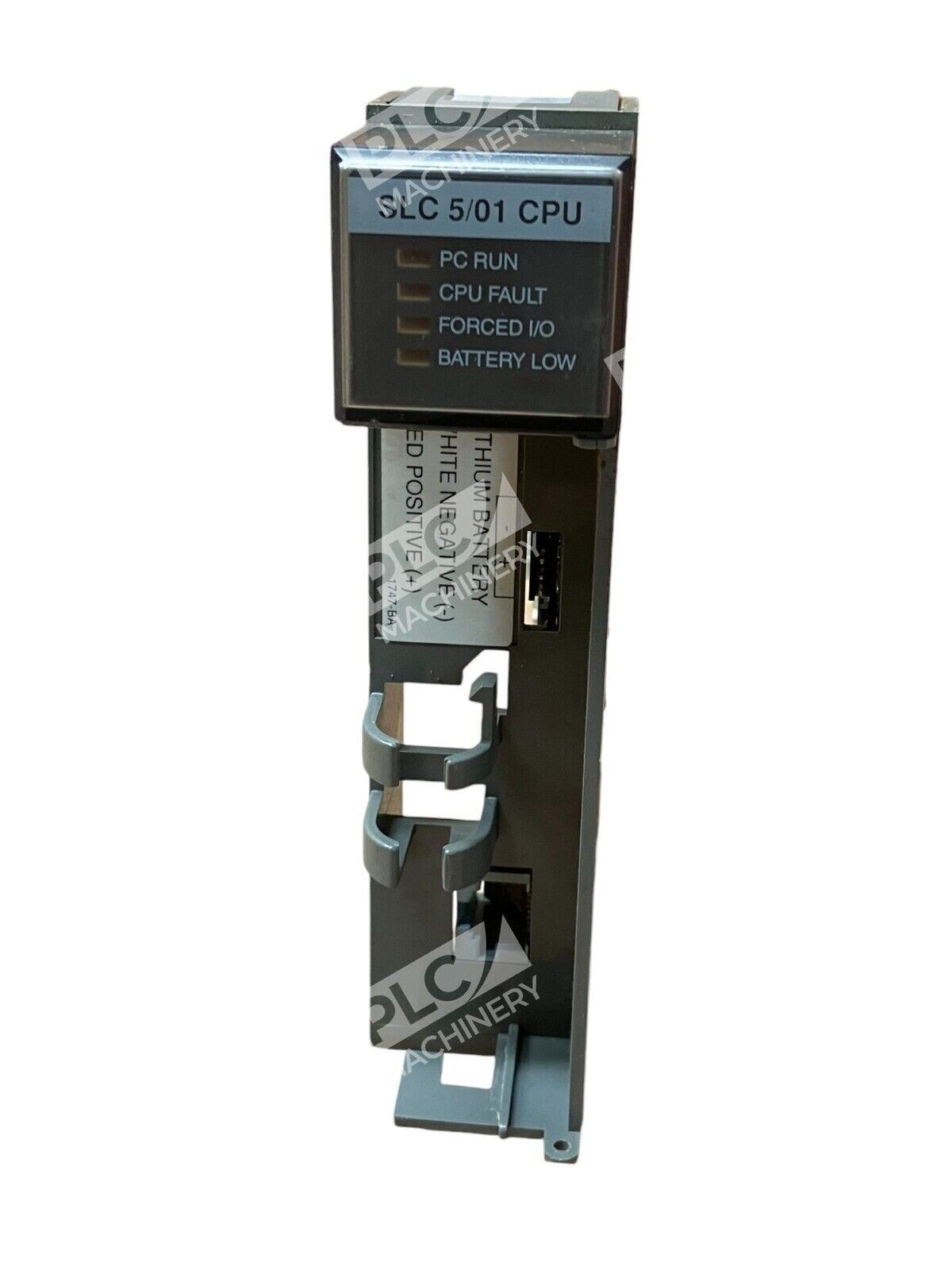

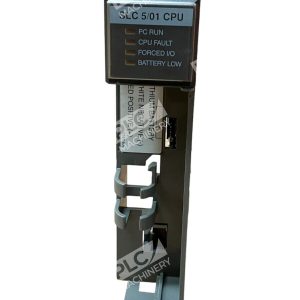

The 1747-L511 processor includes LED status indicators for RUN, CPU FAULT, FORCED I/O, and BATTERY LOW, aiding in efficient troubleshooting and diagnostics. It is designed for use in clean and dry industrial settings and is UL listed to US and Canadian safety standards, CE compliant, and C-Tick marked.

For optimal performance, ensure the processor is installed in environments within the specified temperature range and is used with compatible modules and power supplies.
