Allen Bradley 1745-LP101 /D SLC 100 Processor Unit Programmable Controller

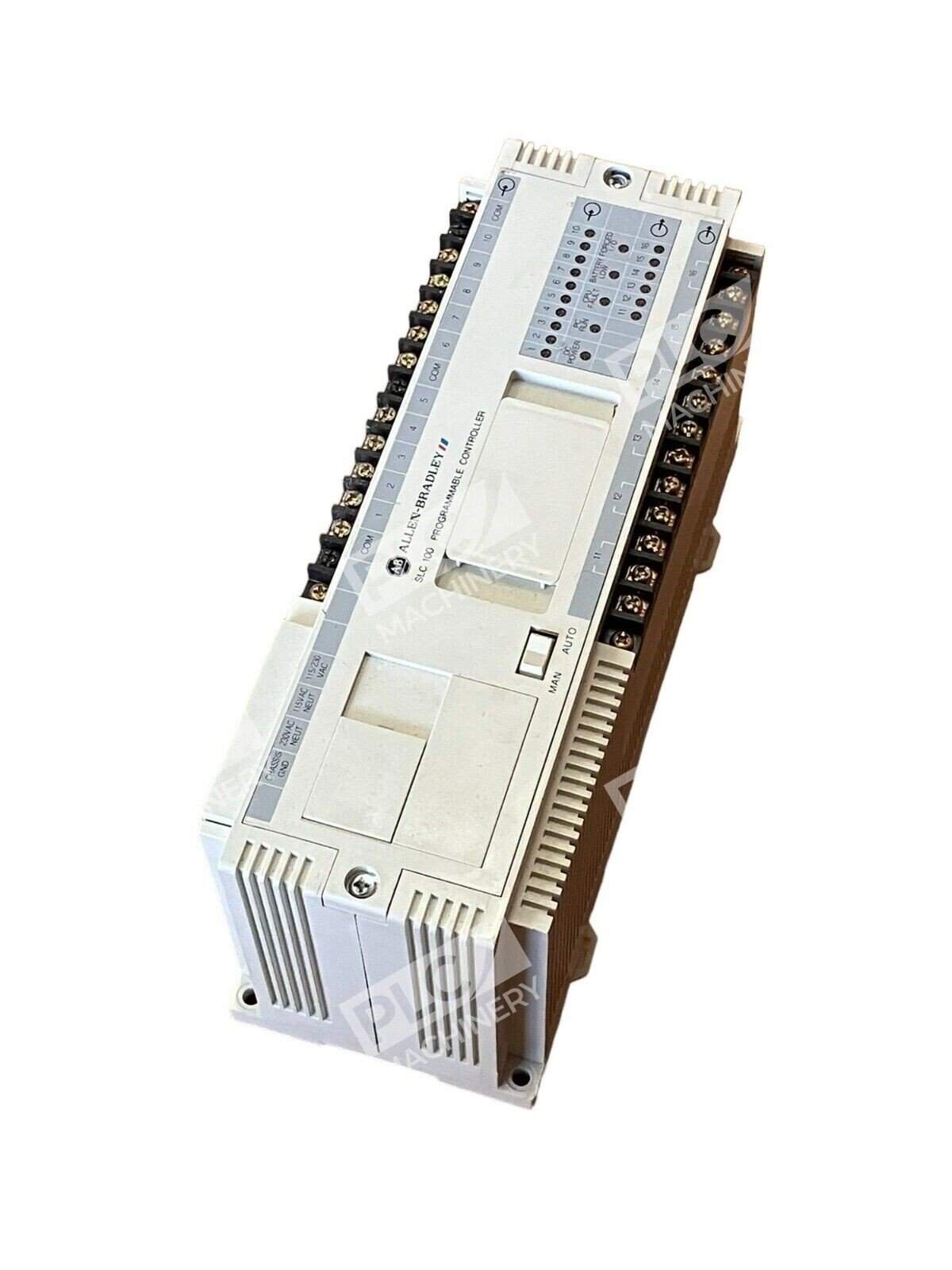

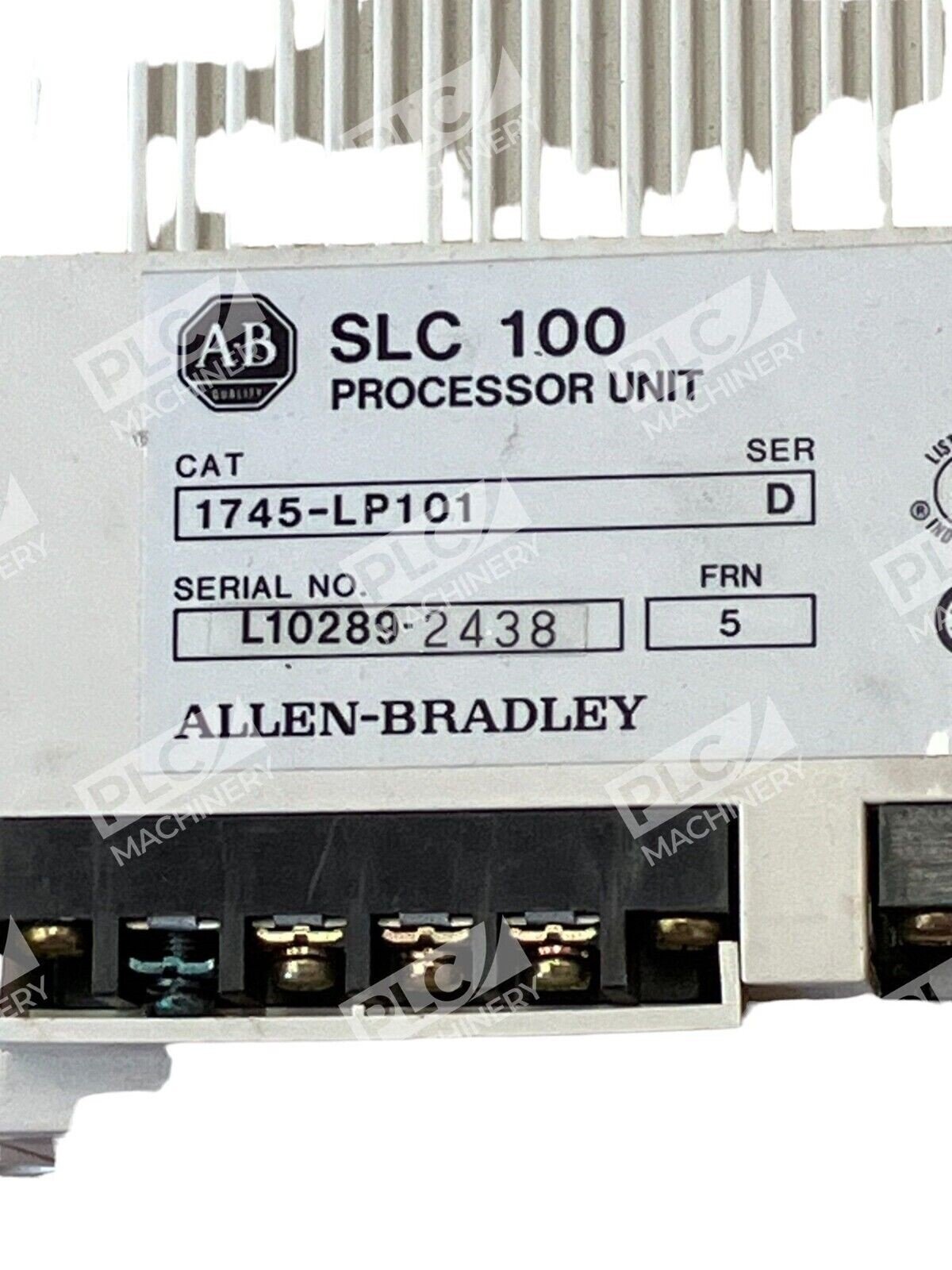

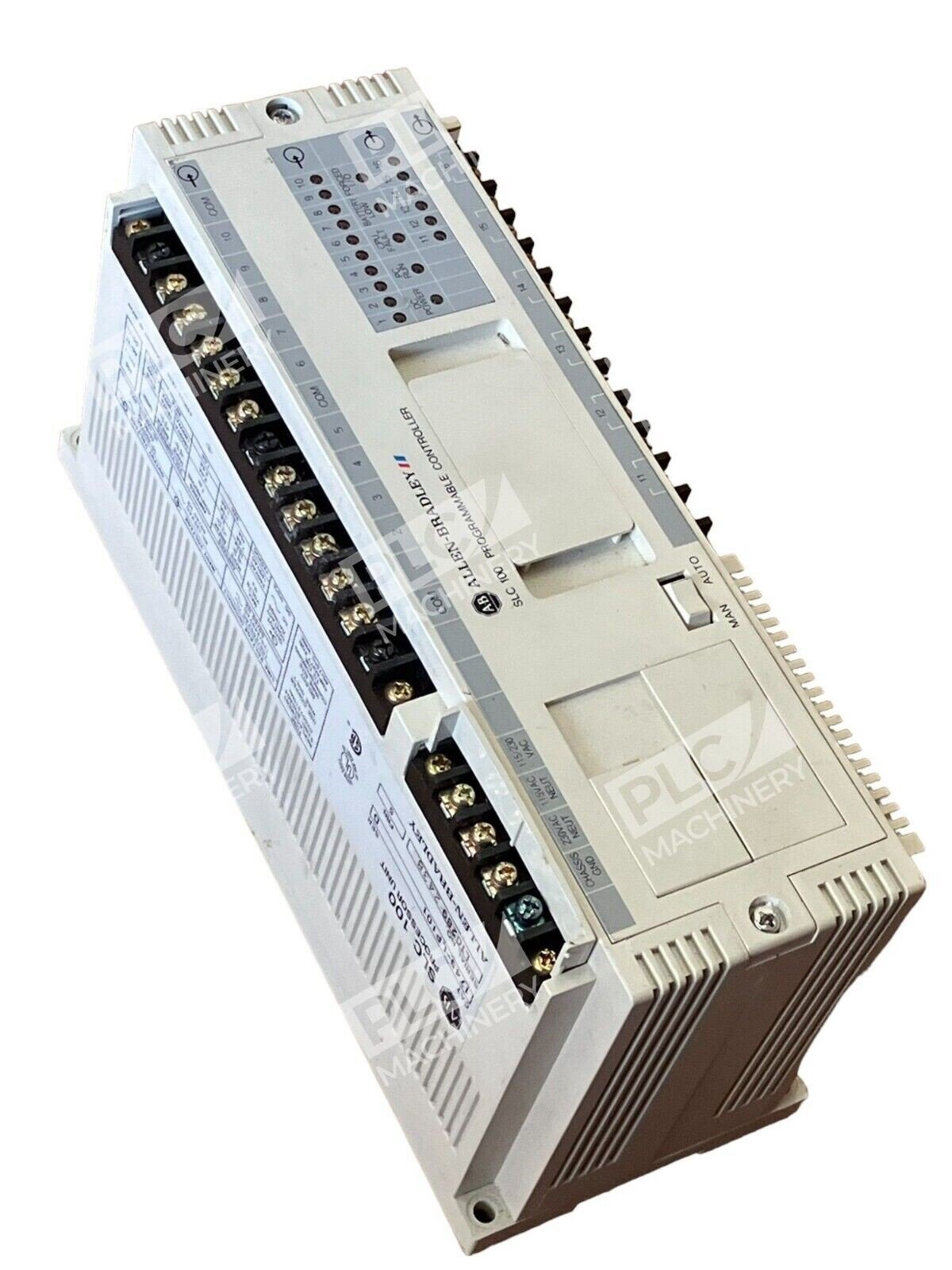

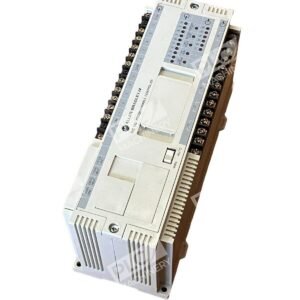

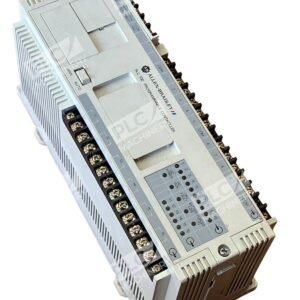

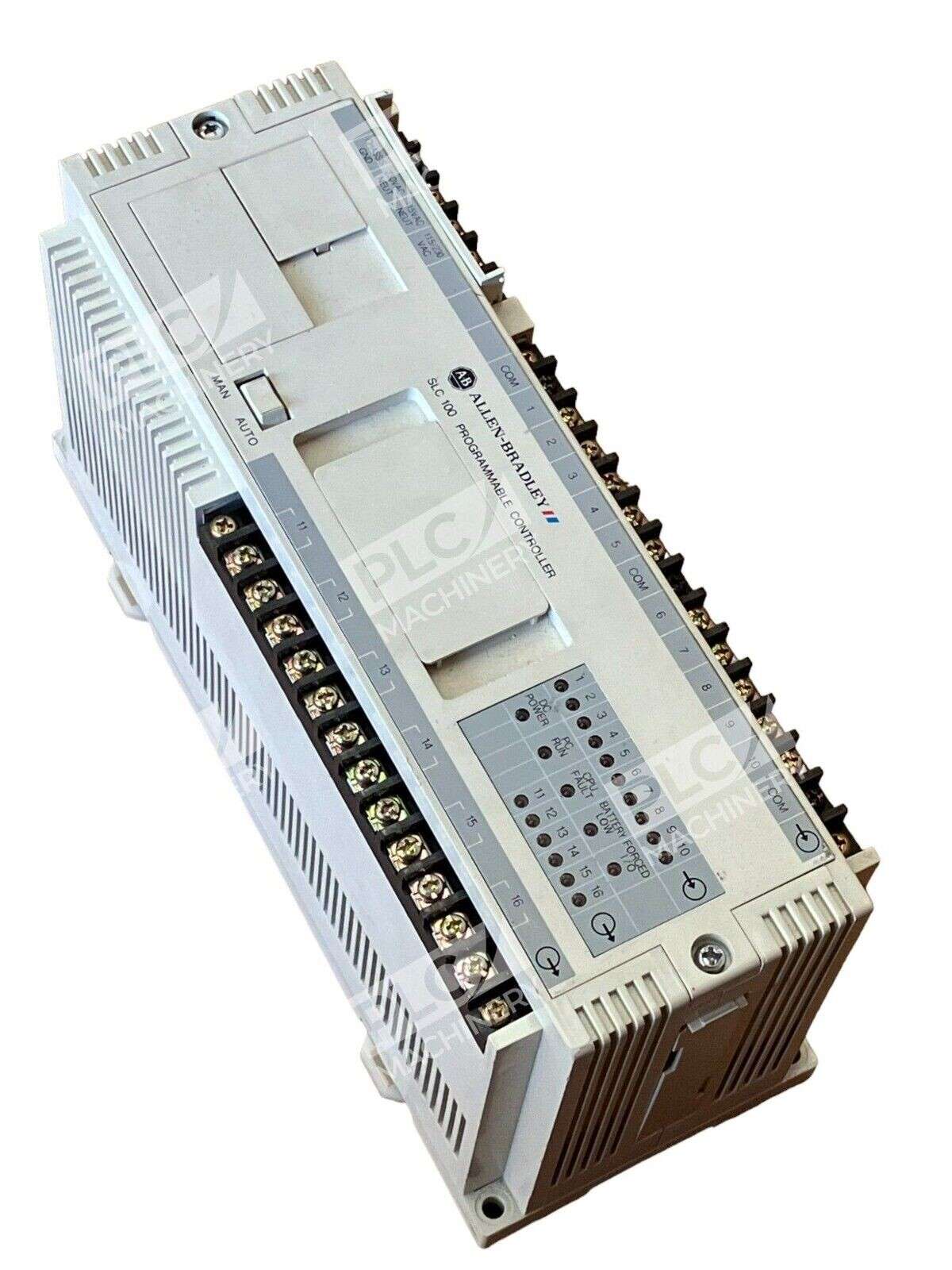

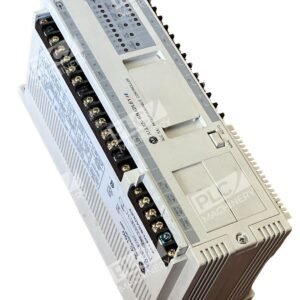

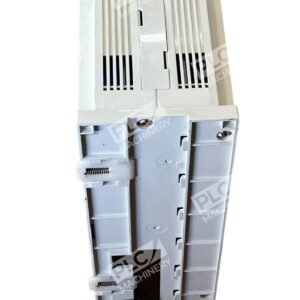

Allen-Bradley 1745-LP101/D SLC 100 Processor Unit

The Allen-Bradley 1745-LP101/D is a robust and versatile programmable controller from the SLC 100 series, designed to meet the demands of various industrial automation applications. This processor unit integrates essential components, including a CPU, power supply, and I/O circuits, into a compact and efficient design.

Key Features

• Input/Output Configuration: Equipped with 10 digital input terminals and 6 output terminals, facilitating effective control and monitoring of connected devices.
• Power Supply: Operates within a voltage range of 85-132V AC at 50-60 Hz, ensuring compatibility with standard industrial power systems.
• Memory: Incorporates battery-backed CMOS RAM memory, providing reliable program storage and retention.
• Programming Capabilities: Supports ladder diagram programming, enabling the implementation of relay logic, timers, counters, sequencers, and shift registers for diverse control tasks.
• Auto/Manual Switch: Features a built-in auto/manual switch to facilitate processor restarts following power interruptions or CPU faults.
• Expansion Options: Includes an expansion port, allowing for the connection of additional I/O units to increase the system’s capacity up to a maximum of 112 I/O circuits.

Applications

The 1745-LP101/D is well-suited for a wide range of industrial applications, including:

• Machine tools
• Assembly machines
• Material handling systems
• Molding and casting machines

Its combination of reliability, ease of programming, and expandability makes the Allen-Bradley 1745-LP101/D an excellent choice for small to medium-scale industrial automation projects.
