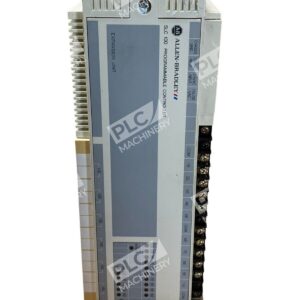

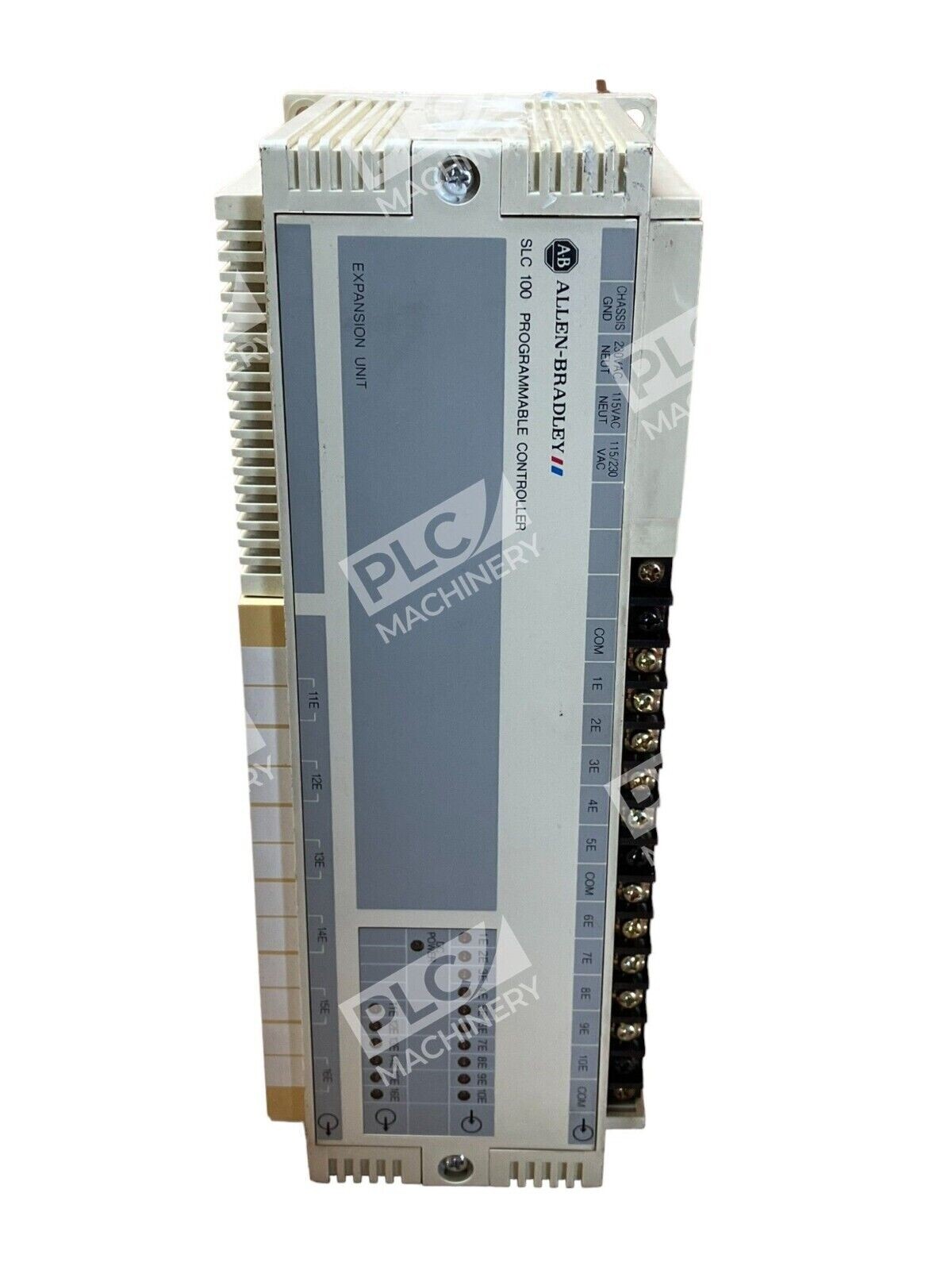

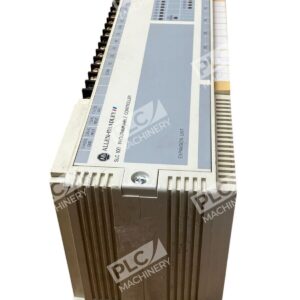

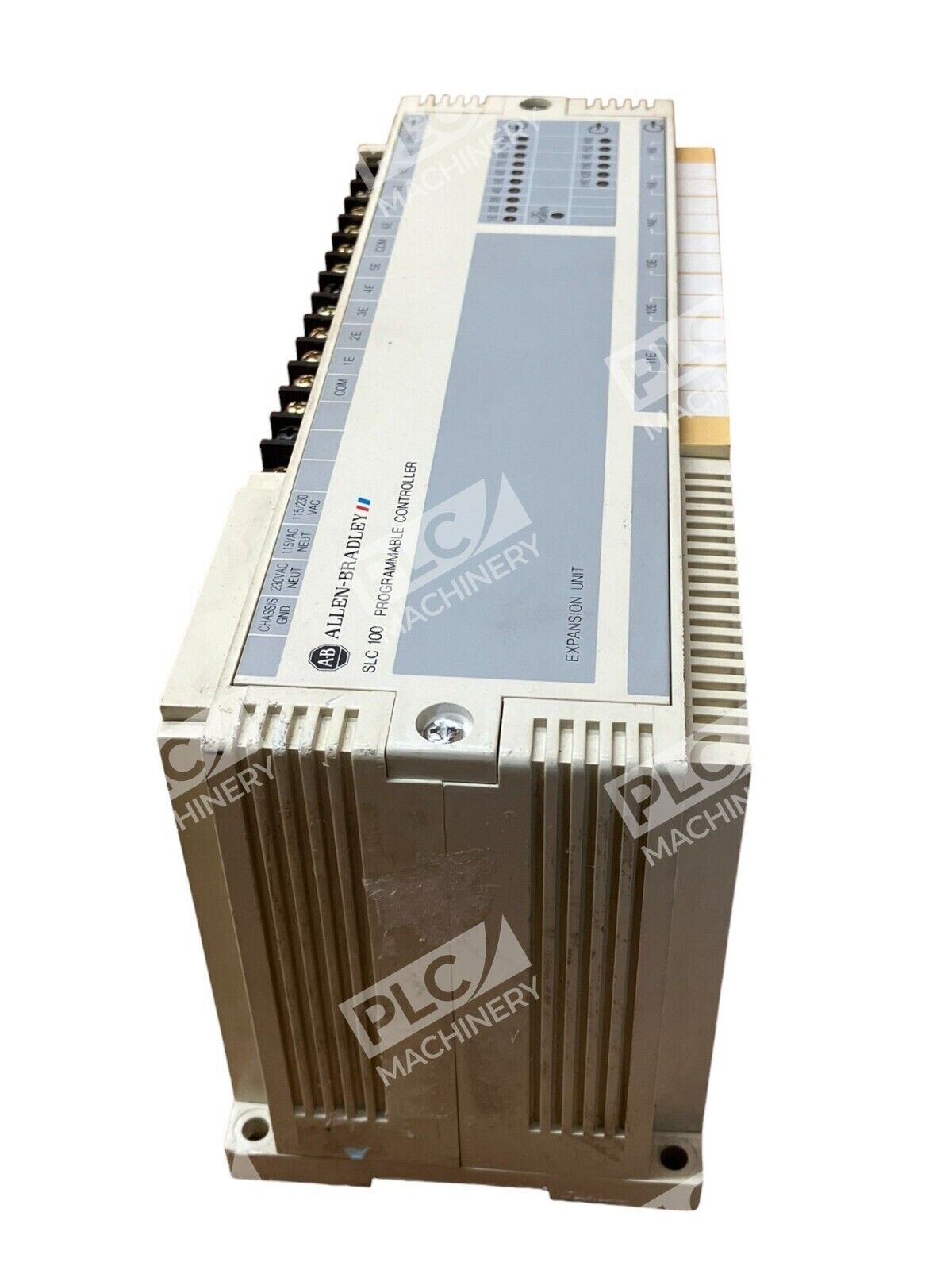

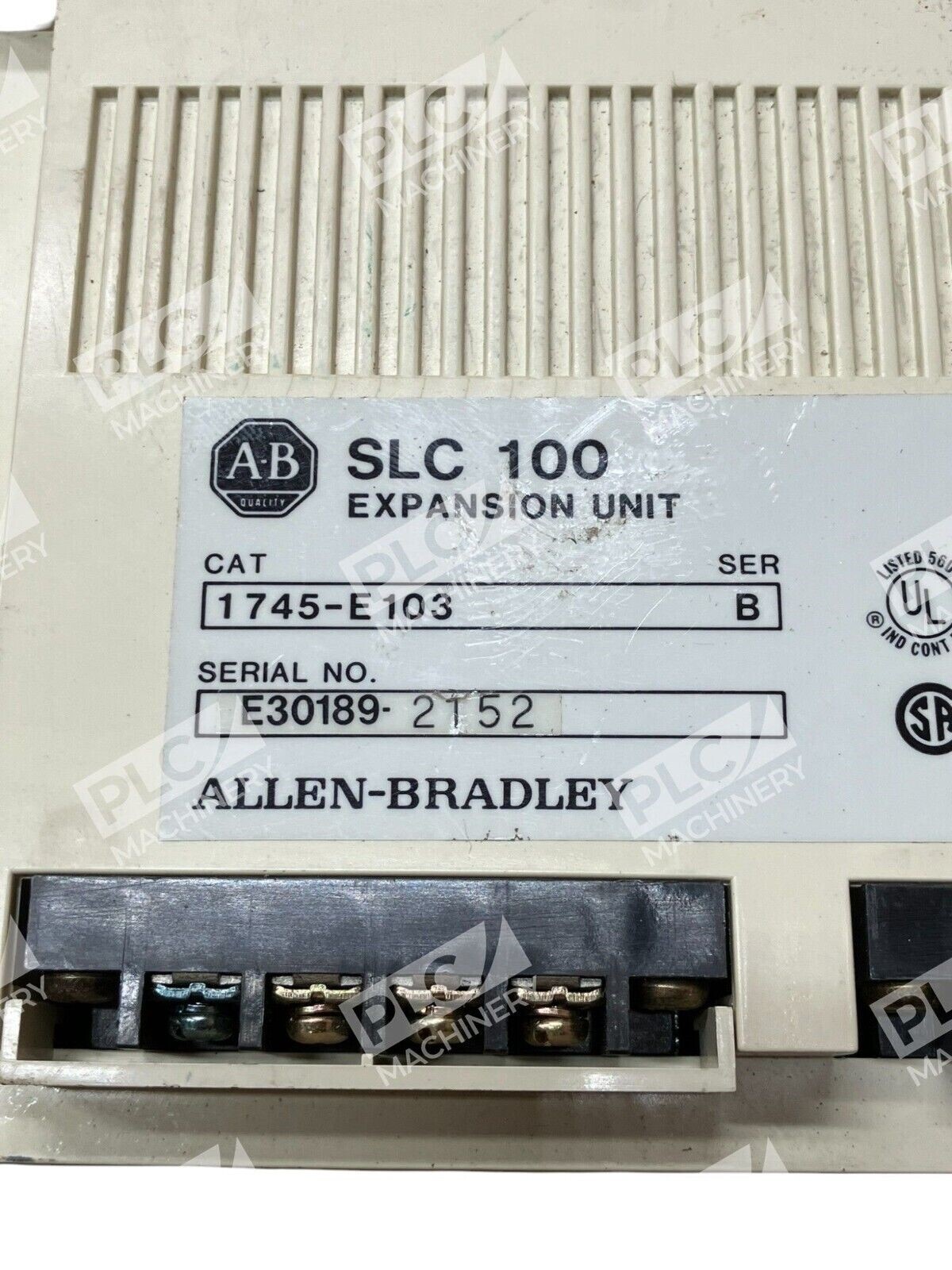

Allen Bradley 1745-E103 /B SLC100 Programmable Controller Expansion Unit

Allen-Bradley 1745-E103 /B SLC 100 Programmable Controller Expansion Unit

The Allen-Bradley 1745-E103 /B is an expansion unit designed to enhance the capabilities of the SLC 100 and SLC 150 programmable logic controllers (PLCs). By integrating this module, users can increase the number of input and output (I/O) circuits, allowing for more complex and scalable automation solutions.

Key Features

• Expanded I/O Capacity: The 1745-E103 /B expansion unit adds 10 input circuits and 6 output circuits to the existing PLC system, facilitating a broader range of control applications.
• Seamless Integration: Designed to work in conjunction with both SLC 100 and SLC 150 processor units, this expansion module ensures compatibility and ease of integration.
• Versatile Configurations: The SLC 100 series offers various expansion units, including basic units with input and output circuits, relay output units, and analog input units, providing flexibility to meet diverse application requirements.
• Robust Construction: Built to withstand demanding industrial environments, the 1745-E103 /B ensures reliable performance over extended periods.

Applications

The 1745-E103 /B expansion unit is suitable for a wide range of industrial applications, including:

• Machine tools
• Assembly machines
• Material handling systems
• Molding and casting machines

By expanding the I/O capacity of the SLC 100 or SLC 150 PLCs, this module enables more intricate control processes, enhancing overall system efficiency and productivity.

Technical Specifications

• Input Circuits: 10
• Output Circuits: 6
• Compatibility: SLC 100 and SLC 150 processor units
• Construction: Matches the design and durability of the SLC 100 processor unit

Incorporating the Allen-Bradley 1745-E103 /B expansion unit into your PLC system provides a scalable solution to meet the evolving demands of industrial automation, ensuring both flexibility and reliability in your control processes.
