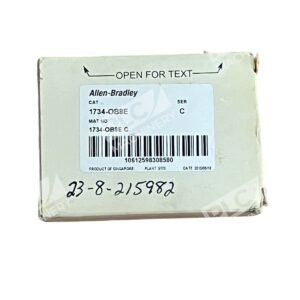

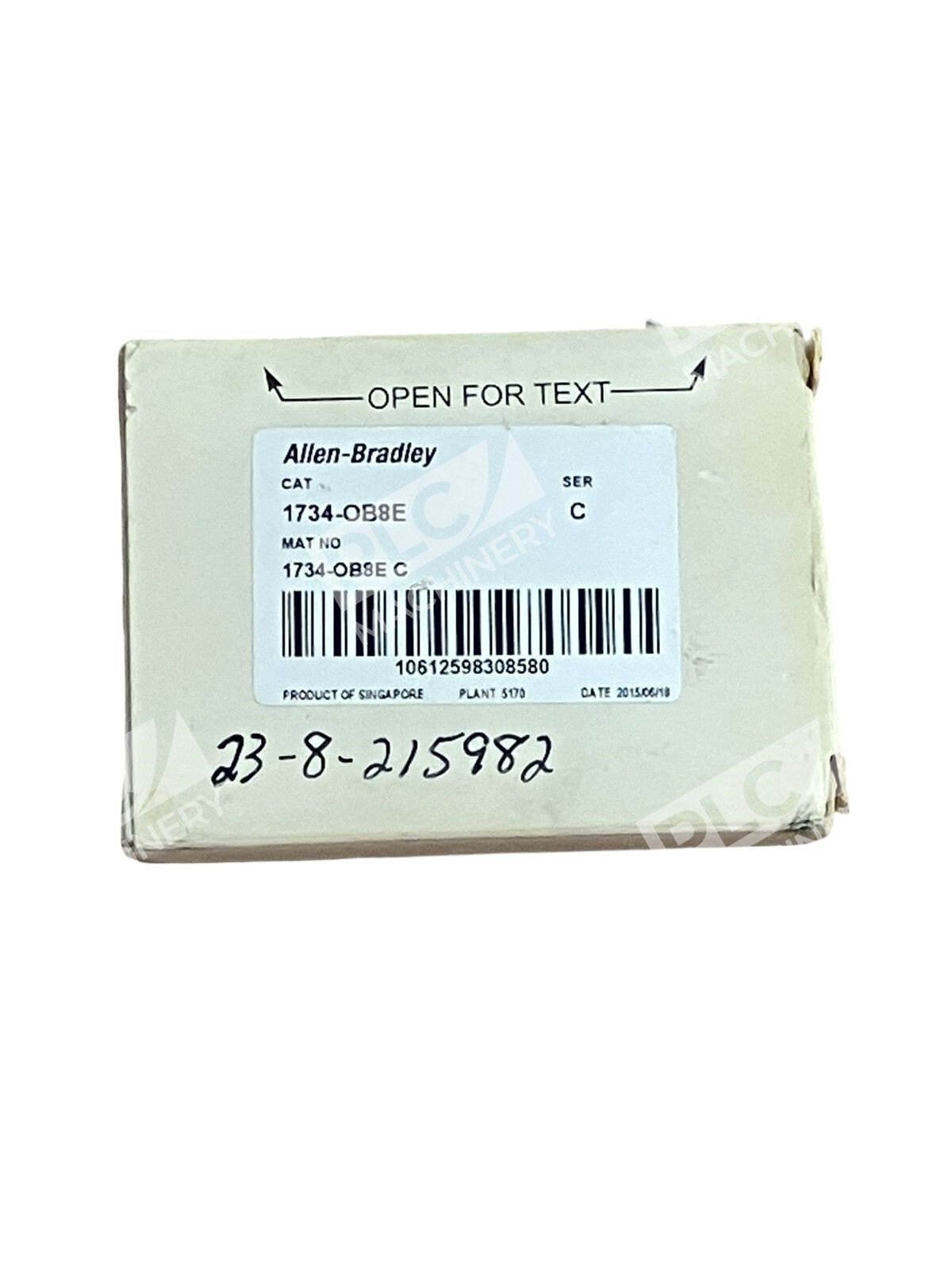

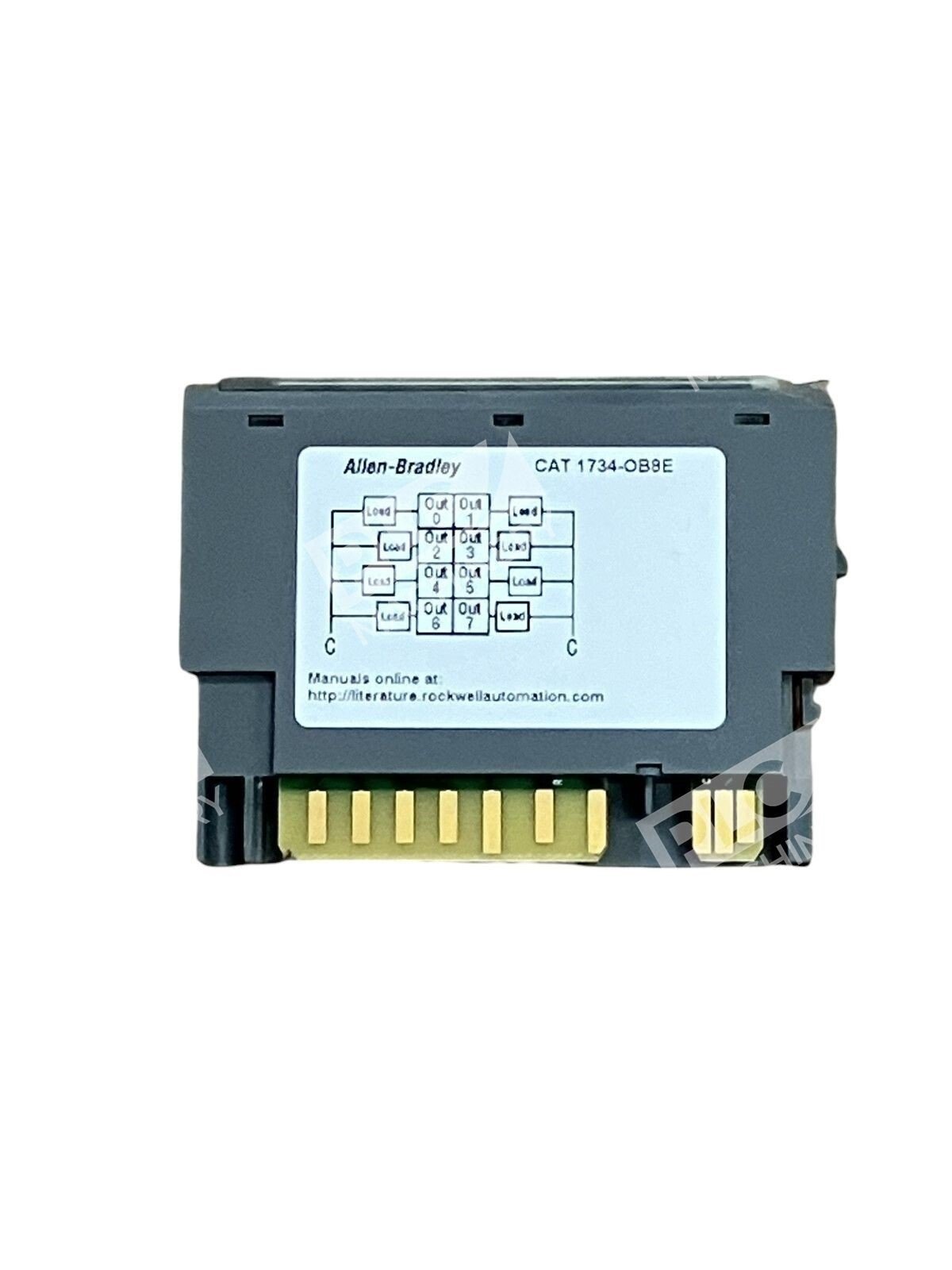

The Allen-Bradley 1734-OB8E /C Digital Output Module is a compact and efficient component of the POINT I/O™ system, designed to provide reliable control over 24V DC field devices in industrial automation settings.
Key Features
- Eight Sourcing Outputs: Delivers eight discrete outputs, each capable of sourcing 24V DC, suitable for controlling devices like relays, solenoids, and indicator lights.
- Electronic Protection: Incorporates built-in protection against short circuits and overloads, enhancing system reliability.
- Compact Design: Its slim profile facilitates easy integration into space-constrained applications, optimizing panel space.

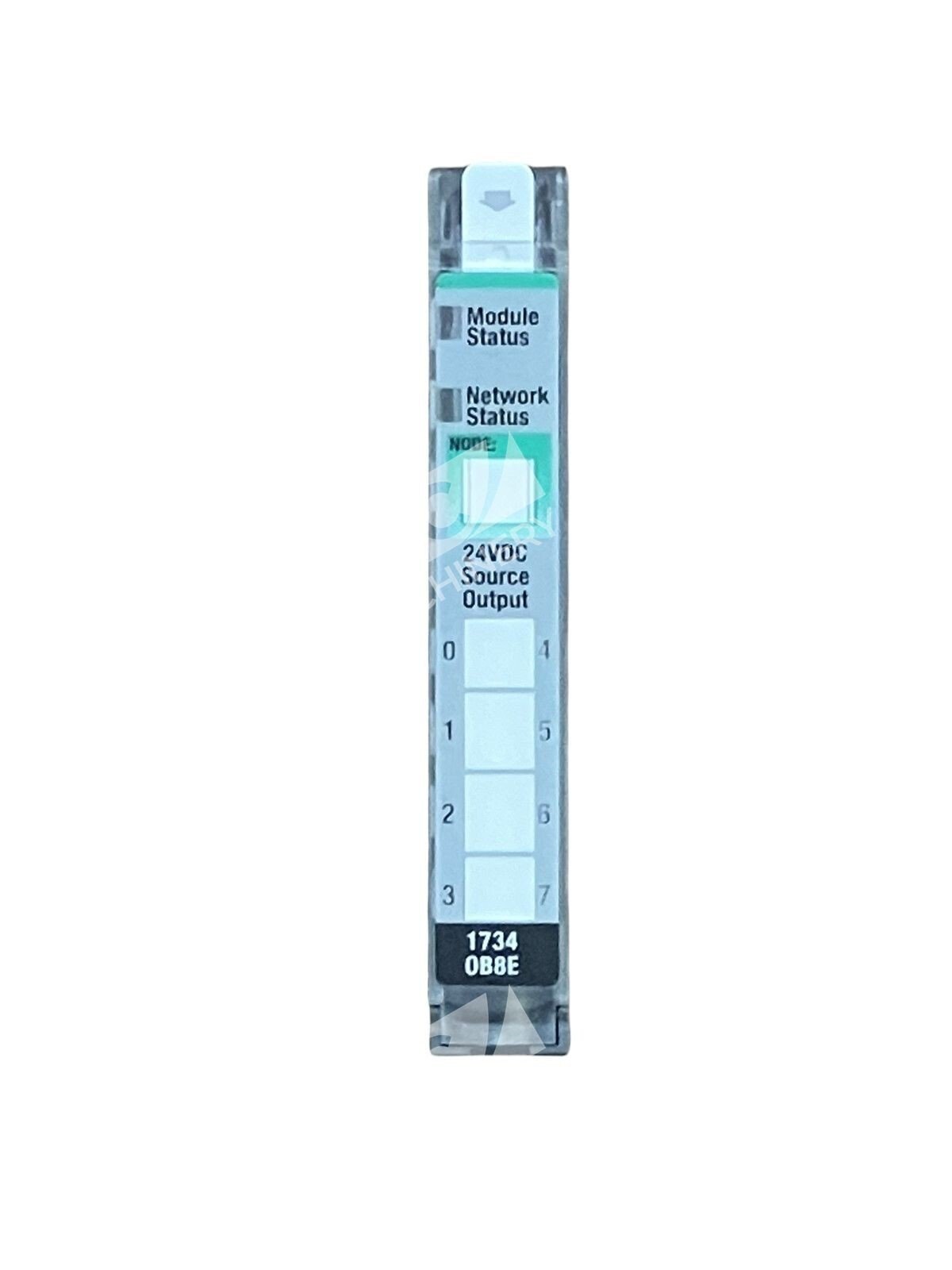

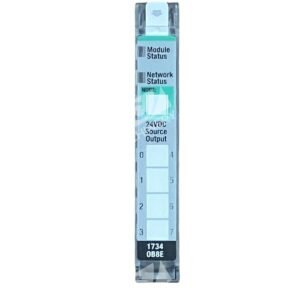

- LED Indicators: Equipped with individual status LEDs for each output, providing clear visual feedback for monitoring and troubleshooting.
- Seamless Integration: Compatible with all POINT I/O communication adapters and Allen-Bradley controller platforms, including CompactLogix and ControlLogix controllers.

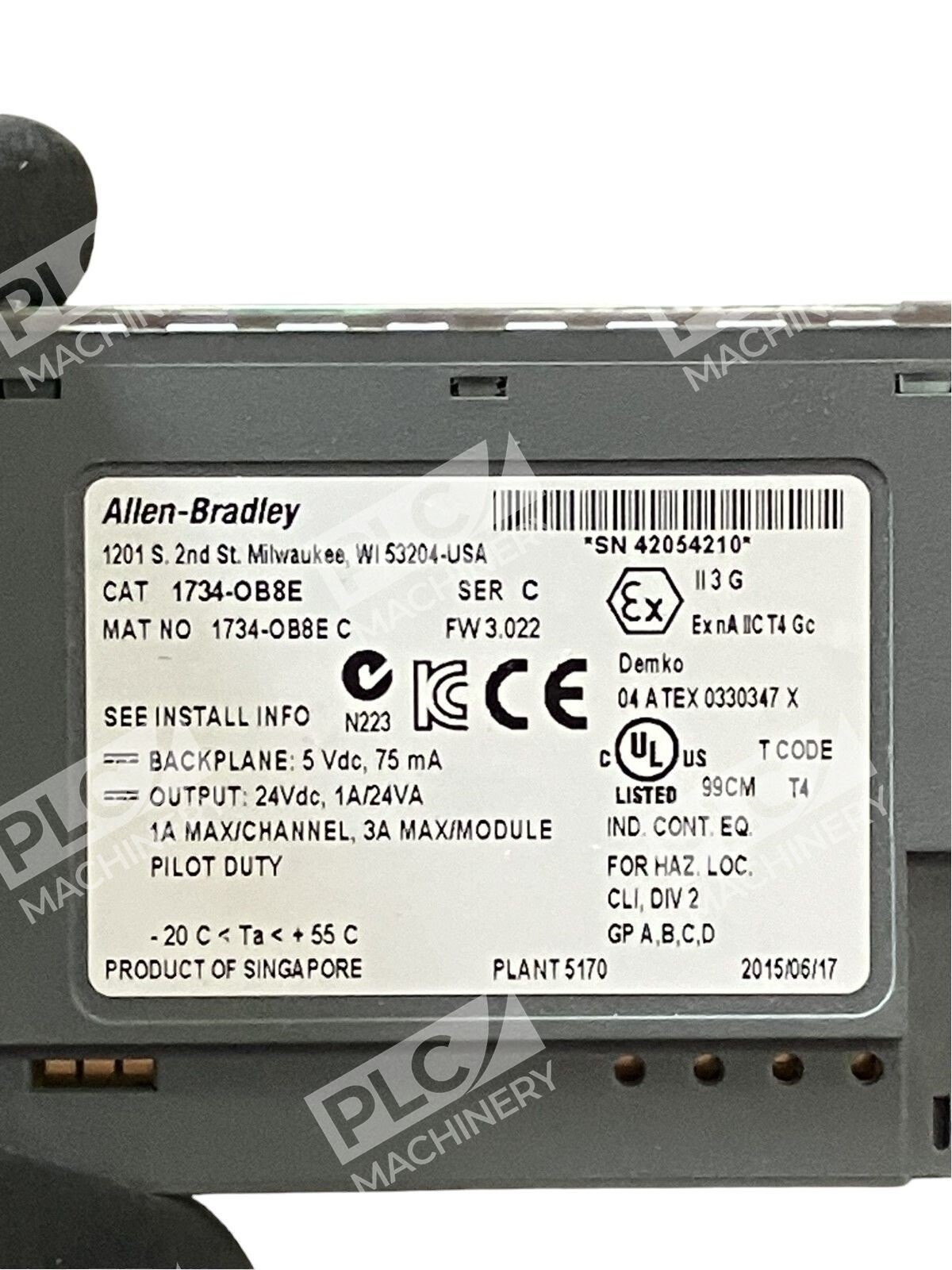

Technical Specifications
- Output Voltage Range: 10-28.8 VDC
- Output Current: 1.0 A per output, with a maximum of 3.0 A per module
- Surge Current: 2 A for 10 ms, repeatable every 3 seconds
- POINTBus Current: 75 mA at 5V DC
- Power Dissipation: 2.0 W
- Thermal Dissipation: 6.8 BTU/hour
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 56 mm x 12 mm x 75.5 mm (2.2 in x 0.47 in x 2.97 in)
- Mounting: DIN rail, compatible with 1734-TB or 1734-TBS terminal bases
Applications
- Industrial Automation: Ideal for controlling various 24V DC field devices in manufacturing and processing environments.
- Distributed Control Systems: Enhances system flexibility by enabling distributed I/O configurations.
- Machine Control: Suitable for applications requiring precise control over multiple output devices.
The 1734-OB8E /C Digital Output Module stands out for its robust performance, compact design, and ease of integration, making it a valuable asset in modern industrial automation systems.
