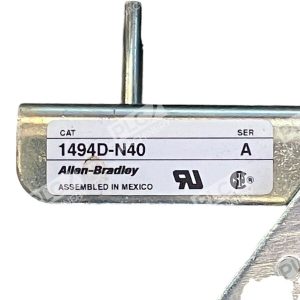

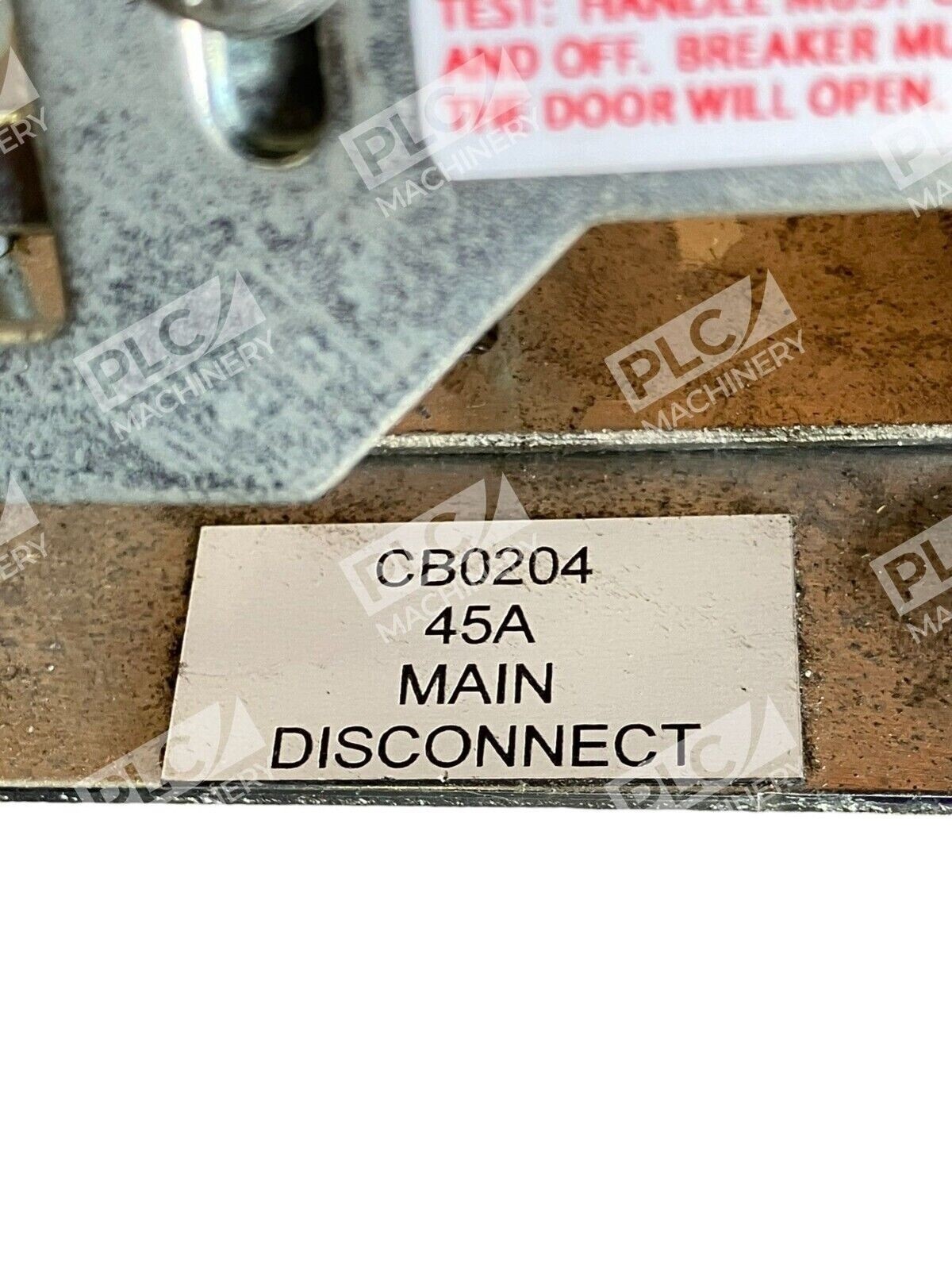

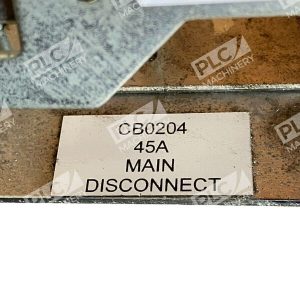

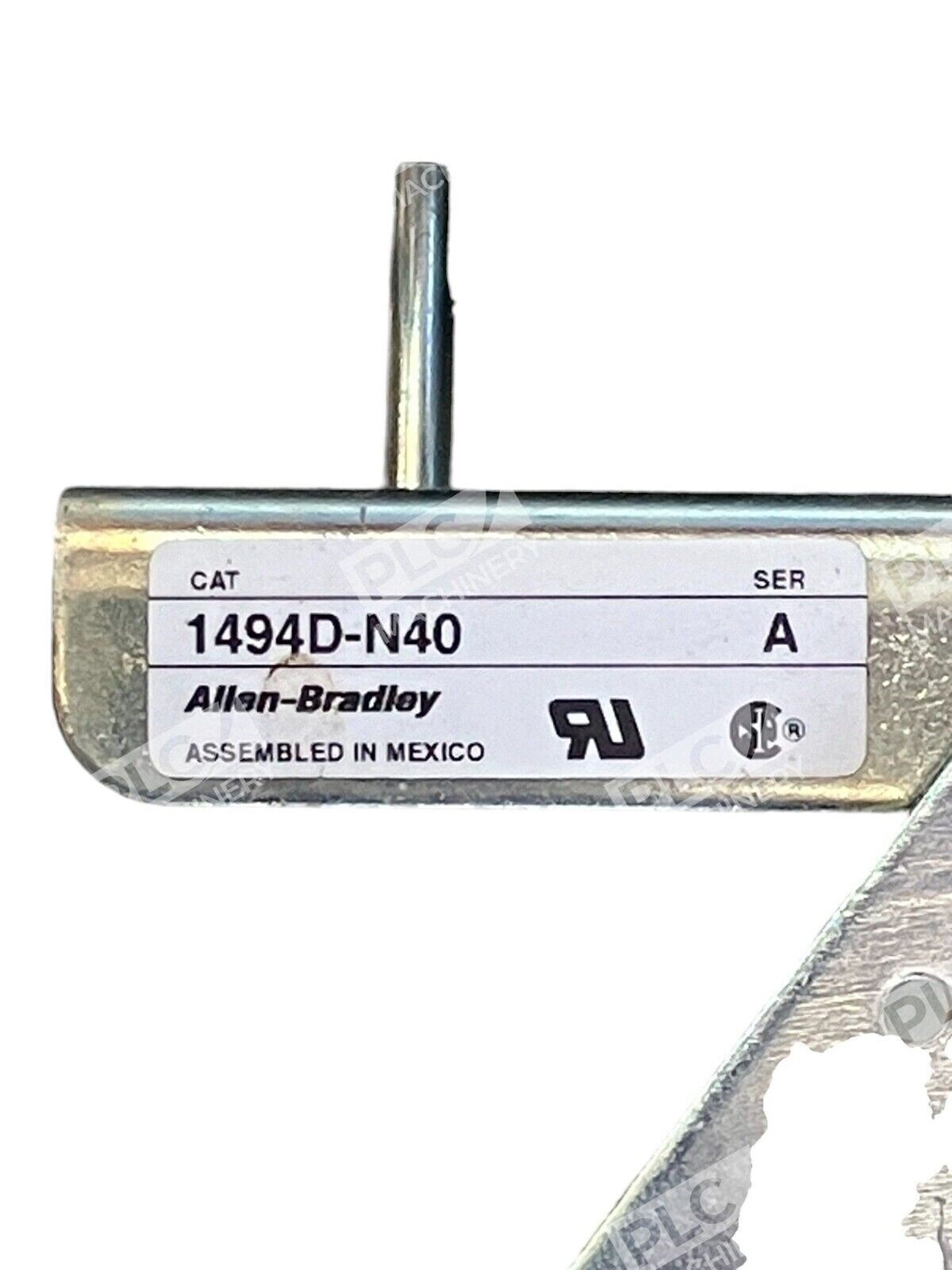

Allen Bradley 1494D-N40 /A w/ CB0204 45A

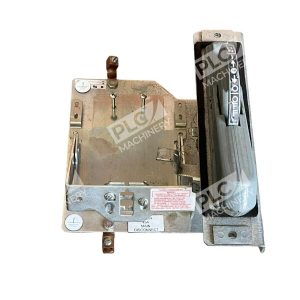

Allen-Bradley 1494D-N40 /A with CB0204 45A Circuit Breaker Operator Mechanism

The Allen-Bradley 1494D-N40 /A, paired with the CB0204 45A circuit breaker, is a fixed-depth, flange-mounted operator mechanism designed to provide reliable control and protection for electrical systems. This assembly is engineered to work seamlessly with specific molded case circuit breakers, ensuring efficient operation and enhanced safety.

Key Features

• Fixed-Depth Design: Ensures consistent and secure mounting, facilitating straightforward installation and maintenance.
• Flange-Mounted Mechanism: Allows for convenient front access, enabling operators to control the circuit breaker without opening the enclosure.
• Compatibility: Specifically designed to operate with the CB0204 45A circuit breaker, ensuring optimal performance and integration.
• Visible On/Off Indicators: Provides clear visual status of the circuit breaker, enhancing operational safety and awareness.
• Lockable Handle: Offers the ability to secure the handle in the “Off” position, preventing unauthorized operation and ensuring compliance with safety protocols.
• Auxiliary Contacts: Facilitates integration with control systems, allowing for remote monitoring and control capabilities.

Technical Specifications

• Frame Compatibility: Designed for use with specific molded case circuit breakers, including the CB0204 45A model.
• Enclosure Compatibility: Suitable for NEMA Type 1 (IP 42) and Type 12 (IP 65) enclosures, providing flexibility for various industrial applications.
• Operation: Available in configurations for both right-hand and left-hand operation, accommodating diverse installation requirements.

Applications

The 1494D-N40 /A with CB0204 45A circuit breaker operator mechanism is ideal for use in industrial settings where reliable circuit protection and control are paramount. Its robust design and compatibility with specific circuit breakers make it suitable for applications in machine tools, automotive industries, and other sectors requiring dependable electrical system management.

By integrating this operator mechanism into your electrical system, you can enhance operational efficiency, ensure safety compliance, and achieve reliable performance tailored to your specific industrial needs.
