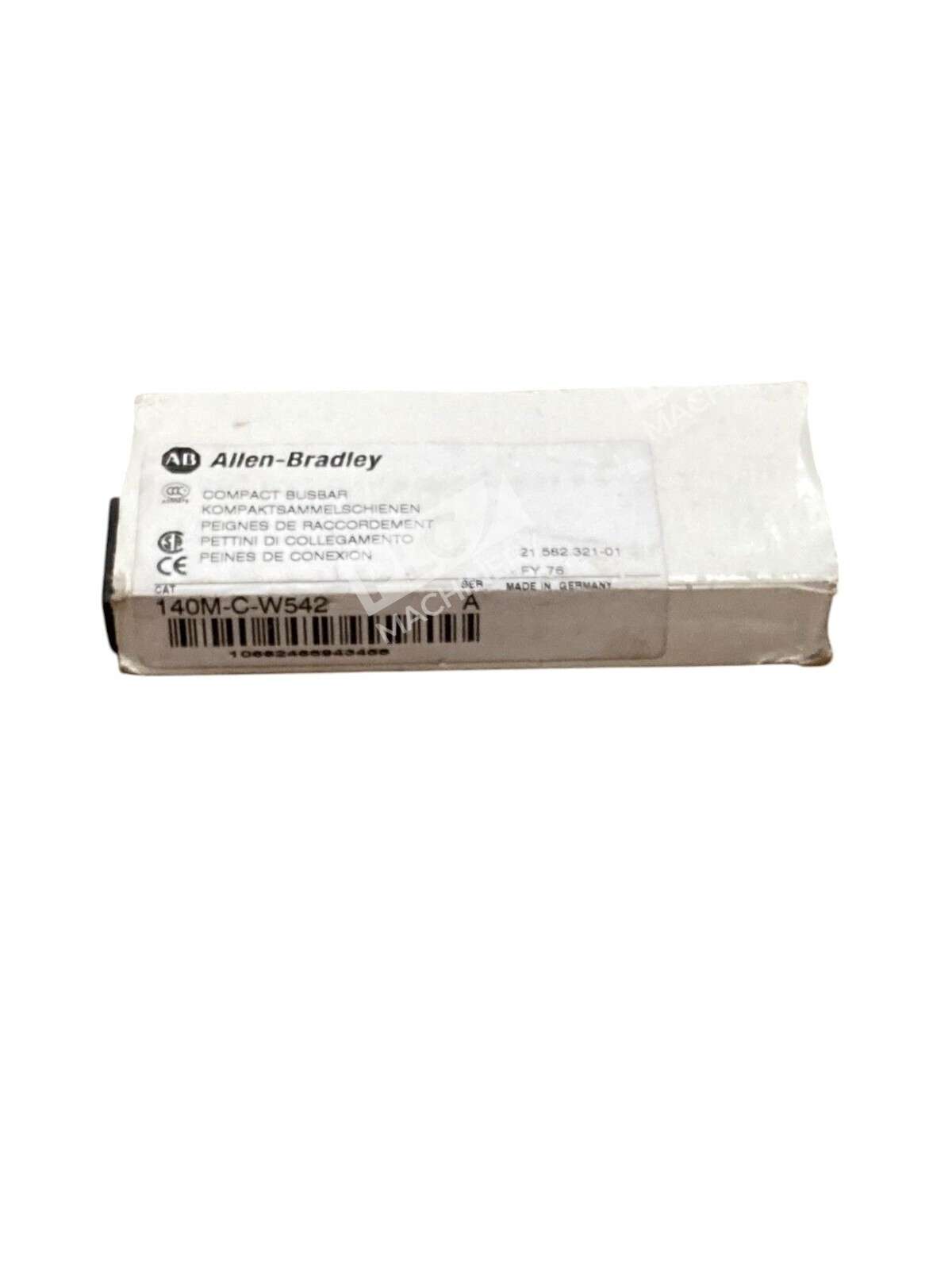

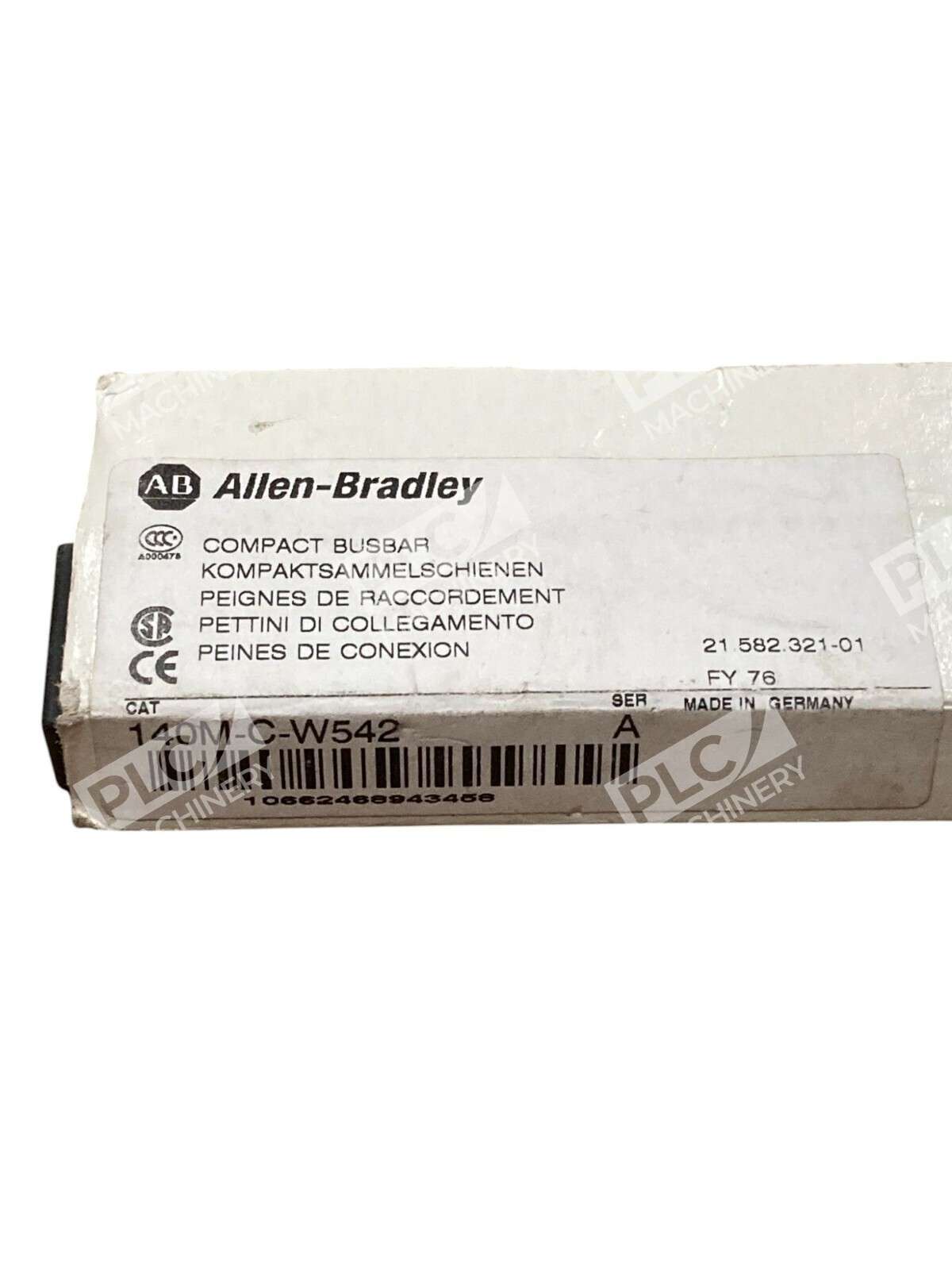

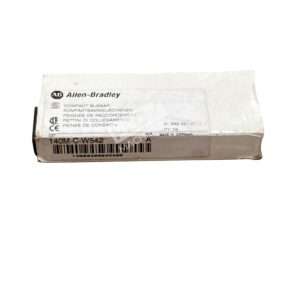

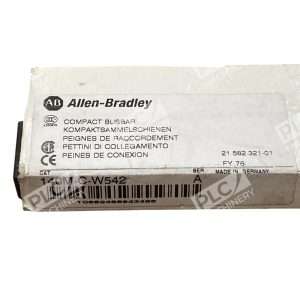

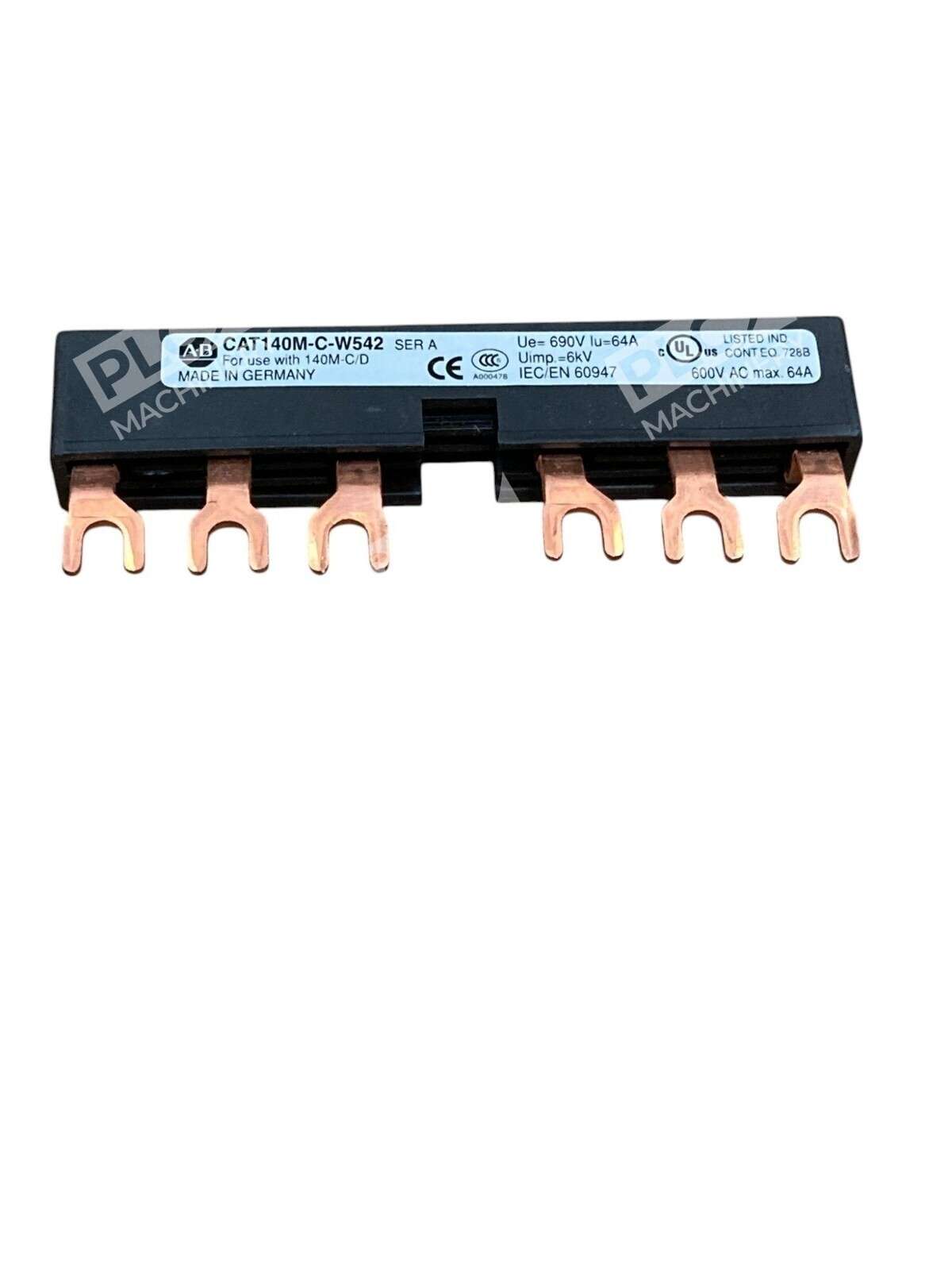

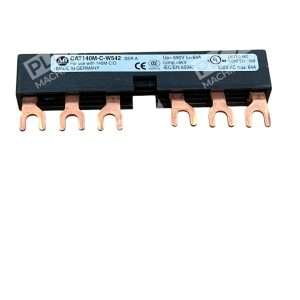

Allen-Bradley 140M-C-W542 SER A Compact Busbar

The Allen-Bradley 140M-C-W542 SER A is a compact busbar designed to facilitate efficient three-phase power distribution in industrial applications. Engineered for compatibility with 140M-C and 140M-D motor protection circuit breakers, this busbar ensures reliable electrical connections and streamlined system integration.

Key Features

• Three-Phase Design: Supports balanced power distribution across three-phase systems, enhancing operational efficiency.
• High Current Capacity: Rated for up to 64 amperes, accommodating substantial electrical loads.
• Voltage Rating: Suitable for applications up to 600 volts, providing versatility across various industrial settings.
• Compact Form Factor: Its streamlined design allows for space-saving installations without compromising performance.
• 54 mm Spacing: Features 54 mm spacing between connections, facilitating straightforward installation and compatibility with corresponding Allen-Bradley components.
• Side-Mounted Auxiliary Contact Compatibility: Designed for use with side-mounted auxiliary contacts, ensuring secure and efficient electrical connections.

Applications

The 140M-C-W542 SER A compact busbar is ideal for integration with Allen-Bradley motor protection circuit breakers, particularly the 140M-C and 140M-D series. It is commonly utilized in motor control centers, industrial automation panels, and other settings requiring dependable three-phase power distribution.

Installation and Compatibility

With its 54 mm spacing and compatibility with side-mounted auxiliary contacts, the 140M-C-W542 SER A ensures straightforward installation and secure electrical connections. Its design contributes to overall system reliability and efficiency.

Additional Information

For detailed technical specifications and installation guidelines, please refer to the product documentation or consult with an authorized Allen-Bradley distributor.
