Allen Bradley 12A Contactor 100-C12D*10 /A

Allen-Bradley 12A Contactor 100-C12D*10 /A

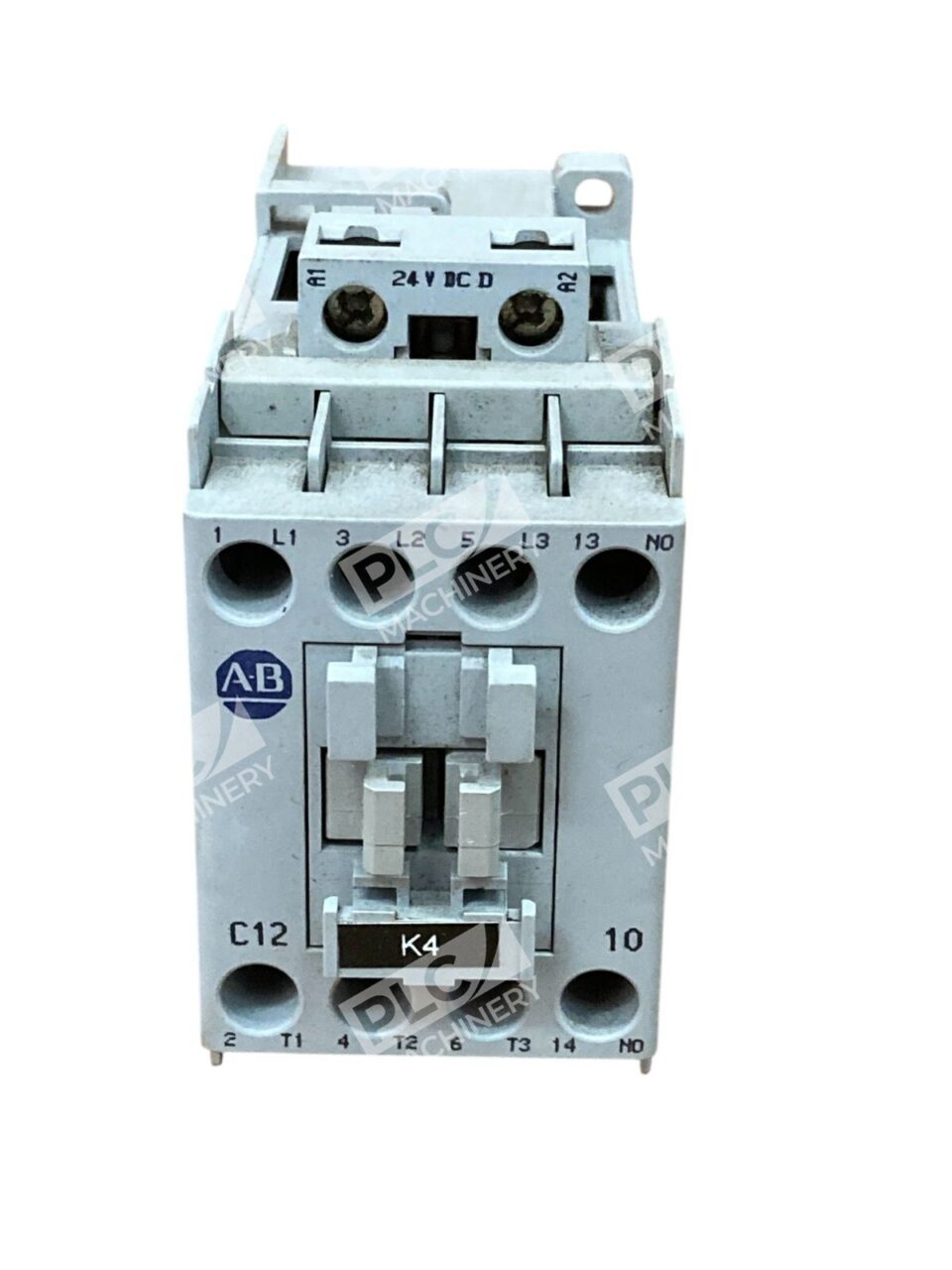

The Allen-Bradley 100-C12D*10 /A is a compact IEC-style contactor designed for efficient motor and power switching applications. With a 12-ampere rating, it is suitable for light to medium-duty motor control tasks.

Key Features

• Current Rating: 12 Amperes
• Contact Configuration: 3 main poles with 1 normally open (N.O.) auxiliary contact
• Coil Voltage: 110/120 VAC at 50/60 Hz
• Mounting: DIN rail or panel mounting
• Terminals: Screw terminals for secure wiring
• Compliance: IEC standards

Technical Specifications

• Dimensions: 3.66 x 3.31 x 1.85 inches
• Weight: 13.3 oz
• Housing Material: Durable plastic

Applications

This contactor is ideal for various industrial applications, including:

• Motor starters and control panels
• Pump and fan control systems
• Conveyor and packaging machinery
• Machine automation and panel assembly

Installation and Maintenance

For optimal performance, ensure the contactor is mounted vertically in accordance with airflow direction. Verify that the coil voltage matches the supply before energizing. Regular maintenance should include checking for wear or pitting on contacts and ensuring all terminal connections are secure.

The Allen-Bradley 100-C12D*10 /A combines reliability and efficiency, making it a valuable component in industrial automation systems.
