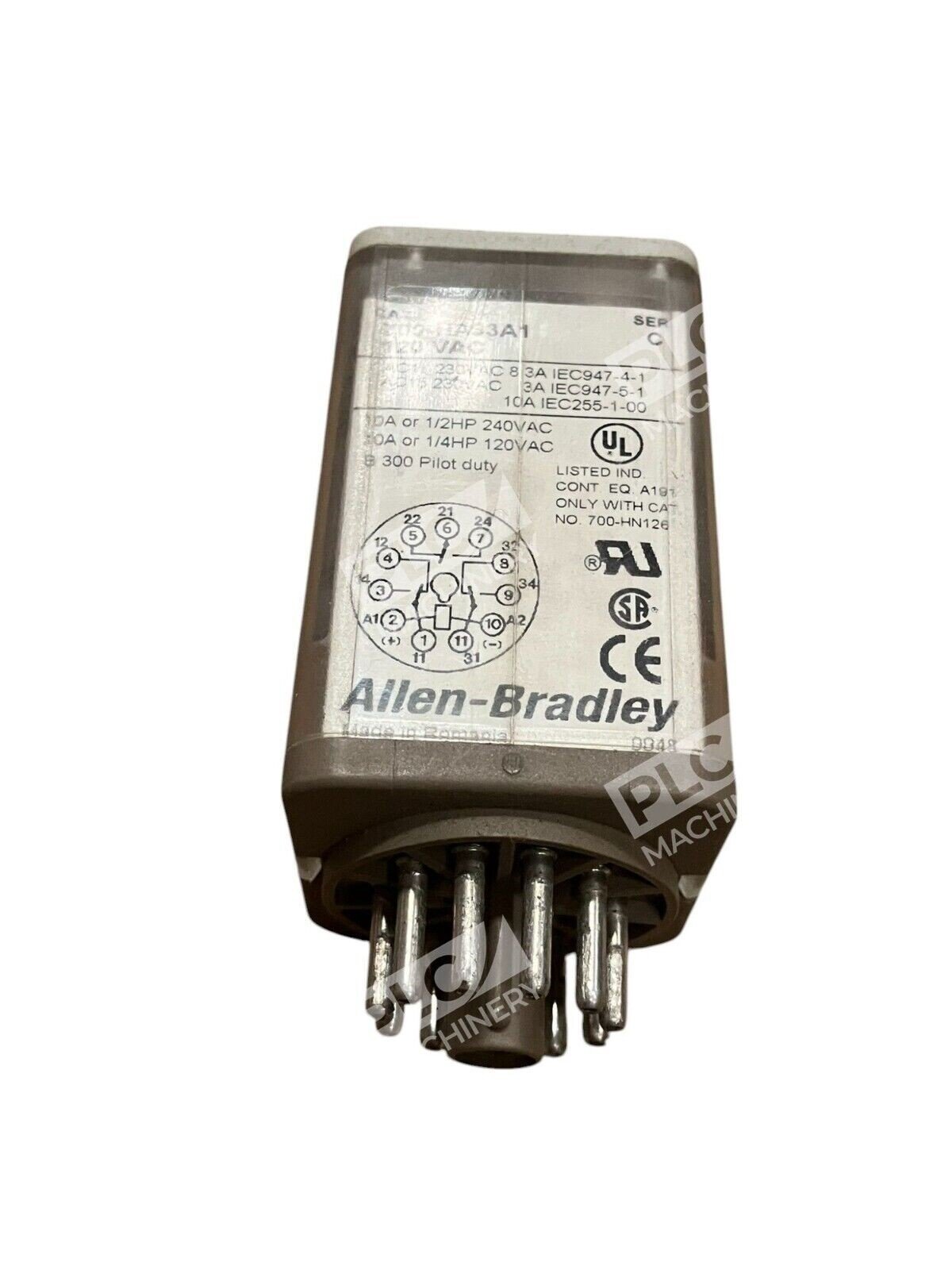

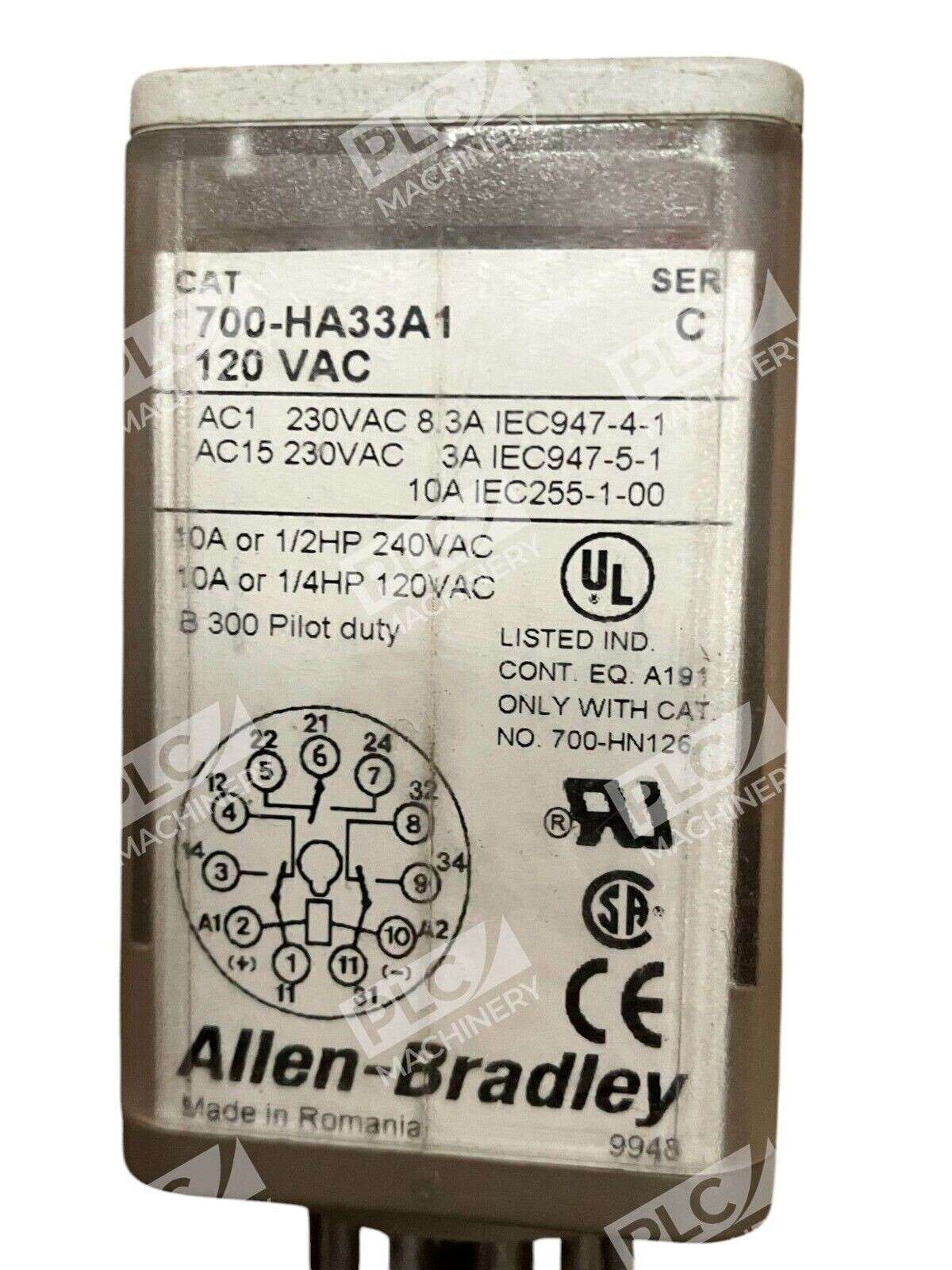

Allen-Bradley 700-HA33A1 General Purpose Relay
The Allen-Bradley 700-HA33A1 is a versatile general-purpose relay designed to meet the demands of various industrial applications. Its robust construction and reliable performance make it an ideal choice for control panels, automation systems, and machinery requiring dependable switching capabilities.
Key Features
- Contact Configuration: 3PDT (Three-Pole Double-Throw)
- Coil Voltage: 120V AC at 50/60 Hz
- Contact Rating: 10A at 240V AC
- Mounting: Plug-in with 8-pin octal base
- Contact Material: Silver Nickel (AgNi)
- Mechanical Life: 20 million operations
- Electrical Life: 100,000 operations at rated load
- Operating Temperature Range: -40°C to +70°C
- Certifications: UL, CSA, CE
Technical Specifications
- Rated Thermal Current (Ith): 10A at 240V AC
- Dielectric Strength: 2000V AC between open contacts
- Insulation Voltage: 250V between coil and contacts
- Degree of Protection: IP40
- Dimensions: Width: 32.8 mm, Height: 54.1 mm, Depth: 36.5 mm
Applications
The 700-HA33A1 relay is suitable for a wide range of applications, including:
- General industrial control
- Control panels and enclosures
- Motor starters and interlocking
- Lighting, heating, and fan circuits
- OEM equipment and automation systems
Why Choose the 700-HA33A1?
Opting for the Allen-Bradley 700-HA33A1 relay offers several advantages:
- Reliable 3PDT contact configuration for flexible switching
- Standard 8-pin octal base for quick installation and replacement
- Compact design suitable for high-density panel layouts
- High mechanical and electrical life expectancy
- Compliance with international standards ensuring safety and performance
In summary, the Allen-Bradley 700-HA33A1 relay combines durability, versatility, and ease of use, making it a valuable component in various industrial control applications.
