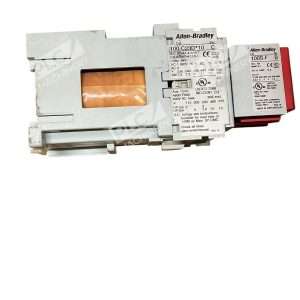

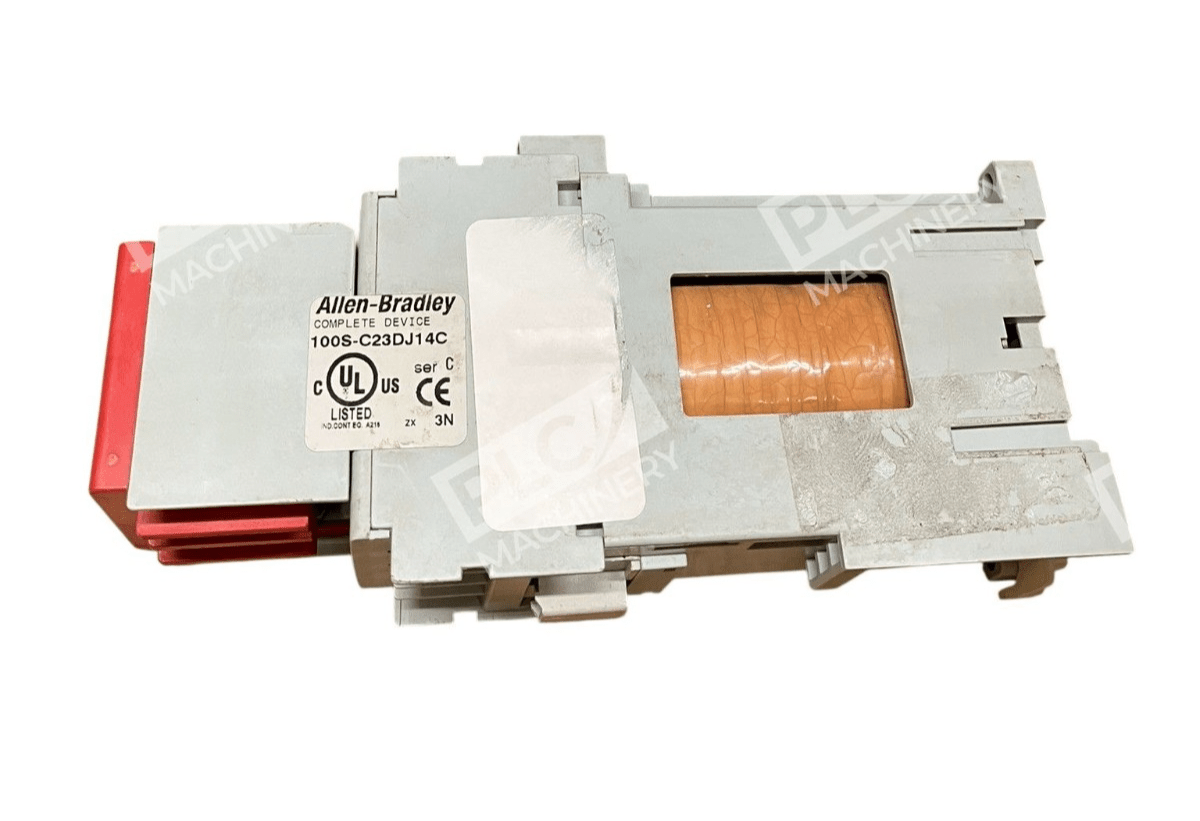

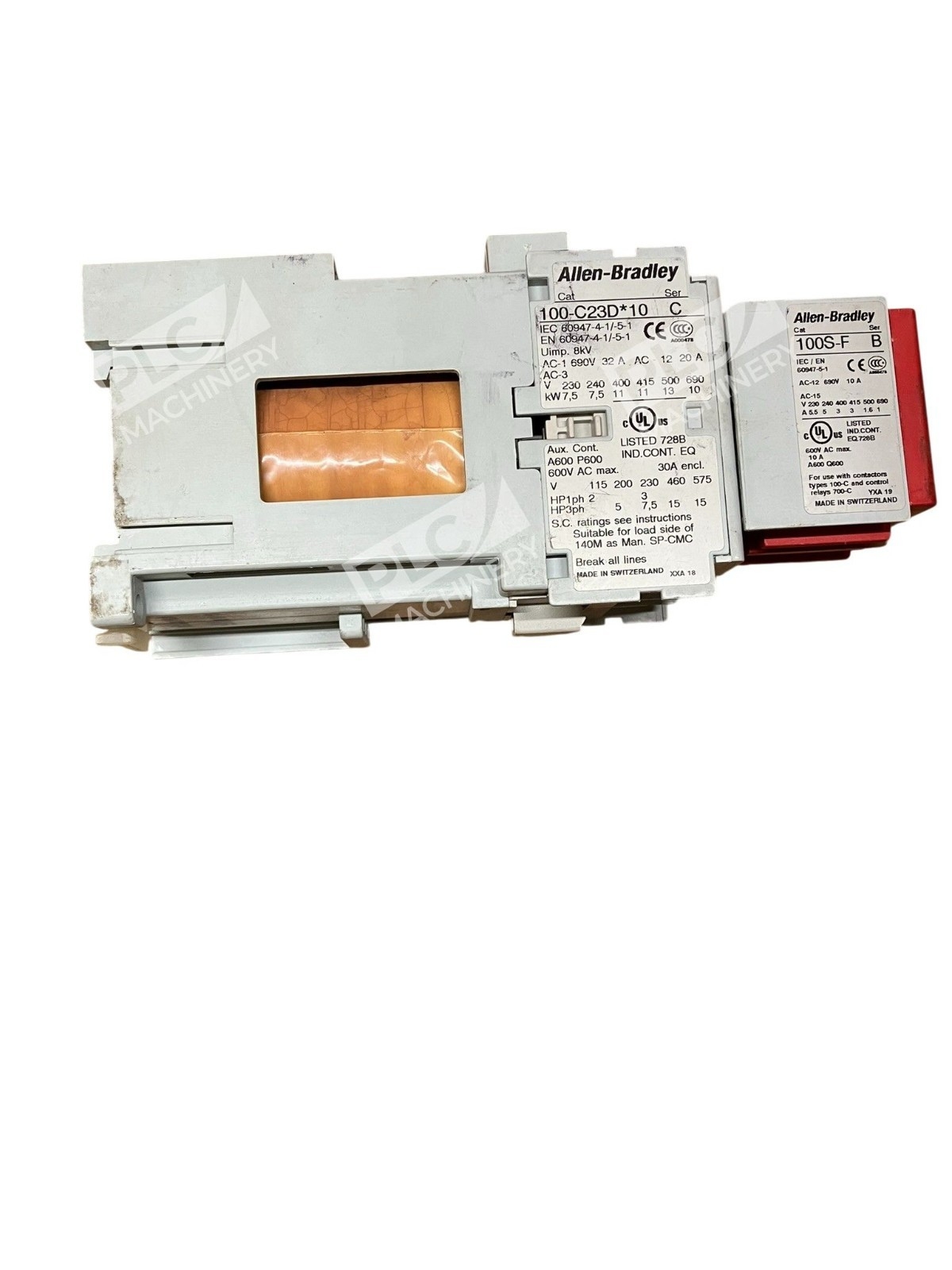

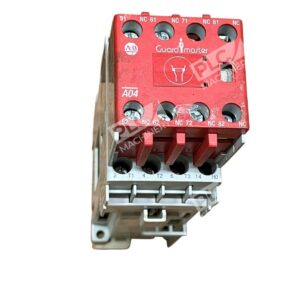

The Allen-Bradley 100S-C23DJ14C is a 23 A safety contactor from the Guardmaster 100S-C series, designed to meet the stringent requirements of modern safety applications. This device ensures reliable performance in safety-critical control systems, making it ideal for use in machine guarding, press control, and emergency stop circuits.
Key Features
- Current Rating: 23 A, suitable for medium-duty industrial motors.
- Coil Voltage: 110V at 50 Hz / 120V at 60 Hz, accommodating standard industrial power supplies.
- Main Contacts: Three normally open (N.O.) power poles for standard motor control.

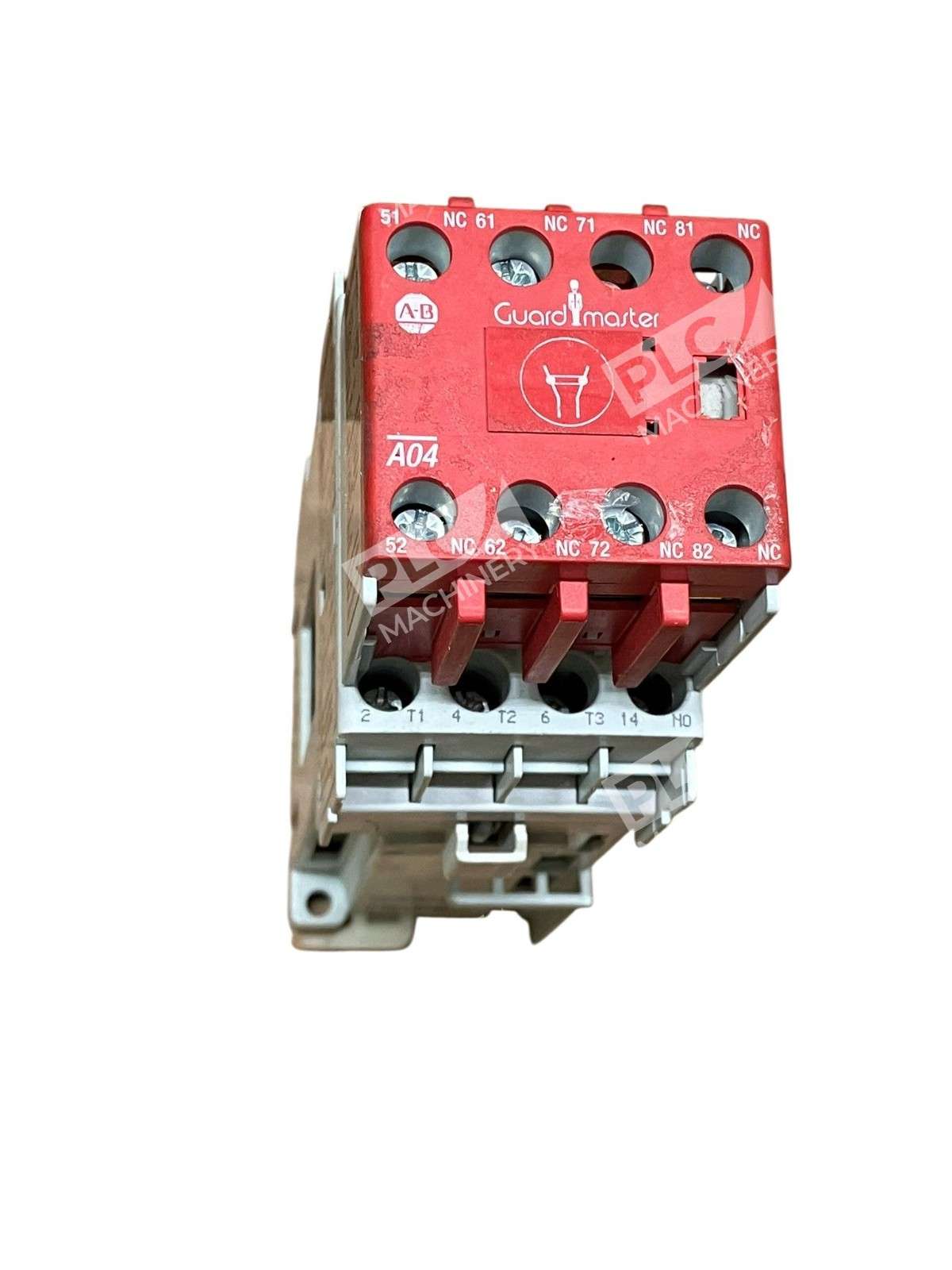

- Auxiliary Contacts: One normally open (N.O.) and four normally closed (N.C.) contacts, providing versatile control options.
- Contact Design: Mechanically linked contacts conforming to IEC 60947-5-1 Annex L, enabling feedback loop monitoring and ensuring safety circuit integrity.
- Ingress Protection: Rated IP20 for finger-safe operation, enhancing personnel safety.
- Mounting and Design: Compact DIN rail mountable design with a visual coil indicator and a fixed safety cover to prevent manual override.
- Certifications: CE, UL, cUL, SUVA, CCC, and KC certified, ensuring global industrial compliance.
Applications
The 100S-C23DJ14C safety contactor is ideal for integration into emergency stop circuits, safety interlock circuits, and other functional safety designs where force-guided contact feedback is required. Its robust construction and reliable performance make it a preferred choice for machine builders and OEMs aiming for compliance with international safety standards such as ISO 13849 and IEC 62061.
Technical Specifications
- Coil Code: 110V 50 Hz / 120V 60 Hz
- Current: 23 A
- Contact Configuration: 3 N.O. main poles, 1 N.O. and 4 N.C. auxiliary contacts
- Mounting: DIN rail mountable
- Certifications: CE, UL, cUL, SUVA, CCC, KC
The Allen-Bradley 100S-C23DJ14C safety contactor combines advanced safety features with reliable performance, making it an essential component in safeguarding industrial automation systems.
