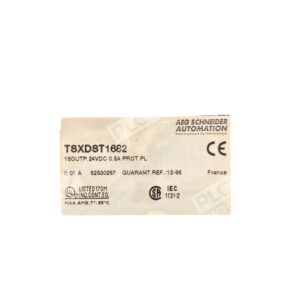

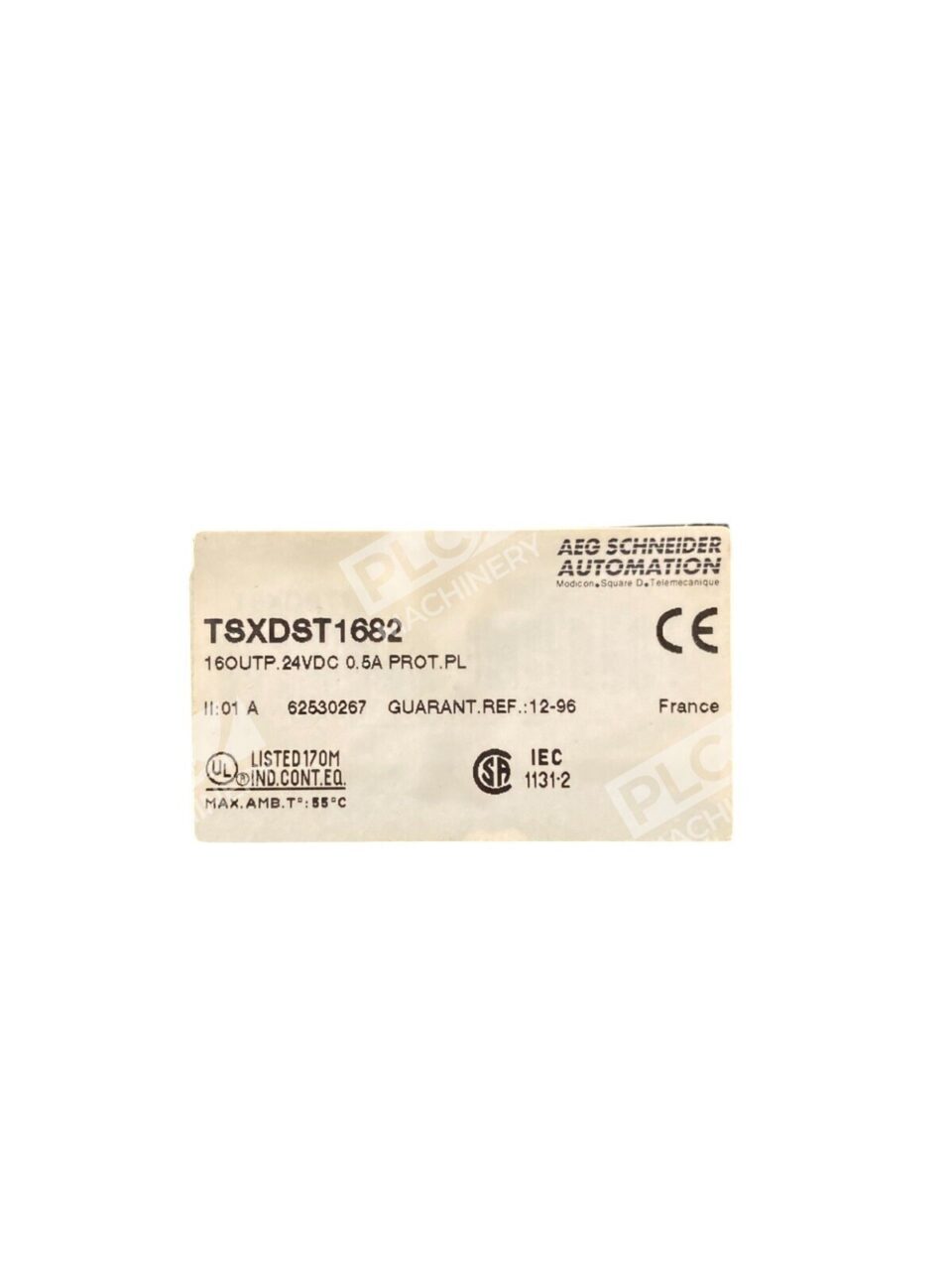

Schneider Electric TSXDST1682 16-Point Output Module
The Schneider Electric TSXDST1682 is a 16-point digital output module designed for integration with Modicon TSX Micro PLCs. This module provides reliable and efficient control for various industrial automation applications.
Key Features
- Output Channels: 16 discrete outputs
- Output Voltage: 24 V DC
- Output Current: 0.5 A per channel
- Compatibility: Seamlessly integrates with Modicon TSX Micro PLCs
- Protection: Individual channel protection against overload and short circuits
Technical Specifications
- Manufacturer: Schneider Electric
- Model Number: TSXDST1682
- Product Type: Digital Output Module
- Operating Temperature Range: 0°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Dimensions: 10.8 cm x 5.5 cm x 12 cm
- Weight: 1.08 lbs (0.49 kg)
Applications
The TSXDST1682 module is ideal for controlling a wide range of low-power industrial equipment, including actuators, indicators, and other devices requiring discrete 24 V DC outputs. Its compact design and robust performance make it suitable for various industrial environments.
Installation and Integration
Designed for easy integration, the TSXDST1682 can be effortlessly installed into existing Modicon TSX Micro PLC systems. Its modular design simplifies wiring and maintenance, enhancing overall system efficiency.
Reliability and Safety
Each output channel of the TSXDST1682 features individual protection against overload and short circuits, ensuring the safety of both the module and connected devices. This design enhances the reliability and longevity of the automation system.
For more detailed information or specific inquiries, please refer to the official Schneider Electric documentation or contact an authorized distributor.
