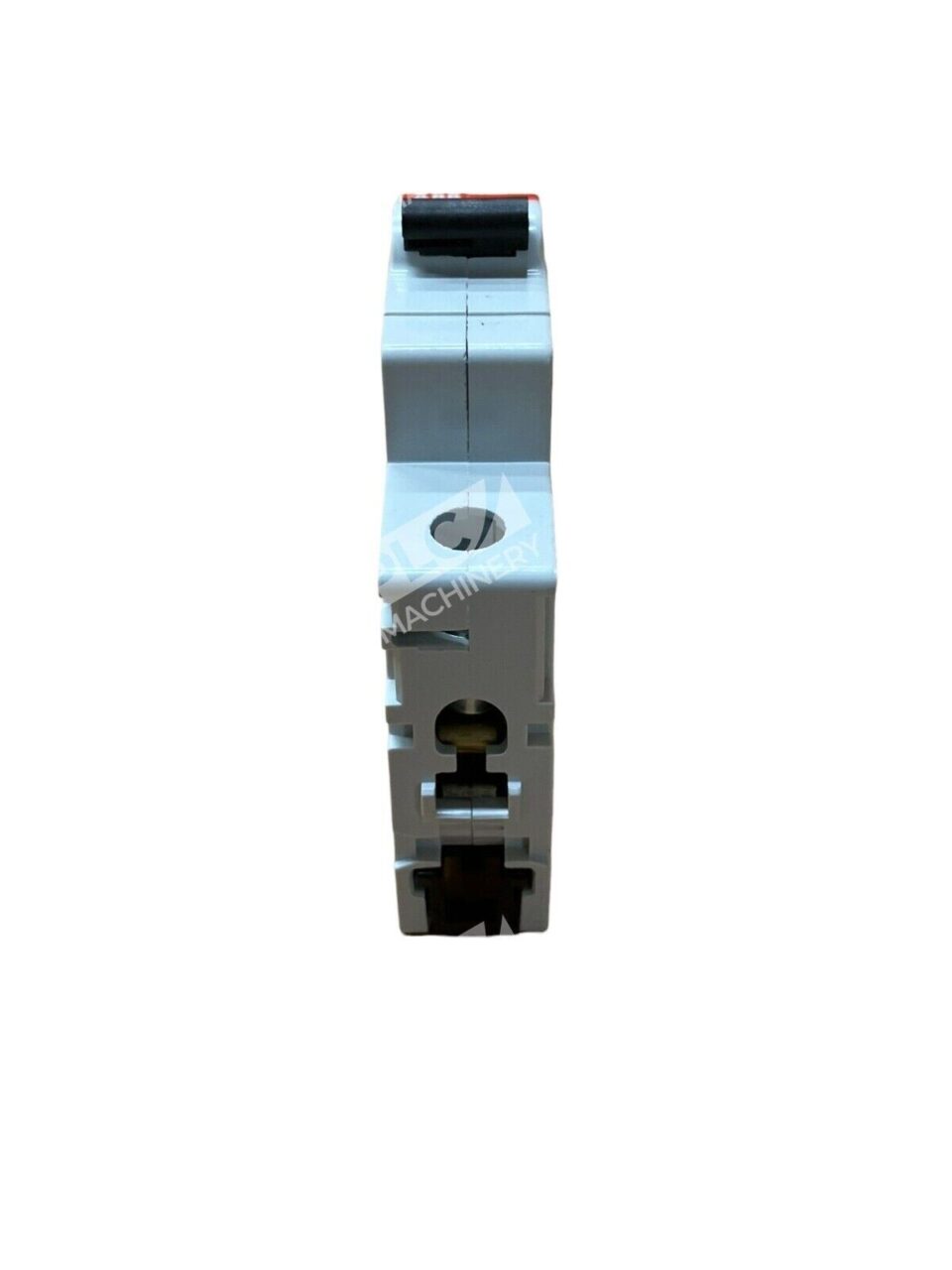

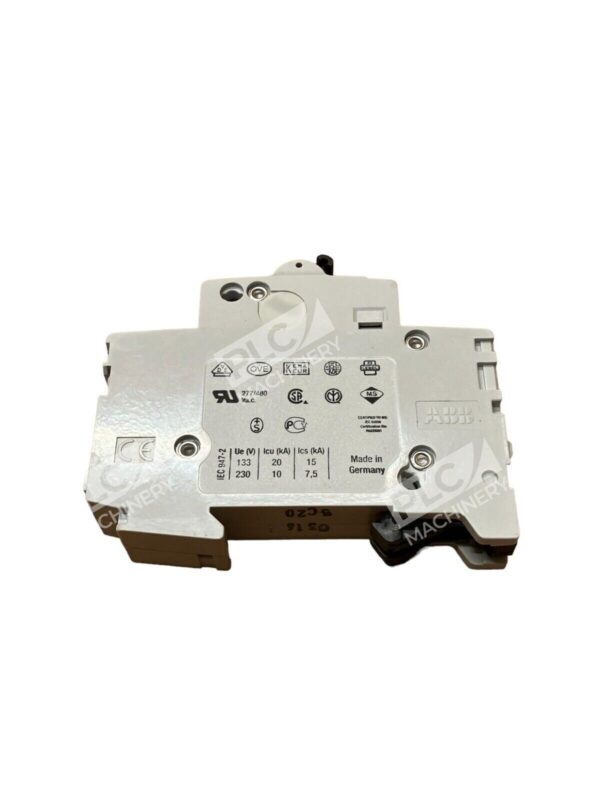

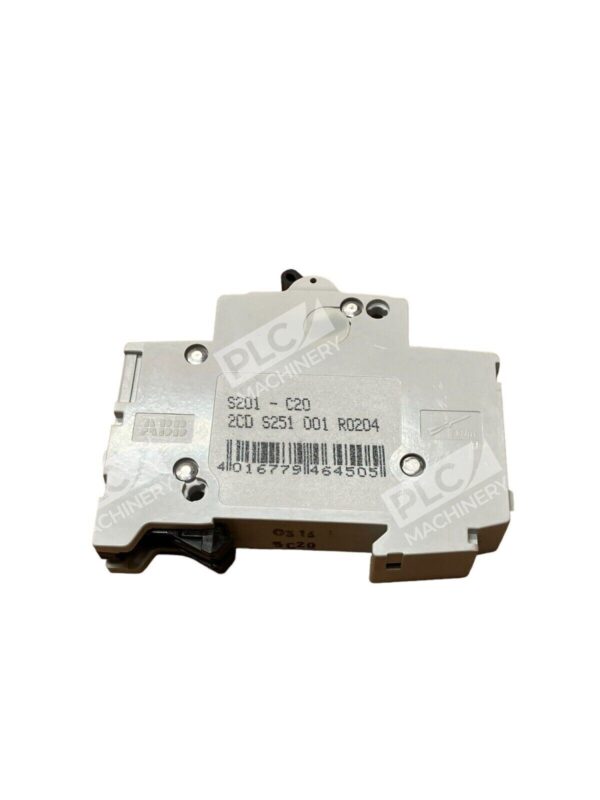

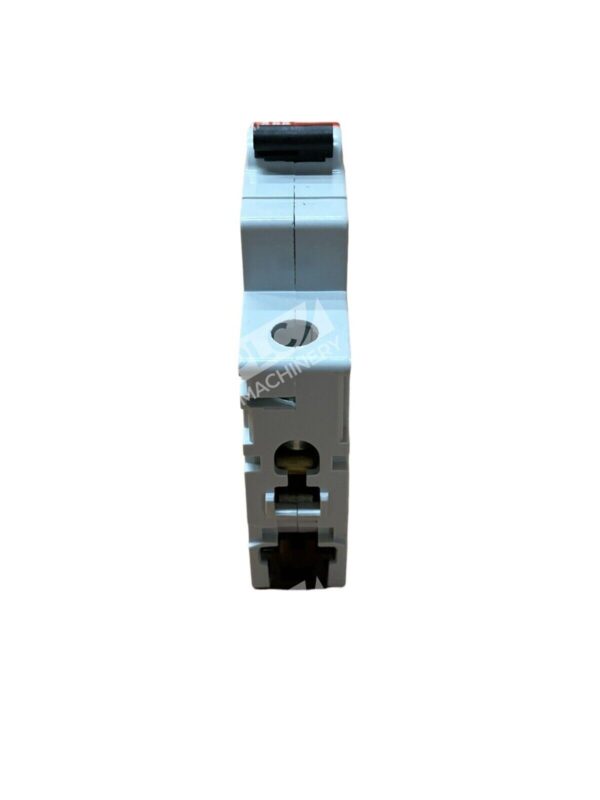

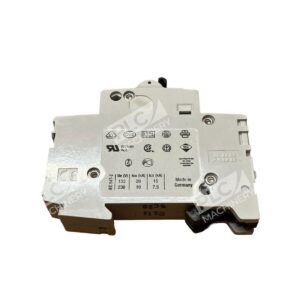

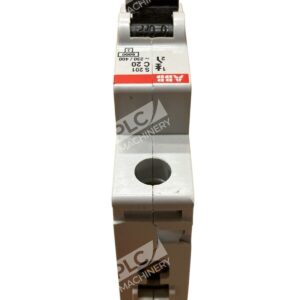

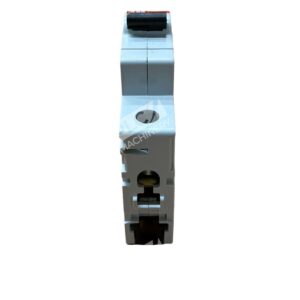

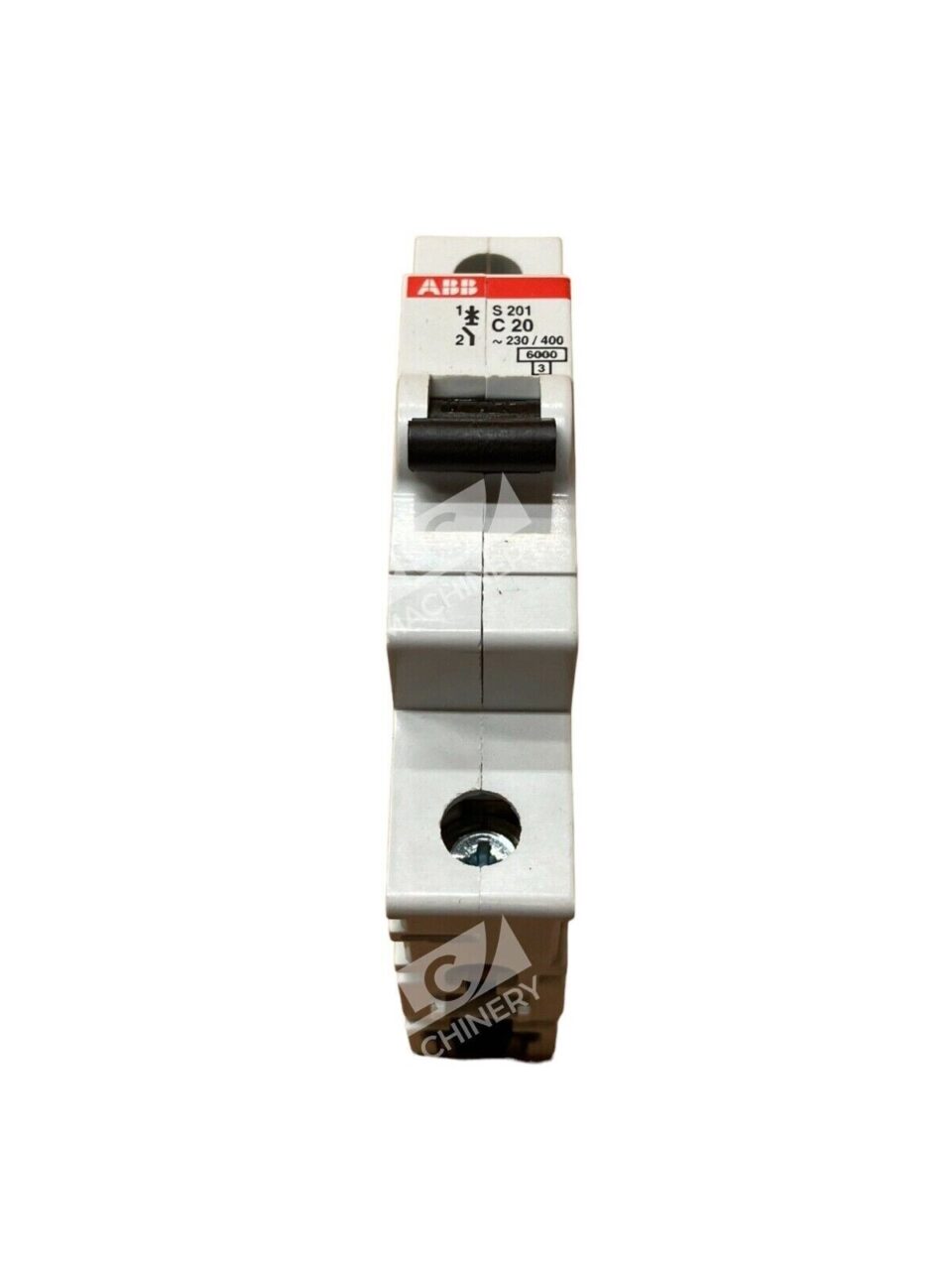

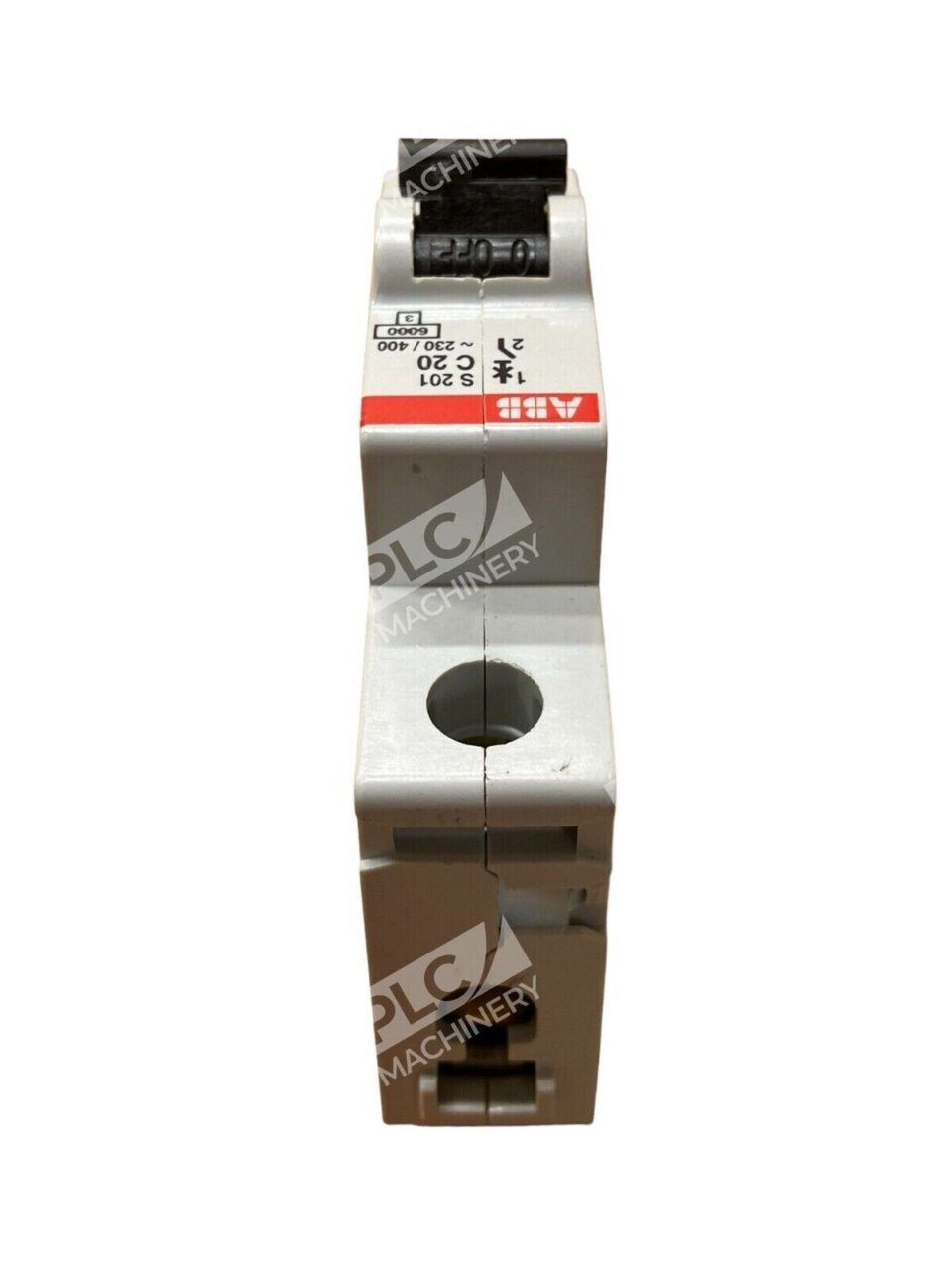

ABB S201C20 1 Pole Circuit Breaker

ABB S201C20 1-Pole Circuit Breaker

The ABB S201C20 is a high-performance miniature circuit breaker (MCB) designed to provide reliable protection for electrical circuits against overloads and short circuits. Suitable for residential, commercial, and industrial applications, this MCB ensures the safety and efficiency of your electrical systems.

Key Features

• Rated Current: 20 Amperes
• Number of Poles: 1
• Tripping Characteristic: Type C
• Rated Voltage: 230/400 V AC
• Breaking Capacity: 6 kA at 230 V AC
• Mounting: DIN Rail
• Degree of Protection: IP20
• Operating Temperature Range: -25°C to +55°C

Design and Construction

The S201C20 features a compact design with a width of 17.5 mm, allowing for efficient use of space within electrical panels. Its robust construction ensures durability and long-term performance, even in demanding environments. The device includes a clear contact position indicator (red/green) for easy status identification.

Applications

This circuit breaker is ideal for protecting circuits with resistive and inductive loads that have low inrush currents. Common applications include lighting systems, heating equipment, and general power distribution in residential, commercial, and industrial settings.

Installation and Compatibility

Designed for easy installation, the S201C20 mounts securely on standard DIN rails. It is compatible with a wide range of accessories, enhancing its versatility and adaptability to various electrical configurations.

By choosing the ABB S201C20 1-Pole Circuit Breaker, you are investing in a reliable and efficient solution for safeguarding your electrical installations.
