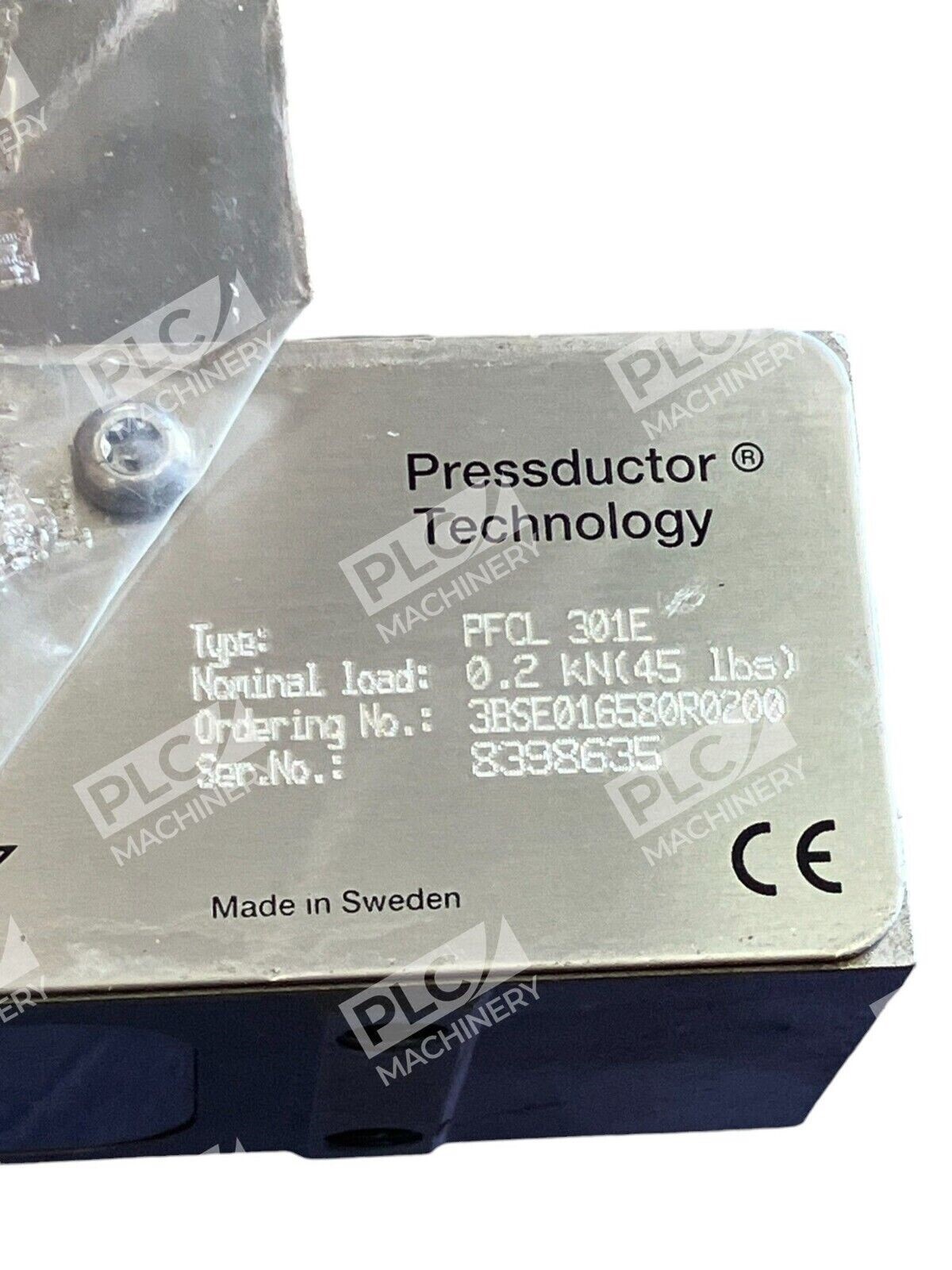

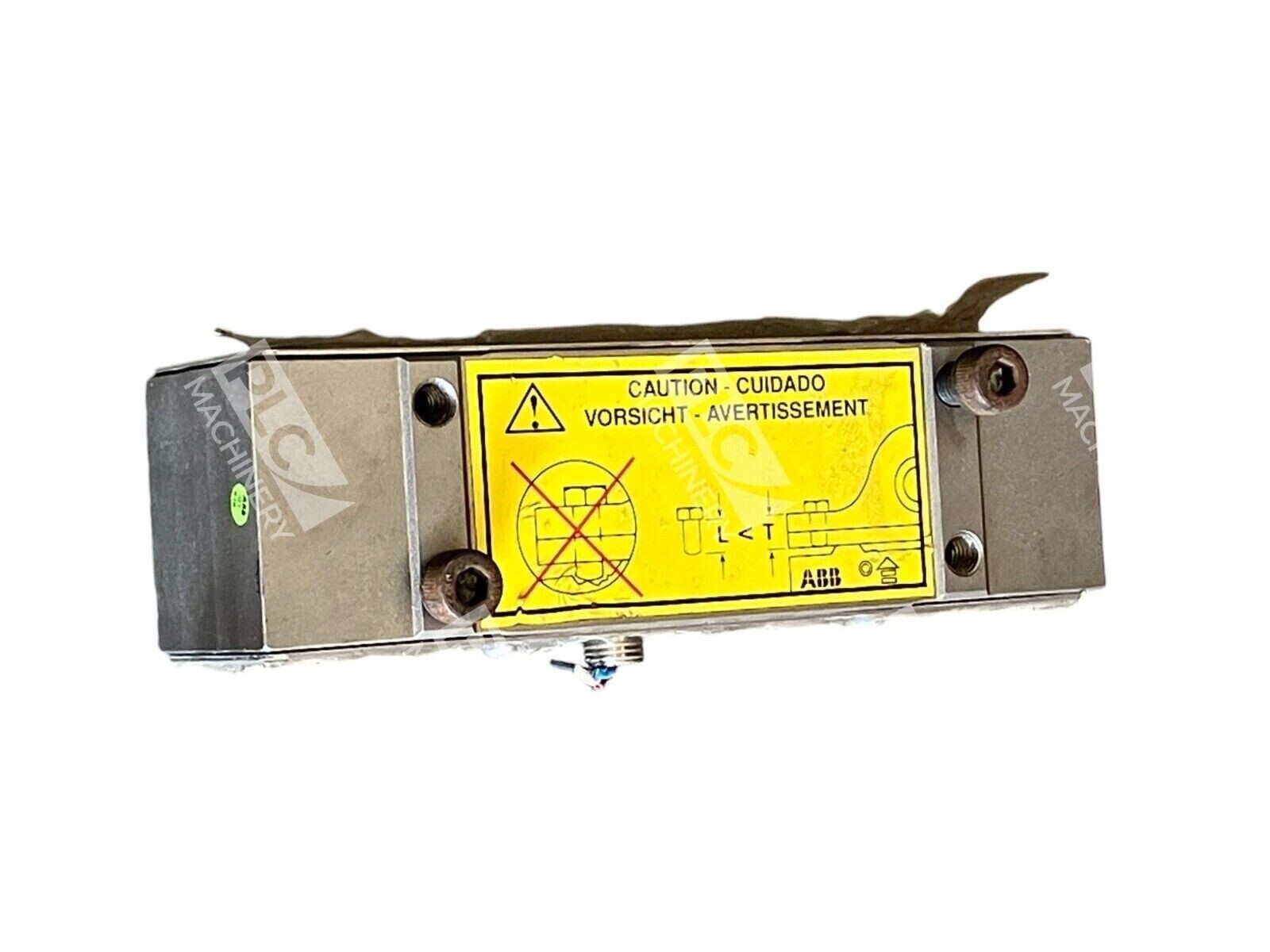

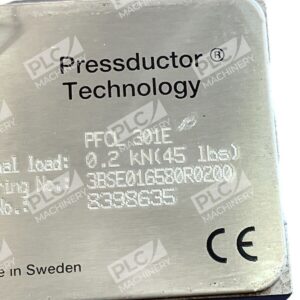

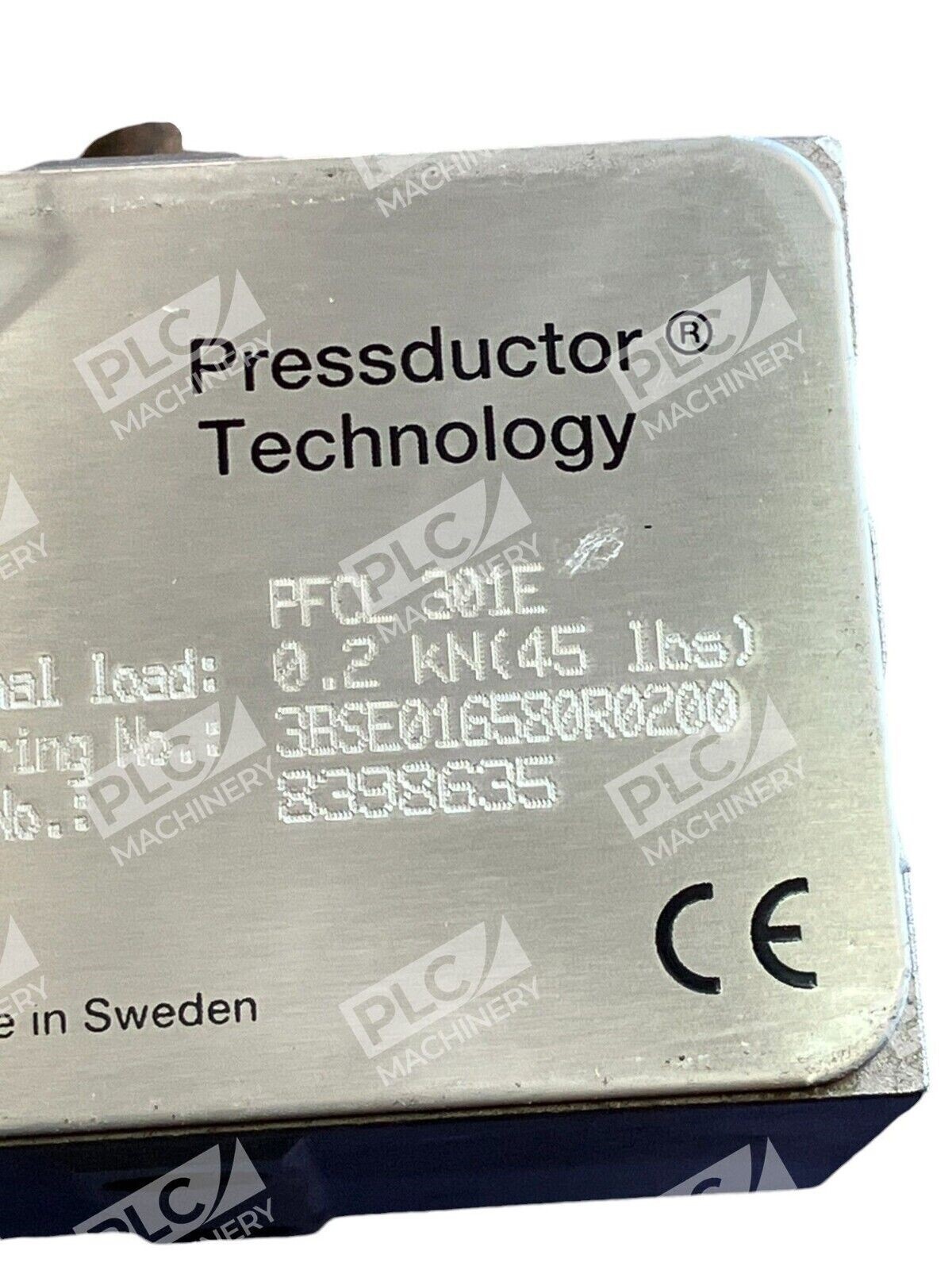

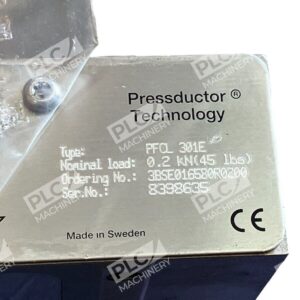

ABB Pressductor Technology PFCL-301E-0.2KN

The ABB Pressductor Technology PFCL-301E-0.2KN is a precision load cell engineered for accurate vertical force measurement in various industrial applications.

Key Features

• Nominal Load Capacity: 0.2 kN (45 lbs)
• Extended Load Capacity: 0.3 kN (67 lbs)
• Overload Capacity: 0.6 kN (135 lbs)
• Deflection: 0.020 mm (0.8/1000 in.)
• Spring Constant: 9.0 kN/mm (52,000 lbs/inch)
• Operating Temperature Range: -20°C to +60°C
• Environmental Rating: IP67
• Material: Stainless Steel
• Output Signal: 4-20mA or 0-10V
• Supply Voltage: 12VDC

Applications

The PFCL-301E-0.2KN load cell is designed to measure vertical forces in both directions in various web processing machinery used in industries such as converting, plastic film, printing, textiles, and more. ([new.abb.com](https://new.abb.com/products/measurement-products/web-tension/pressductor-pillowblock-load-cells-pfcl301e?utm_source=openai))

Pressductor® Technology

ABB’s Pressductor® Technology is based on the magnetoelastic effect, where the magnetic properties of a material are influenced by the mechanical force applied to it. This results in measurement signals generated from changes in magnetic fields, offering high sensitivity, exceptional overload tolerance, and virtually unlimited load cycles. The technology ensures high-power, low-impedance AC signals resistant to electrical interference and earth faults, providing reliable performance in demanding conditions. ([new.abb.com](https://new.abb.com/products/measurement-products/web-tension/pressductor-pillowblock-load-cells-pfcl301e?utm_source=openai))

Installation and Maintenance

The PFCL-301E-0.2KN load cell is designed for easy installation and maintenance. Its robust stainless steel construction ensures durability and long-term reliability, even in harsh industrial environments. The load cell’s design allows for straightforward integration into existing systems, minimizing downtime and maintenance costs.

Conclusion

The ABB Pressductor Technology PFCL-301E-0.2KN load cell offers unparalleled precision and reliability for vertical force measurement in industrial applications. Its advanced Pressductor® Technology, robust construction, and user-friendly design make it an ideal choice for industries requiring accurate and dependable force measurement solutions.
