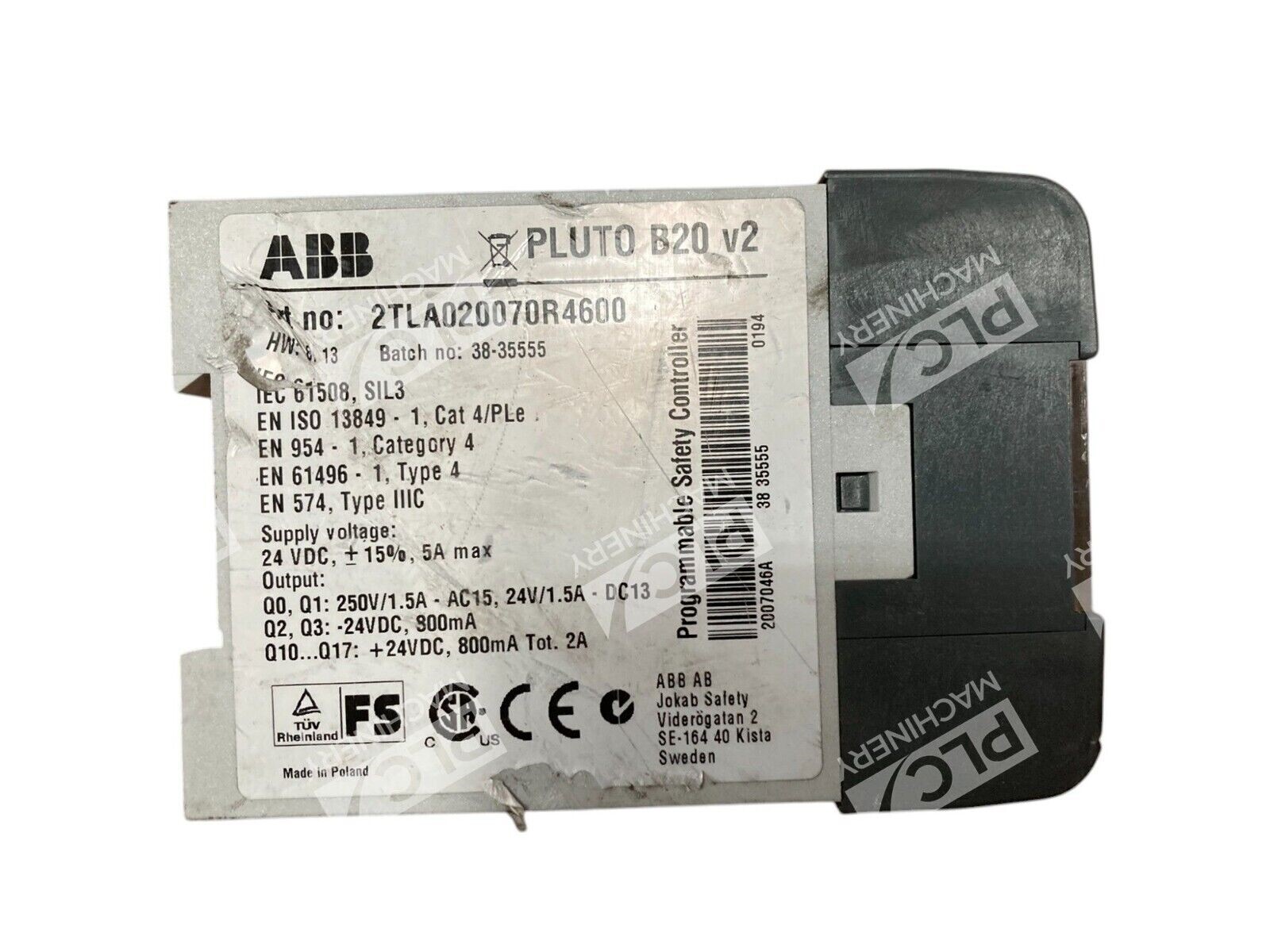

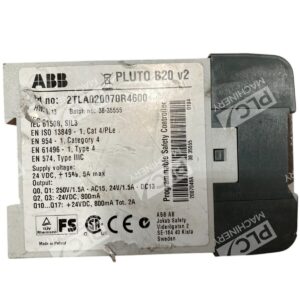

ABB Pluto B20 v2 Safety PLC 2TLA020070R4600

ABB Pluto B20 v2 Safety PLC 2TLA020070R4600

The ABB Pluto B20 v2 Safety PLC is a compact and powerful programmable safety controller designed to manage a wide range of safety functions in industrial applications. Its versatility and robust design make it suitable for both small and large-scale systems.

Key Features

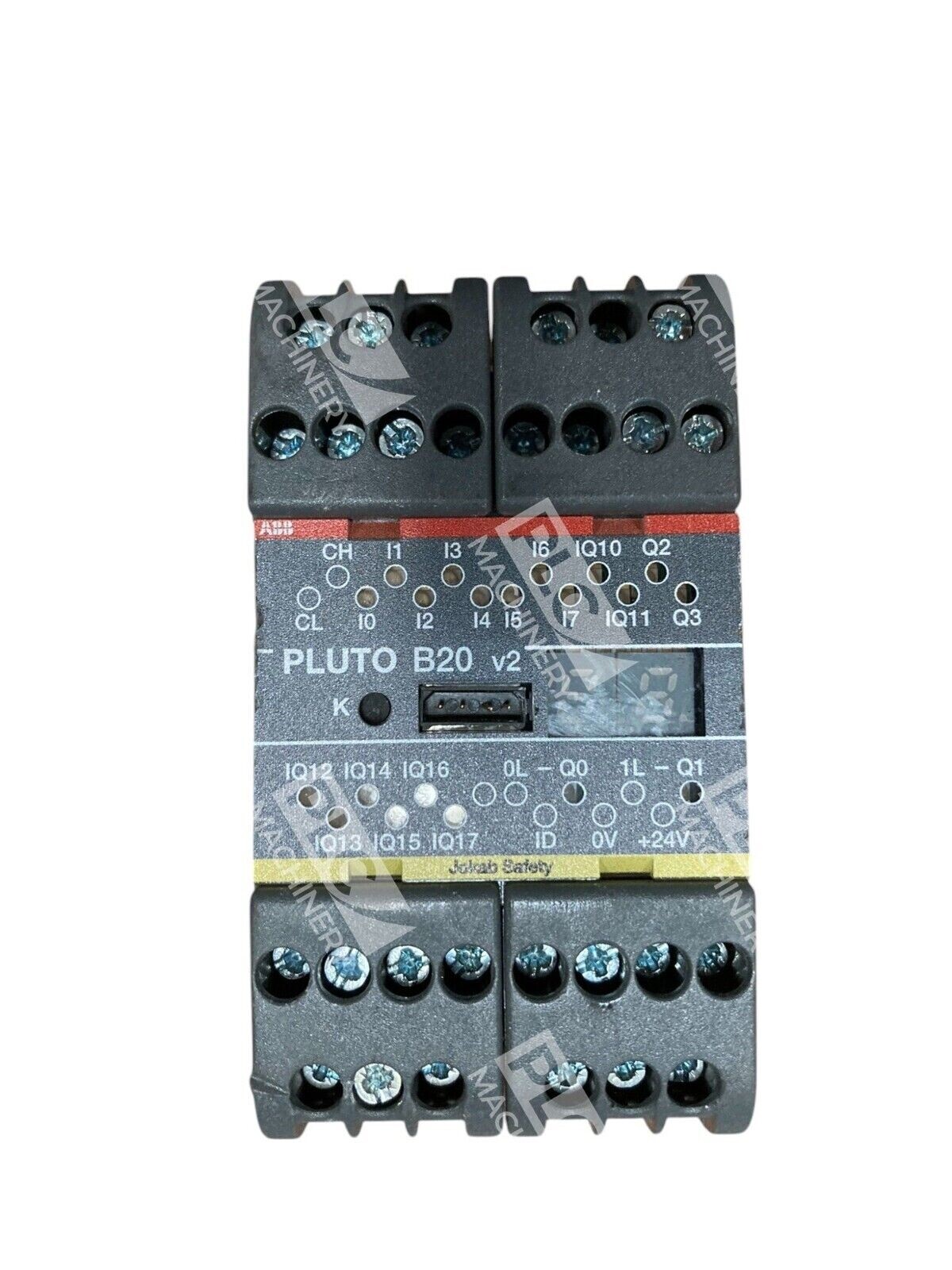

• Input/Output Configuration: The Pluto B20 v2 offers a total of 20 I/O points, comprising 8 failsafe inputs, 8 non-failsafe outputs/failsafe inputs, 2 individually failsafe relay outputs, and 2 individually failsafe transistor outputs. ([empower.abb.com](https://empower.abb.com/ecatalog/ec/EN_NA/p/2TLA020070R4600?utm_source=openai))
• Supply Voltage: Operates on a 24 V DC supply, ensuring compatibility with standard industrial power systems. ([empower.abb.com](https://empower.abb.com/ecatalog/ec/EN_NA/p/2TLA020070R4600?utm_source=openai))
• Safety Performance: Achieves up to Performance Level e (PL e) and Safety Integrity Level 3 (SIL 3), providing high-level safety assurance. ([empower.abb.com](https://empower.abb.com/ecatalog/ec/EN_NA/p/2TLA020070R4600?utm_source=openai))
• Communication Capabilities: Equipped with a Pluto safety bus, facilitating efficient communication within safety systems. ([empower.abb.com](https://empower.abb.com/ecatalog/ec/EN_NA/p/2TLA020070R4600?utm_source=openai))
• Compact Design: With dimensions of 120 mm in depth, 84 mm in height, and 45 mm in width, and a weight of 0.39 kg, the Pluto B20 v2 is designed for easy integration into control panels. ([empower.abb.com](https://empower.abb.com/ecatalog/ec/EN_NA/p/2TLA020070R4600?utm_source=openai))

Technical Specifications

• Degree of Protection: IP20 for terminals and IP40 for the enclosure, ensuring protection against solid objects and limited ingress of liquids. ([empower.abb.com](https://empower.abb.com/ecatalog/ec/EN_NA/p/2TLA020070R4600?utm_source=openai))
• Processing Time: 1 ms for 1K binary operations, enabling rapid response in safety-critical applications. ([abb-control-products.partcommunity.com](https://abb-control-products.partcommunity.com/3d-cad-models/pluto-b20-safety-plc-abb-low-voltage-systems?countryIso=US&info=abb_ww%2Flow_voltage%2Fcontrol%2Fsafety_products%2Fprog_safety_controllers%2Fpluto%2Fpluto_b20.prj&languageIso=en&utm_source=openai))
• Memory: Features 128 kByte of FLASH memory for program storage. ([abb-control-products.partcommunity.com](https://abb-control-products.partcommunity.com/3d-cad-models/pluto-b20-safety-plc-abb-low-voltage-systems?countryIso=US&info=abb_ww%2Flow_voltage%2Fcontrol%2Fsafety_products%2Fprog_safety_controllers%2Fpluto%2Fpluto_b20.prj&languageIso=en&utm_source=openai))
• Interfaces: Includes 1 RS-232 interface and supports protocols such as MODBUS ASCII, Pluto Safety Bus, and StatusBus. ([electrika.com](https://www.electrika.com/catalogues/ABB-Product-Groups/SAFETY-PRODS-JOKAB-A/SAFETY-PRODS-JOKAB-1/2TLA020070R4600/Pluto-B20-v2-Safety-PLC-8-8-4-I-O-w-BUS/part/267989?utm_source=openai))

Applications

The ABB Pluto B20 v2 Safety PLC is ideal for various industrial automation applications, including machinery safety, process control, and functional safety systems. Its comprehensive I/O configuration and high safety standards make it a reliable choice for ensuring operational safety and efficiency.
