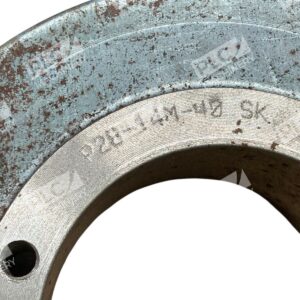

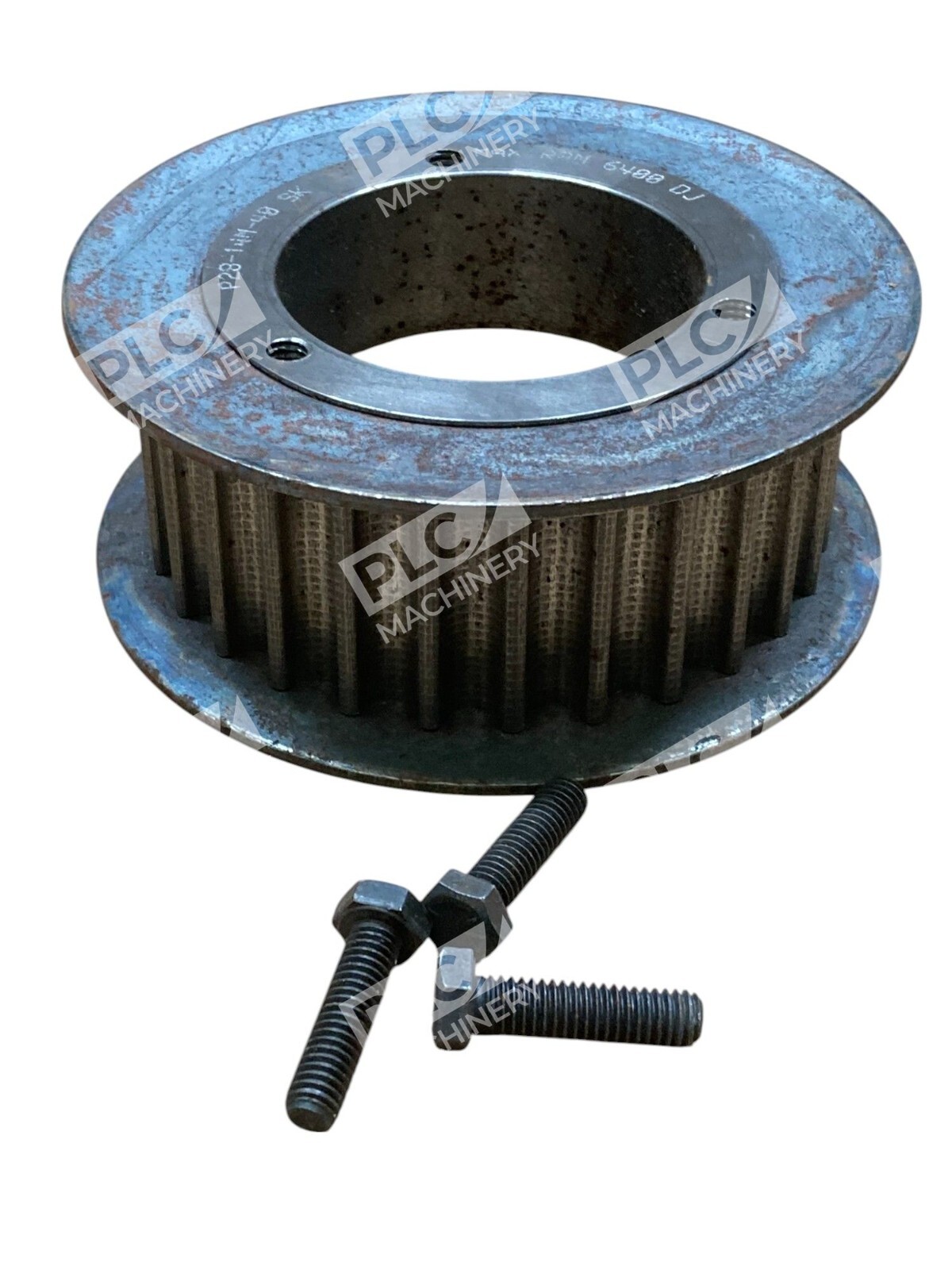

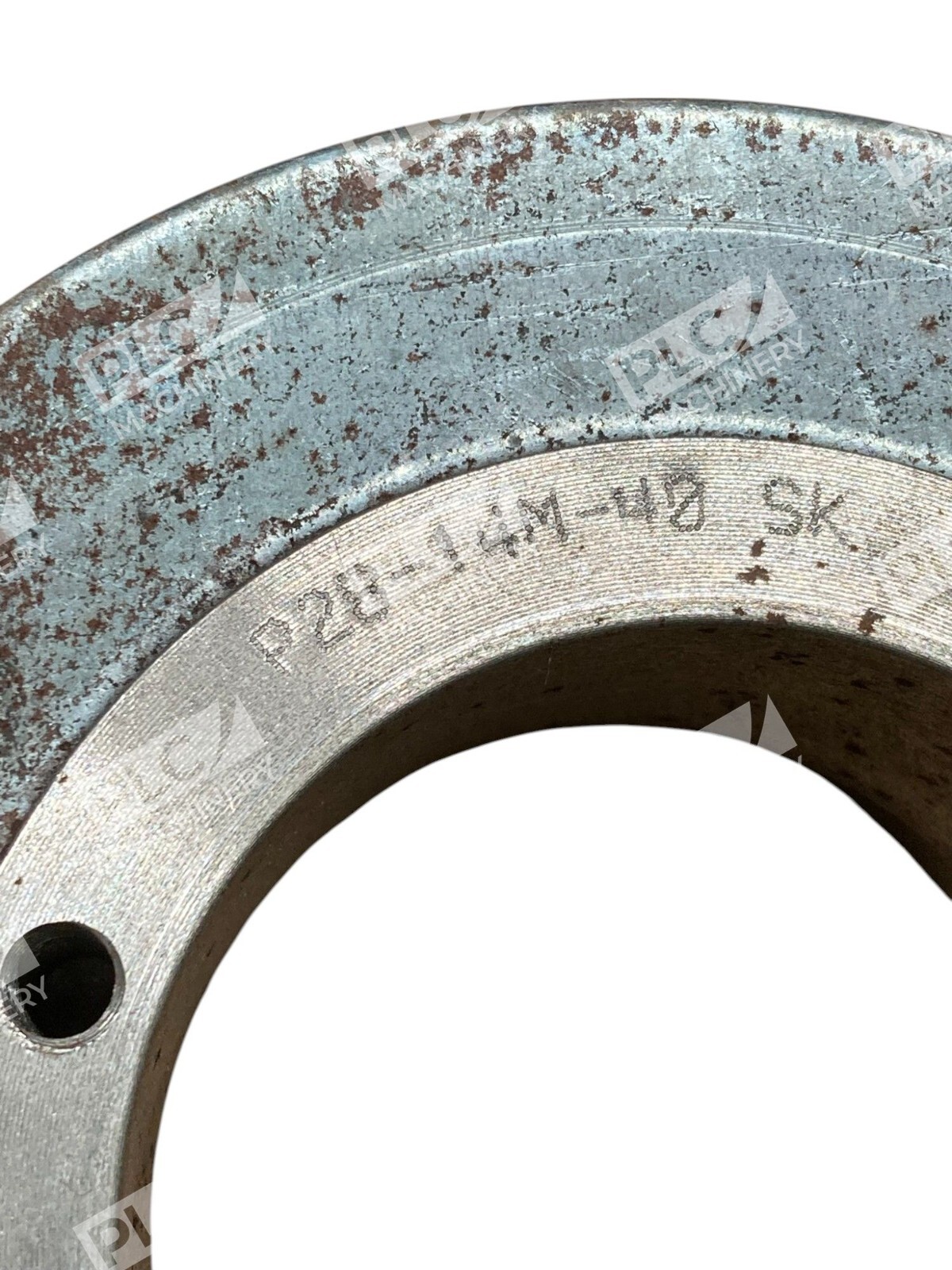

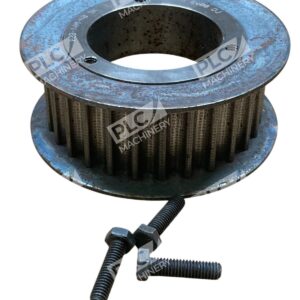

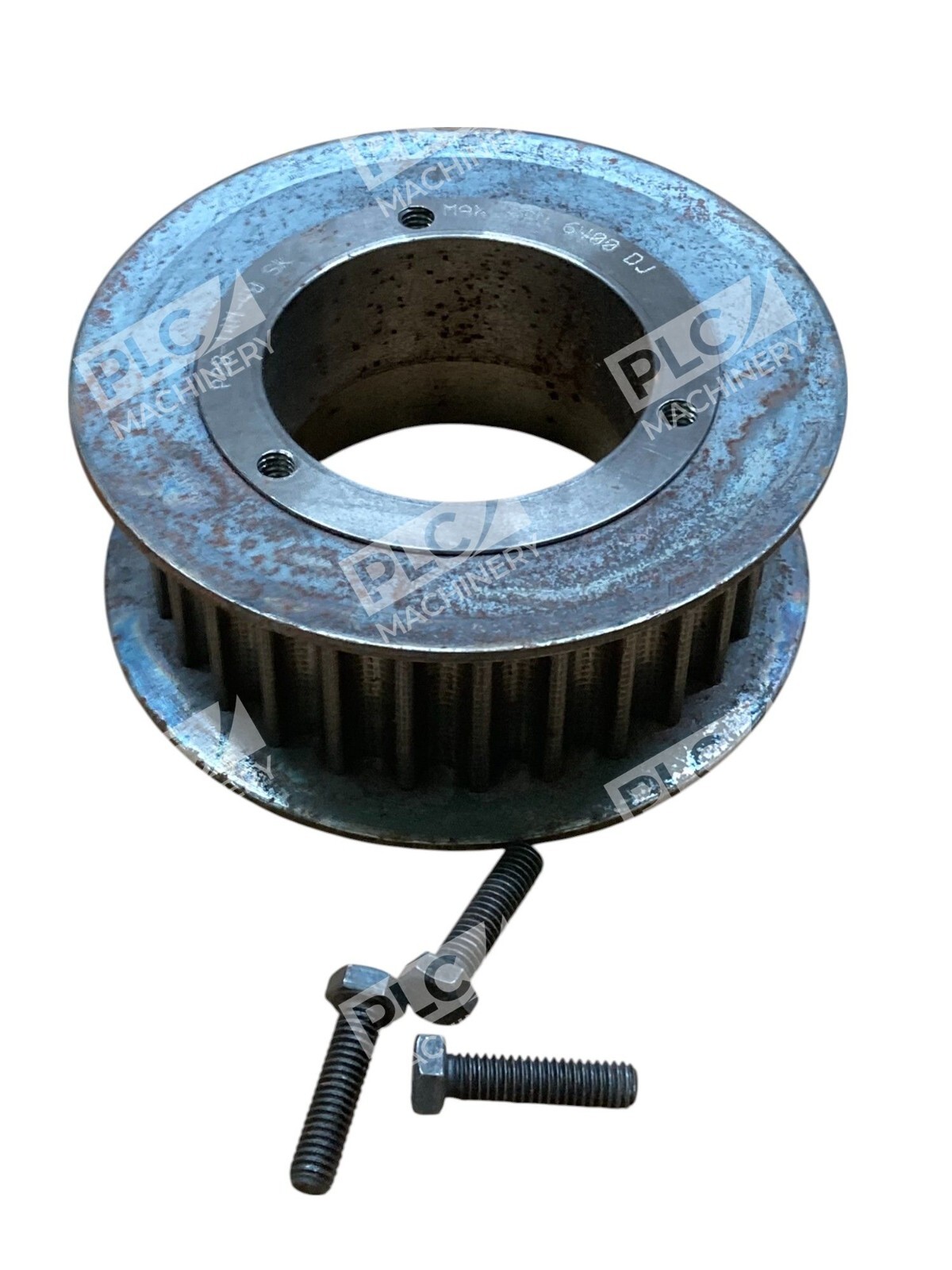

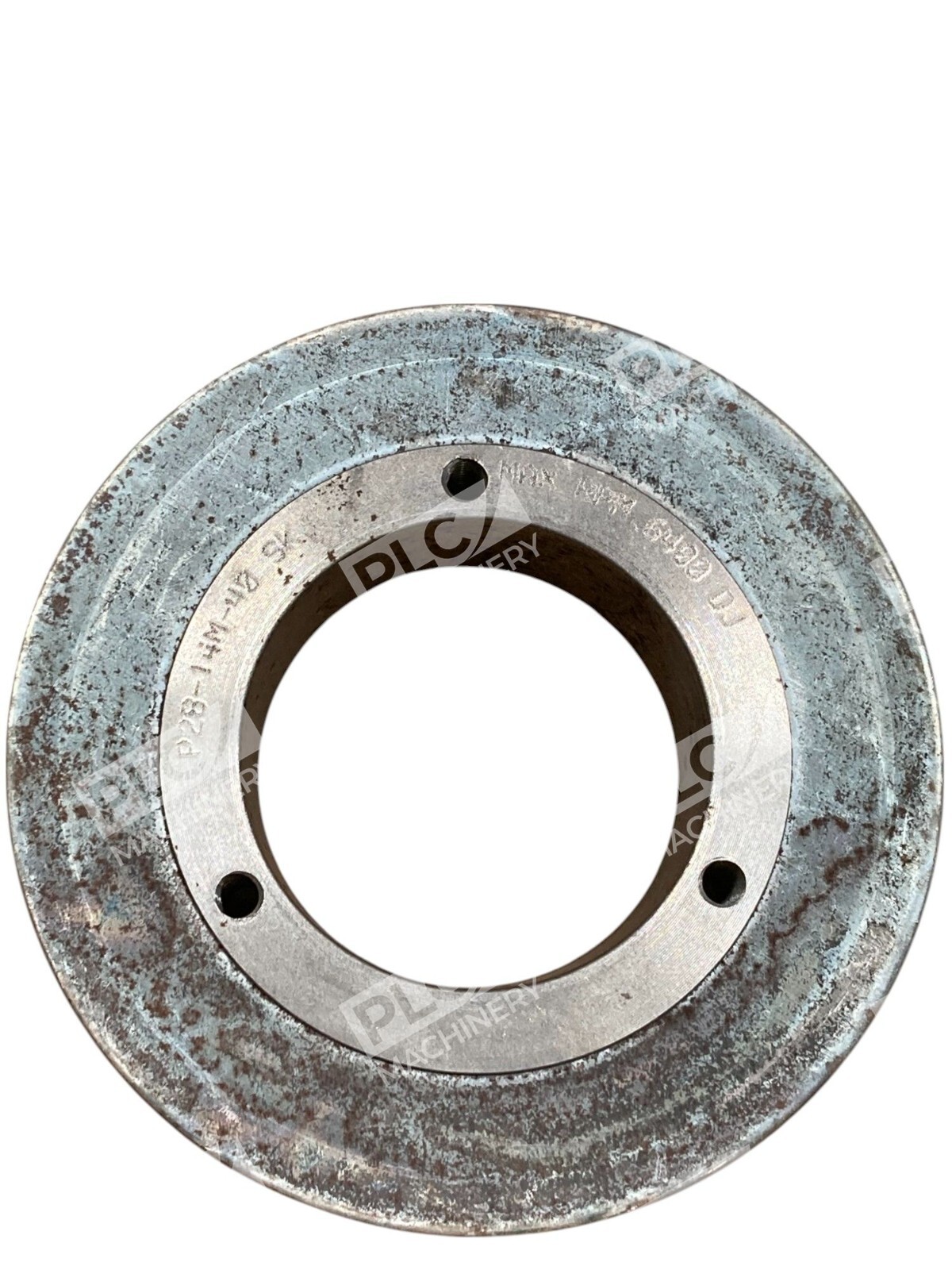

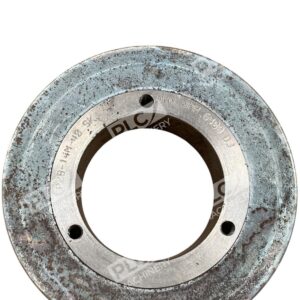

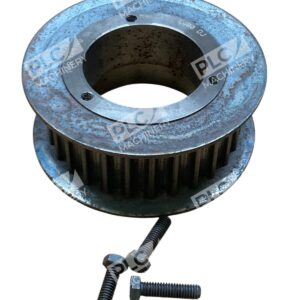

ABB HTD GAT Sprocket P28-14M-40 SK

The ABB HTD GAT Sprocket P28-14M-40 SK is a high-performance component designed for precision and durability in power transmission systems.

Key Features

• High Torque Drive (HTD) Design: Ensures positive, non-slip engagement, providing consistent and reliable power transmission.
• 14 mm Pitch: Optimized for compatibility with 14 mm pitch belts, facilitating smooth operation.
• 40 mm Belt Width: Accommodates belts up to 40 mm wide, offering versatility for various applications.
• 28 Teeth Configuration: Provides a balanced ratio for efficient torque distribution.
• QD Bushed with SK Bushing: Features a Quick Detachable (QD) bushing system with an SK bushing, allowing for easy installation and removal.
• Durable Construction: Made from high-quality materials, ensuring longevity and resistance to wear and corrosion.

Specifications

• Bore Diameter: Adjustable from 1/2 inch to 2-5/8 inches, accommodating a range of shaft sizes.
• Outside Diameter: 4.808 inches, providing a compact yet robust profile.
• Pitch Diameter: 4.912 inches, ensuring precise belt alignment.
• Face Width: 2.13 inches, offering ample surface area for belt contact.
• Flange Diameter: 5.562 inches, enhancing stability and alignment.

Applications

Ideal for use in various industrial applications, including:

• Conveyors
• Pumps
• Compressors
• Fans
• Machine tools

The ABB HTD GAT Sprocket P28-14M-40 SK is engineered to deliver reliable performance, ease of maintenance, and adaptability across a wide range of industrial settings.
