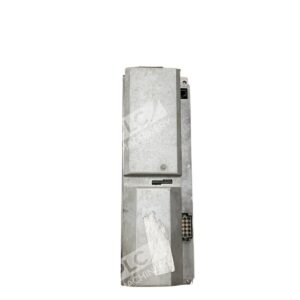

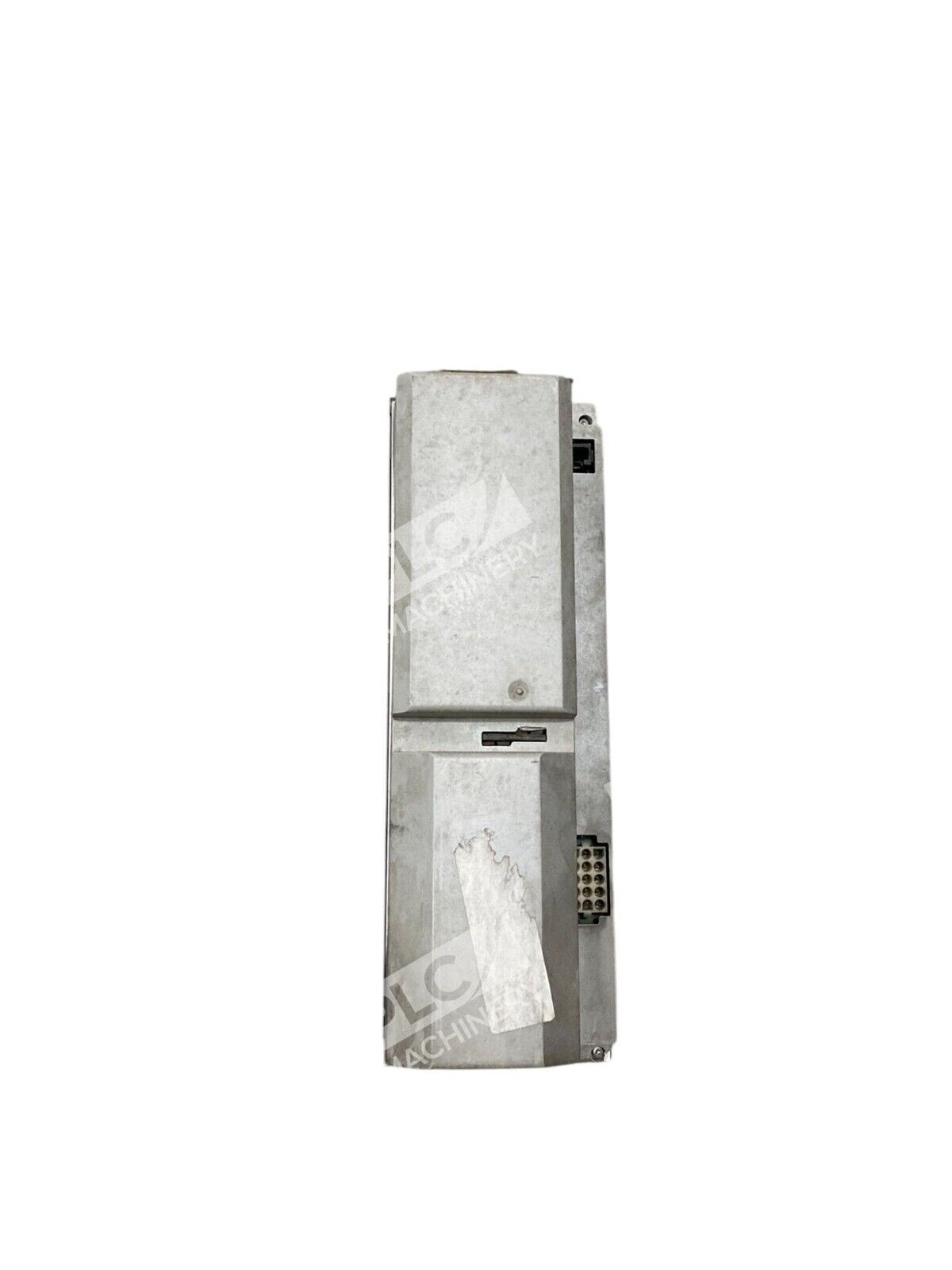

ABB DSQC346G Servo Drive Unit Control 3HAB8101-8/08E

ABB DSQC346G Servo Drive Unit Control 3HAB8101-8/08E

The ABB DSQC346G Servo Drive Unit Control, part number 3HAB8101-8/08E, is a high-performance component engineered for precision motion control in industrial automation systems. Designed to integrate seamlessly with ABB’s robotic platforms, this servo drive unit ensures efficient and reliable operation across various applications.

Key Features

• Compatibility: Specifically designed for integration with ABB’s IRB 2400 series robots, enhancing system cohesion and performance.
• Robust Construction: Built to withstand demanding industrial environments, ensuring durability and longevity.
• Advanced Control: Provides precise control over servo motors, facilitating accurate and responsive motion control.
• Compact Design: Its streamlined form factor allows for easy installation and integration into existing systems without requiring significant space.

Technical Specifications

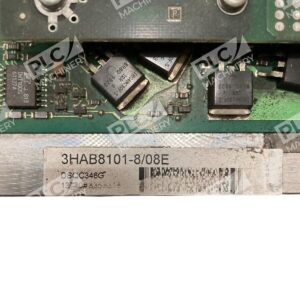

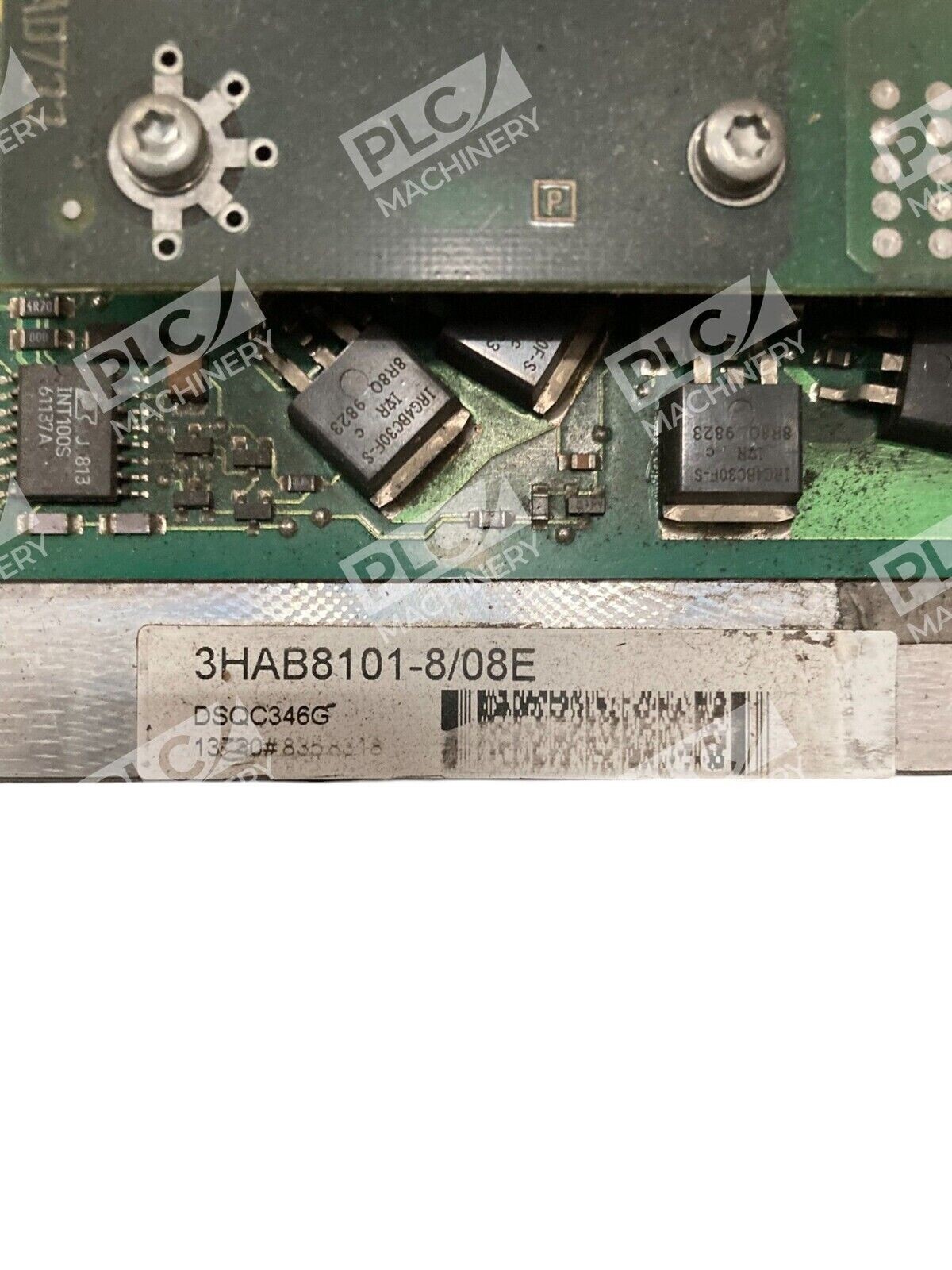

• Part Number: 3HAB8101-8/08E
• Model: DSQC346G
• Input Voltage: 400V AC
• Control Voltage: 24V DC
• Dimensions: 260mm x 60mm x 50mm
• Weight: 1.2 kg
• Operating Temperature Range: -20°C to +65°C
• Cooling Method: Liquid Cooling
• Protection Features: Short Circuit and Overload Protection
• Communication Interface: EtherCAT with a data rate of 100 Mbps
• Efficiency: 94%
• Output Power: 800W
• Mean Time Between Failures (MTBF): 520,000 hours
• Environmental Protection: IP54
• Compliance: Meets IEC 61800-5-1 safety standards and holds CE, CB, and EAC certifications

Applications

The DSQC346G Servo Drive Unit Control is ideal for a range of industrial applications, including:

• Robotic arms and manipulators
• Automated assembly lines
• Material handling systems
• Precision machining operations

Its advanced features and robust design make it a reliable choice for industries seeking to enhance automation efficiency and precision.
