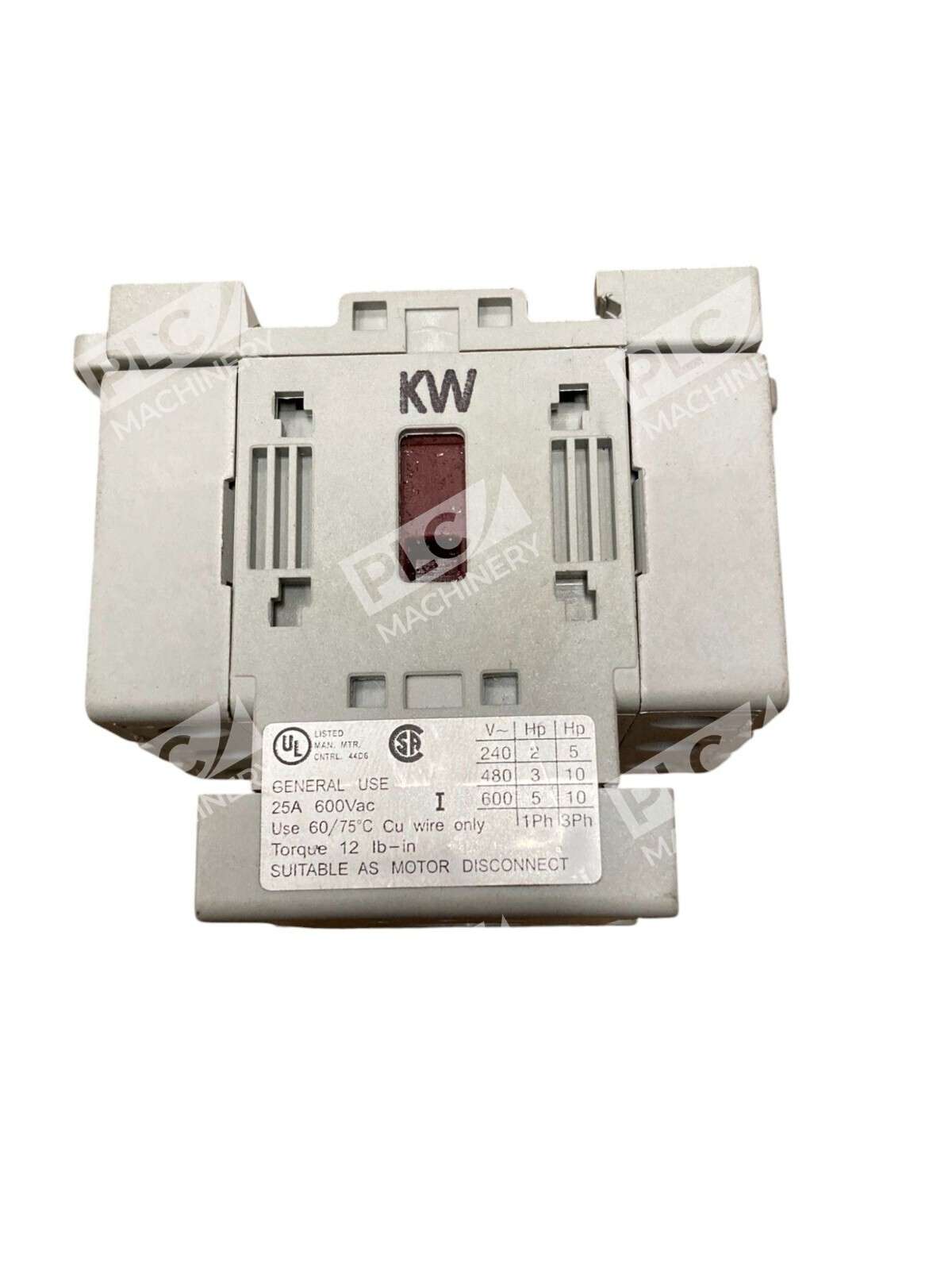

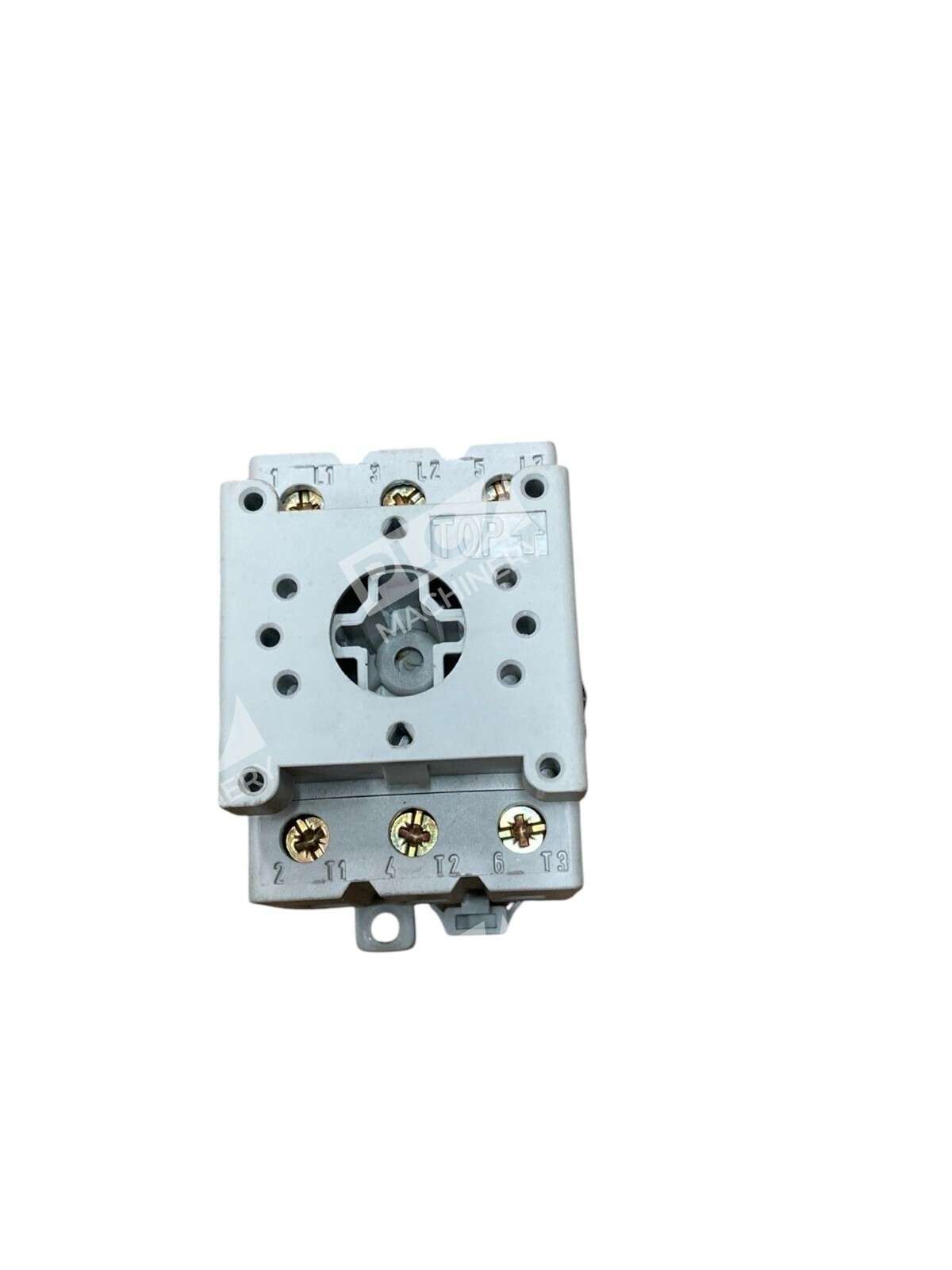

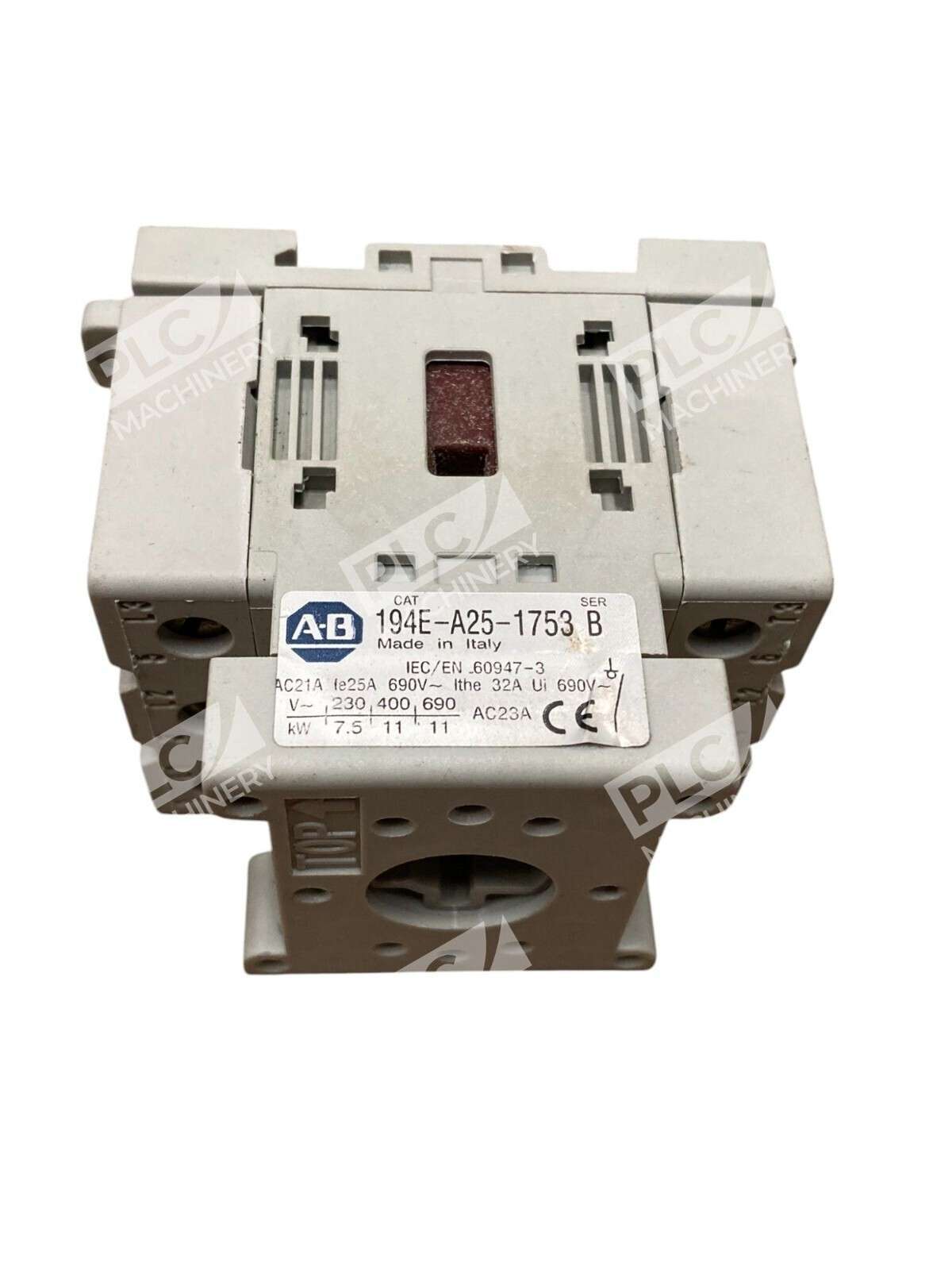

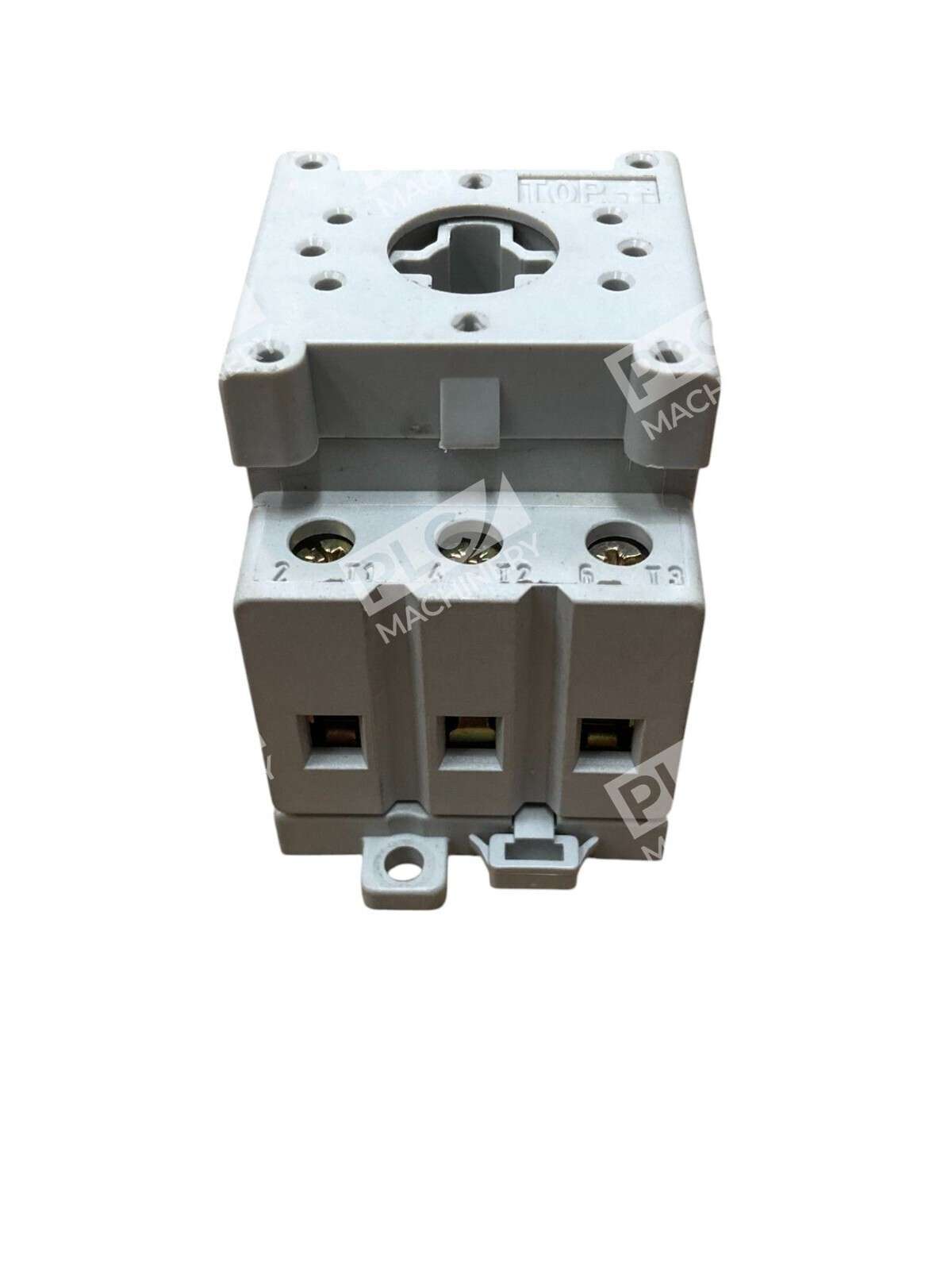

Allen-Bradley 194E-A25-1753 Load Switch The Allen-Bradley 194E-A25-1753 is a robust 25A, 3-pole load switch designed for efficient motor control and electrical isolation in industrial applications. Engineered for reliability and safety, this switch is suitable for various demanding environments. Key Features Current Rating: 25 Amperes Voltage Rating: Up to 690V AC Poles: 3-pole configuration for three-phase systems Mounting Options: Base or DIN rail mounting for flexible installation Switch Configuration: OFF-ON with a 90° switching angle Actuator: Select actuator separately to suit specific application needs Terminal Type: Screw connections for secure wiring Protection Class: IP20, ensuring safety against solid objects Mechanical Durability: Rated for 200,000 operations, ensuring long-term reliability Performance Specifications Rated Operational Power at AC-23, 400V: 11 kW Rated Operational Power at AC-3, 400V: 7.5 kW Rated Short-Time Withstand Current (Icw): 900 kA for 1 second Rated Impulse Voltage (Uimp): 8 kV Conventional Free Air Thermal Current (Ith): 40 A per IEC standards Certifications The 194E-A25-1753 load switch complies with international standards, including CCC, CE, CSA, KC, and UL certifications, ensuring adherence to global safety and performance requirements. Applications This load switch is ideal for use as a main switch or maintenance/service switch in various industrial settings. Its design allows for easy integration into control panels, providing reliable isolation and control of electrical circuits. For detailed technical information and installation guidelines, refer to the product’s technical documentation.
