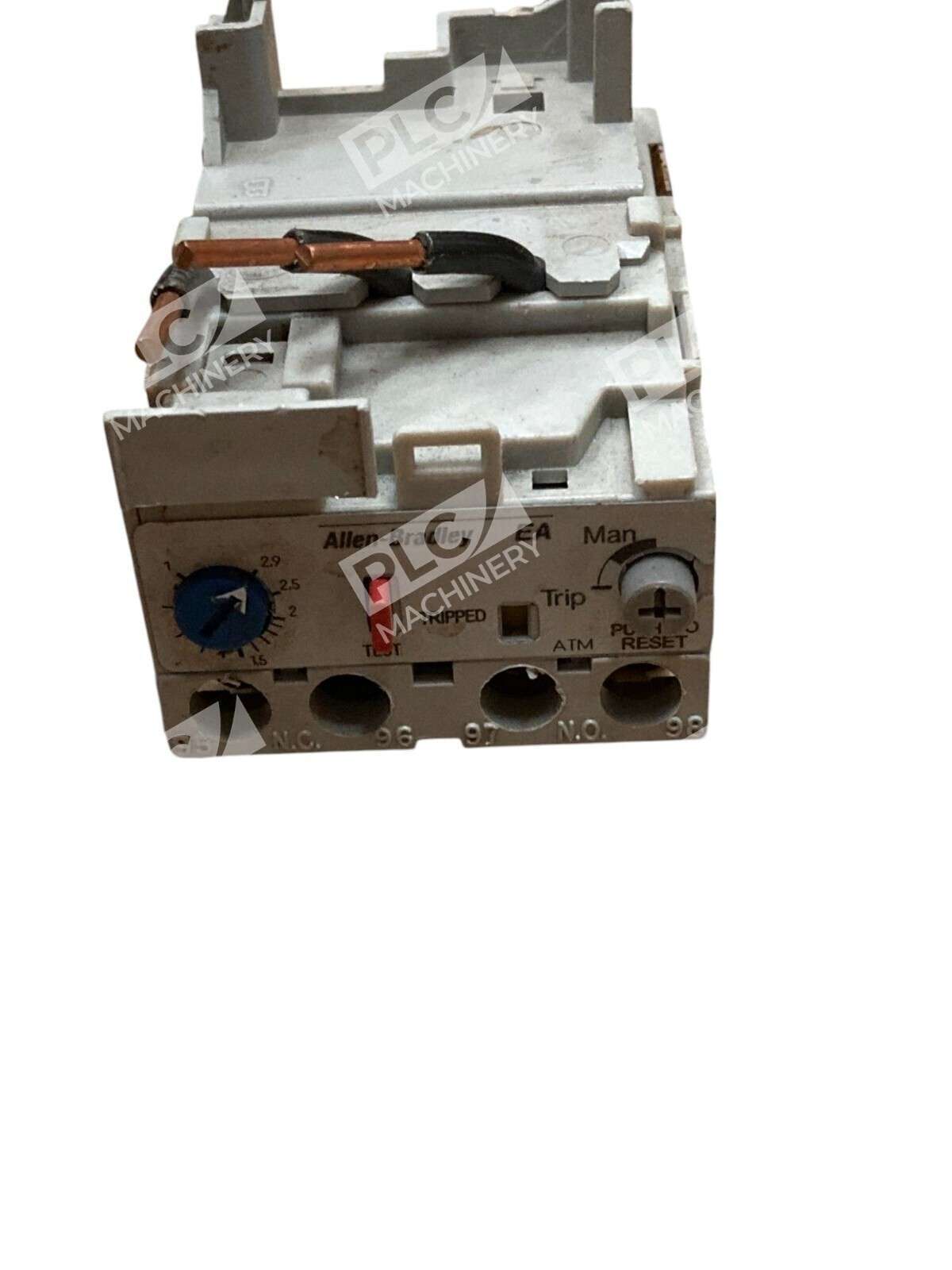

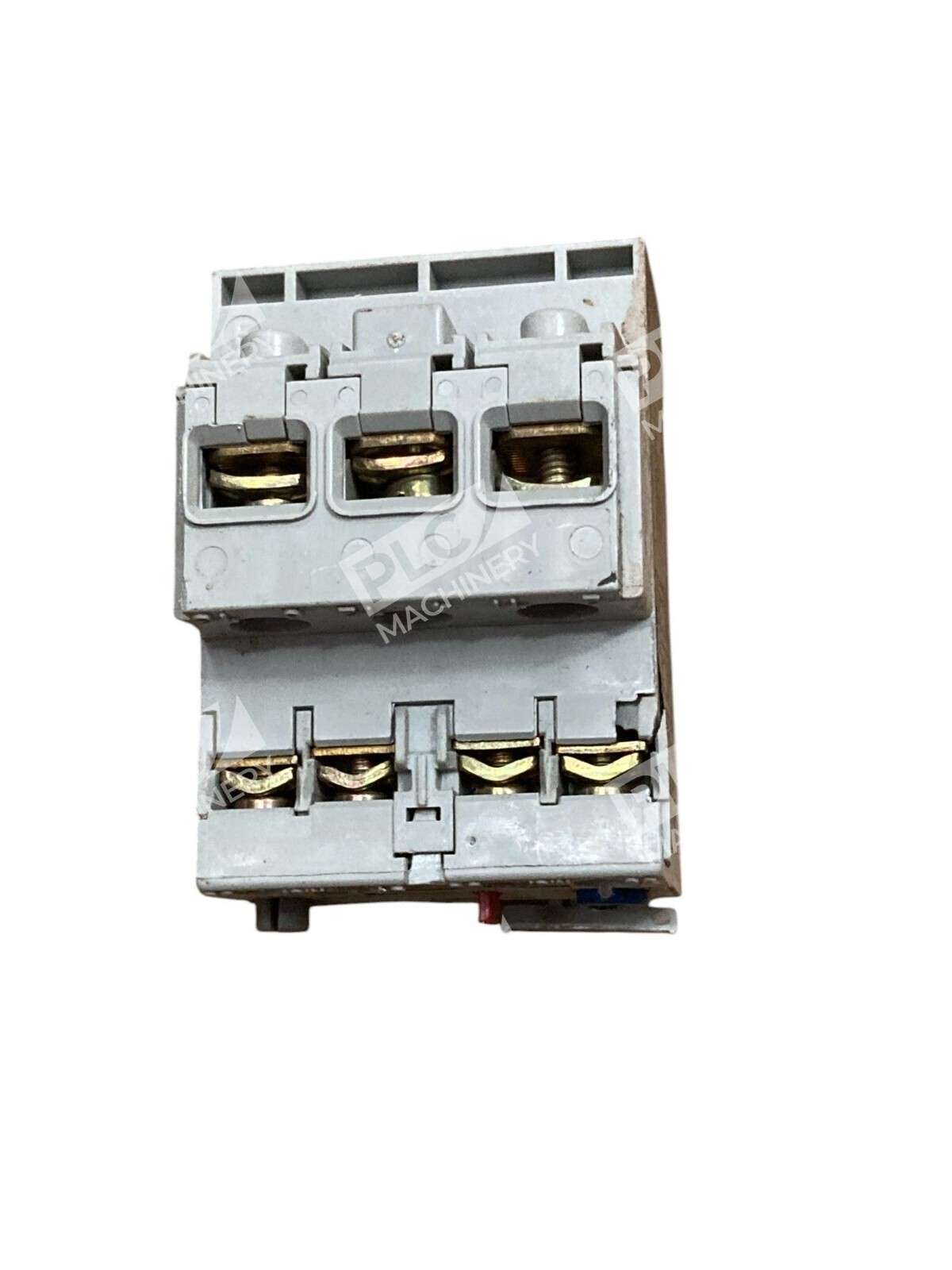

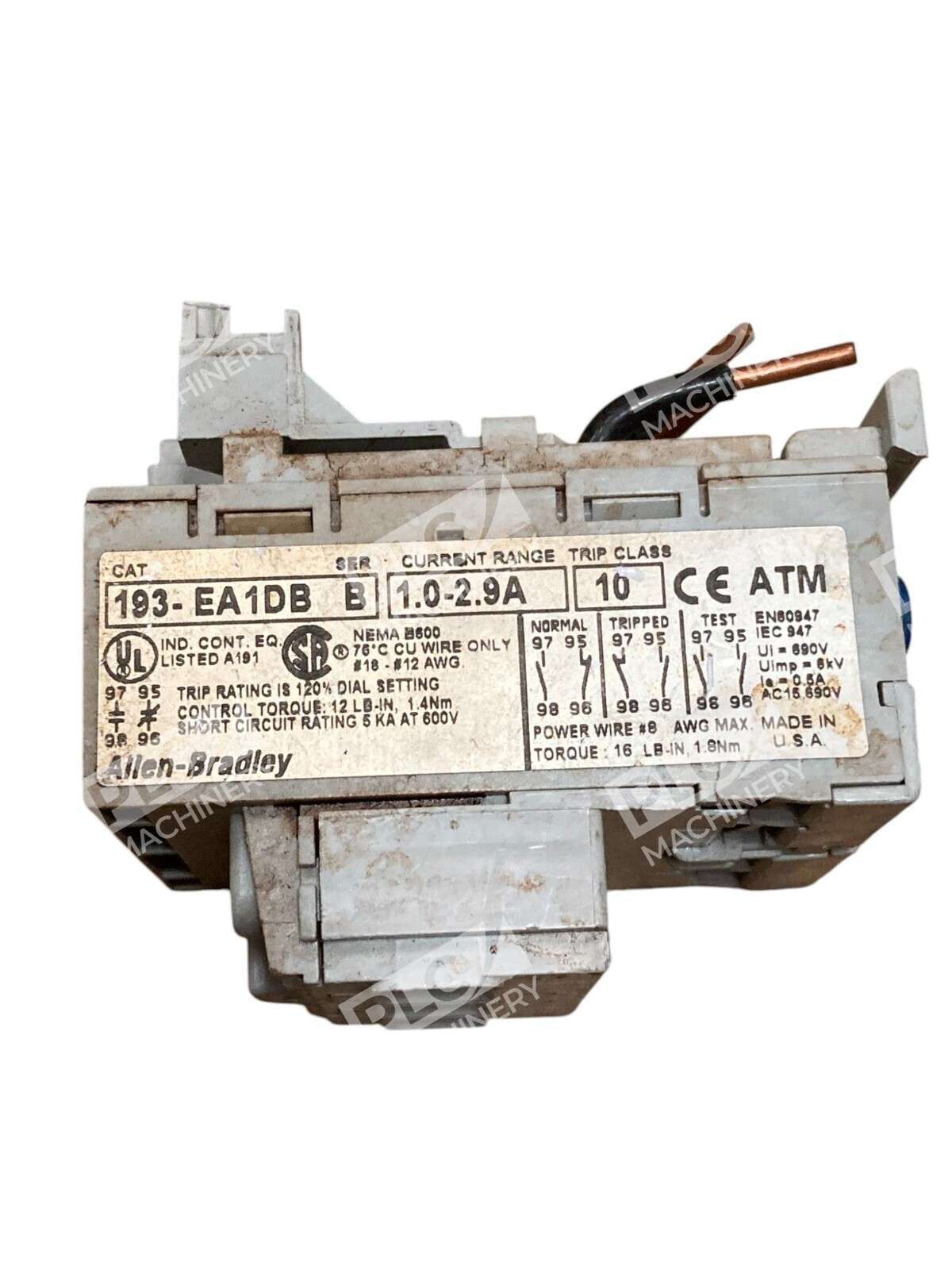

Allen-Bradley 193-EA1DB Overload Relay The Allen-Bradley 193-EA1DB is a solid-state electronic overload relay engineered to provide reliable motor protection in industrial applications. Designed for seamless integration with Allen-Bradley 100-M05 and 100-C23 contactors, this relay offers precise overload protection to ensure the longevity and efficiency of your motor systems. Key Features Adjustable Current Range: 1.0 to 2.9 amps, allowing for flexibility across various motor sizes. Trip Class: Class 10, providing prompt response to overload conditions. Reset Type: Manual reset ensures controlled system recovery after a trip event. Voltage Rating: Suitable for systems up to 690V, accommodating a wide range of industrial environments. Phase Loss Protection: Safeguards motors against single-phase conditions, enhancing operational safety. Technical Specifications Current Adjustment Range: 1.0–2.9A Trip Rating: 120% of dial setting Control Torque: 12 lb-in (1.4 Nm) Short Circuit Rating: 5 kA at 600V Standards Compliance: EN60947, IEC947 Voltage Ratings: UI=690V, Uimp=6kV Power Wire Gauge: #14-18 AWG Power Wire Torque: 16 lb-in (1.8 Nm) Dimensions and Weight Dimensions: 1.8? x 2.8? x 2.5? (4.4 cm x 7.0 cm x 6.3 cm) Weight: 0.1 kg (0 lbs 4.8 oz) The 193-EA1DB overload relay is designed to deliver dependable motor protection, ensuring operational safety and efficiency in various industrial applications.
