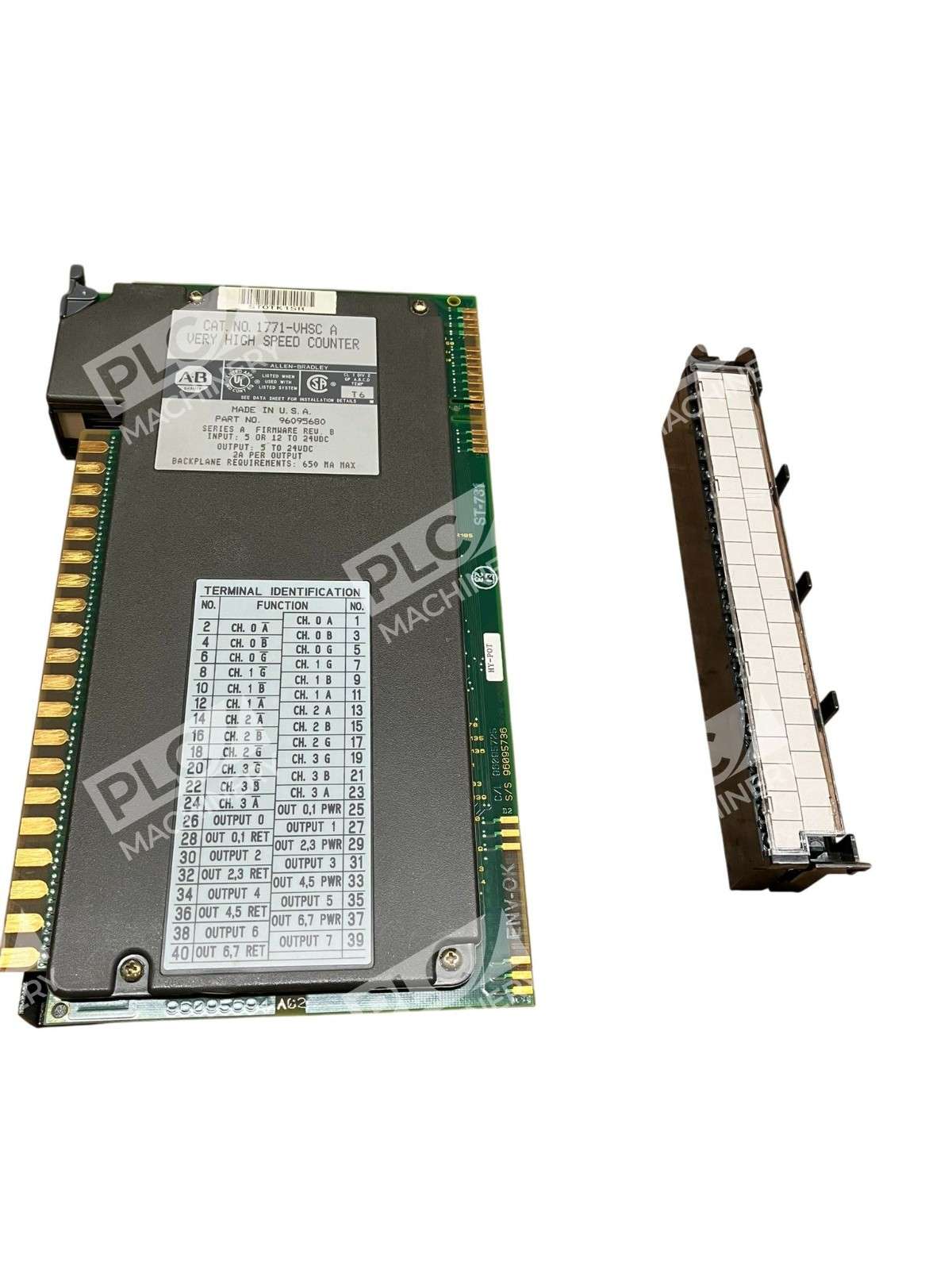

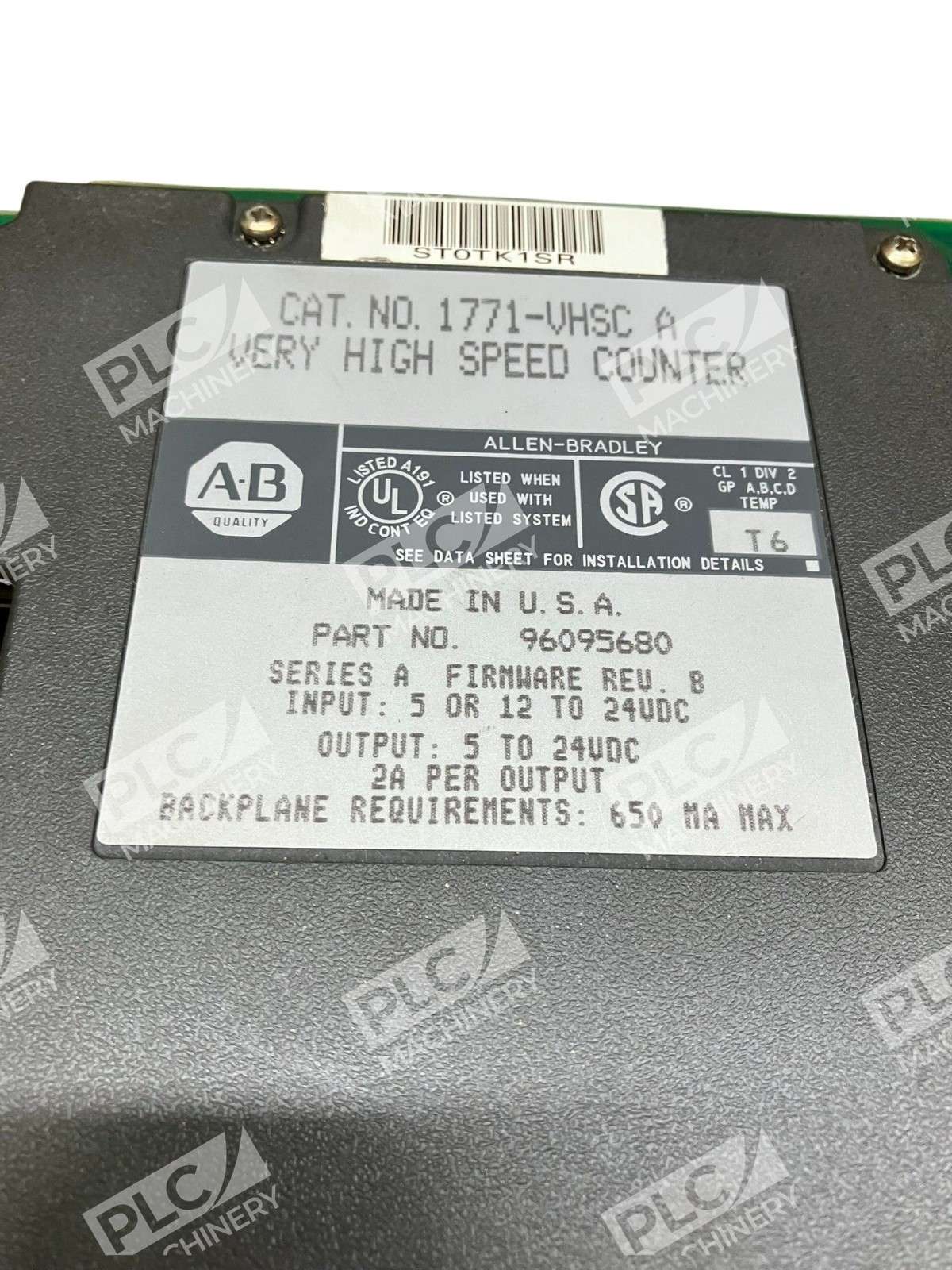

The Allen-Bradley 1771-VHSC is a Very High-Speed Counter (VHSC) Module designed for integration with PLC-5 automation systems. This module is engineered to handle rapid pulse counting tasks essential for precise process control in industrial environments. Key Features Input Channels: Four independent channels configurable for various modes, including counter, encoder (X1 and X4), period/rate, and continuous/rate modes. Output Channels: Eight digital outputs, isolated in groups of two, capable of sourcing 5 to 24V DC with a maximum current of 2A per output. High-Speed Performance: Supports input frequencies up to 1 MHz in single-channel counter mode, 250 kHz in encoder modes, and 500 kHz in period/rate measurement modes. Flexible Input Types: Accommodates both single-ended and differential inputs, compatible with various signal sources such as encoders, pulse generators, and proximity switches. Programmable Count Values: Allows for user-defined preset and rollover values, supporting counts up to 999,999. Automatic Configuration: Features automatic default configuration for ease of setup and operation. Technical Specifications Module Type: Very High-Speed Counter Module Input Voltage Range: 5 to 24V DC Backplane Current: 0.65 Amps Module Update Period: 100 microseconds Dimensions: 4.5 x 12.4 x 6.3 inches (115 x 317 x 160 mm) Wiring Arm: 1771-WN I/O Connection Hardware: 1771-RTP1 Operating Modes Counter Mode: Counts pulses from various sources, returning the count as a binary or BCD number. Encoder X1 Mode: Bidirectional counting using quadrature input signals. Encoder X4 Mode: Bidirectional counting with four times the resolution of X1 mode. Period/Rate Mode: Measures the period or rate of incoming pulses. Continuous/Rate Mode: Continuously measures the rate of incoming pulses. Applications Motion Control: Provides precise position feedback for high-speed motion control systems. Process Monitoring: Monitors high-speed processes, ensuring accurate data collection and real-time processing. Material Handling: Integrates with conveyor systems for precise counting and synchronization. Automated Inspection: Supports high-speed inspection systems requiring rapid pulse counting. The Allen-Bradley 1771-VHSC module is a robust and versatile solution for applications demanding high-speed counting and precise process control, ensuring reliable performance in demanding industrial environments.
