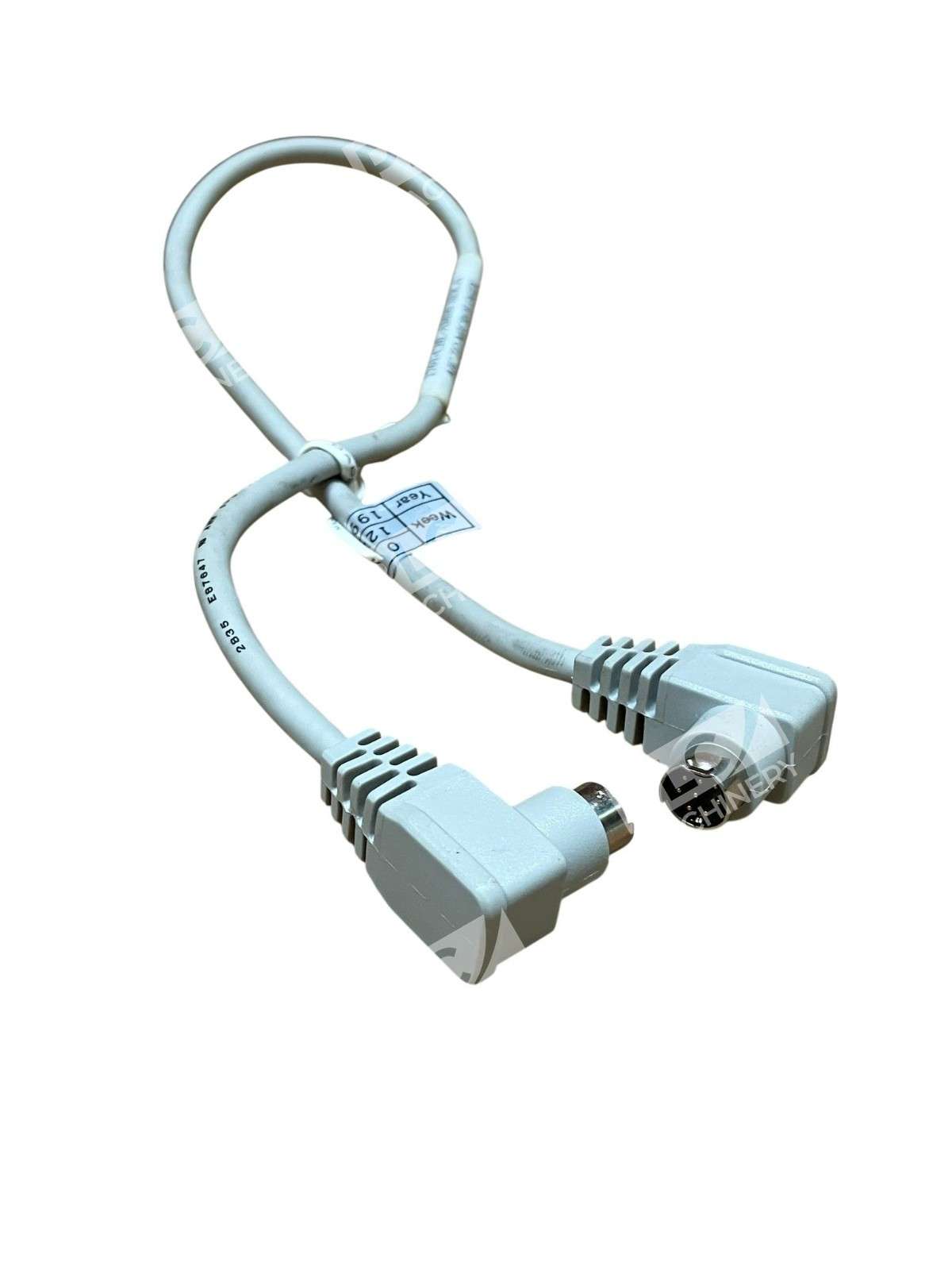

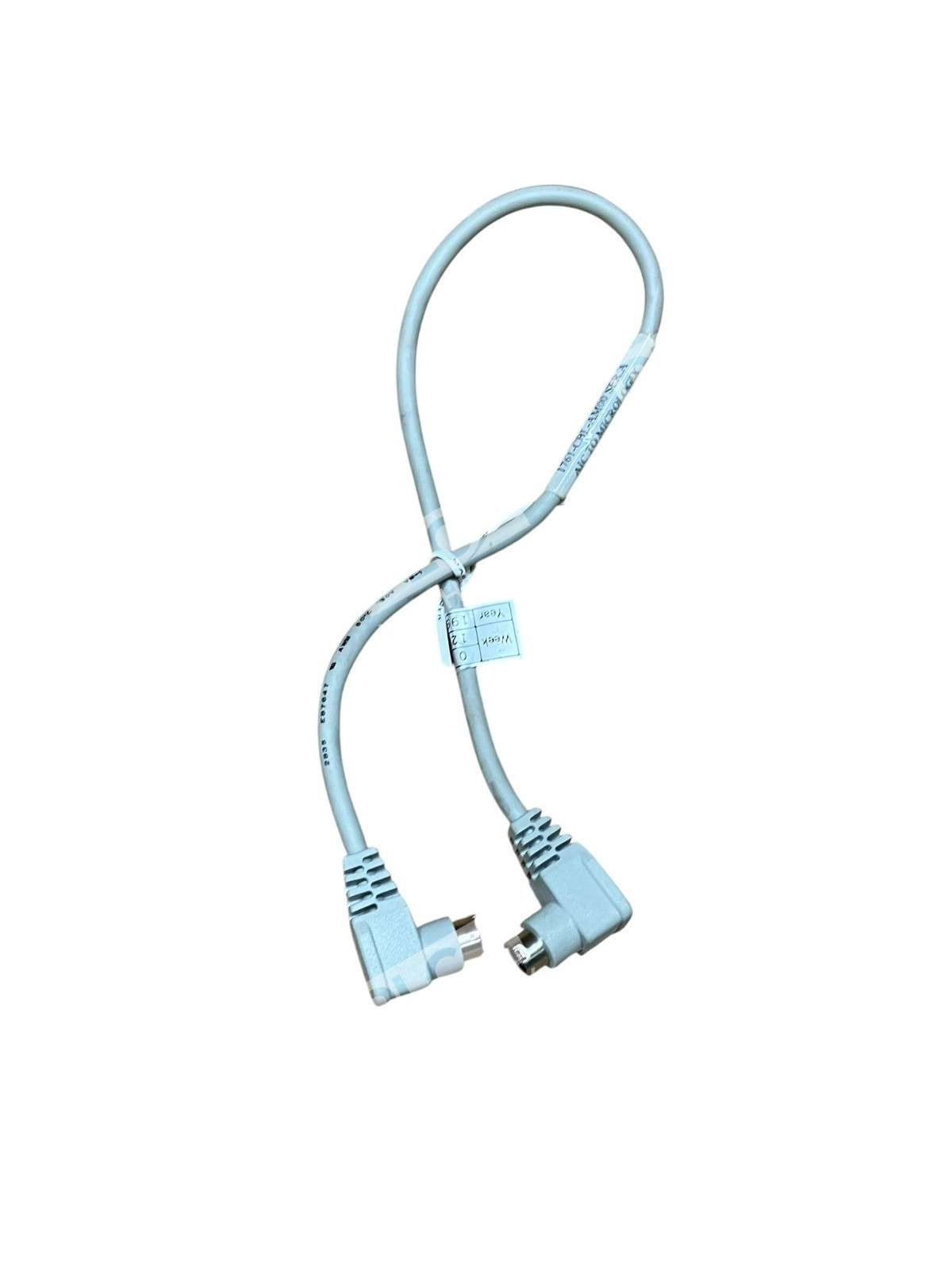

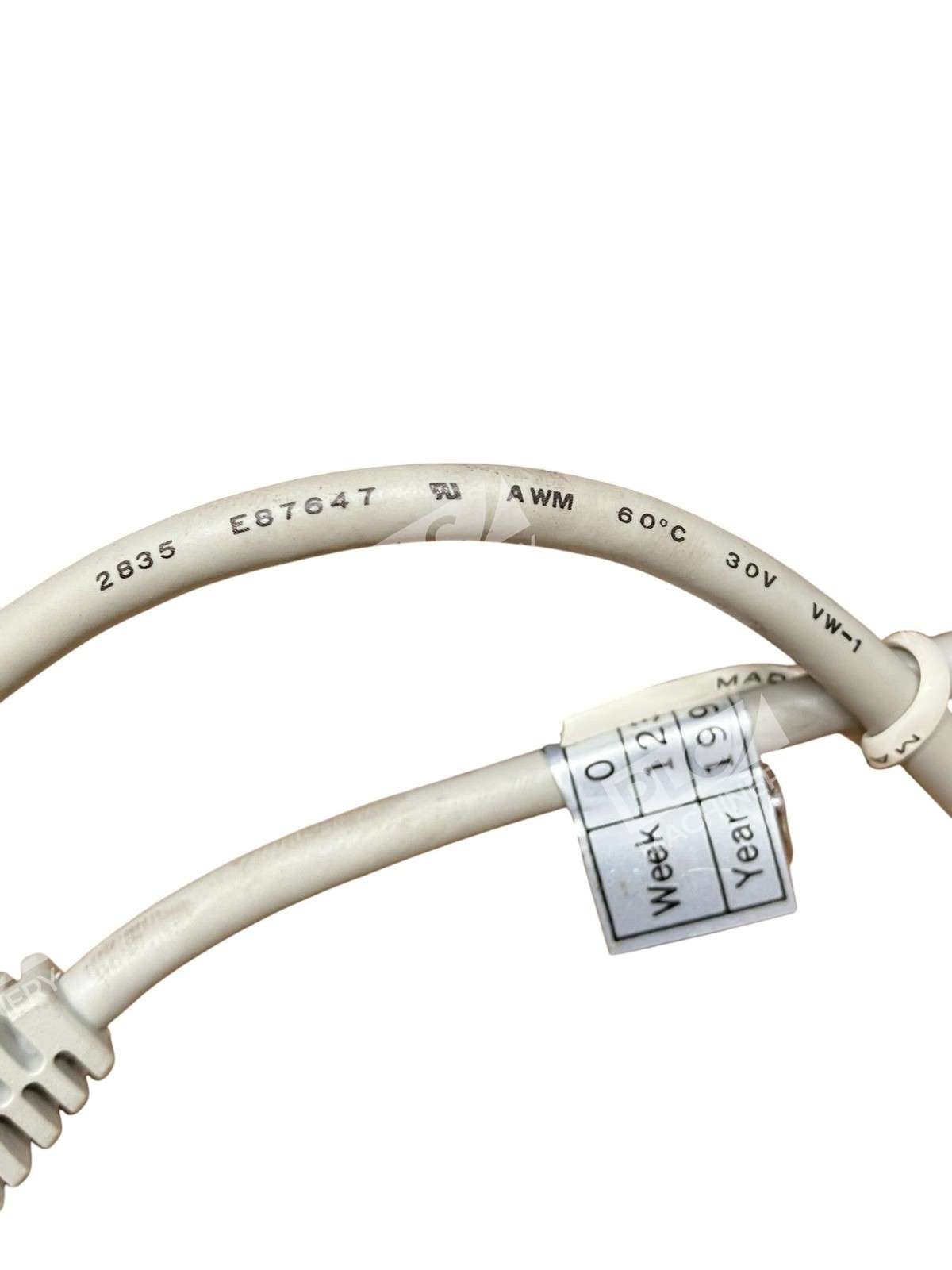

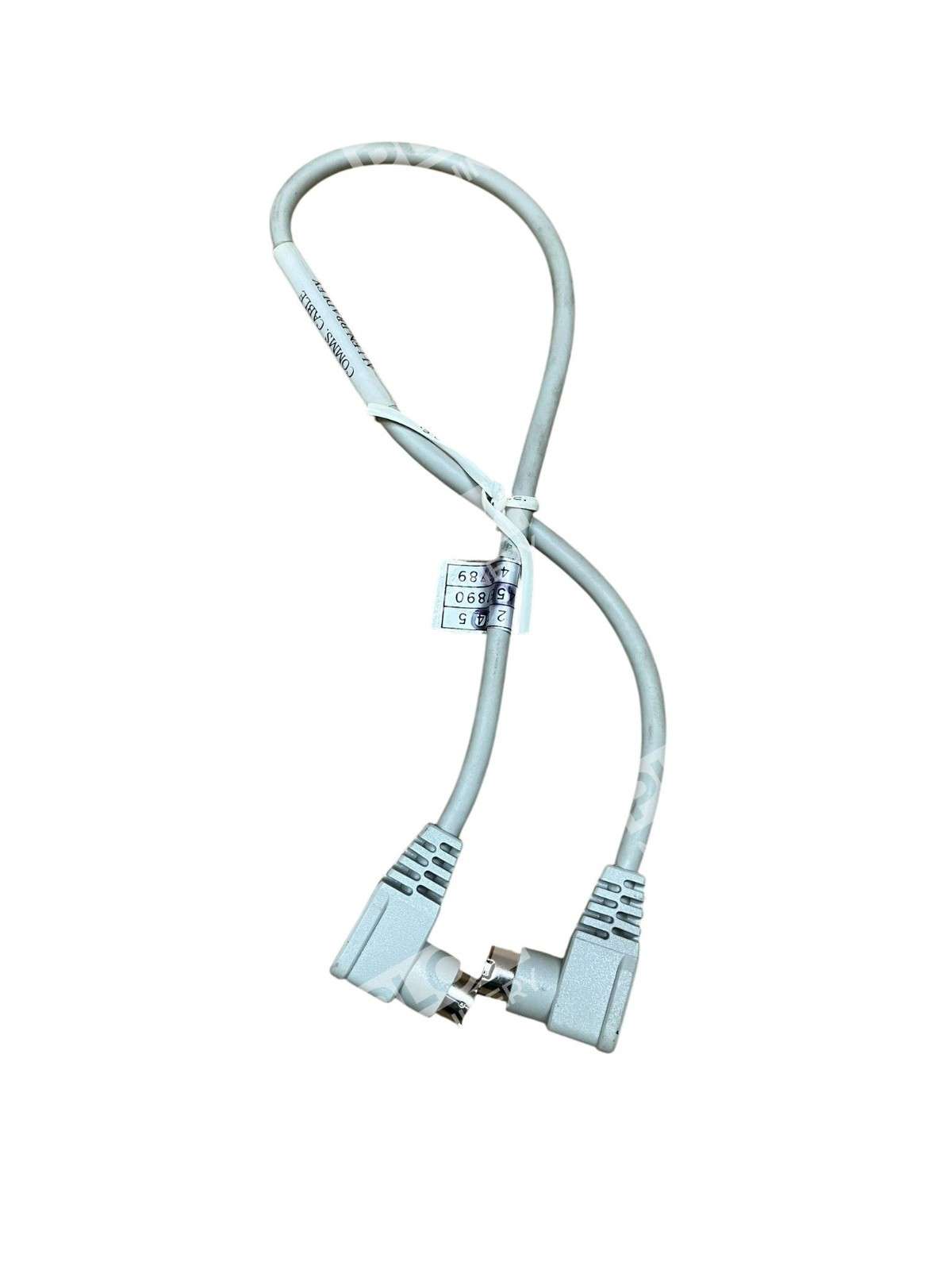

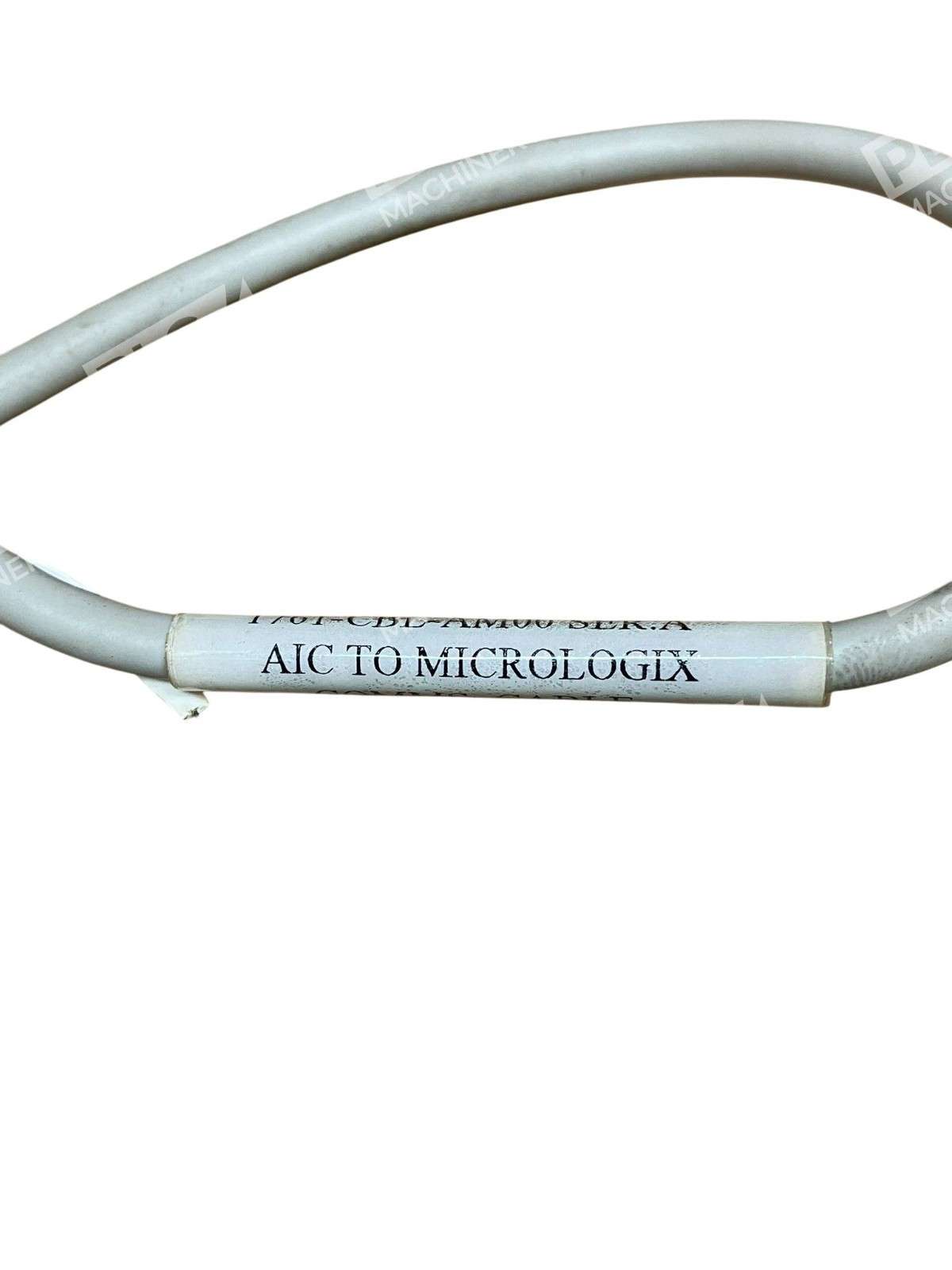

Allen-Bradley 1761-CBL-AM00 Programming Cable The Allen-Bradley 1761-CBL-AM00 is a specialized RS-232 serial communication cable designed to facilitate seamless connectivity between Advanced Interface Converter (AIC+) modules and MicroLogix controllers. This cable is essential for programming, data transfer, and online monitoring within industrial automation systems. Key Features Connector Type: 8-pin mini-DIN connectors on both ends, ensuring a secure and reliable connection between devices. Cable Length: 0.5 meters (approximately 18 inches), ideal for close-proximity installations. Protocol Support: Supports the DF1 Full-Duplex protocol, enabling efficient peer-to-peer messaging and communication. Compatibility: Designed for use with MicroLogix 1000, 1200, and 1500 controllers, as well as AIC+ modules. Applications The 1761-CBL-AM00 cable is utilized in various industrial applications, including: Programming and configuring MicroLogix controllers. Uploading and downloading logic programs. Performing system diagnostics and monitoring. Establishing serial communication between controllers and other devices. Installation Notes Connect one end of the cable to the RS-232 port on the AIC+ module and the other end to the mini-DIN port on the MicroLogix controller. Ensure proper configuration of the DF1 driver in RSLinx Classic for successful communication. Avoid excessive bending or tension on the cable to maintain signal integrity. By integrating the Allen-Bradley 1761-CBL-AM00 programming cable into your automation setup, you can achieve reliable and efficient communication between AIC+ modules and MicroLogix controllers, enhancing the overall performance of your industrial control systems.
