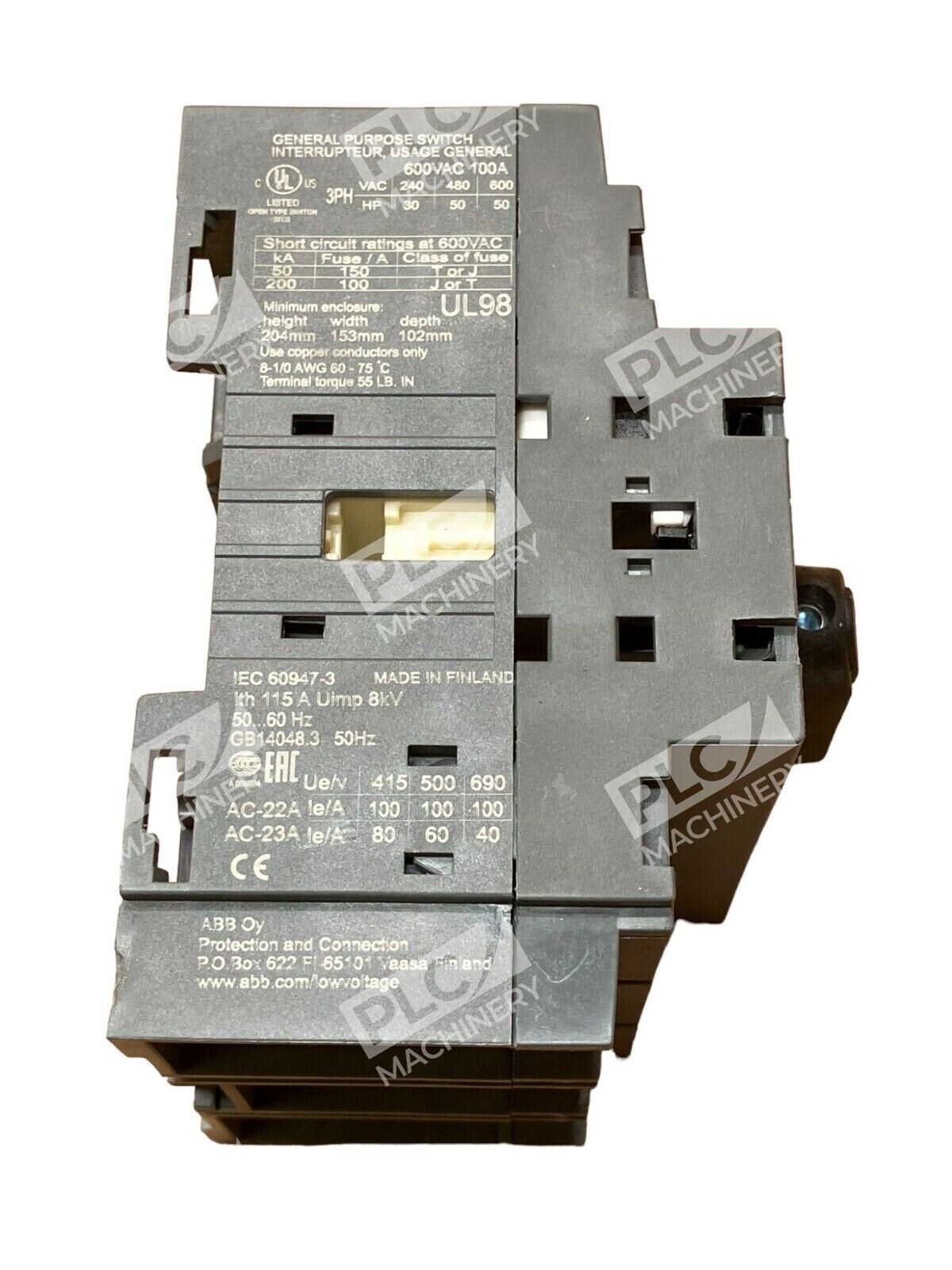

ABB OT100F3 General Purpose Switch

ABB OT100F3 General Purpose Switch

The ABB OT100F3 is a robust 3-pole, 100-amp non-fusible disconnect switch designed for versatile applications in industrial settings. Rated for up to 600 VAC, this switch ensures reliable performance in demanding environments.

Key Features

• High Current Capacity: Supports up to 100 amperes, accommodating substantial electrical loads.
• Voltage Rating: Operates efficiently at 600 VAC, suitable for various industrial applications.
• Non-Fusible Design: Simplifies maintenance by eliminating the need for fuse replacements.
• Mounting Flexibility: Base and DIN rail mounting options provide adaptability for different installation requirements.
• Safety Enhancements: Features finger-proof, dead-front construction with terminal shrouds to minimize the risk of accidental contact with live parts.
• Modular Construction: Allows for easy integration and scalability within control panels.
• Door Interlock Mechanism: Ensures the enclosure door remains locked when the switch is in the “ON” position, enhancing operational safety.
• Padlock Capability: Handles can be padlocked in the “OFF” position with up to three padlocks, providing secure lockout/tagout procedures.
• Quick Make, Quick Break Mechanism: Facilitates rapid switching operations, reducing arc duration and improving switch longevity.
• Clear Position Indication: Provides unambiguous visual confirmation of the switch’s status, aiding in safe operation.

Technical Specifications

• Amperage: 100 A
• Voltage: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 50 kAIC
• Mounting Type: Base and DIN rail
• Operating Temperature: Up to 40°C
• Dimensions: 70 mm H x 100 mm W x 74 mm D
• Terminal Type: Screw terminals
• Standards Compliance: IEC 60947-3, UL 98, CSA C22.2 No.4

Applications

The OT100F3 is ideal for use in motor disconnects and industrial control panel disconnects across various equipment, including service entrance equipment, panel boards, switchboards, industrial control equipment, and motor control centers.

Additional Information

Please note that the handle and shaft are not included with the OT100F3 switch and must be purchased separately to complete the installation.

For detailed installation instructions and safety guidelines, refer to the product’s technical documentation.
