LeCroy Catalyst Conquest Series USB Protocol Analyzer & Exerciser- US-A225

LeCroy Catalyst Conquest Series USB Protocol Analyzer & Exerciser – US-A225

The LeCroy Catalyst Conquest Series USB Protocol Analyzer & Exerciser, model US-A225, is a comprehensive tool designed for in-depth analysis and testing of USB 1.x and USB 2.0 protocols. This device is essential for engineers and developers aiming to ensure the reliability and performance of USB devices and systems.

Key Features

• Comprehensive USB Analysis: Supports Low Speed, Full Speed, and High Speed USB data transfers, enabling thorough examination of various USB protocols.
• Integrated Exerciser Functionality: Emulates both USB hosts and devices, facilitating the generation of custom traffic patterns for robust testing scenarios.
• Advanced Triggering and Filtering: Features multi-state sequential triggering and real-time filtering to pinpoint specific events and streamline the debugging process.
• Real-Time Performance Metrics: Provides immediate insights into USB performance, aiding in the identification and resolution of potential issues.
• OTG Support: Analyzes and exercises On-The-Go (OTG) devices, ensuring compliance with OTG specifications.
• Timing and Compliance Measurements: Conducts detailed timing analyses and DC compliance tests, including measurements of inrush, suspend, and operating currents, as well as VBus and VBus droop assessments.

Applications

The US-A225 is ideal for a range of applications, including:

• Developing and validating USB devices and systems.
• Conducting compliance testing to meet USB standards.
• Debugging and troubleshooting USB protocol issues.
• Performing performance analysis and optimization of USB communications.

Package Contents

The LeCroy Catalyst Conquest Series USB Protocol Analyzer & Exerciser – US-A225 package typically includes:

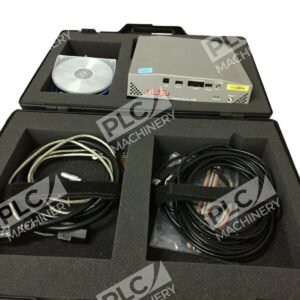

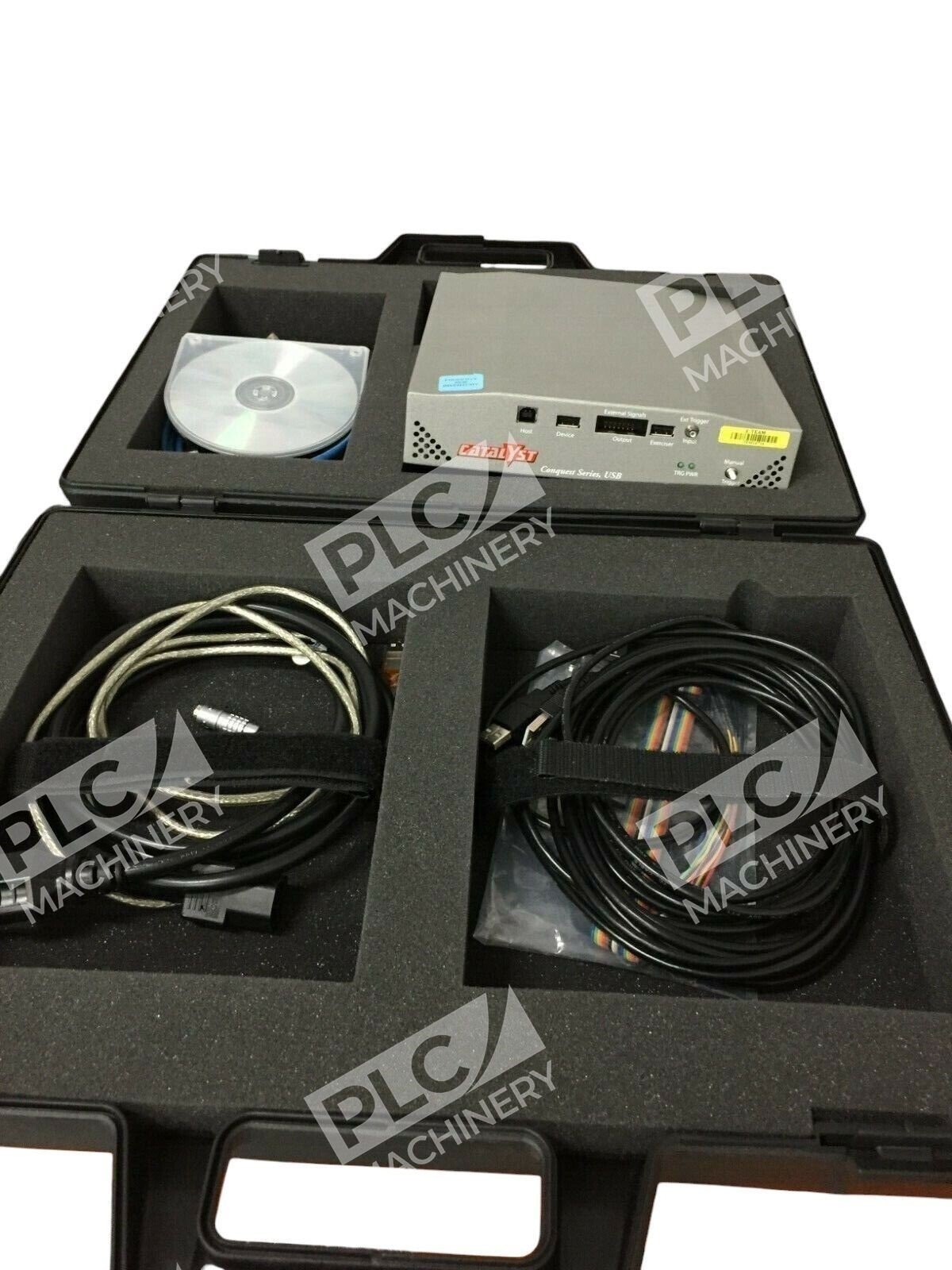

• The US-A225 Analyzer/Exerciser unit.
• External signal and clock cables for versatile connectivity.
• A durable carrying case for secure transportation and storage.
• USB adapter boards to facilitate various testing configurations.
• Application software for comprehensive analysis and testing capabilities.

For detailed installation and operational guidance, refer to the Conquest User Manual.

By integrating the LeCroy Catalyst Conquest Series USB Protocol Analyzer & Exerciser – US-A225 into your development process, you can enhance the quality and reliability of your USB products, ensuring they meet industry standards and perform optimally in real-world applications.
