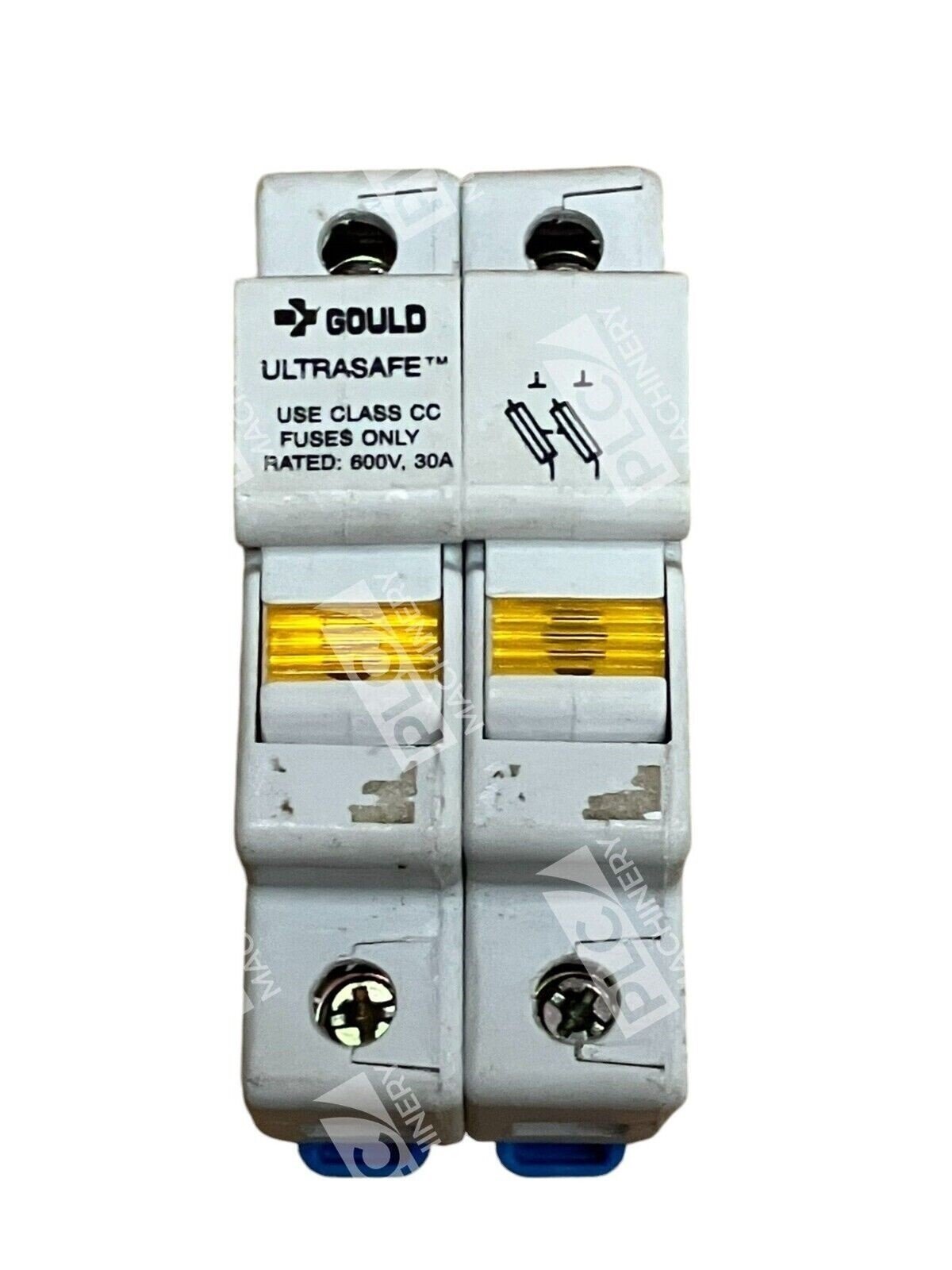

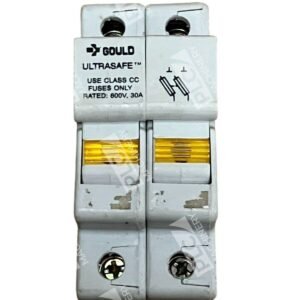

Gould Ultrasafe Fuseholder 30A 600V USCC2I

The Gould Ultrasafe Fuseholder 30A 600V USCC2I is a high-performance, modular fuse holder designed to accommodate Class CC fuses up to 30 amperes. Engineered for both AC and DC applications, it ensures optimal protection for various electrical circuits.

Key Features

• Finger-Safe Design: Meets IEC and DIN standards with an IP20 protection rating, allowing safe fuse changes without tools.
• Compact and Modular: Available in 1, 2, 3, or 4-pole configurations, with the flexibility to assemble multi-pole units using pin-tie handles.
• Visual Blown-Fuse Indicator: Equipped with optional LED indicators for quick identification of blown fuses.
• DIN Rail Mounting: Easily snaps onto 35mm DIN rails, saving up to 15% mounting space and reducing panel assembly time.
• Durable Construction: Made from tough polyamide material, offering exceptional insulating properties and durability.

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Current Rating: 30 A
• Number of Poles: 2
• Wire Size Compatibility: 14 to 6 AWG (single conductor), 14 to 10 AWG (dual conductor)
• Short Circuit Current Rating: 200 kA
• Operating Temperature Range: -40 to 85°C
• Mounting Type: DIN Rail
• Body Material: Polyamide

Applications

Ideal for protecting circuits in motors, control systems, transformers, and other electrical equipment requiring reliable overcurrent protection.

Certifications

• UL Listed: Standard 4248-4 (Class CC) and 4248-1 (Midget), File E52283
• CSA Certified: C22.2, Class 6225, File 32169
• RoHS Compliant
• IEC Compliant: 60269-2-1 and 60947-3 (USM only)

The Gould Ultrasafe Fuseholder USCC2I combines safety, efficiency, and durability, making it a reliable choice for various industrial and commercial applications.
