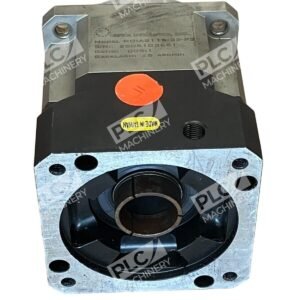

Apex Dynamics AB115-030-S2-P2 1:30 Ratio High Precision Planetary Gearbox

Apex Dynamics AB115-030-S2-P2 1:30 Ratio High Precision Planetary Gearbox

The Apex Dynamics AB115-030-S2-P2 is a high-precision, two-stage planetary gearbox designed for applications requiring exceptional accuracy and performance. With a 1:30 gear ratio, this model is part of the esteemed AB series, renowned for its robust construction and advanced engineering.

Key Features

• High Torque Output: Capable of delivering nominal output torque up to 2,000 Nm, suitable for demanding applications.
• Low Backlash: Offers minimal backlash, with two-stage configurations achieving ≤3 arcmin, ensuring precise motion control.
• High Efficiency: Designed for optimal performance, achieving efficiencies of ≥94% in two-stage models.
• Durable Construction: Features a stainless steel housing and output shaft, providing enhanced durability and resistance to corrosion.
• Helical Gear Design: Incorporates helical gears for smoother operation and reduced noise levels.
• Versatile Mounting: Equipped with a square flange mount for easy integration into various systems.

Technical Specifications

• Model Number: AB115-030-S2-P2
• Gear Ratio: 1:30
• Stages: Two-stage
• Backlash: ≤3 arcmin
• Efficiency: ≥94%
• Output Torque: Up to 2,000 Nm
• Housing Material: Stainless steel
• Output Shaft: Stainless steel, available with or without key, or with spline (DIN 5480)

The AB115-030-S2-P2 gearbox is engineered for applications that demand high precision, reliability, and efficiency. Its robust design and advanced features make it an ideal choice for industries requiring precise motion control solutions.
