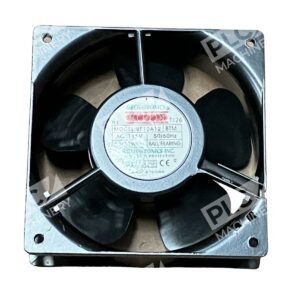

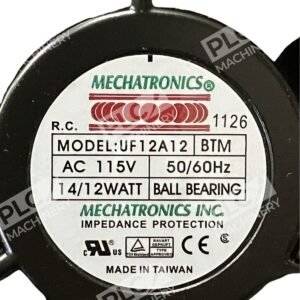

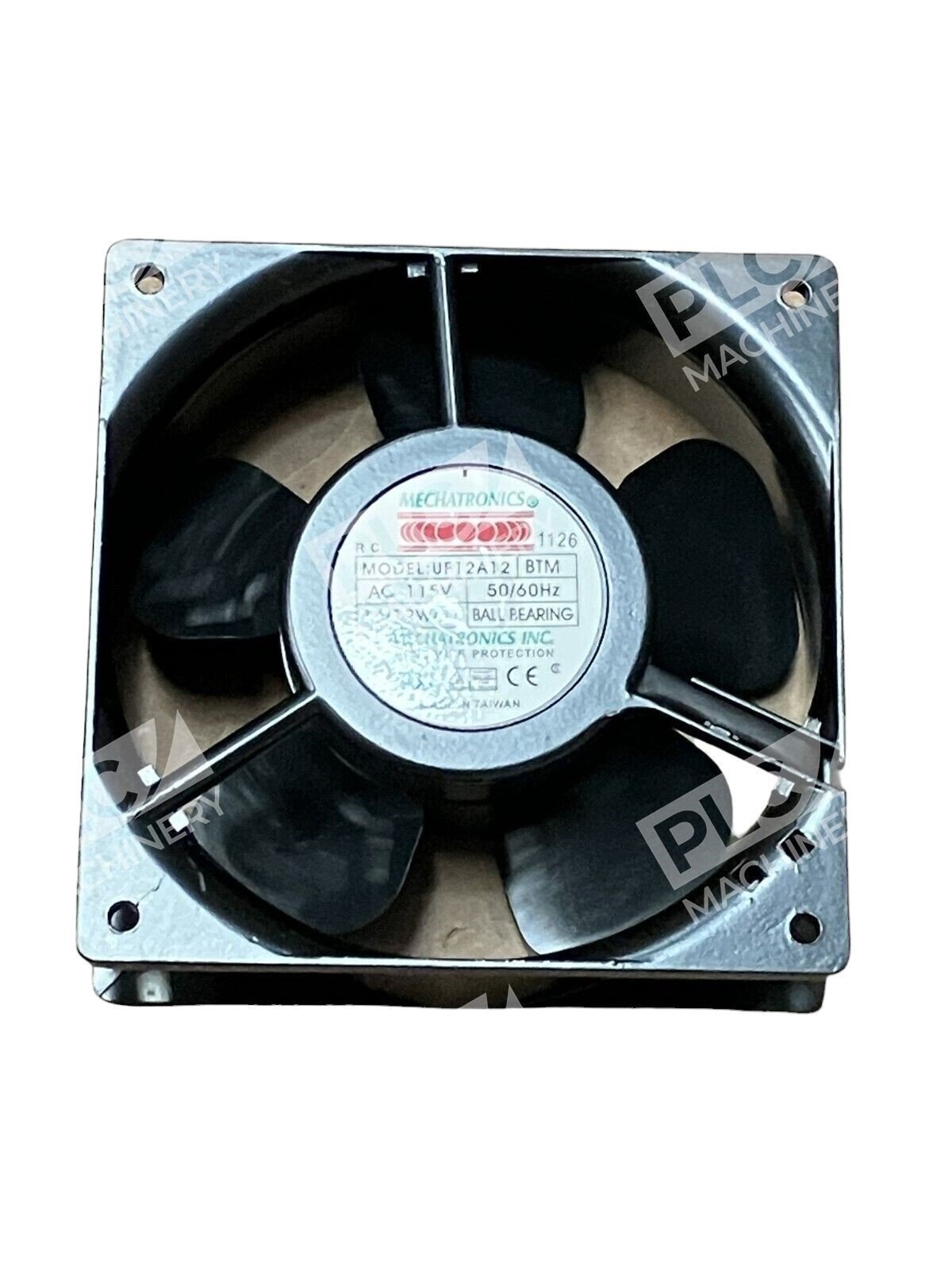

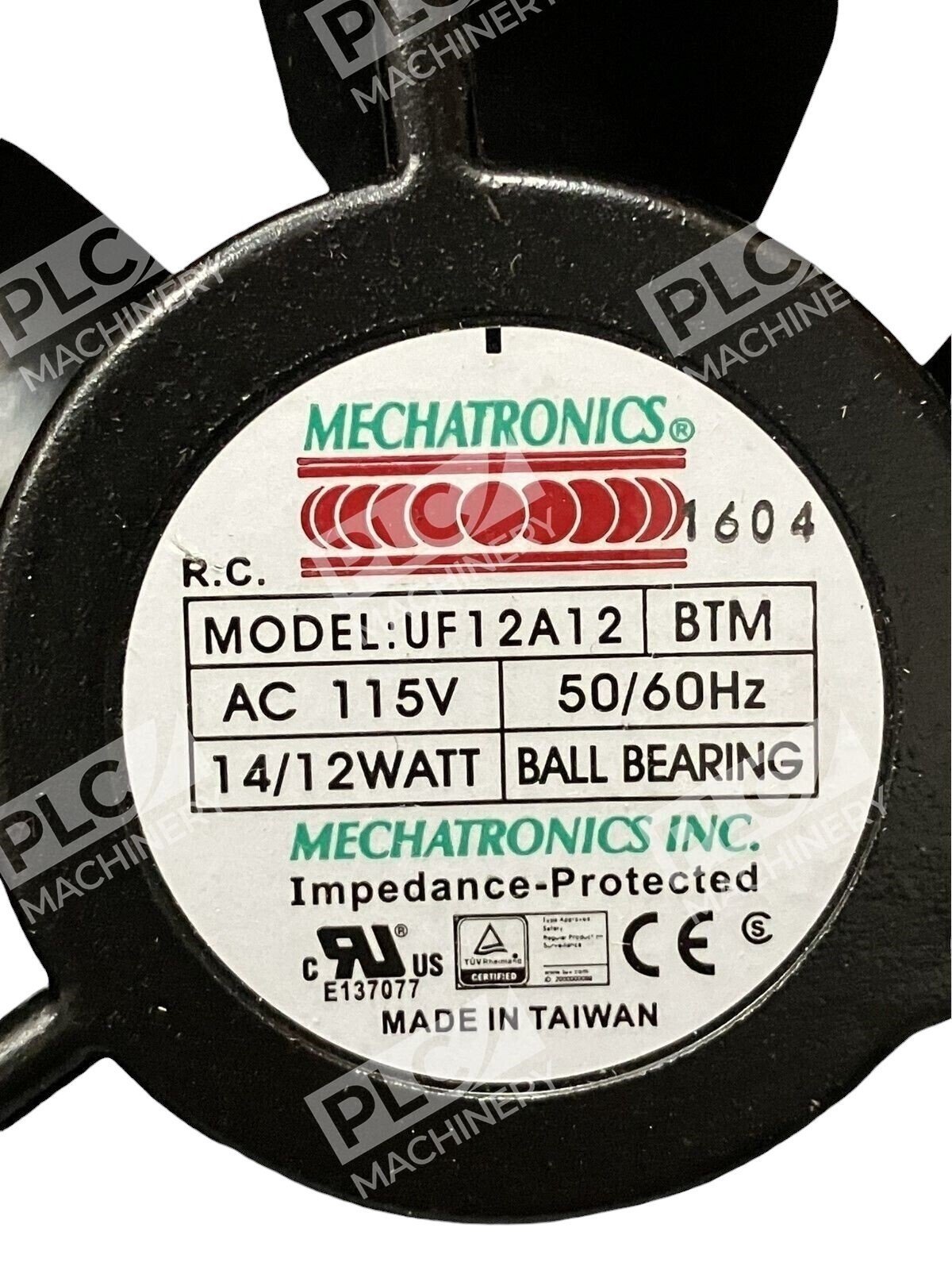

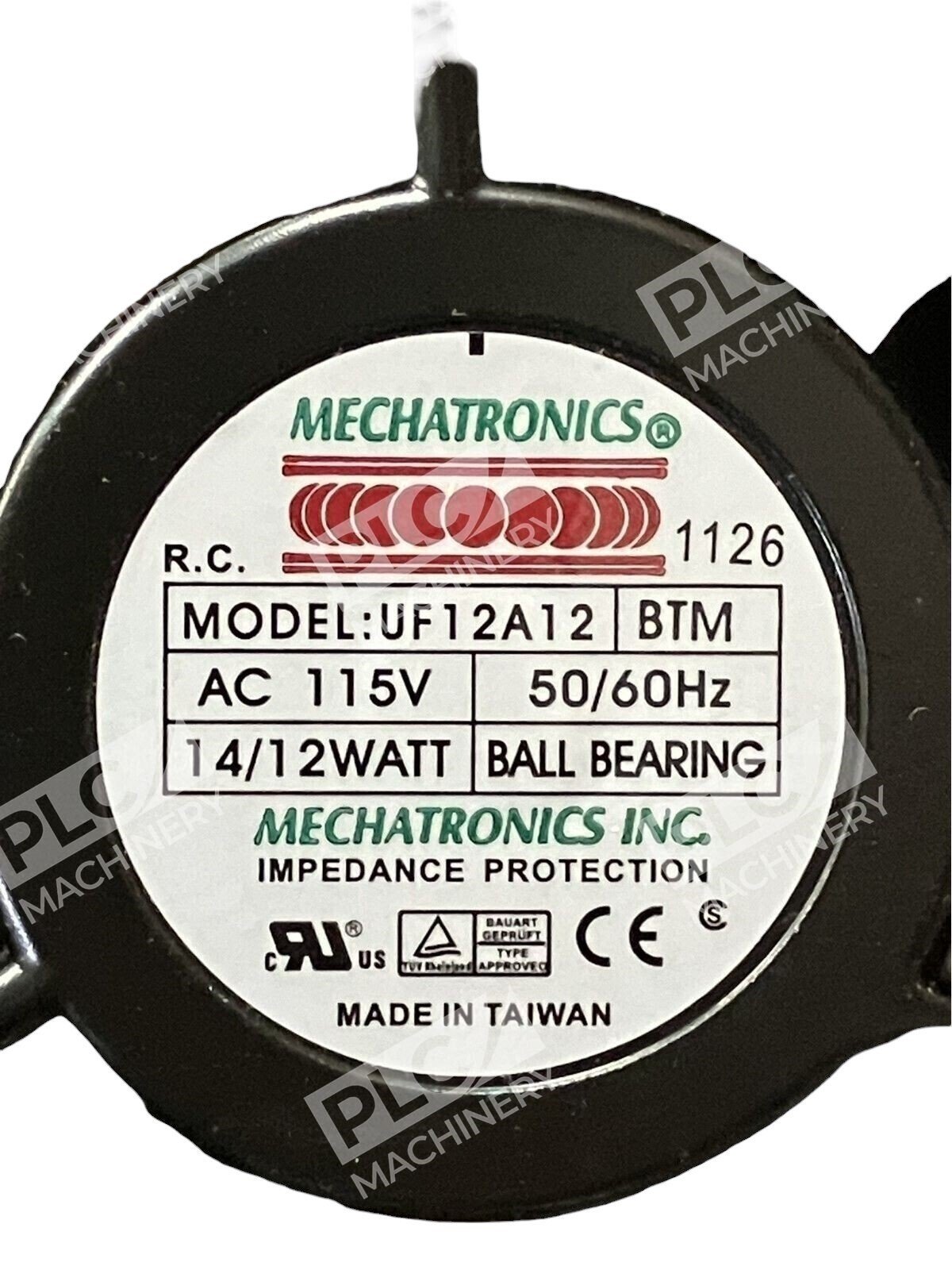

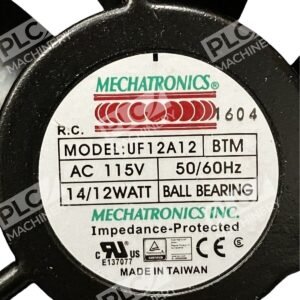

Mechatronics UF12A12 BTM Axial Fan

Mechatronics UF12A12 BTM Axial Fan

The Mechatronics UF12A12 BTM Axial Fan is a high-performance cooling solution designed for industrial applications requiring efficient airflow and reliable operation. With its robust construction and advanced features, this fan is ideal for maintaining optimal temperatures in various systems.

Key Features

• Dimensions: 120mm x 120mm x 38mm (4.69in x 4.69in x 1.50in)
• Rated Voltage: 115VAC
• Operating Frequency: 50/60Hz
• Airflow: 92 CFM (2.58 m³/min)
• Speed: 2,750 RPM
• Static Pressure: 0.280 in H₂O (69.7 Pa)
• Noise Level: 42 dB(A)
• Power Consumption: 12W
• Bearing Type: Ball Bearing
• Frame Material: Die-cast Aluminum
• Impeller Material: UL94V-0 PBT Plastic
• Motor Type: Shaded Pole
• Operating Temperature Range: -40°C to 70°C (-40°F to 158°F)
• Certifications: CE, cUL, TUV, UL

Applications

The UF12A12 BTM Axial Fan is suitable for a wide range of industrial applications, including:

• Cooling of PLC processors and HMIs
• Ventilation in industrial automation systems
• Thermal management in motion control equipment

Additional Information

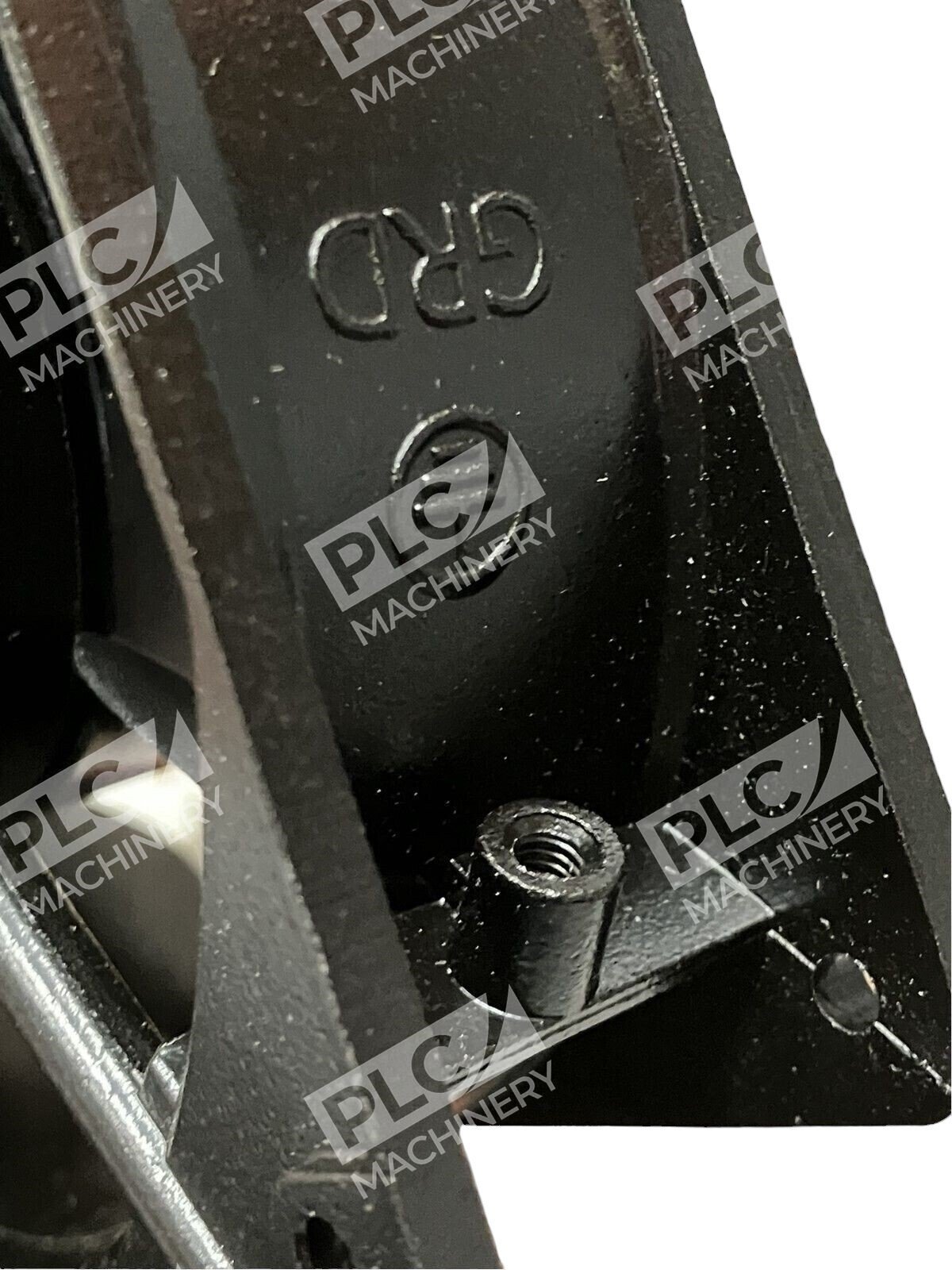

This fan features a durable die-cast aluminum frame and a UL94V-0 PBT plastic impeller, ensuring longevity and resistance to environmental factors. The ball bearing design provides smooth operation and extends the fan’s lifespan. With its impedance protection and shaded pole motor, the UF12A12 BTM offers reliable performance in demanding conditions.

For enhanced protection, options such as conformal coating and dual voltage (115/230VAC) configurations are available. Accessories like plastic fan guards, filters, and metal fan guards can be added to meet specific application requirements.

Invest in the Mechatronics UF12A12 BTM Axial Fan to ensure efficient and reliable cooling for your industrial systems.
