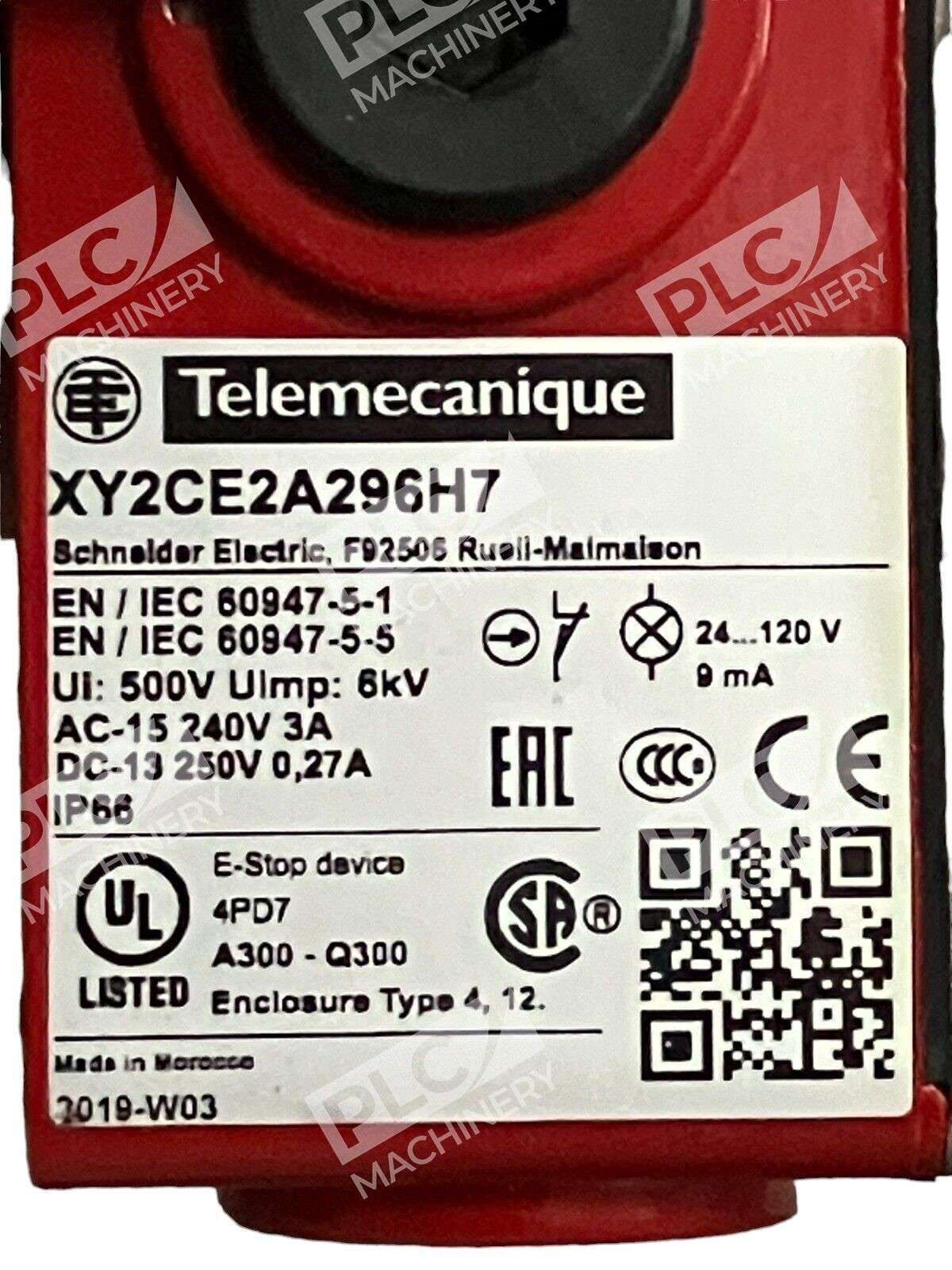

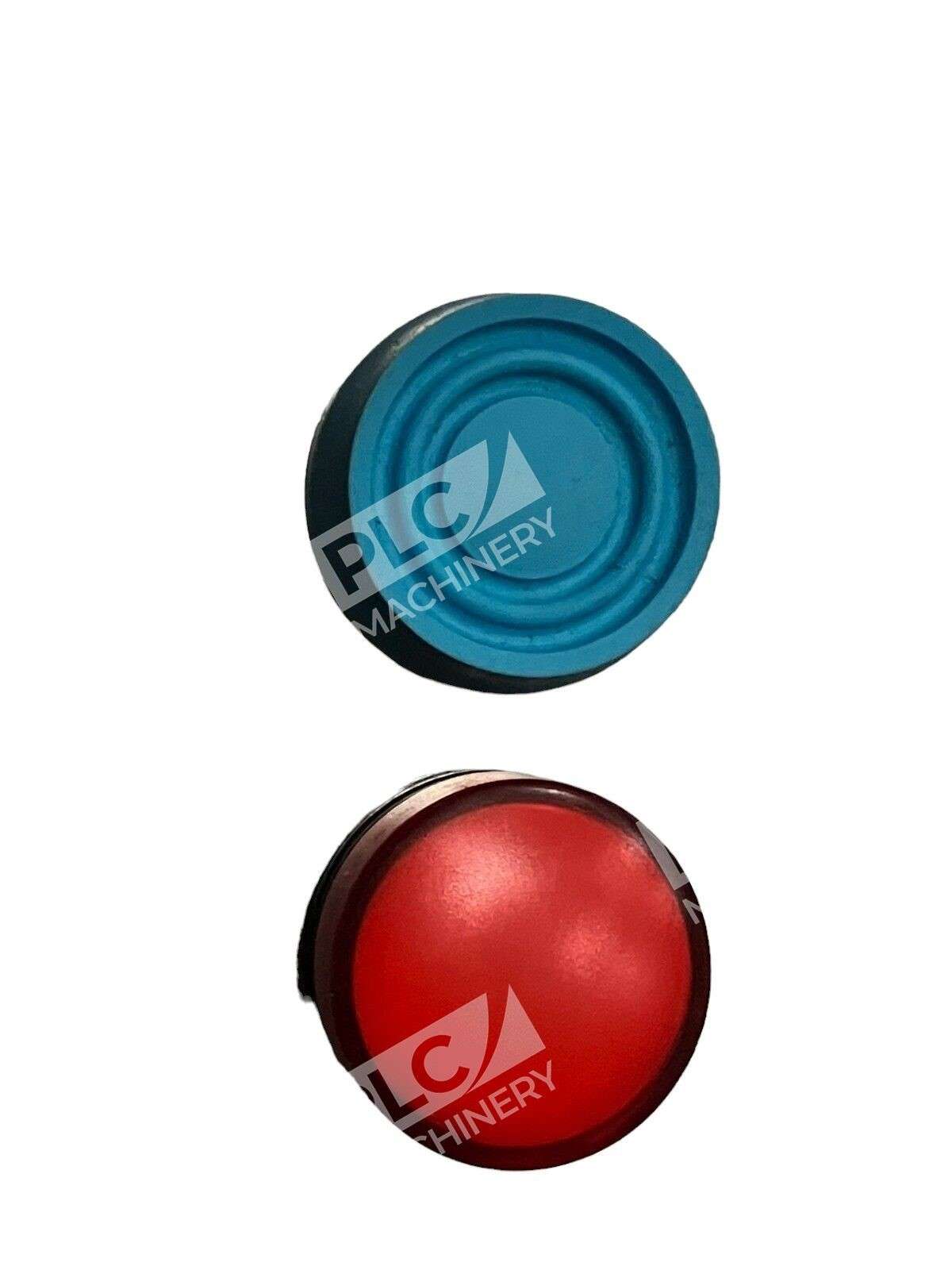

Telemecanique Cable Pull Switch XY2CE2A296H7 The Telemecanique XY2CE2A296H7 is a latching emergency stop rope pull switch designed to enhance safety across various industrial applications. This device allows for immediate cessation of machinery operations when the pull cable is engaged, ensuring rapid response to potential hazards. Key Features Contact Configuration: Equipped with 2 normally closed (NC) and 2 normally open (NO) slow-break contacts, facilitating reliable operation. Reset Mechanism: Features a booted push-button for straightforward resetting after activation. Local Signaling: Incorporates a red pilot light operating within a 24 to 130 V AC/DC range, providing clear visual indication of the switch status. Trigger Cable Specifications: Supports a maximum cable length of 70 meters, with the anchor point positioned on the left-hand side. Durability: Boasts a mechanical durability of approximately 60,000 operating cycles, ensuring long-term reliability. Environmental Protection: Rated IP66, offering robust protection against dust and water ingress, suitable for both indoor and outdoor environments. Construction: Constructed with a red Zamak housing and a stainless steel cover, combining strength with corrosion resistance. Electrical Connections: Furnished with screw clamp terminals compatible with 1 x 0.5 to 2 x 1.5 mm² wires, ensuring secure and efficient wiring. Cable Entry: Features three tapped entries for 1/2″ NPT conduit entry, providing flexible installation options. Technical Specifications Rated Supply Voltage: 24 to 130 V AC/DC Rated Operational Current: 3 A at 240 V AC (AC-15, A300); 0.27 A at 250 V DC (DC-13, Q300) Conventional Enclosed Thermal Current: 10 A Operating Temperature Range: -25°C to 70°C Storage Temperature Range: -40°C to 70°C Shock Resistance: 50 g for 11 ms (per EN/IEC 60068-2-27) Vibration Resistance: 10 g from 10 to 300 Hz (per EN/IEC 60068-2-6) Weight: 1.47 kg Certifications and Standards The XY2CE2A296H7 complies with multiple international standards, including: EN/ISO 13850 EN/IEC 60947-5-1 EN/IEC 60947-5-5 EN/IEC 60204-1 UL 508 CSA C22.2 No 14 Machinery Directive 2006/42/EC Work Equipment Directive 2009/104/EC Additionally, it holds certifications from CCC, CSA, and UL, affirming its adherence to stringent safety and performance criteria. Applications This emergency stop rope pull switch is ideal for a wide range of machinery applications, including: Woodworking machines Shears Conveyor systems Printing machines Textile machines Rolling mills Test laboratories Paint shops Surface treatment works Its design ensures rapid stopping of dangerous movements, thereby enhancing operator safety and protecting equipment. Environmental Considerations The XY2CE2A296H7 is designed to operate effectively in various environmental conditions, with an IP66 rating indicating high resistance to dust and water ingress. This makes it suitable for both indoor and outdoor applications where exposure to harsh conditions is a concern. In summary, the Telemecanique XY2CE2A296H7 latching emergency stop rope pull switch offers a reliable and efficient solution for enhancing safety across diverse industrial settings. Its robust construction, versatile features, and compliance with international standards make it a valuable component in safeguarding machinery operations.
