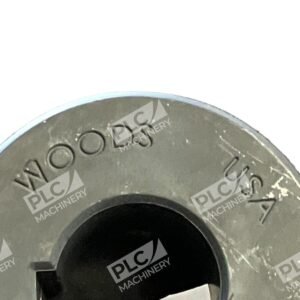

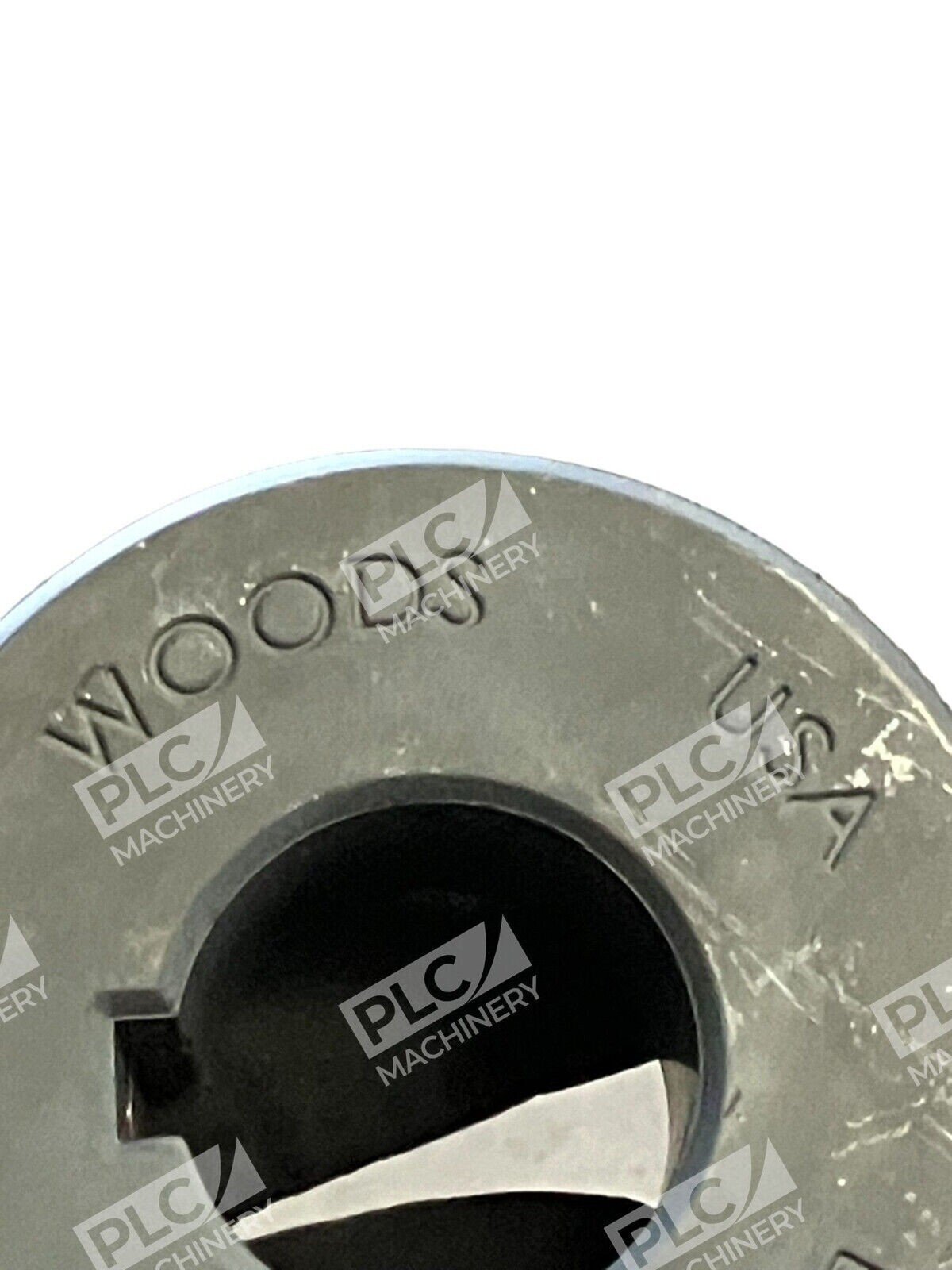

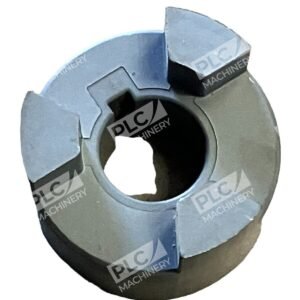

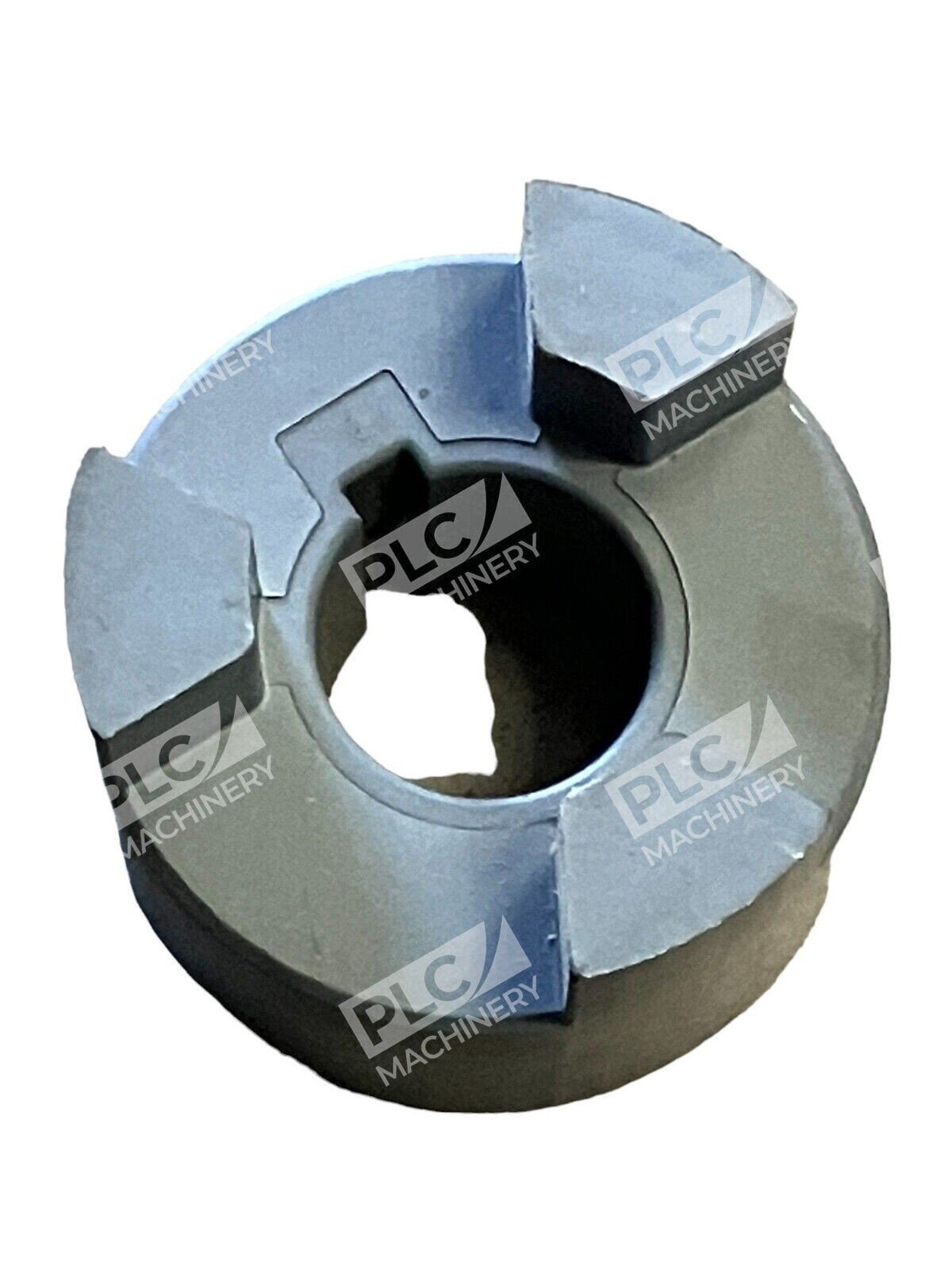

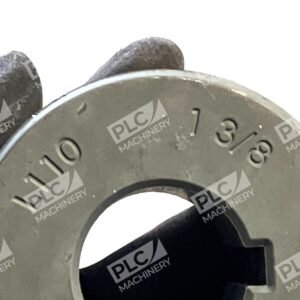

Woods USA L110 1-3/8 Jaw Coupling Hub

Woods USA L110 1-3/8″ Jaw Coupling Hub

The Woods USA L110 1-3/8″ Jaw Coupling Hub is a robust and reliable component designed for efficient power transmission in various industrial applications. This coupling hub is engineered to accommodate angular and parallel shaft misalignments, ensuring smooth operation and longevity of connected machinery.

Key Features

• Material: Constructed from high-quality sintered iron, providing durability and resistance to wear.

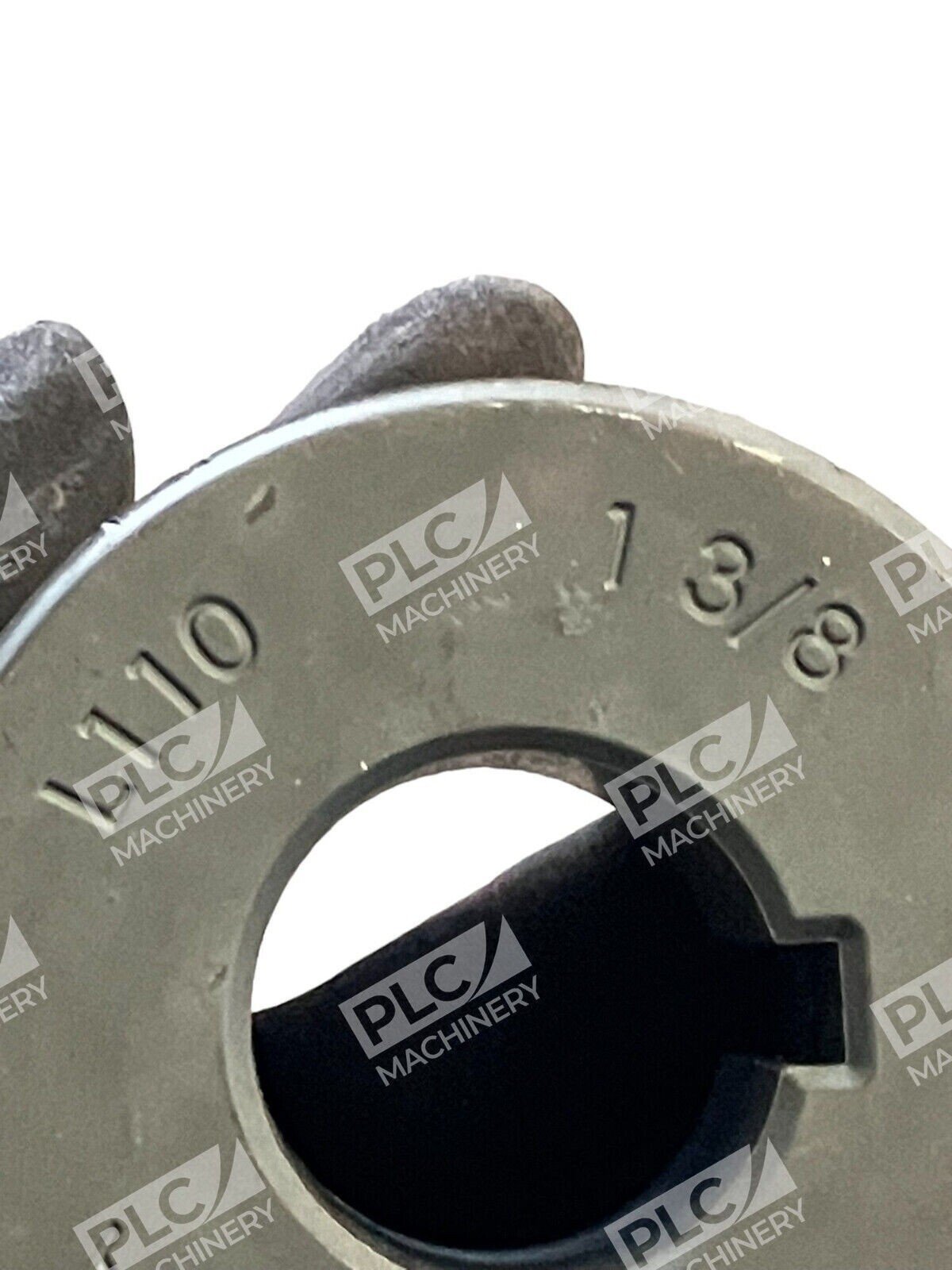

• Bore Diameter: Precisely machined to a 1-3/8 inch bore, ensuring a secure fit on corresponding shafts.

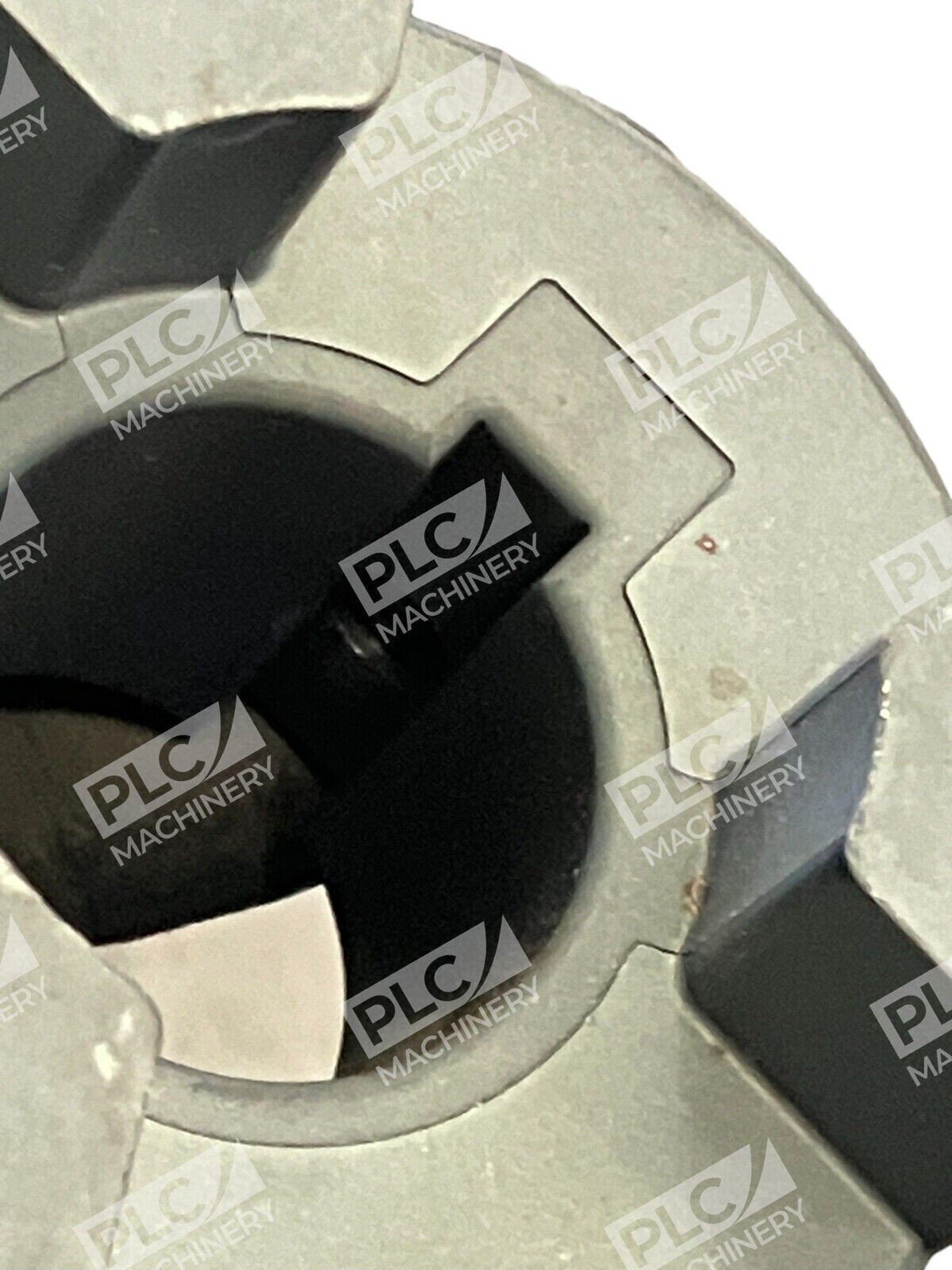

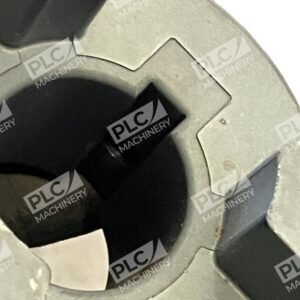

• Keyway Dimensions: Equipped with a keyway measuring 5/16 inch in width and 5/32 inch in depth, facilitating a firm connection and preventing slippage.
• Outside Diameter: The hub features an outside diameter of 3.32 inches, contributing to its compact design.
• Overall Length: Measures 4.23 inches in length, optimizing space utilization within machinery setups.
• Maximum Speed: Capable of operating at speeds up to 5,000 RPM, suitable for high-speed applications.
• Temperature Range: Designed to function effectively within a temperature range of -31°F to 250°F, accommodating various operating environments.
• Compatibility: Compatible with center elements such as L110H, L110N, and L110U, offering flexibility in assembly configurations.

Applications

This jaw coupling hub is ideal for use in applications requiring reliable torque transmission and misalignment accommodation, including:

• Pumps
• Compressors
• Conveyors
• Fans
• Mixers

Its fail-safe design ensures continued operation even if the elastomeric spider fails, making it a dependable choice for critical machinery.

Installation and Maintenance

Installation is straightforward, involving the alignment of the hub with the shaft and securing it using the provided set screw. Regular inspection and maintenance are recommended to ensure optimal performance and longevity.

In summary, the Woods USA L110 1-3/8″ Jaw Coupling Hub offers a combination of durability, flexibility, and ease of use, making it a valuable component in various industrial power transmission systems.
