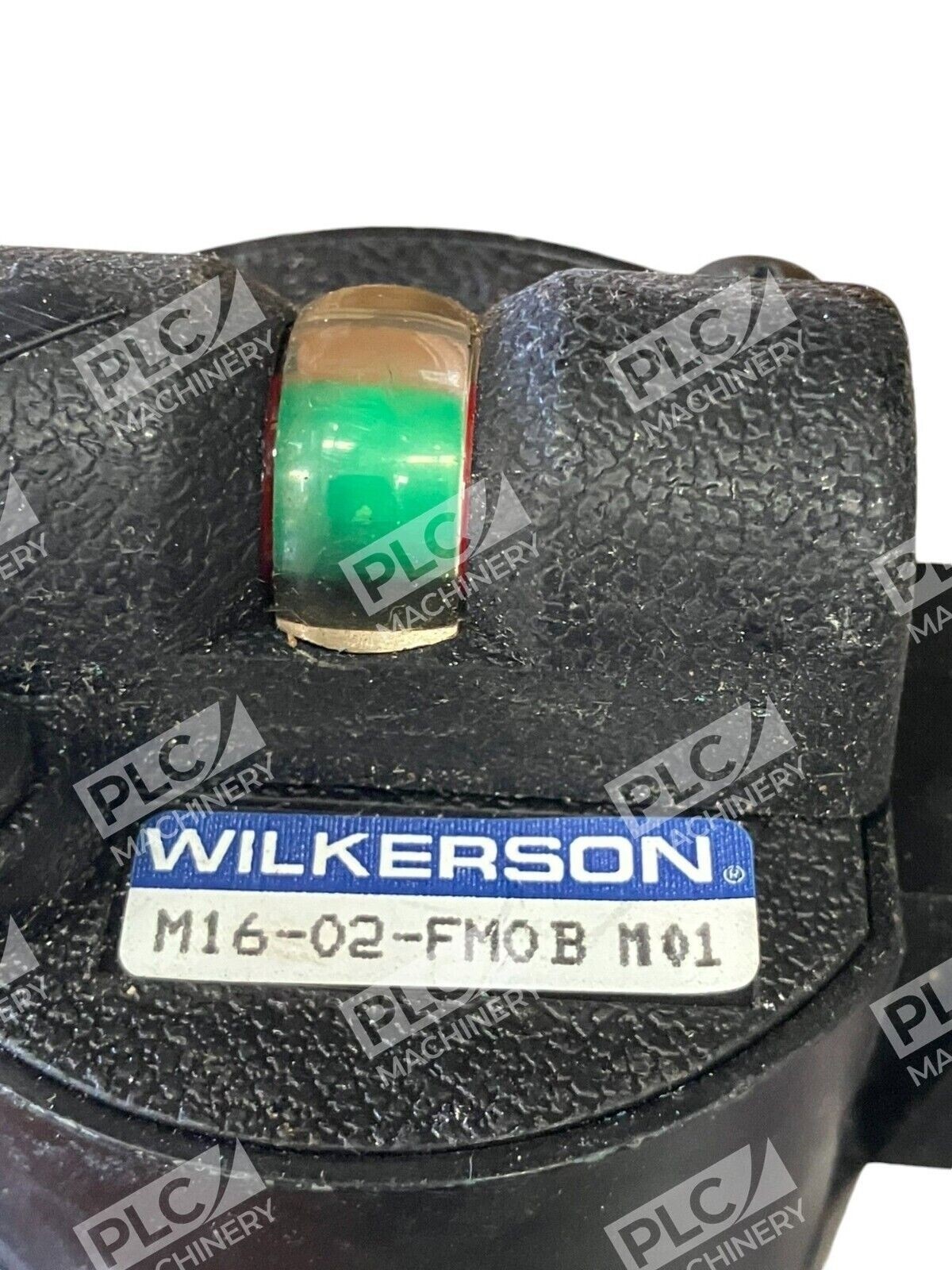

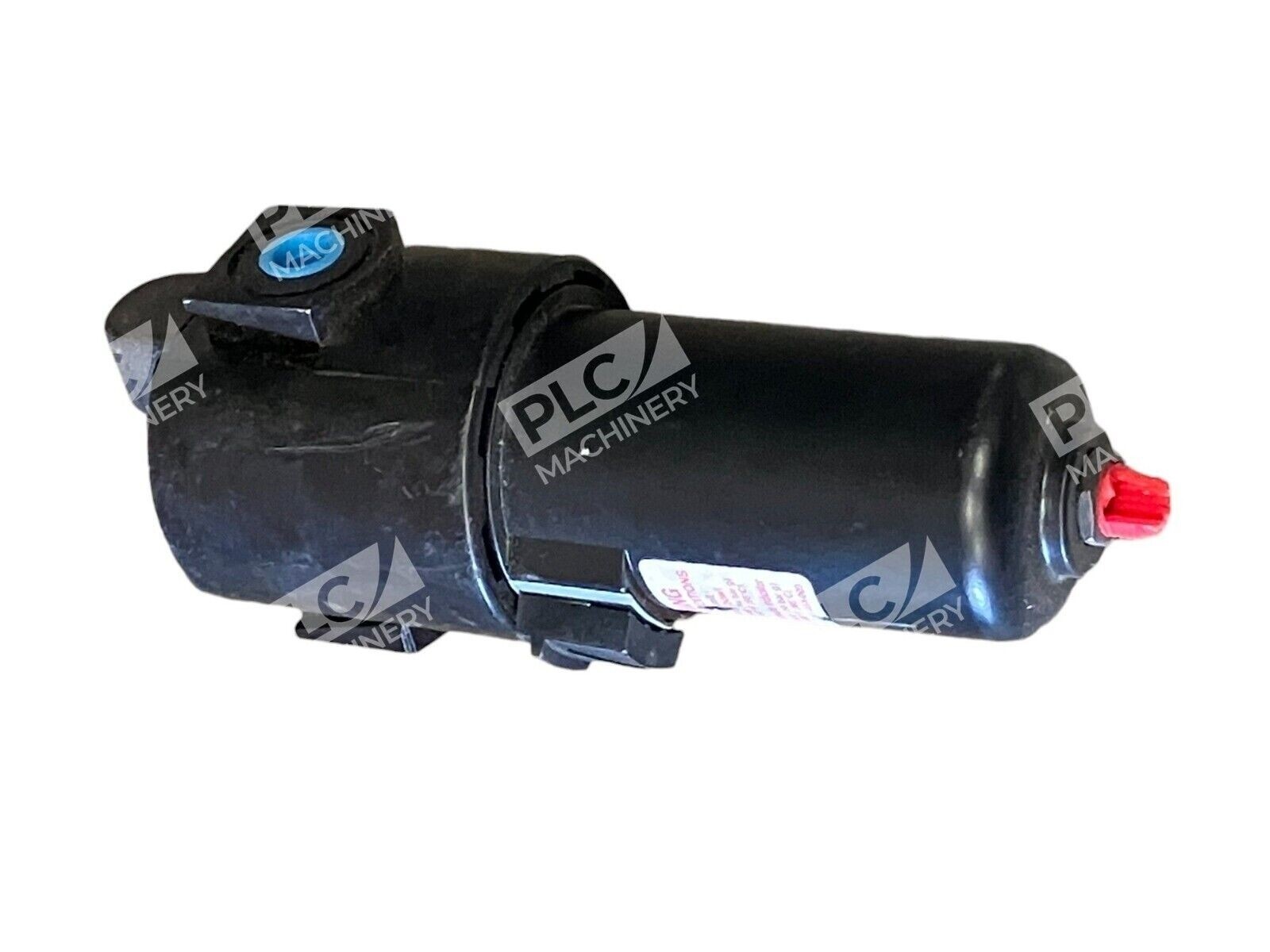

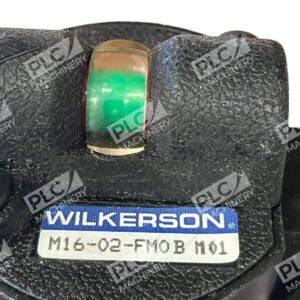

Wilkerson Pneumatic Filter M16-02-FM0B

Wilkerson Pneumatic Filter M16-02-FM0B

The Wilkerson M16-02-FM0B is a high-efficiency coalescing filter designed to remove oil aerosols, liquid contaminants, and sub-micron particles from compressed air systems. This ensures clean, dry air, protecting downstream equipment and enhancing overall system performance.

Key Features

• Filtration Efficiency: Equipped with a 0.01-micron rated filter element, it effectively captures extremely fine oil mists and microscopic particles.
• Port Size: Features a 1/4-inch NPT port, suitable for various pneumatic applications.
• Flow Capacity: Capable of handling flow rates up to 37 SCFM, accommodating a range of system requirements.
• Bowl Type: Comes with a durable metal bowl, offering enhanced strength and longevity.
• Drain Type: Incorporates an automatic drain system for efficient removal of accumulated liquids.
• Differential Pressure Indicator: Standard feature that signals when the filter element requires maintenance or replacement.

Specifications

• Maximum Supply Pressure: 200 PSIG (13.8 bar)
• Operating Temperature Range: 32°F to 150°F (0°C to 65.5°C)
• Weight: Approximately 2.6 lbs (1.18 kg)

The Wilkerson M16-02-FM0B is an essential component for maintaining optimal air quality in pneumatic systems, ensuring the longevity and efficiency of connected equipment.
