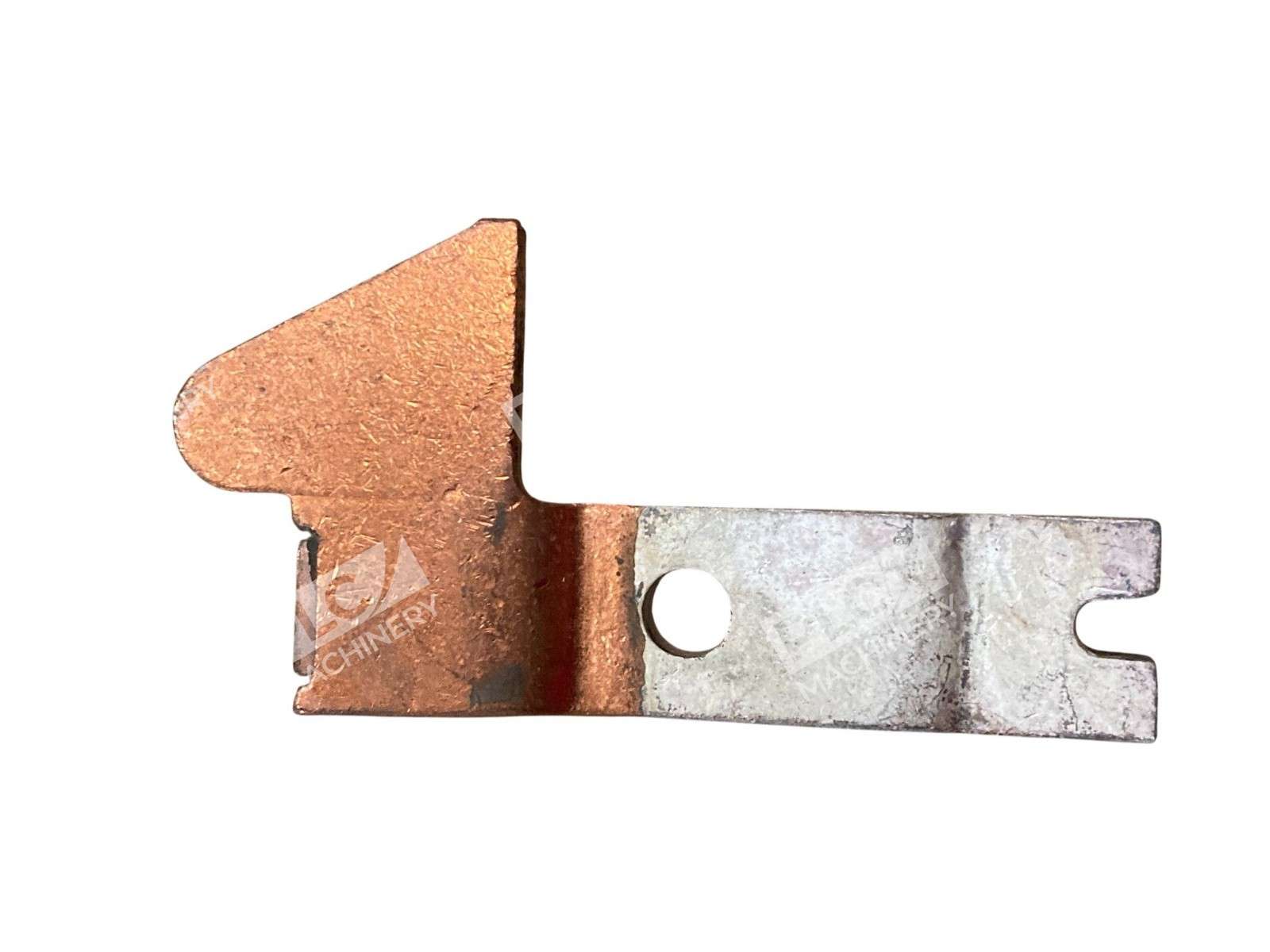

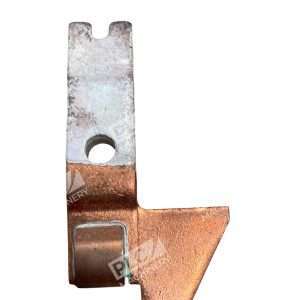

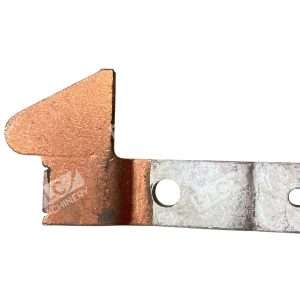

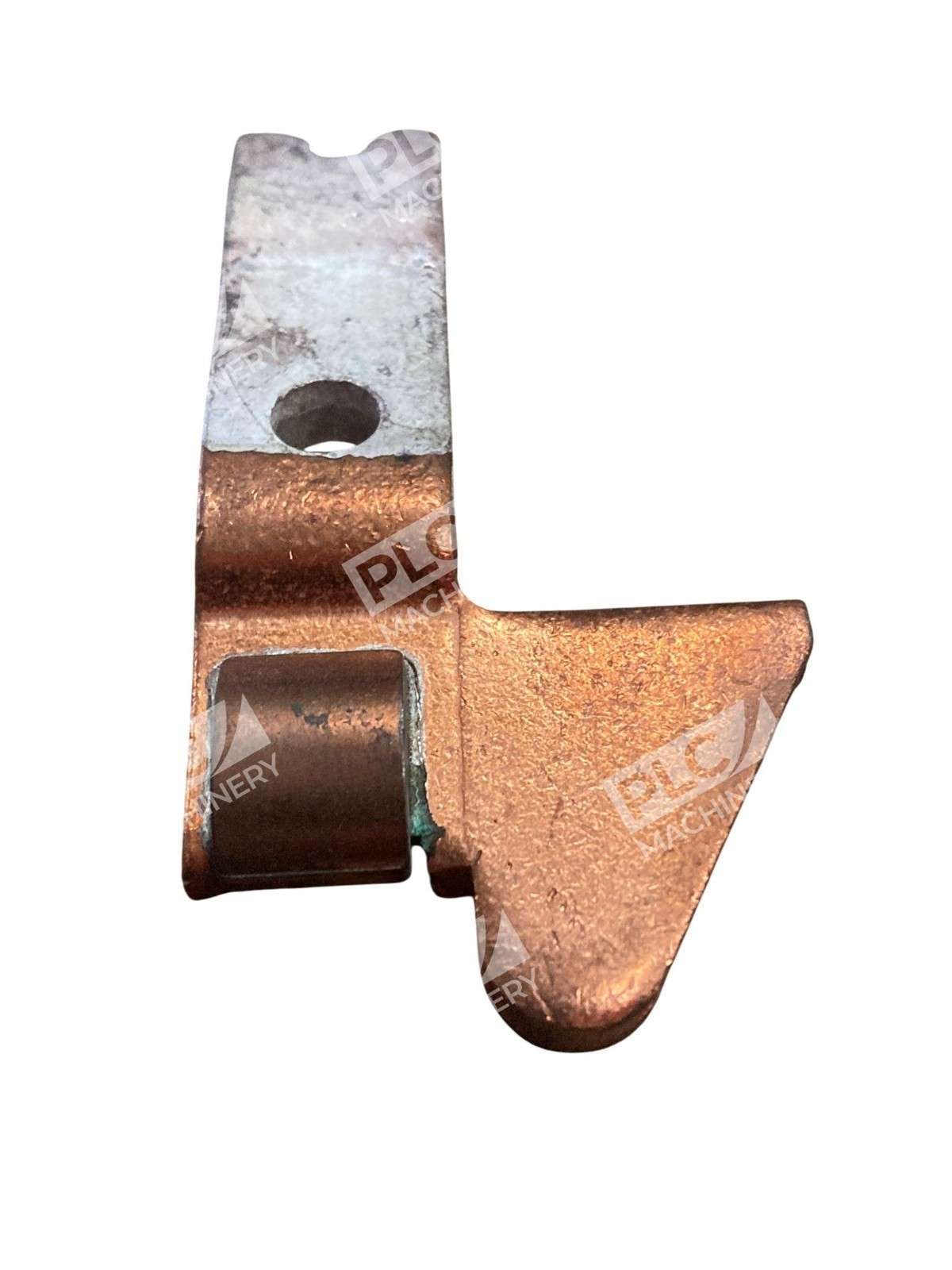

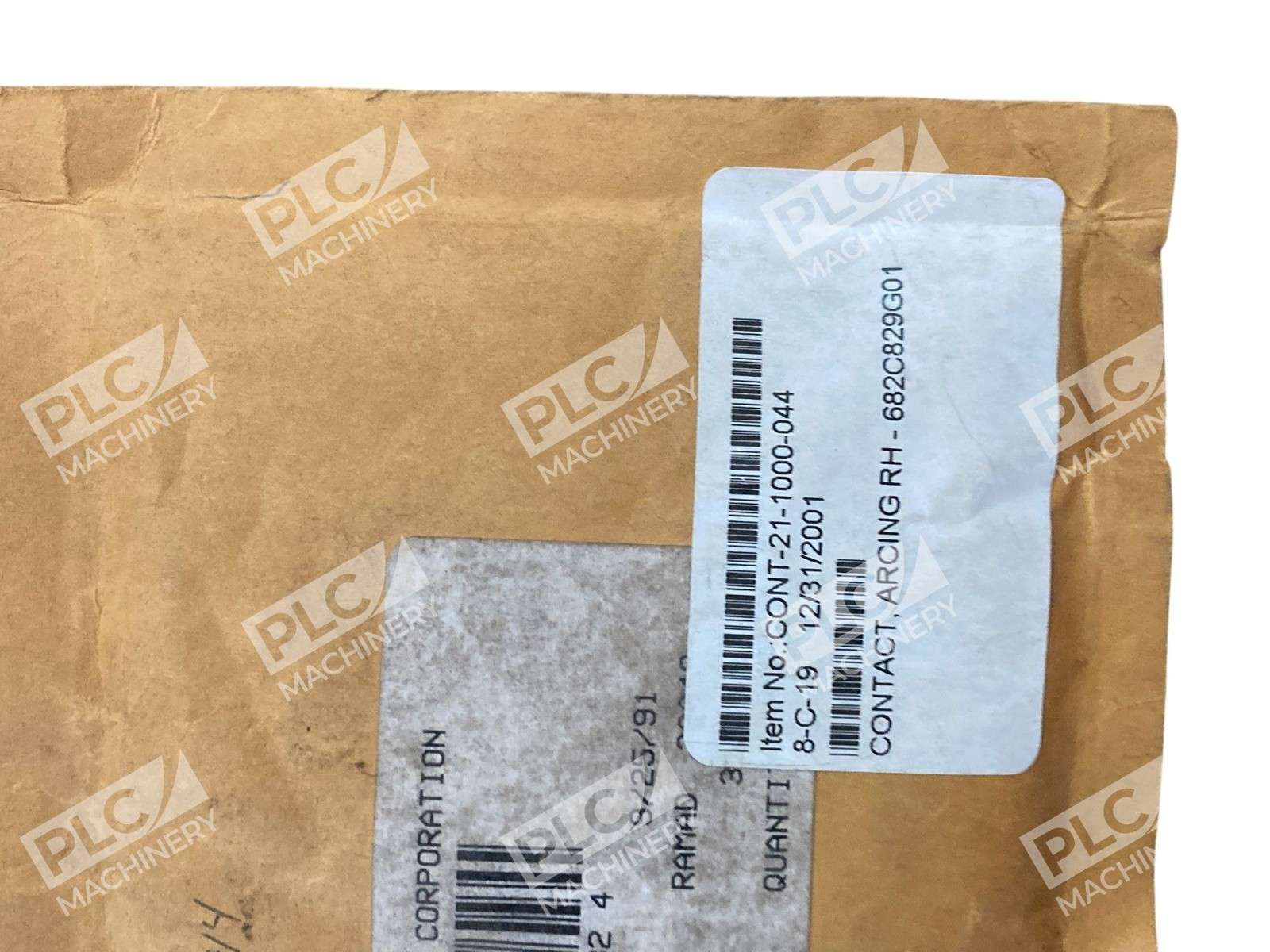

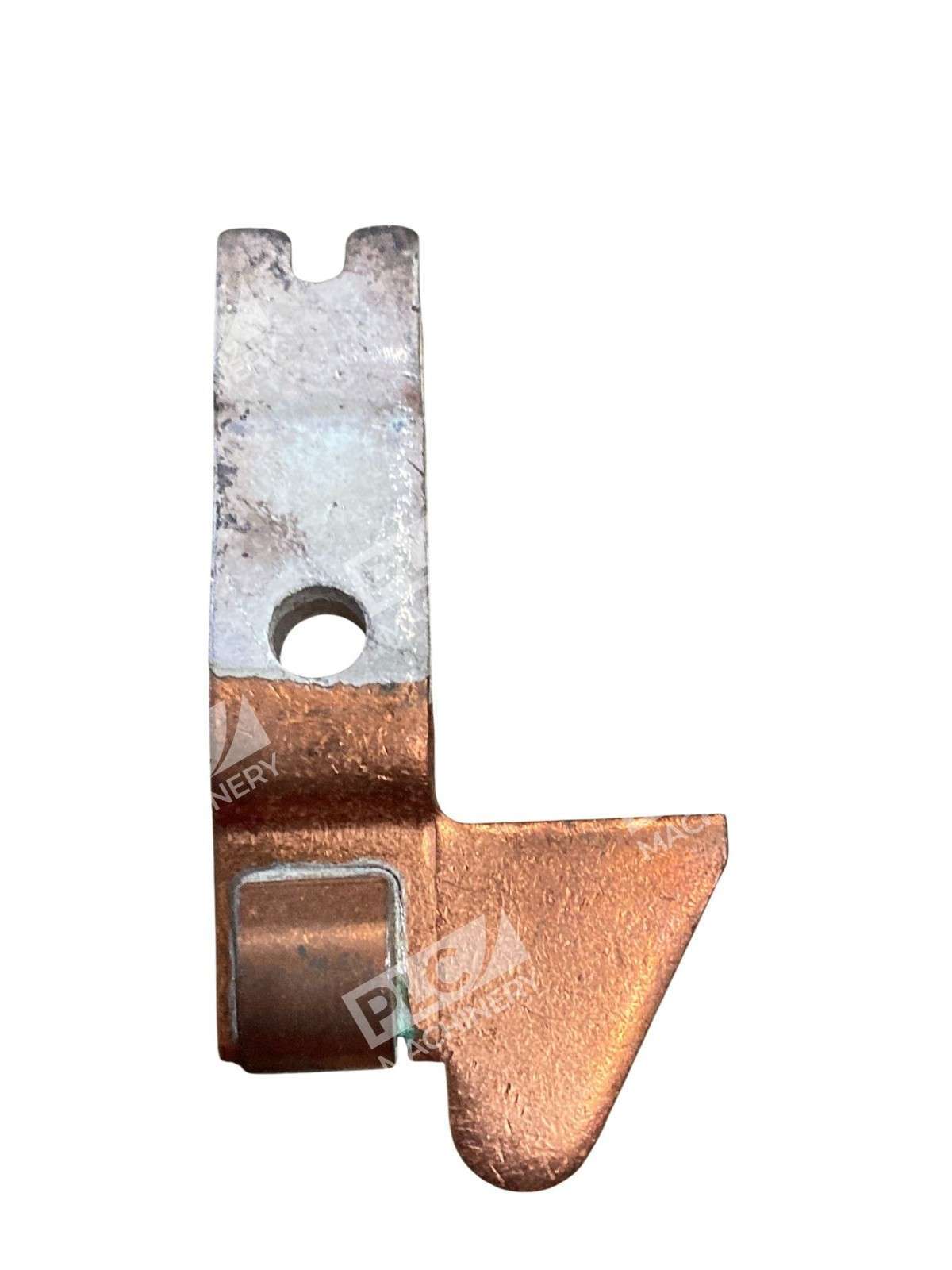

Westinghouse 682C829G01 Stationary Arcing Contact Right Hand (R.H.)
The Westinghouse 682C829G01 is a right-hand stationary arcing contact designed for use in DS and DSL series air circuit breakers. This component plays a crucial role in the breaker’s operation by managing the arc produced during the interruption of electrical currents, thereby protecting the main contacts from damage and ensuring the longevity and reliability of the circuit breaker.
Key Features
- Compatibility: Suitable for various DS and DSL series circuit breakers, including models such as DS-206S, DS-206E, DS-416, DSL-416, DS-416H, DS-416S, DS-420, DS-632, DS-840, DSII-508, DSII-516, DSLII-516, DSII-608, DSII-616, DSII-620, DSLII-620, and DSL-840.
- Construction: Engineered to withstand the thermal and mechanical stresses associated with arc interruption, ensuring consistent performance under demanding conditions.
- Installation: Designed for straightforward integration into the upper stud assembly of compatible circuit breakers, facilitating efficient maintenance and replacement processes.
Specifications
- Part Number: 682C829G01
- Manufacturer: Westinghouse / Cutler Hammer
- Product Family: DS Series
- Type: DS/DSL
- Unit Amperage: 800A and 1600A
- Weight: Approximately 1 lb
Incorporating the 682C829G01 stationary arcing contact into your DS or DSL series circuit breaker ensures optimal arc management, contributing to the overall safety and efficiency of your electrical system.
