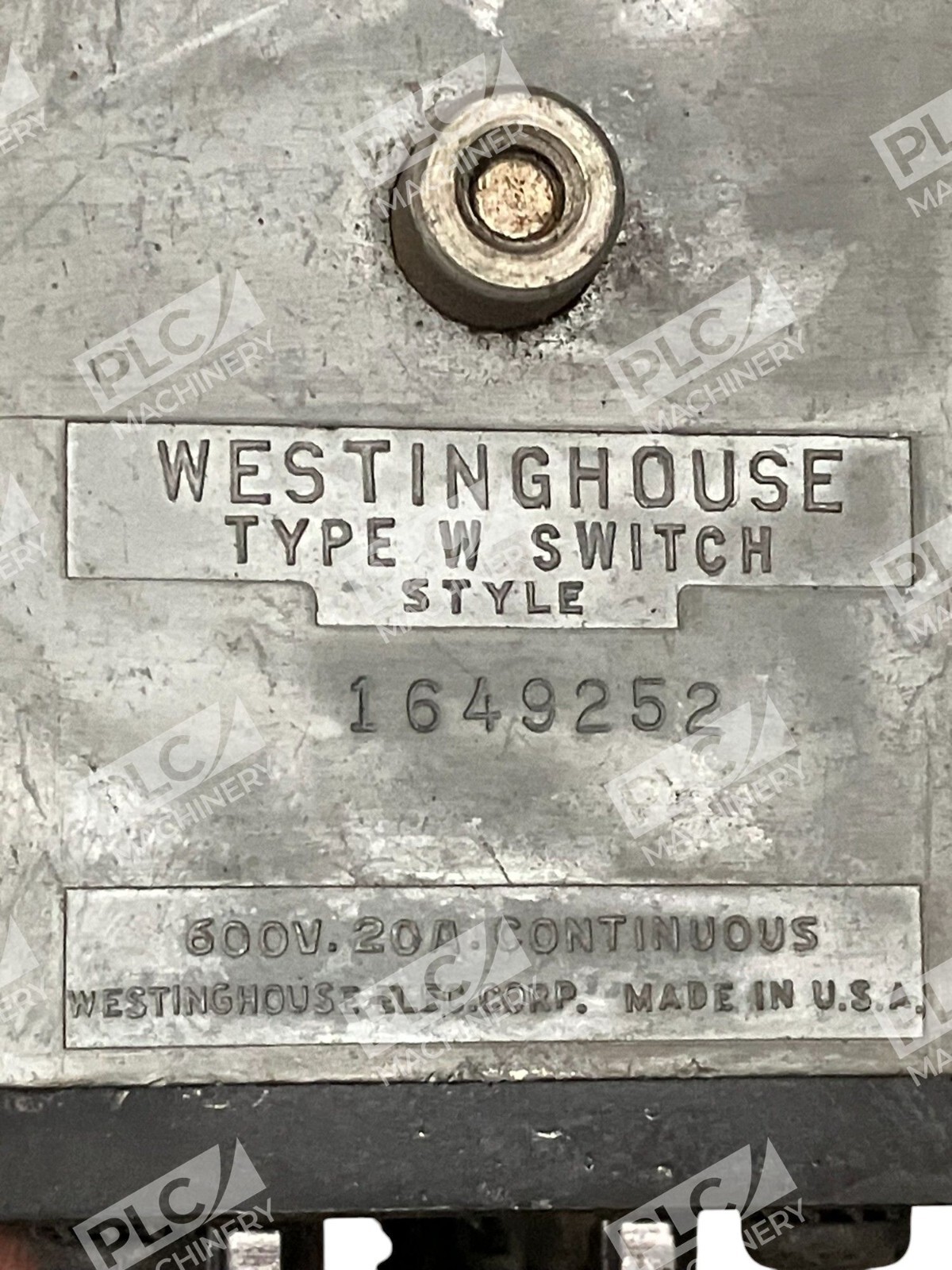

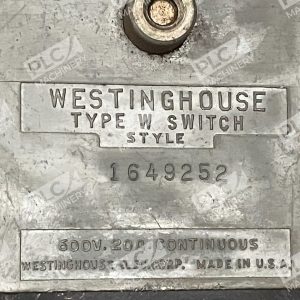

Westinghouse 600V 20A Continuous Type W Switch 1649252 w/ 12477-D Control

Westinghouse 600V 20A Continuous Type W Switch 1649252 with 12477-D Control

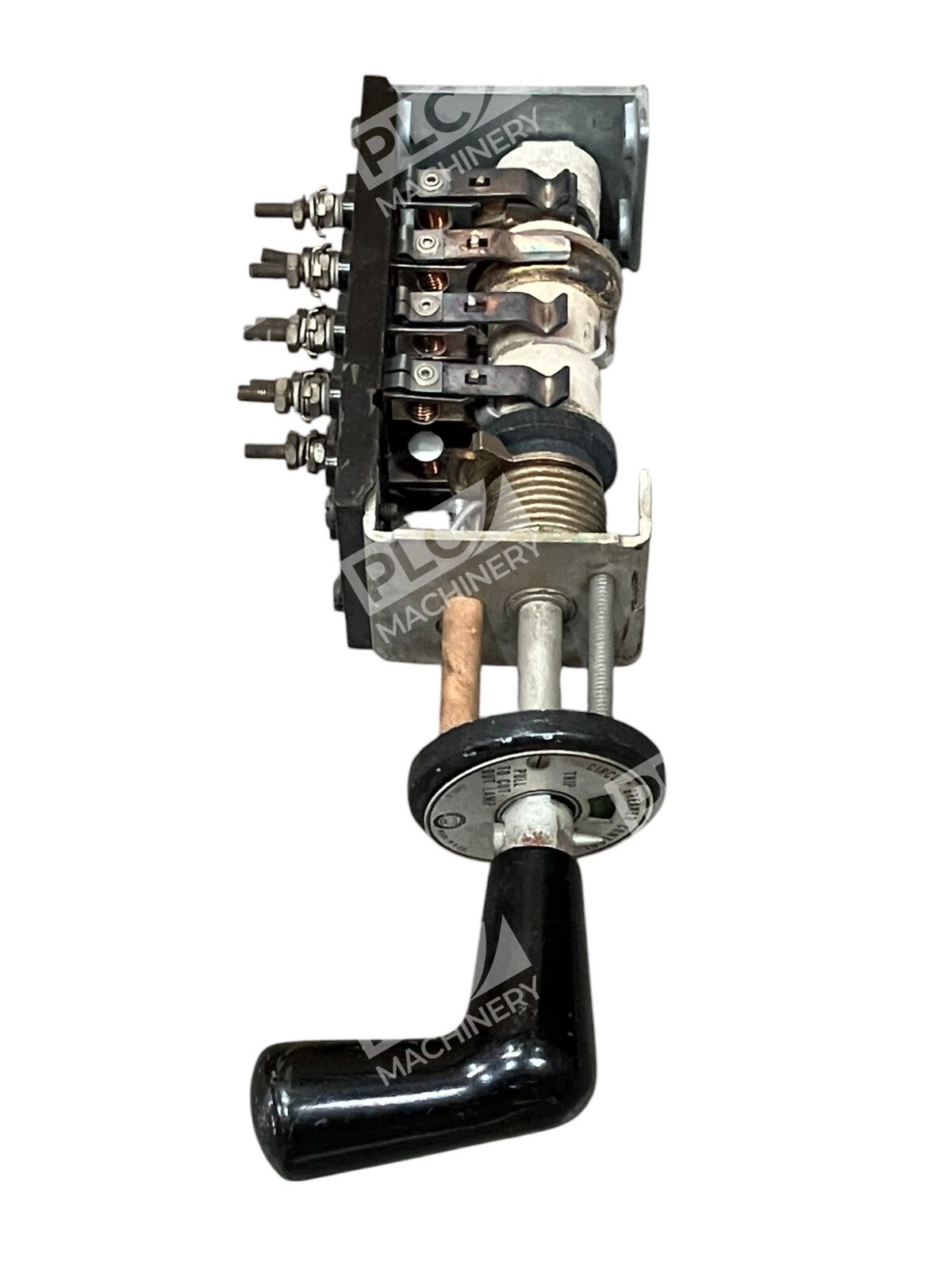

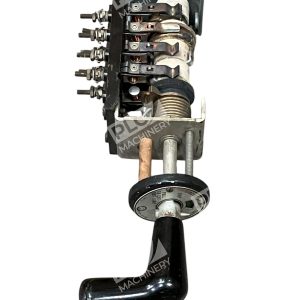

The Westinghouse Type W Switch, model number 1649252, is a robust rotary switch designed for continuous operation in demanding industrial environments. Rated for 600 volts and 20 amperes, this switch ensures reliable performance across various applications.

Key Features

• Rugged Design: Built to withstand the rigors of industrial use, offering durability and longevity.
• Maintained or Momentary Contacts: Available configurations to suit specific operational requirements.
• Silver-Surfaced Contacts: Ensures low contact resistance and reliable electrical connections.
• Self-Aligning Stationary Contacts: Facilitates consistent performance and ease of maintenance.
• Contact Wiping Action: Promotes clean, low-resistance contact points for optimal functionality.
• Numbered Studs: Simplifies terminal identification and wiring processes.
• Protective Side Plates: Slide out for easy inspection and maintenance of contacts.
• Standard Black Nameplate: Engraving options available for clear labeling and identification.

Control Features

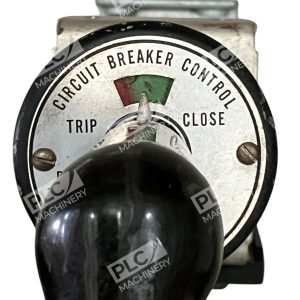

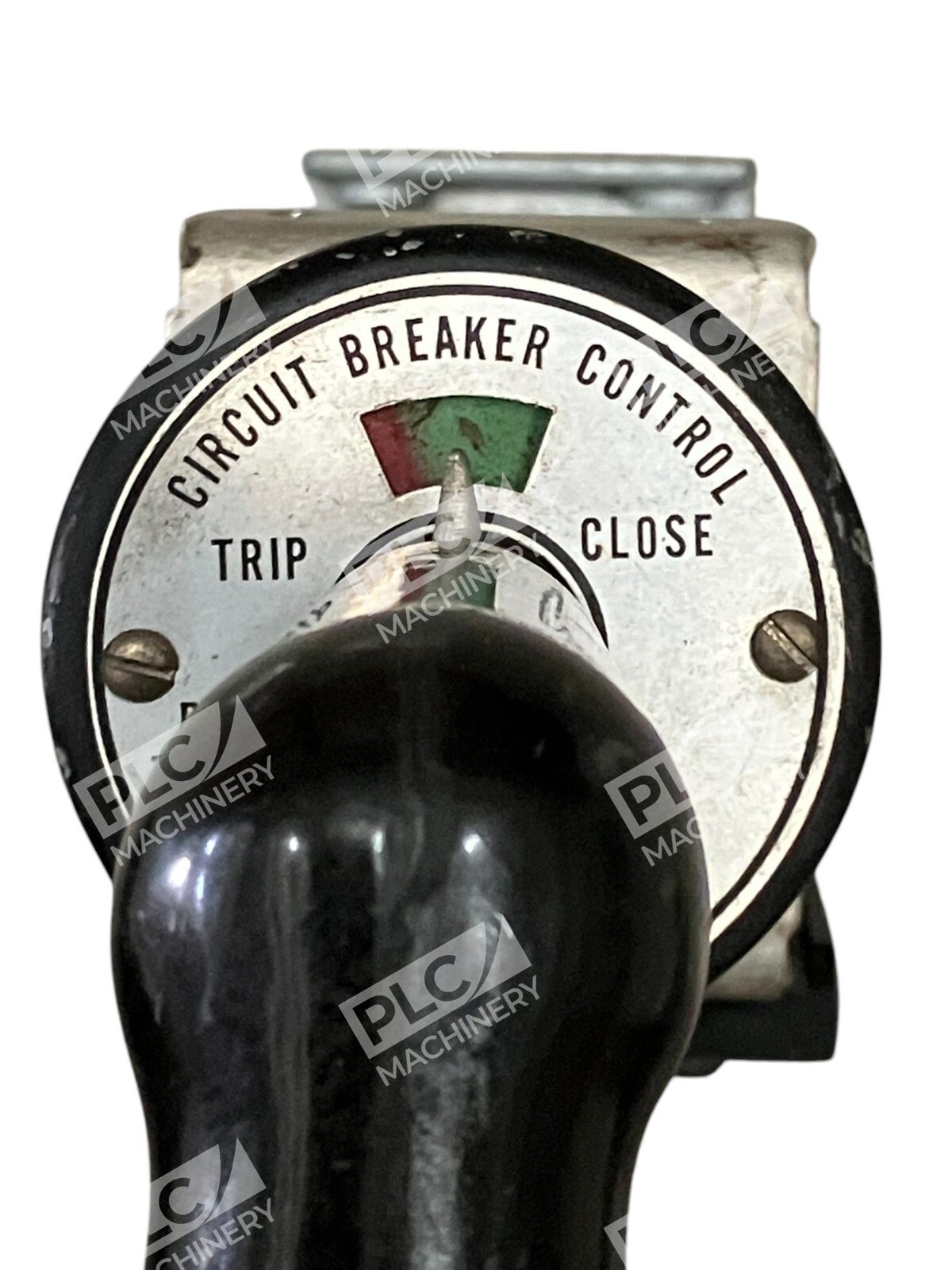

• Mechanical Red/Green Target: Provides clear visual indication of switch status.
• Spring Return to Normal Position: Ensures the switch returns to its default vertical position after operation.

Specifications

• Continuous Rating: 20A at 600V
• Interrupting Current:
  • 120VAC: 50A
  • 240VAC: 25A
  • 600VAC: 5A
  • 125VDC: 8A
  • 250VDC: 2A
• Switch Sections: 2-10
• Switch Poles: 2-10
• Switch Positions: 2-12
• Detent Angles: 30°, 45°, 60°, 90°
• Mounting: 3-Hole
• Locking Features: Options include Pull-To-Lock, Key-Interlock, Pull-To-Turn, and Pull-To-Disable.
• Optional Features: Spring Return functionality available.

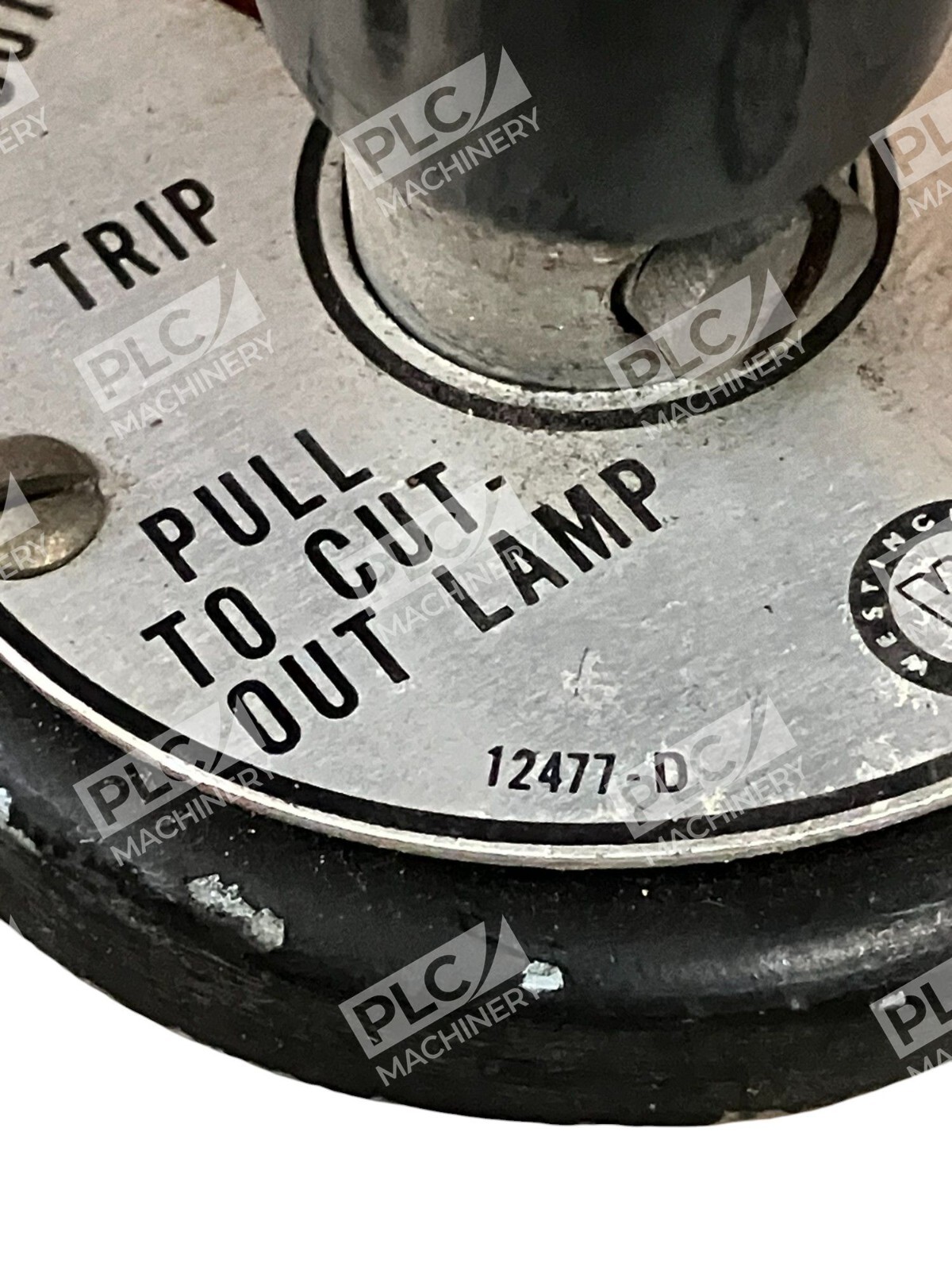

The inclusion of the 12477-D Control enhances the switch’s functionality, providing precise control and additional operational features tailored to specific industrial needs.

For those seeking a dependable and versatile rotary switch, the Westinghouse Type W Switch 1649252 with 12477-D Control offers a comprehensive solution, combining durability with advanced control capabilities.
