Werma Signaltechnik 645 820 75 Siren Element 8 Tone

Werma Signaltechnik 645 820 75 Siren Element 8 Tone

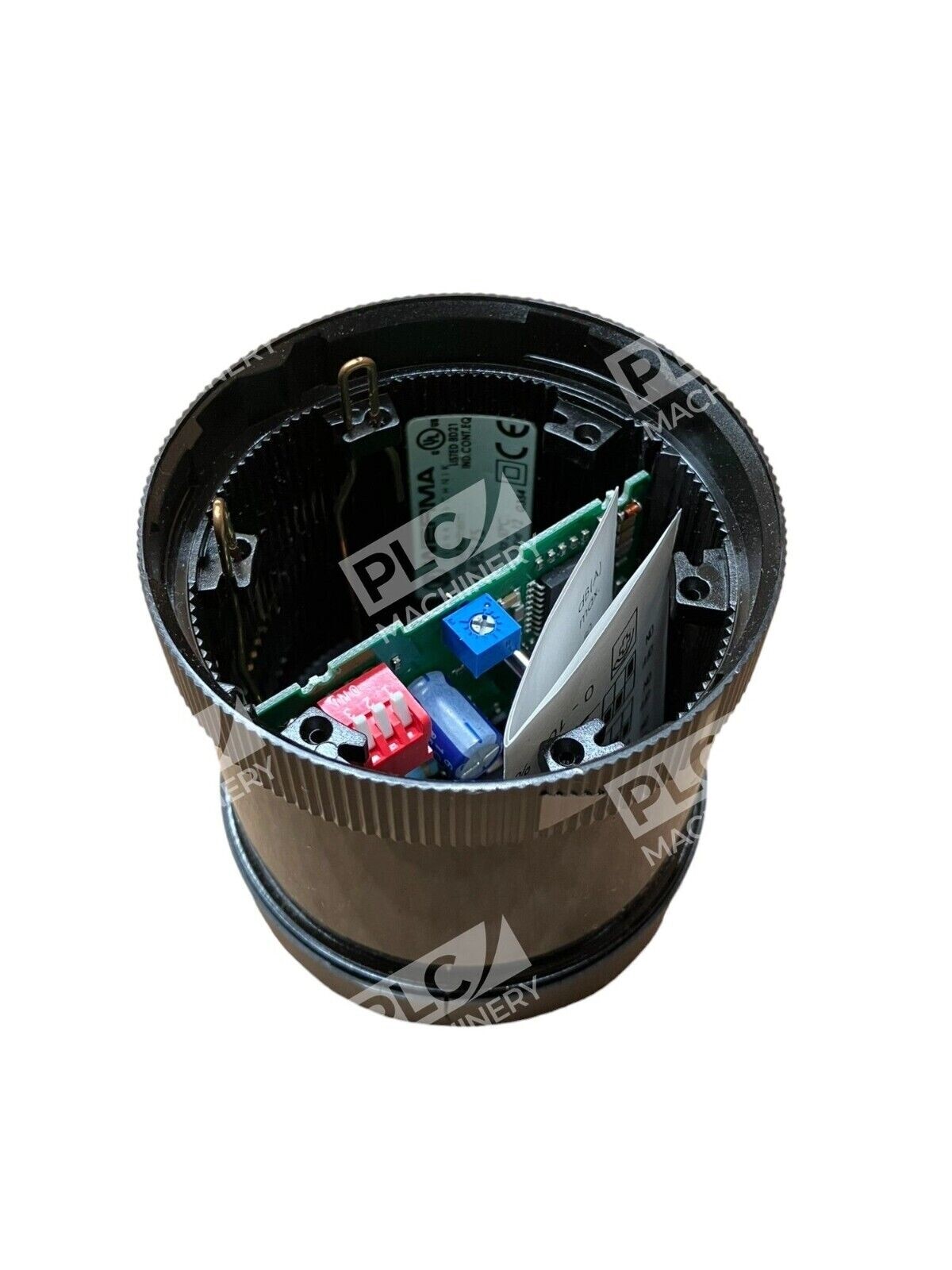

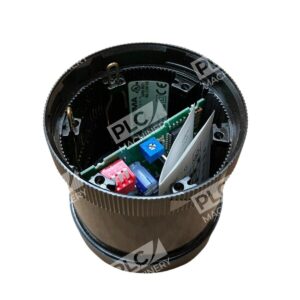

The Werma Signaltechnik 645 820 75 is a versatile siren element designed to enhance the functionality of modular signal towers, particularly the KombiSIGN 71 series. This acoustic signal device offers eight selectable tones, providing flexibility for various industrial applications.

Key Features

• Eight Selectable Tones: Users can choose from eight different tones, adjustable via a dip switch, to suit specific signaling requirements.
• Adjustable Volume: The siren’s volume can be set between 92 dB and 102 dB at a distance of 1 meter, ensuring clear audibility in diverse environments.
• Modular Compatibility: Specifically designed for integration with the KombiSIGN 71 modular signal tower system, allowing for seamless assembly and customization.
• Durable Construction: Constructed from robust polycarbonate (PC) material, the siren element is built to withstand demanding industrial conditions.
• High Protection Rating: With an IP65 protection category, the device is safeguarded against dust ingress and low-pressure water jets from any direction.

Technical Specifications

• Operating Voltage: 24V AC/DC with a frequency of 50Hz and a tolerance of ±10%.
• Current Consumption: Rated operational current of 30 mA.
• Inrush Current: 250 mA.
• Operating Temperature Range: -20°C to +50°C, suitable for various industrial environments.
• Dimensions: Height of 54 mm and a diameter of 70 mm, facilitating compact installation.
• Weight: Approximately 74 grams, ensuring ease of handling and installation.

Compliance and Certifications

• CE Marking: Indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area.
• RoHS Compliance: Ensures the product is free from hazardous substances, aligning with environmental and safety regulations.
• UL Type Rating: Type 12, denoting suitability for indoor use, providing a degree of protection against dust, dirt, and dripping non-corrosive liquids.

The Werma Signaltechnik 645 820 75 Siren Element is an essential component for enhancing audible signaling in industrial settings, offering reliability, flexibility, and compliance with international standards.
