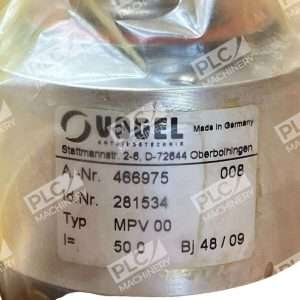

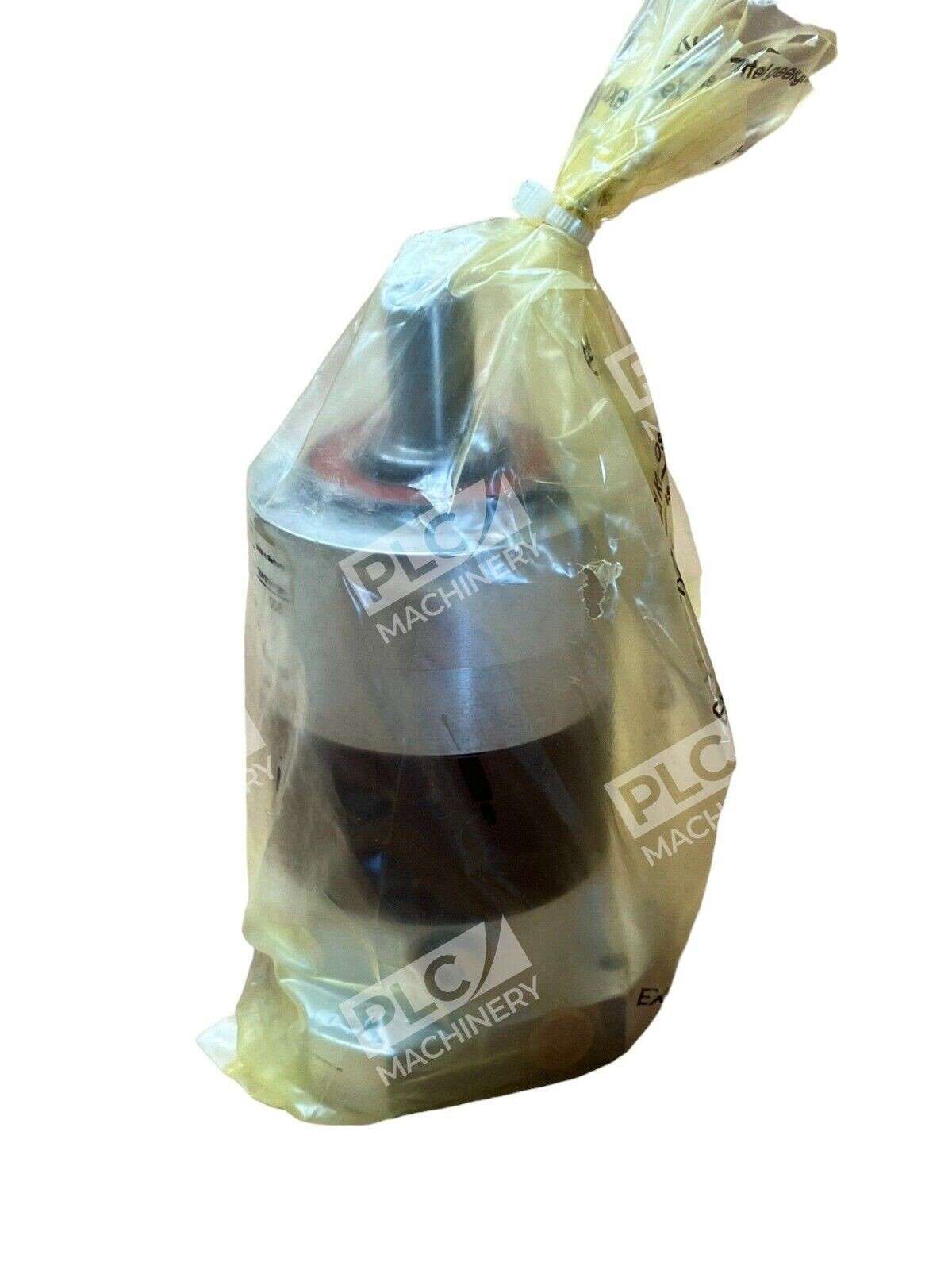

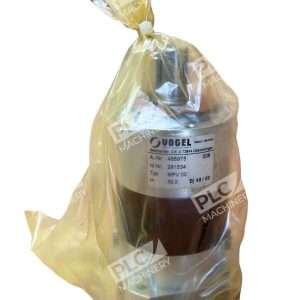

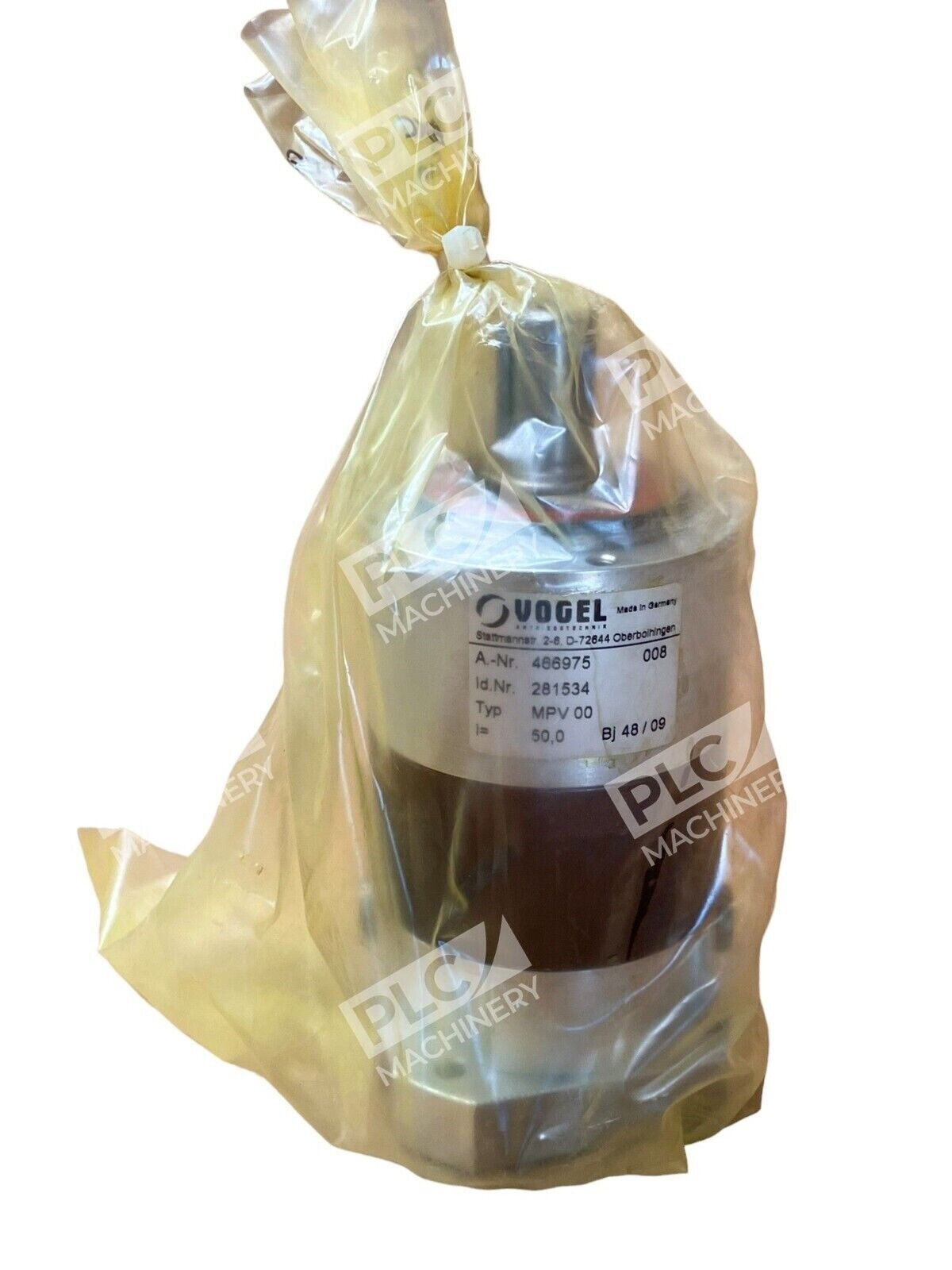

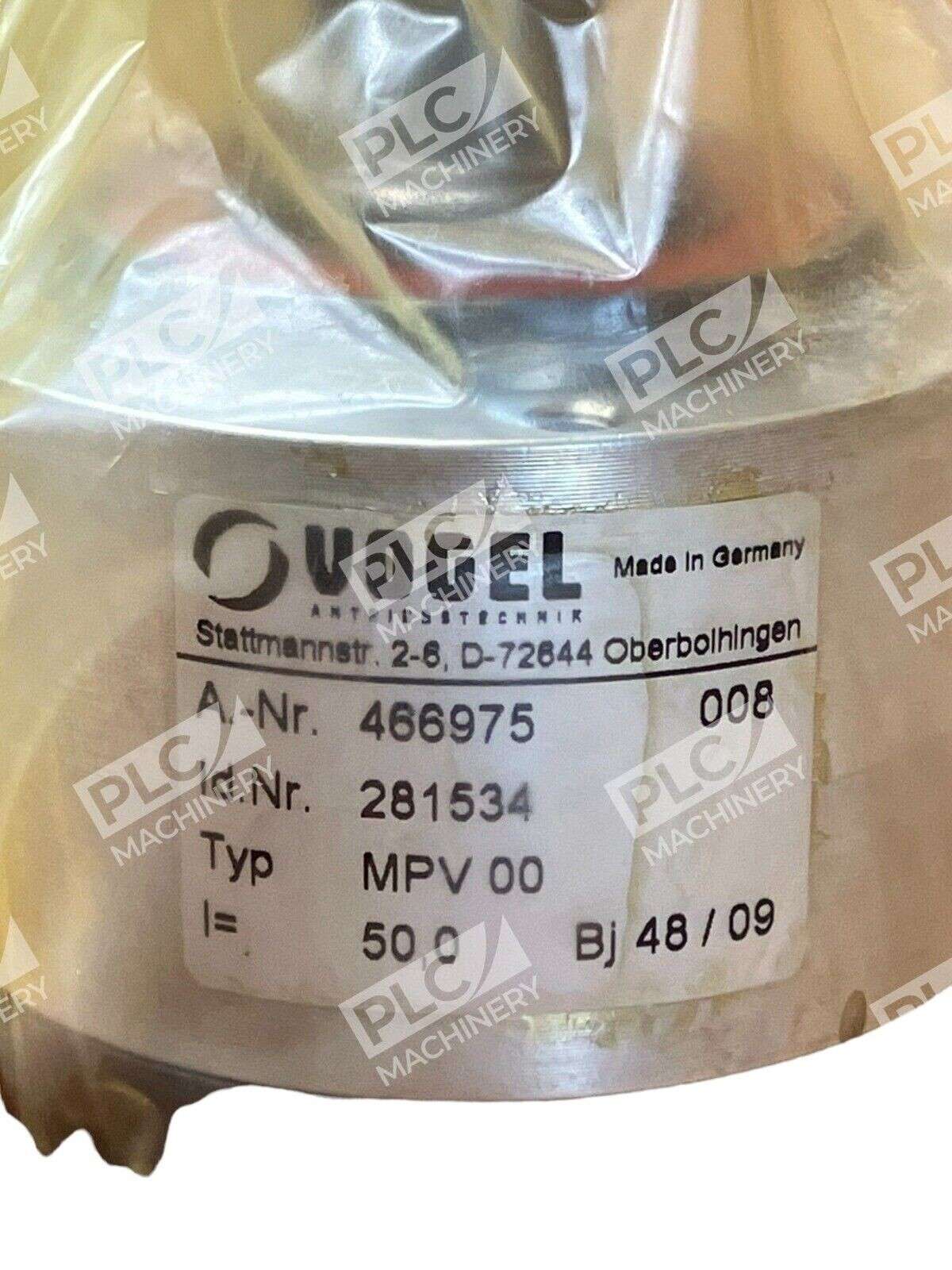

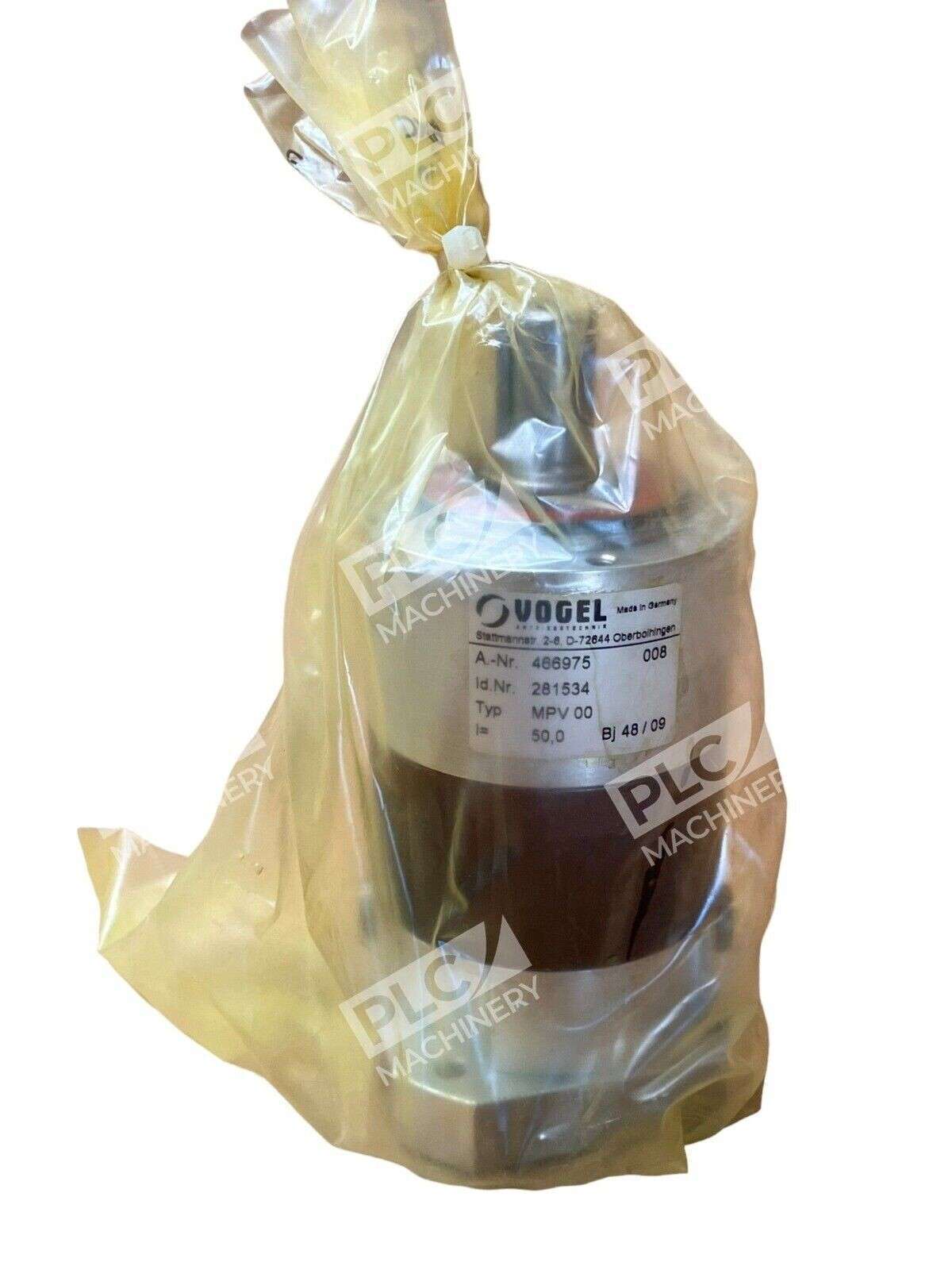

Vogel MPV00 Planetary Gearbox 281534

Vogel MPV00 Planetary Gearbox 281534

The Vogel MPV00 Planetary Gearbox, identified by part number 281534, is a compact and efficient solution designed for precision applications requiring high torque transmission and minimal backlash. Manufactured in Germany, this gearbox exemplifies Vogel’s commitment to quality and engineering excellence.

Key Features

• Compact Design: The MPV00 model features a small, round form factor, making it suitable for installations where space is limited.
• High Torque Transmission: Despite its size, the gearbox is capable of transmitting significant torque, ensuring reliable performance in demanding applications.
• Low Backlash: Engineered for precision, the MPV00 offers minimal backlash, enhancing the accuracy and efficiency of the machinery it integrates with.
• Durable Construction: Constructed from high-quality materials, including aluminum EN-AW-AlCu4PbMgMn (EN-AW-2007), the gearbox is built to withstand rigorous operational conditions.
• Versatile Mounting Options: Designed for flexibility, the MPV00 can be mounted in various orientations to accommodate different system configurations.

Technical Specifications

• Model: MPV00
• Part Number: 281534
• Gear Stages: 2
• Gear Ratio: 50:1
• Maximum Acceleration Torque: 40 Nm
• Maximum Input Speed: 8,000 RPM
• Output Shaft: Centered according to DIN 332 Part 2, with keyway per DIN 6885 Part 1, tolerance k6
• Lubrication: Synthetic grease for lifetime operation
• Maximum Gearbox Temperature: 90°C

Applications

The Vogel MPV00 Planetary Gearbox is ideal for a wide range of applications, including:

• Automation systems
• Robotics
• Packaging machinery
• Printing equipment
• Medical devices

Its combination of compact size, high performance, and durability makes it a preferred choice for engineers and designers seeking reliable motion control solutions.

Installation and Maintenance

For optimal performance, it is recommended to use motors with reduced shaft run-out and concentricity tolerances according to DIN 42955 R standards. The gearbox should be mounted vertically during motor installation, with the motor flange facing upwards. Proper alignment and secure fastening are essential to ensure longevity and efficient operation.

With its robust design and precision engineering, the Vogel MPV00 Planetary Gearbox 281534 stands as a testament to Vogel’s dedication to providing high-quality motion control components for various industrial applications.
