Vivid Engineering CLV-402 Camera Link Video Splitter

$729.99

+ Free Shipping

Availability: 1 in stock

Guaranteed Safe Checkout

Description

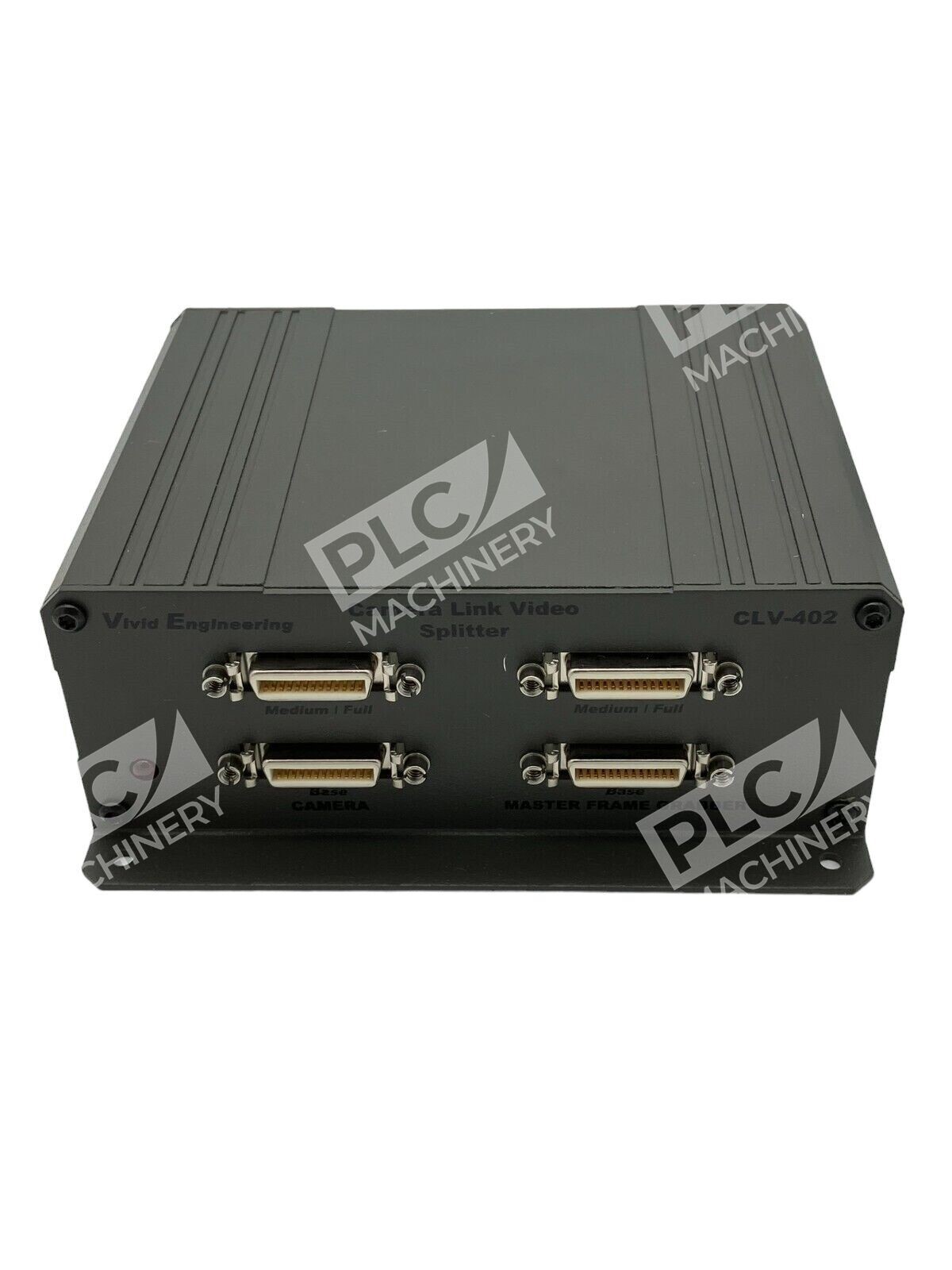

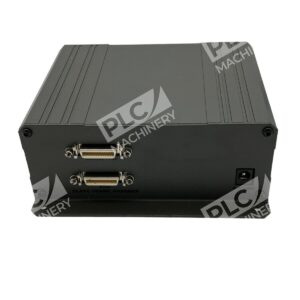

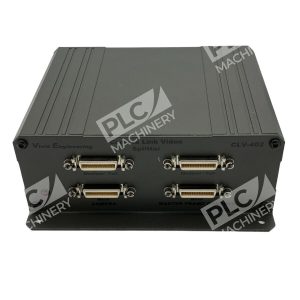

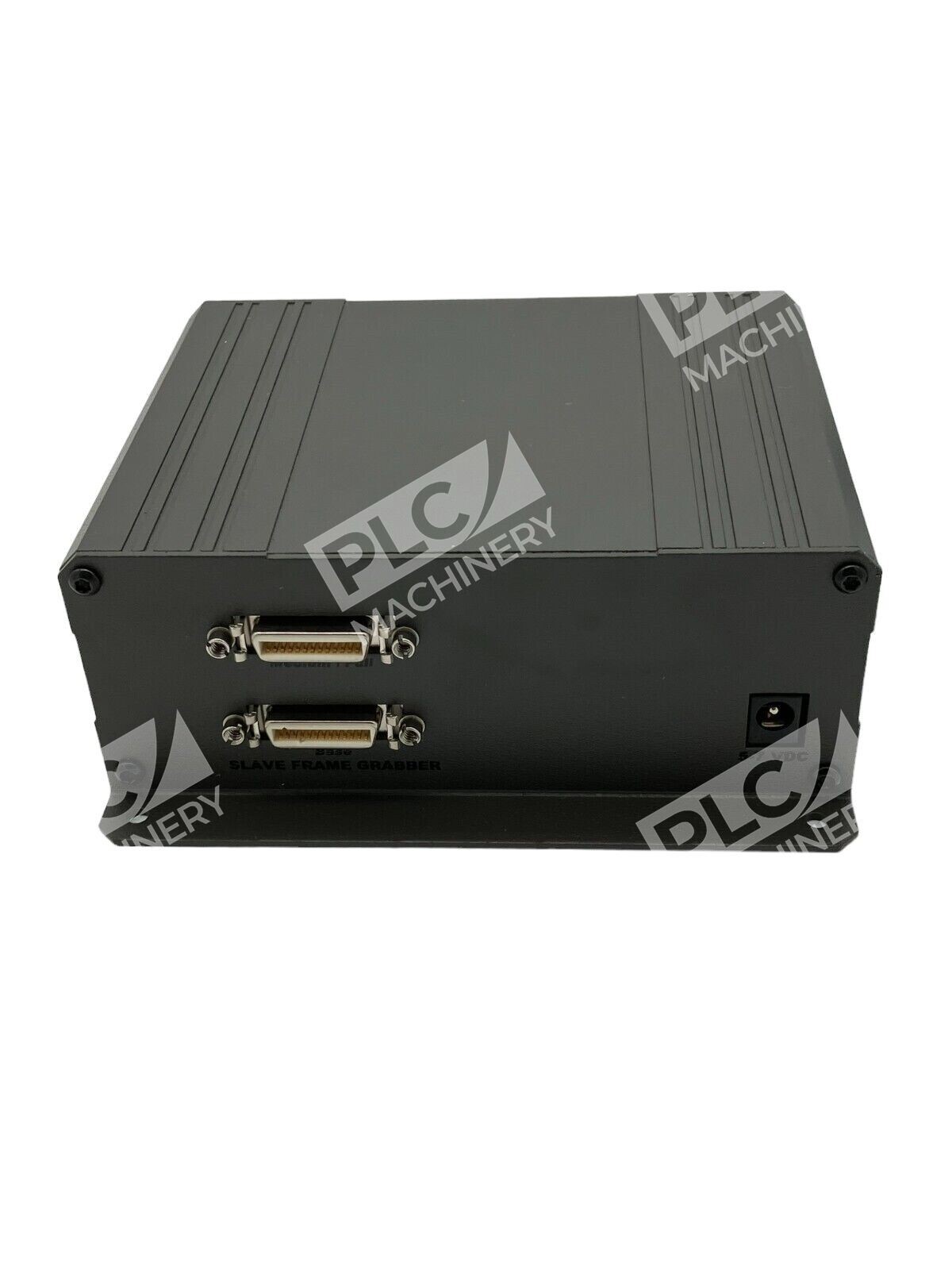

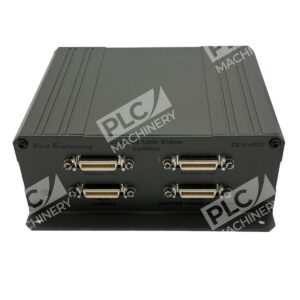

Vivid Engineering CLV-402 Camera Link Video Splitter

The Vivid Engineering CLV-402 Camera Link Video Splitter is a high-performance device designed to interface a single Camera Link camera with two frame grabbers, facilitating applications that require parallel processing, monitoring, or recording. Utilizing standard Camera Link cables, this splitter enables one frame grabber to act as the master, providing control and communication with the camera, while the second frame grabber receives video data exclusively.

Key Features

  • Supports all Camera Link configurations, including base, medium, full, and 80-bit extended modes.
  • Incorporates high-speed 85 MHz interfaces to ensure rapid data transmission.
  • Minimal video data pass-through latency of just 3 camera pixel clocks.
  • Minimal control/communication pass-through latency under 5 nanoseconds.
  • Functions as a repeater, effectively doubling the maximum distance between the camera and frame grabbers.
  • Multiple units can be cascaded to support configurations involving 4 or 8 frame grabbers.
  • Housed in a sturdy, compact aluminum enclosure with a mounting flange for secure installation.
  • Universal power supply included, accommodating various international standards.
  • Backed by a 3-year warranty, ensuring reliability and customer satisfaction.

Technical Specifications

  • Video Interfaces: Camera Link “full” configuration, including 80-bit extended mode.
  • Video Connectors: 26-pin MDR type.
  • Camera Frequency Range: 20-85 MHz.
  • Power Requirements: 425 mA at 5-7 VDC.
  • Dimensions: 5.28 x 2.08 x 5.12 inches.
  • Weight: 18 ounces.
  • Operating Temperature Range: 0° C to 50° C.
  • Compliance: FCC Class A, ROHS, CE EN55024 (pending).

Additional Considerations

The CLV-402 is equipped with standard MDR connectors. For cameras or frame grabbers featuring mini (HDR/SDR) connectors, compatible Camera Link cables with MDR to HDR/SDR connectors are readily available. Please note that the CLV-402 does not support Power over Camera Link (PoCL).

To maintain data integrity, it is recommended to limit Camera Link cable lengths based on camera clock frequencies:

  • 20-60 MHz: up to 10 meters.
  • 61-79 MHz: up to 7 meters.
  • 80-85 MHz: up to 5 meters.

For example, when using an 85 MHz camera, both the cable connecting the camera to the splitter and the cables connecting the splitter to the frame grabbers should not exceed 5 meters in length.

The Vivid Engineering CLV-402 Camera Link Video Splitter is an essential tool for enhancing imaging system capabilities, offering flexibility and efficiency in complex imaging applications.
