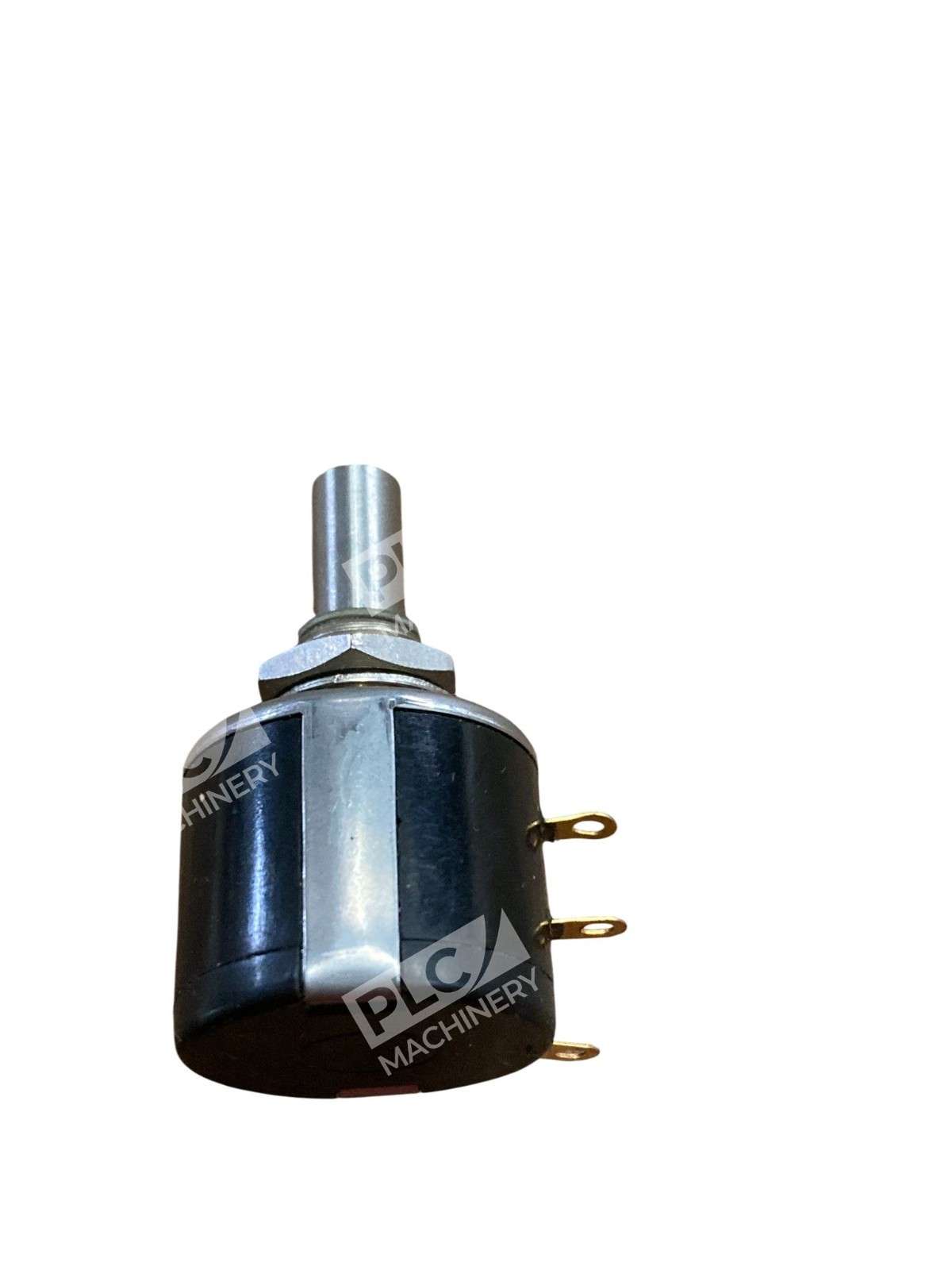

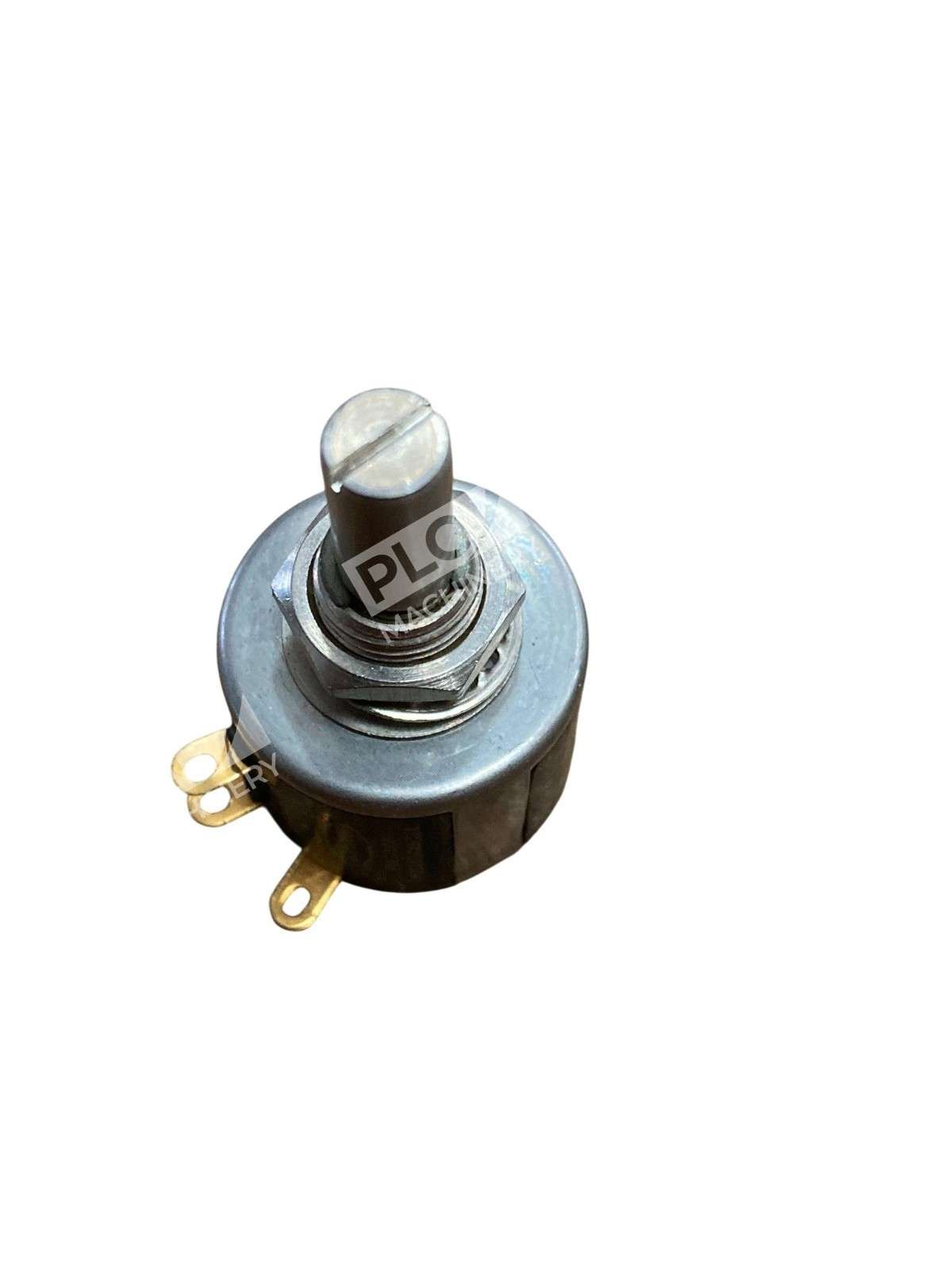

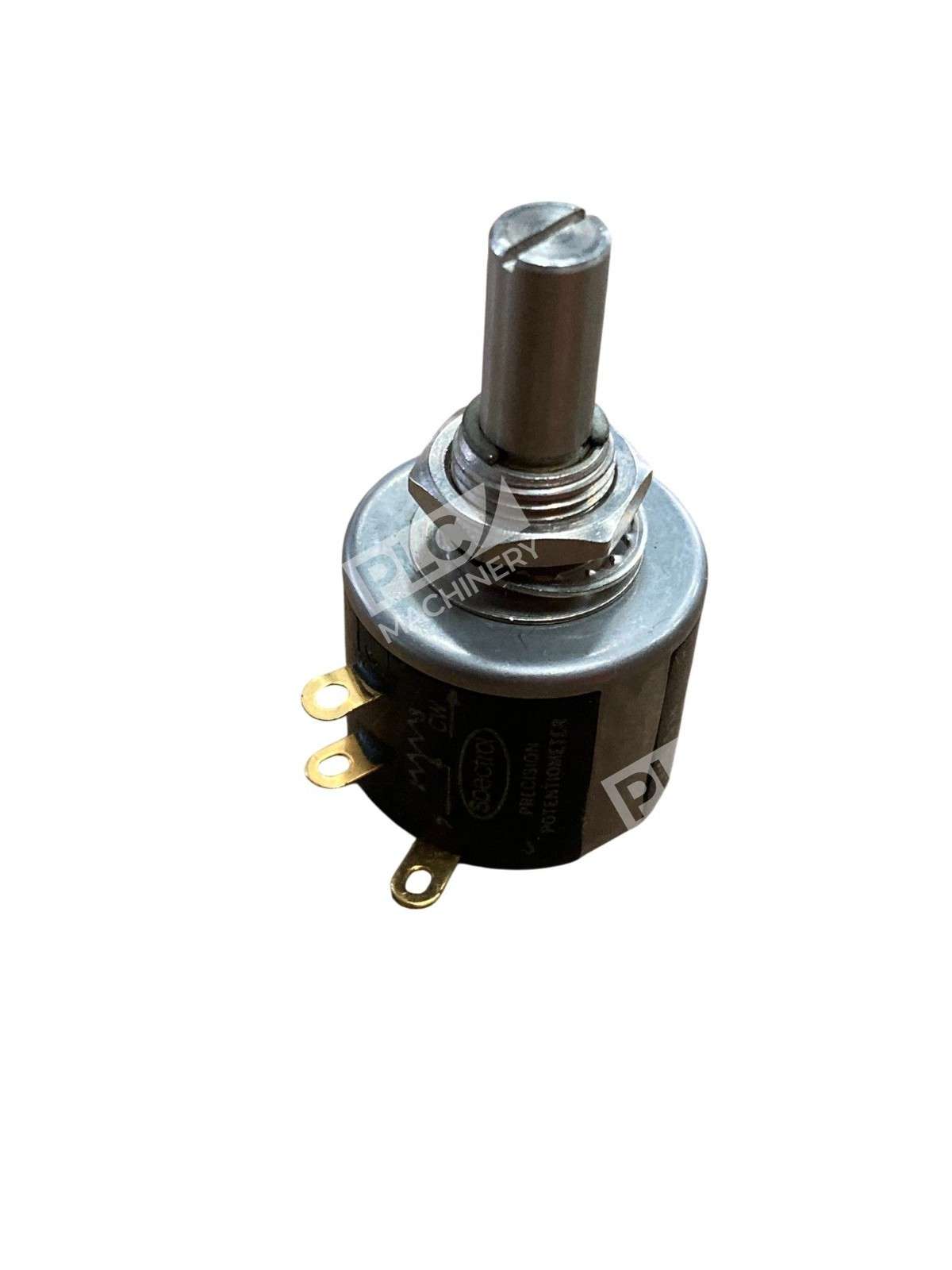

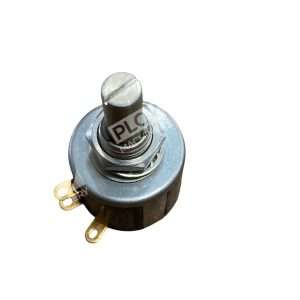

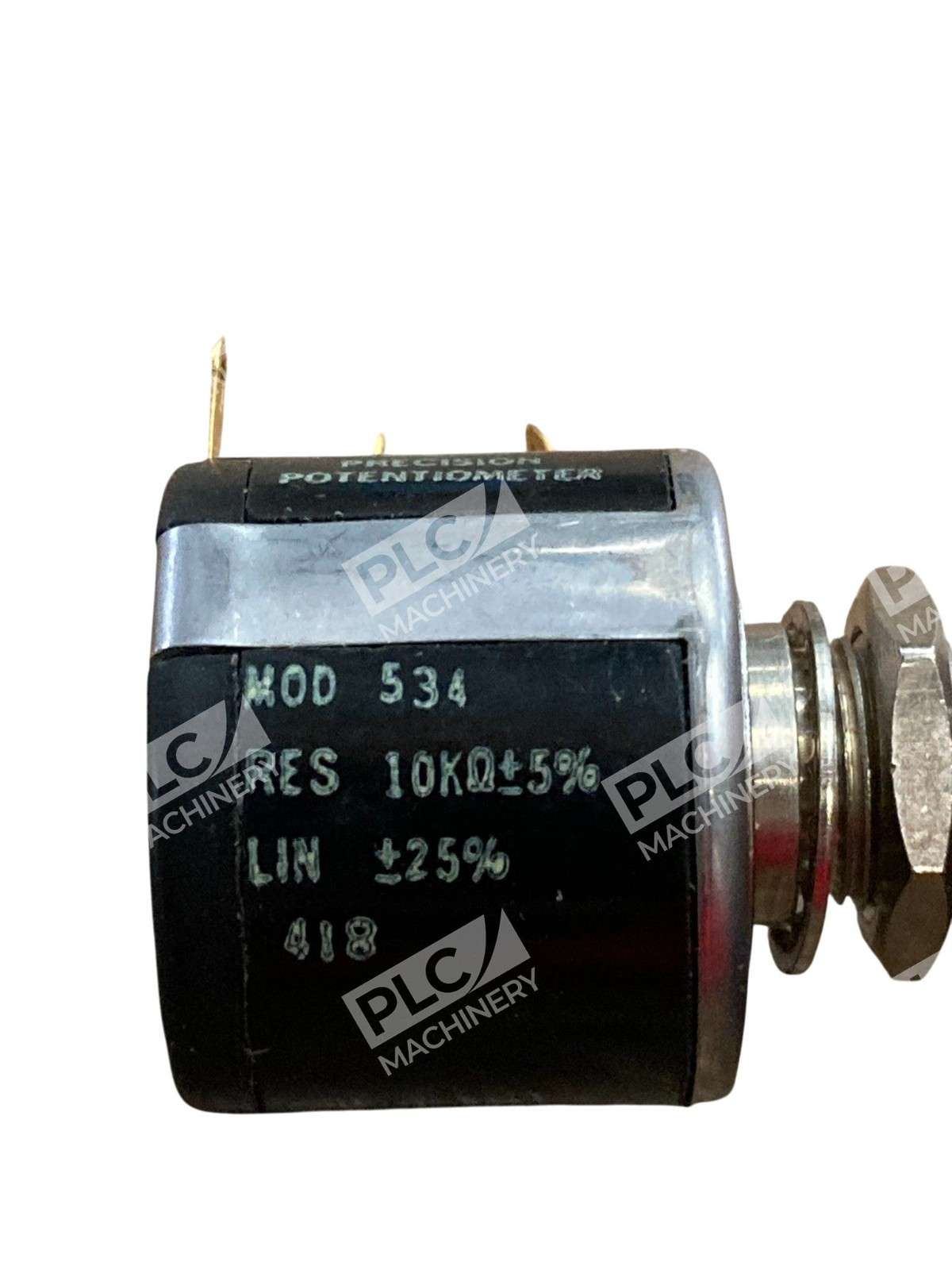

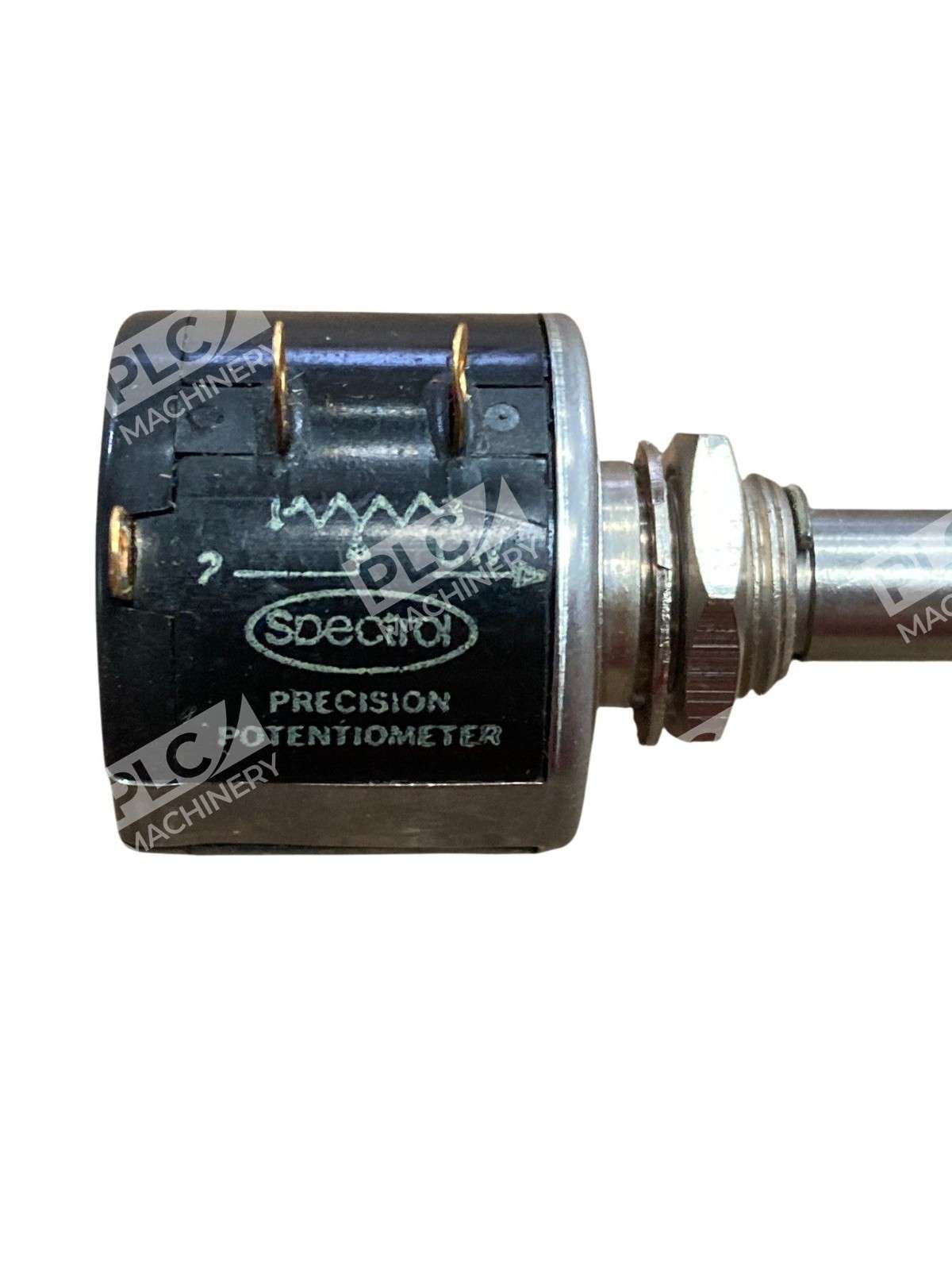

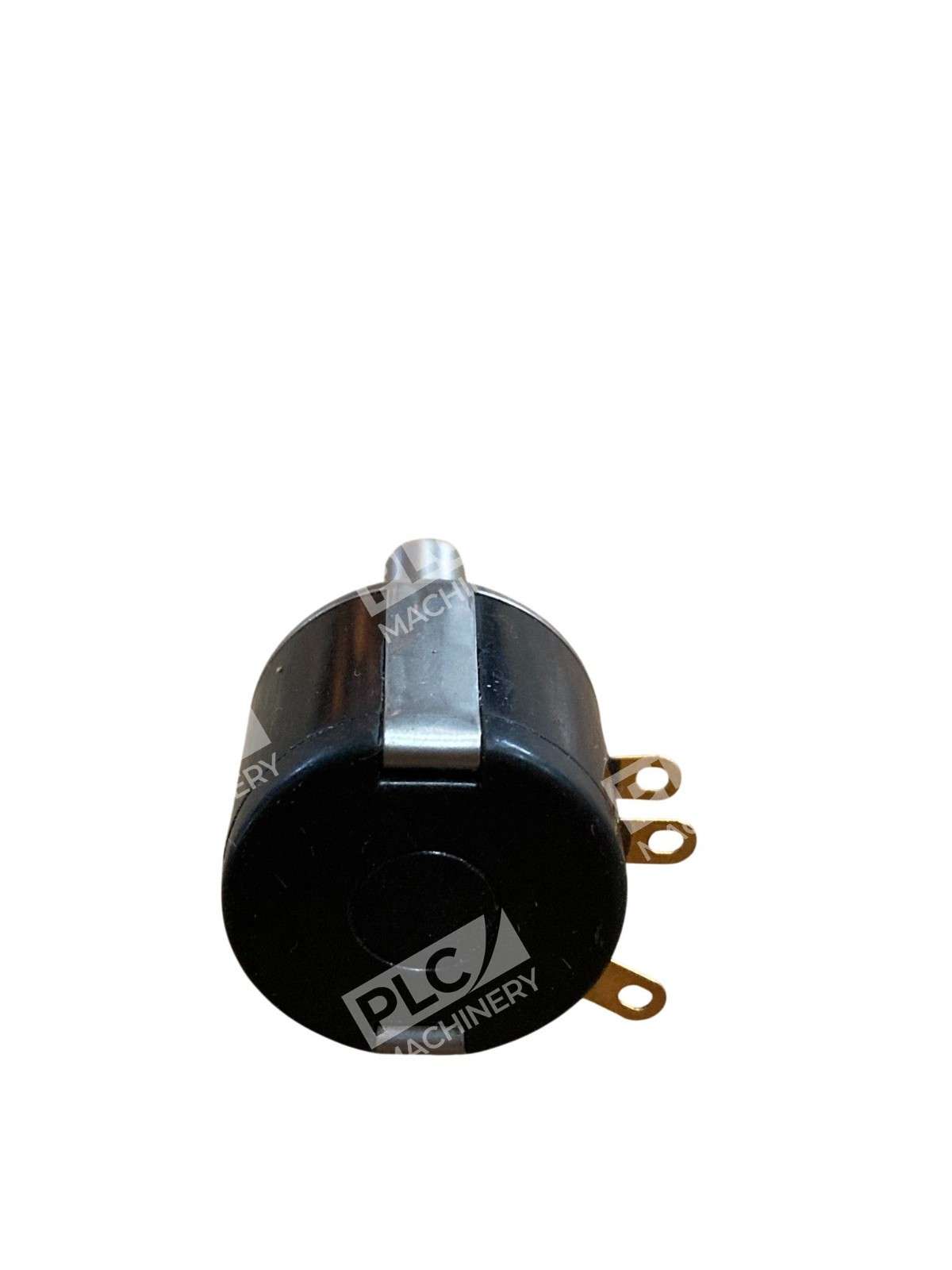

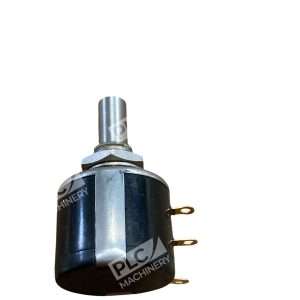

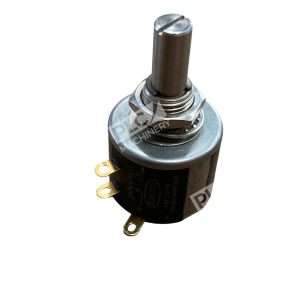

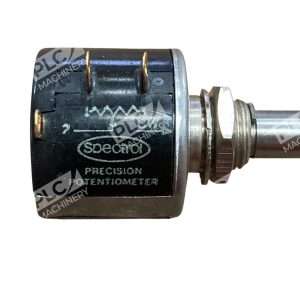

Vishay Spectrol 534 10-Turn Precision Wirewound Potentiometer 10KΩ ±5% 2W

Vishay Spectrol 534 10-Turn Precision Wirewound Potentiometer 10KΩ ±5% 2W

The Vishay Spectrol 534 series potentiometer is a high-precision, 10-turn wirewound device designed for applications requiring accurate and stable resistance adjustments. With a resistance value of 10KΩ and a power rating of 2W, this potentiometer is suitable for various industrial and electronic applications.

Key Features

• Resistance Value: 10KΩ
• Power Rating: 2W at 70°C
• Tolerance: ±5%
• Number of Turns: 10
• Linearity: ±0.25%
• Temperature Coefficient: ±20ppm/°C
• Adjustment Type: User-defined
• Mounting Type: Panel mount
• Termination Style: Solder lug
• Actuator Type: Slotted
• Actuator Length: 0.812″ (20.63mm)
• Actuator Diameter: 0.2497″ (6.34mm)
• Bushing Thread: 3/8-32
• Rotation: 3600°
• Number of Gangs: 1
• Resistive Material: Wirewound

Applications

The Vishay Spectrol 534 potentiometer is ideal for use in:

• Industrial control systems
• Test and measurement equipment
• Audio and video equipment
• Medical devices
• Robotics and automation

Benefits

• Provides precise control over multiple settings
• Delivers reliable performance in demanding environments
• Offers a long lifespan due to its robust construction
• Easy to integrate into existing designs

With its robust design and precise control capabilities, the Vishay Spectrol 534 10-Turn Precision Wirewound Potentiometer is a reliable choice for applications requiring accurate resistance adjustments.
