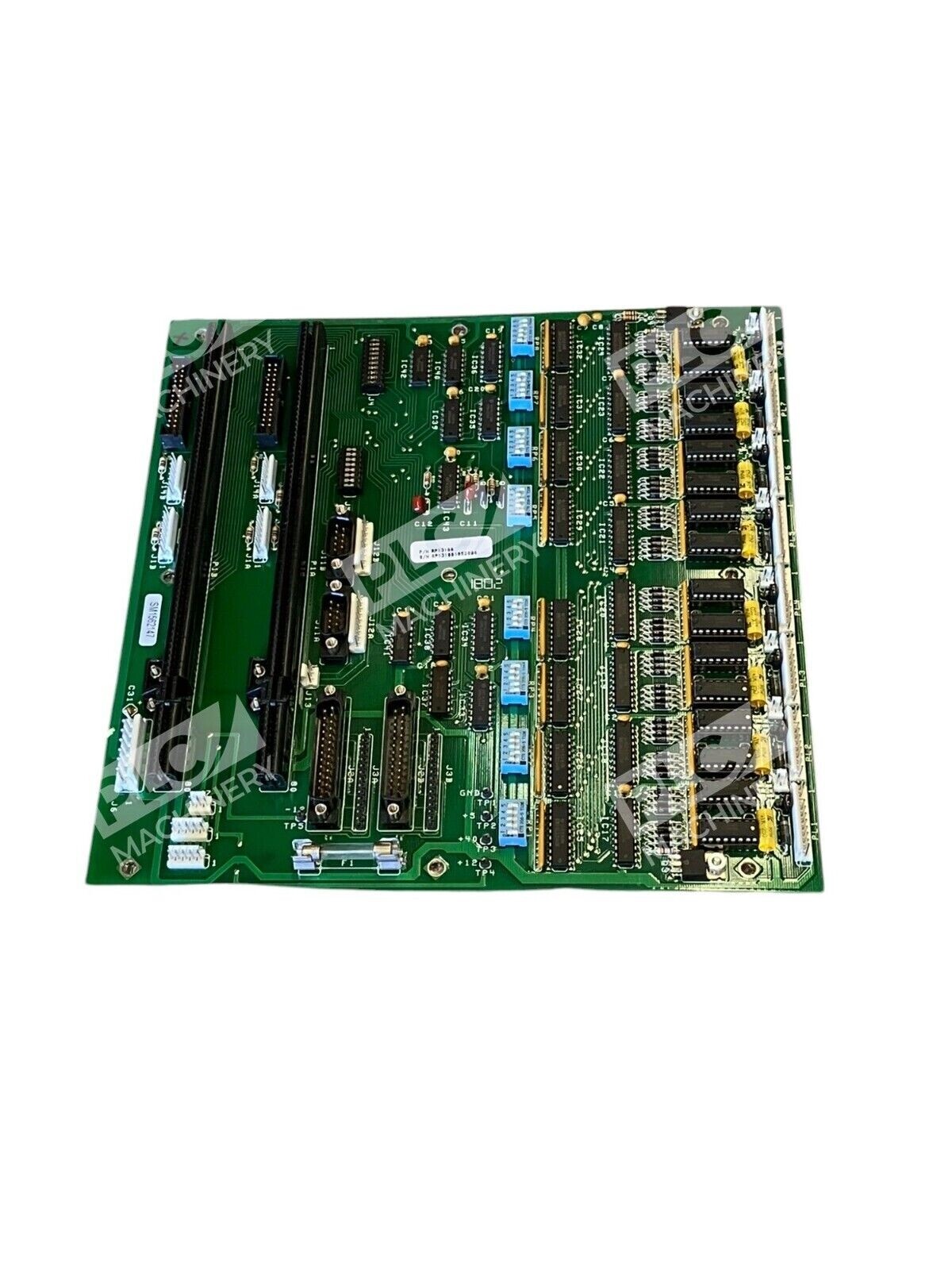

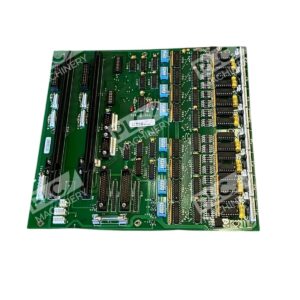

The Videojet Marsh Unicorn PCB Circuit Board Assembly RP13166 is a critical component designed for the Marsh Unicorn large character marking system. This assembly serves as the central control unit, managing the printer’s operations to ensure precise and reliable case coding.
Key Features
- Integrated Control: The RP13166 board orchestrates the functions of the Marsh Unicorn printer, facilitating seamless communication between various components.
- Durable Construction: Engineered for industrial environments, this PCB assembly is built to withstand the rigors of continuous operation.
- Compatibility: Specifically designed for the Marsh Unicorn system, ensuring optimal performance and easy integration.
Specifications

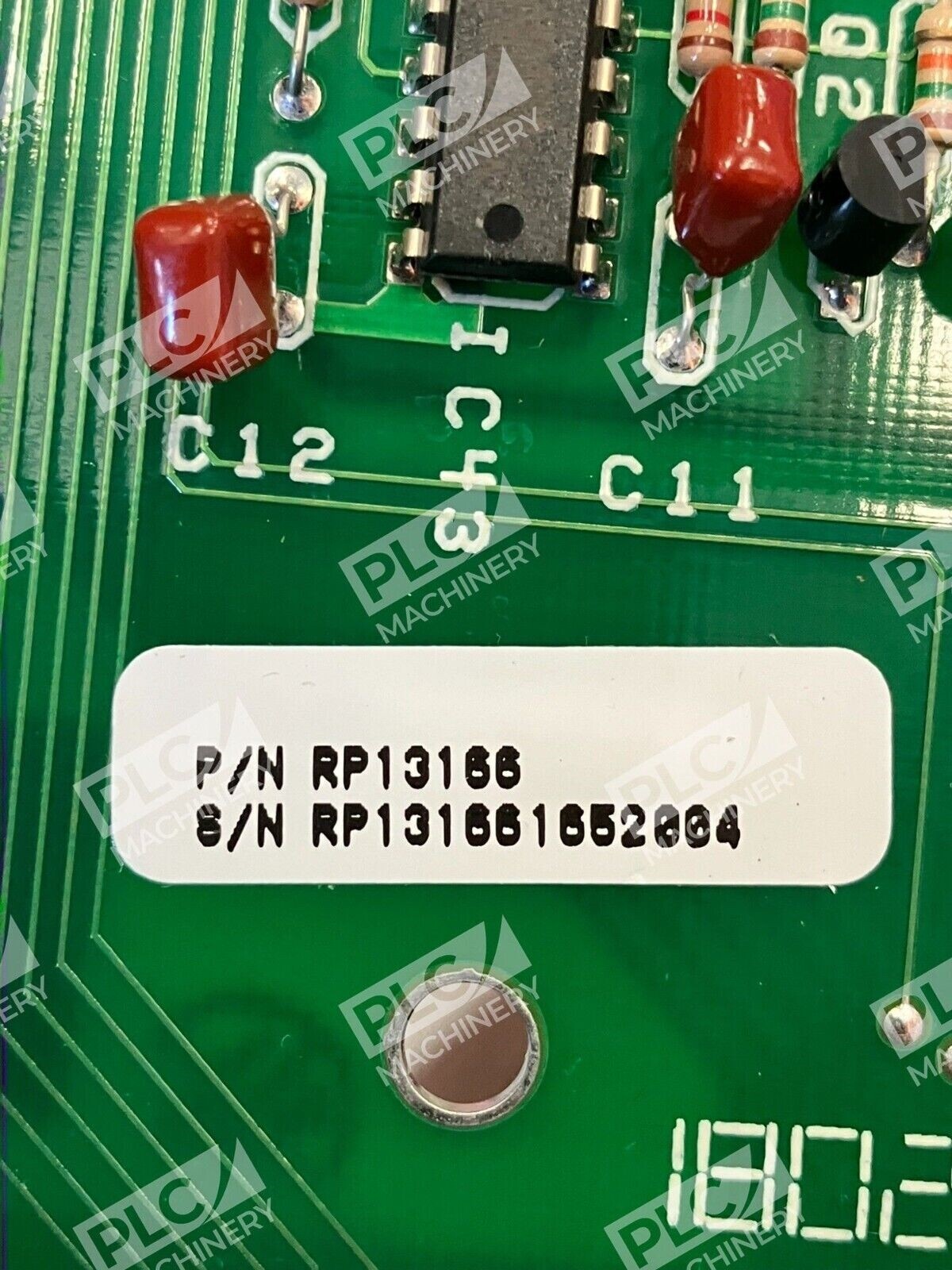

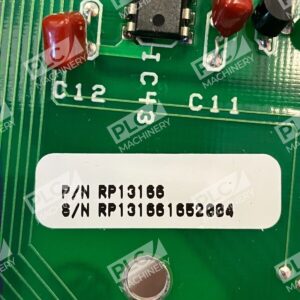

- Part Number: RP13166
- Weight: Approximately 3 kg
- Dimensions: 30 cm x 25 cm x 18 cm
- Warranty: 1 Year
Installation and Maintenance
Replacing the RP13166 circuit board involves the following steps:
- Preparation: Ensure the printer is powered off and disconnected from any power source.
- Accessing the Controller: Remove the controller from its mounting frame by unscrewing the mounting tabs.
- Removing the Old Board: Carefully disconnect all wiring from the existing circuit board, noting the connections for accurate reassembly.
- Installing the New Board: Place the RP13166 board into position, reconnect all wiring as per the original configuration, and secure the controller back onto its mounting frame.
For detailed instructions, refer to the Marsh Unicorn Technical Manual.
Ordering Information
The RP13166 circuit board assembly is available for purchase through authorized Videojet distributors and select industrial equipment suppliers. Ensure compatibility with your existing Marsh Unicorn system before ordering.
Incorporating the RP13166 PCB Circuit Board Assembly into your Marsh Unicorn printer ensures continued high-quality performance and reliability in your case coding operations.
